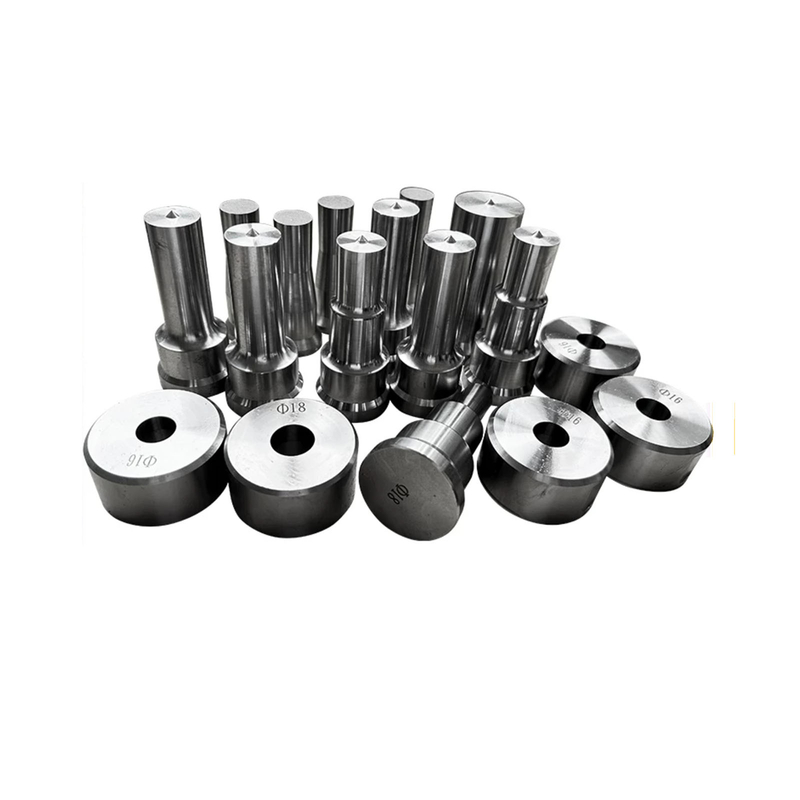

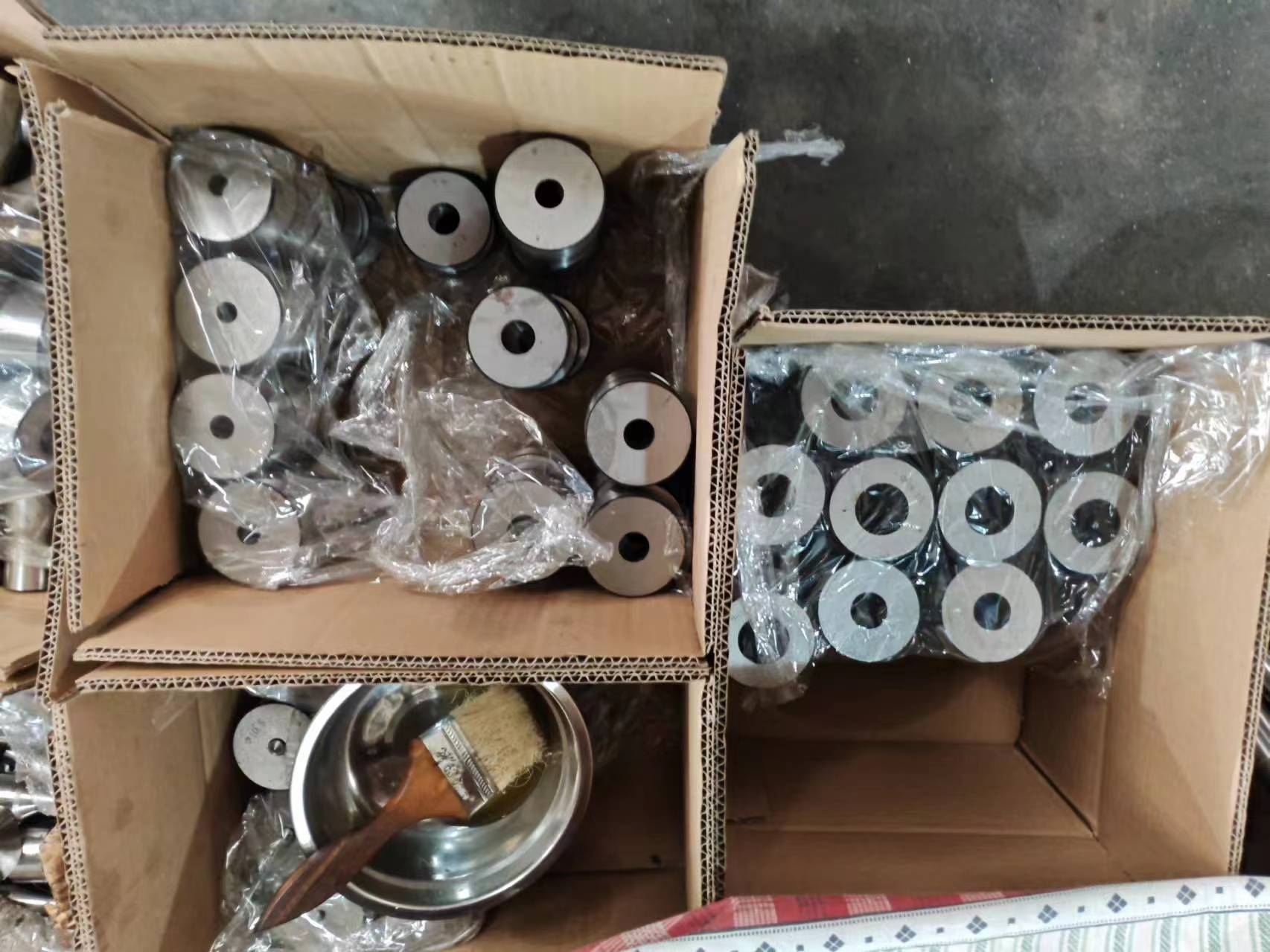

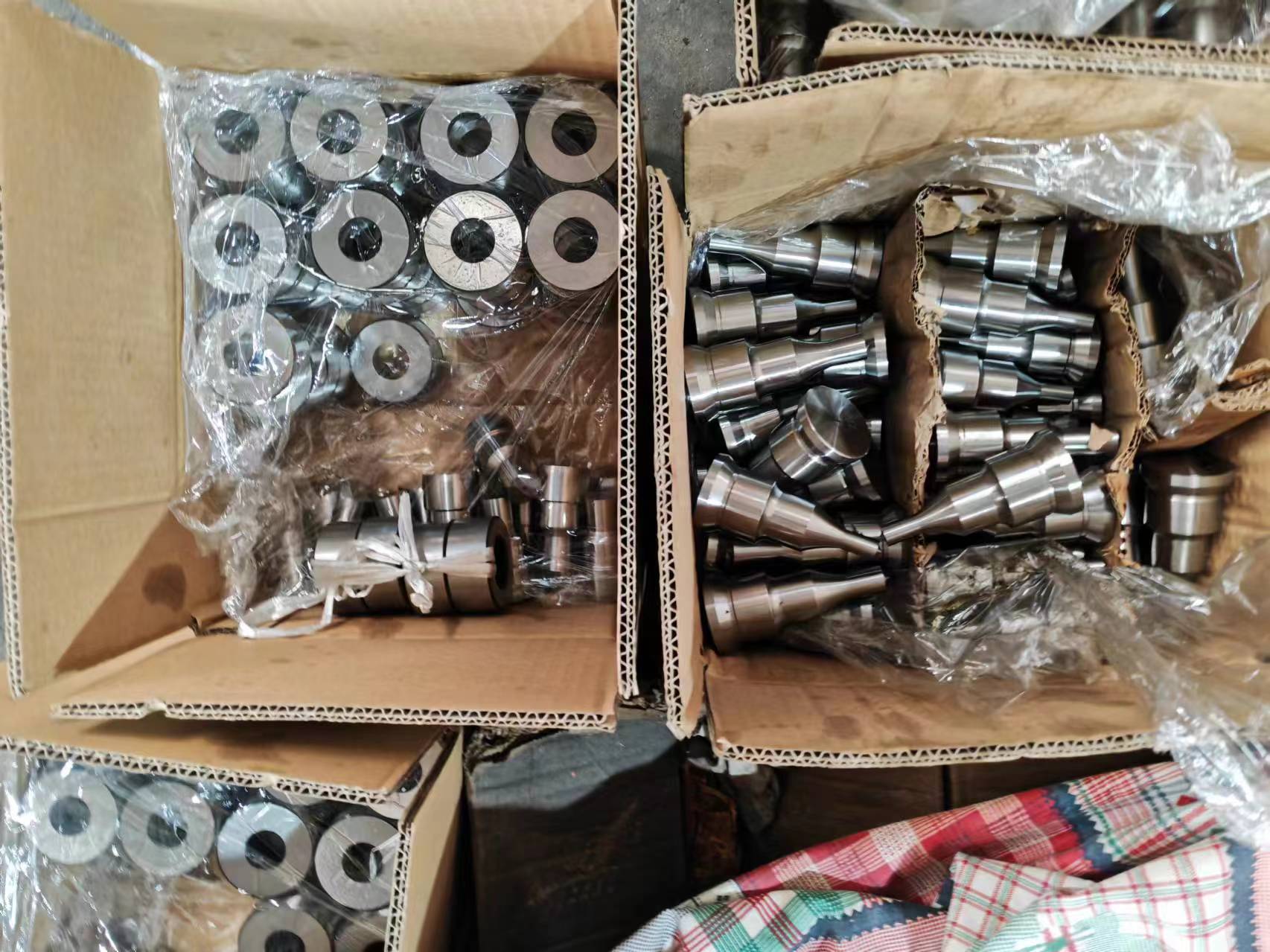

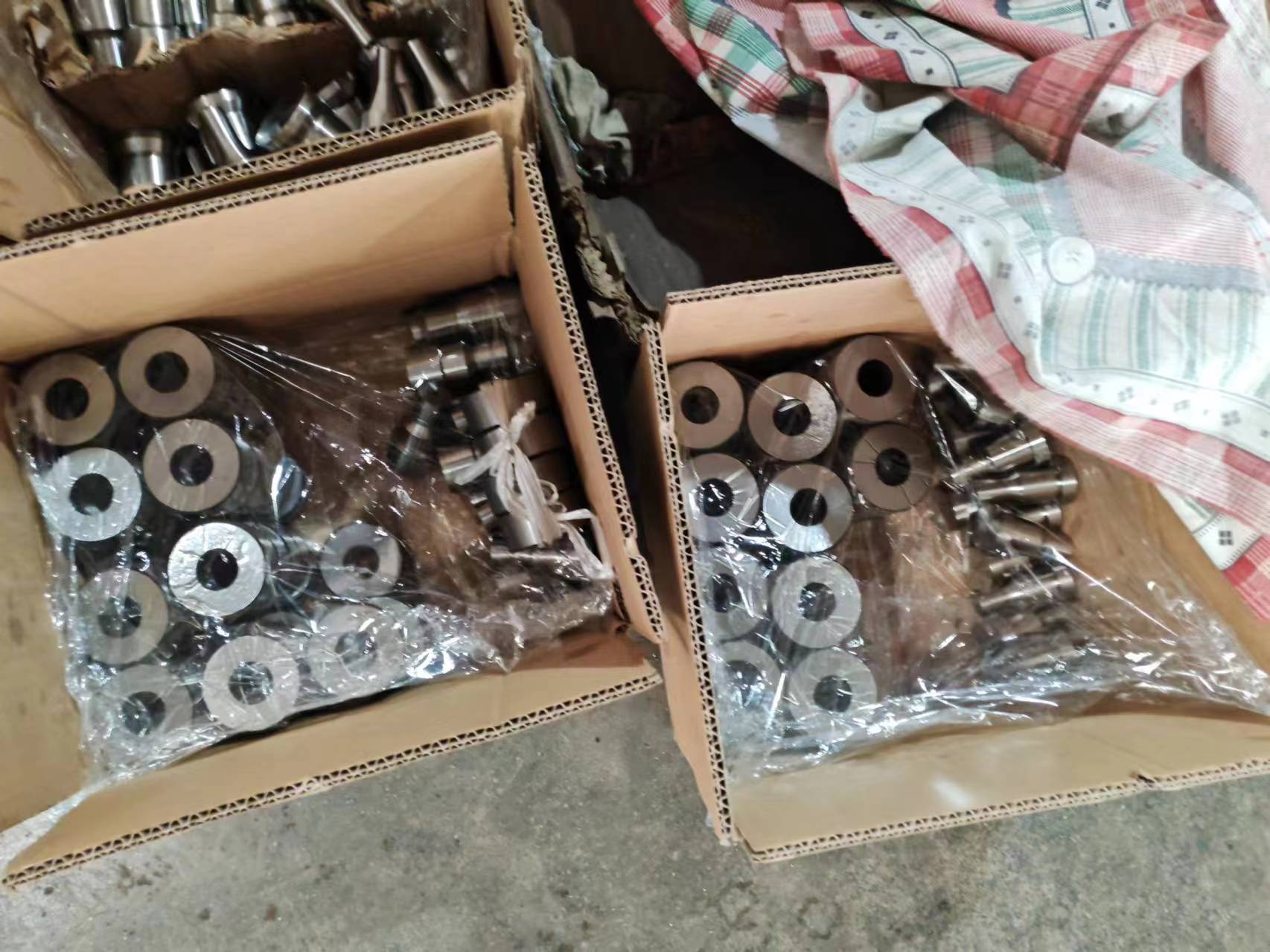

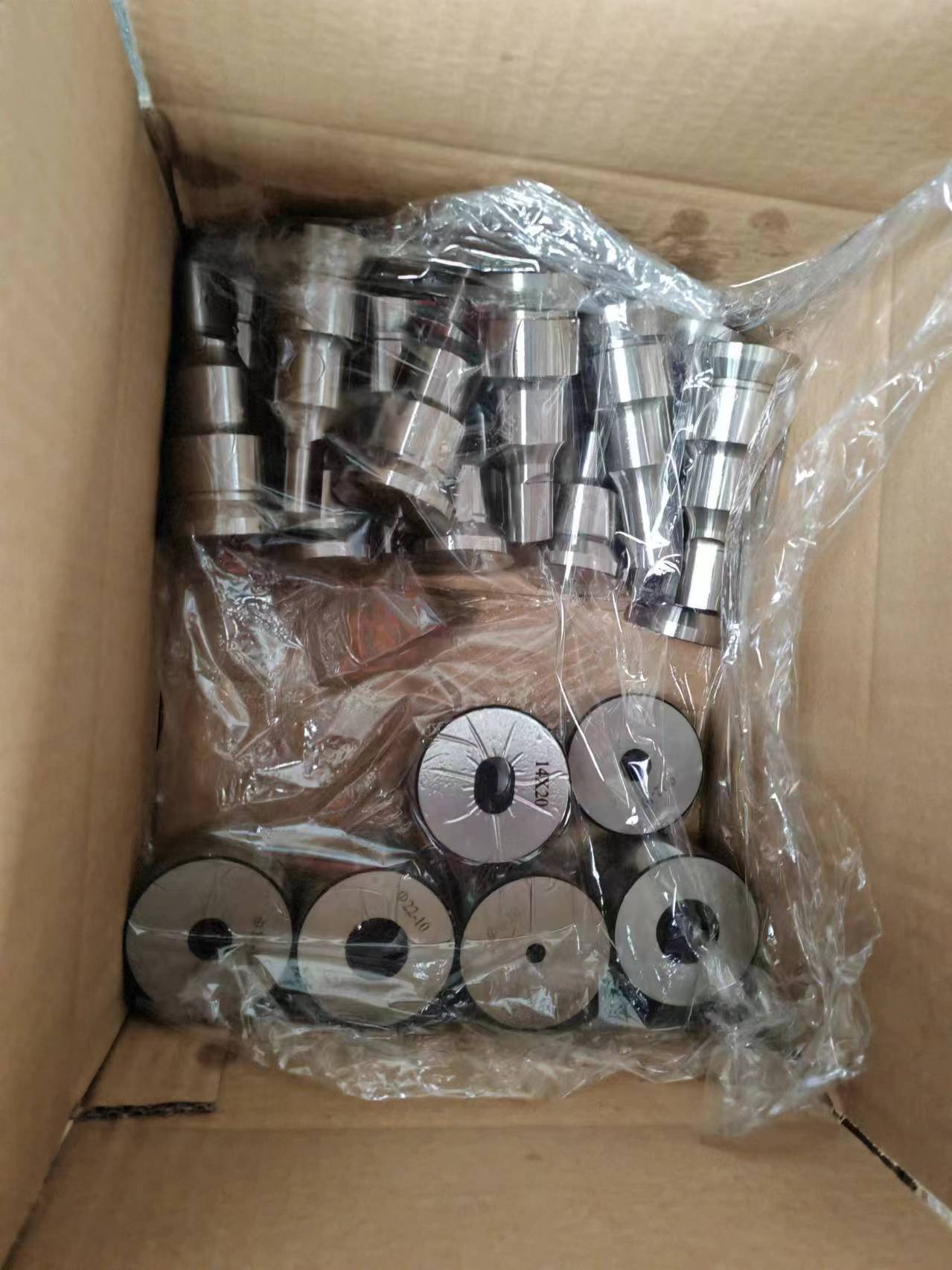

Custom Ironworker Punches and Dies

Our custom ironworker punches are designed to expand the capabilities of your steel fabrication shop. Whether you require standard round holes or complex custom geometries such as oblong, hexagonal, or keyed shapes, we provide precision-engineered solutions tailored to your specifications. Manufactured from superior shock-resistant steels like DC-53 and Cr12mov, our punches undergo a rigorous vacuum heat-treatment process to ensure a perfect balance of surface hardness and core toughness. This engineering prevents shattering and premature wear, ensuring consistent, high-speed punching performance even through thick structural steel.

Port:
Nanjing, China
Payment Terms:
T/T, Money Gram

Availability:

Quantity:



Inquire Add to Basket

Solving Fabrication Challenges with Custom Ironworker Punches

Standard round holes fall short for complex structural steel projects. When off-the-shelf tooling fails, custom ironworker punches deliver precision—with performance dependent on die steel choice (9CrSi, Cr12MoV/SKD-11, DC53) to meet specialized needs.

Why Custom Ironworker Punches?

Standard punches work for general tasks, but custom options solve complex challenges with these key advantages:

Special Geometries: Hex, star, or complex patterns for decorative and structural needs.

Unique Dimensions: Specific diameters for specialized fasteners (not in standard kits).

Extended Reach: Longer/offset designs for hard-to-access areas on structural beams.

Custom Punch Materials

Material choice is critical for custom punches. Below are three key die steels, with their chemical compositions, performance impacts, and applications:

9CrSi – Entry-Level Economical Die Steel

Chemical Composition (Typical): C: 0.85-0.95%, Cr: 1.20-1.60%, Si: 1.00-1.30%, Mn: ≤0.40%, P: ≤0.030%, S: ≤0.030%.

Performance Impact: Moderate carbon ensures basic hardness/wear resistance; chromium boosts hardenability/corrosion resistance; silicon enhances toughness/heat resistance. Easy to machine, cost-effective, and low-chipping for low-intensity use.

Application: Basic punching/shearing for ordinary sheet metal (low-frequency use), ideal for low-cost entry-level custom dies.

Cr12MoV/SKD-11 – Standard-Grade Die Steel

Chemical Composition (Typical): C: 1.45-1.70%, Cr: 11.00-13.00%, Mo: 0.40-0.60%, V: 0.15-0.30%, Mn: ≤0.40%, Si: ≤0.40%, P: ≤0.030%, S: ≤0.030%.

Performance Impact: High carbon/chromium form wear-resistant carbide (HRC 60-64); molybdenum resists high-temperature softening; vanadium balances wear resistance/toughness for stable conventional use.

Application: Covers most sheet metal punching/shearing scenarios, the mainstream standard for general-purpose custom punches.

DC53 – High-Performance Upgraded Die Steel

Chemical Composition (Typical): C: 1.00-1.10%, Cr: 8.00-9.00%, Mo: 2.00-2.50%, V: 0.80-1.10%, Si: 0.80-1.10%, Mn: 0.30-0.60%, P: ≤0.025%, S: ≤0.010%.

Performance Impact: Modified Cr12MoV with extra molybdenum/vanadium to eliminate brittleness. Balances wear resistance/toughness; low impurities ensure uniformity. Optimal HRC for high-tonnage, precise custom punching.

Application: Ideal for high-intensity, high-precision custom punches and complex metalworking tasks.

Material recommendations for Ironworker Punches

Material	Applicable Working Conditions	Core Advantages	Core Disadvantages
9CrSi	Light-duty machines, ≤5mm thin/soft materials, small-batch	Good toughness, low cost, entry-level general-purpose	Average wear resistance, not for thick/high-strength conditions
Cr12MoV	Small-medium tonnage, ≤10mm ordinary steel/profiles, regular batch	High cost-effectiveness, wear-resistant, small deformation, strong versatility	Average high-impact resistance, not for thick/hard materials
DC53	Small-medium tonnage, 8-15mm medium-thick/low-alloy steel, complex profiles	High toughness, wear-resistant, stable quenching, longer service life	Slightly higher cost than Cr12MoV, upgraded pricing

Custom Order Process

Requirement Analysis:

Share material type, thickness, and performance needs to select die steel.

Drawing/Template:

Provide a CAD file or sketch of the punch shape/dimensions.

Precision Manufacturing:

CNC facilities ensure micron-level tolerances, preserving material performance.

Fast Shipping:

Timely delivery to keep production on track.

Conclusion

Don’t let standard tooling limit production. Custom ironworker punches—paired with the right die steel (9CrSi for economy, Cr12MoV/SKD-11 for standard use, DC53 for high performance)—let you tackle complex contracts with precision. Material chemistry directly drives performance, ensuring your custom punches meet project demands.
