High-Performance Hydraulic Shear Blade Blocks: Maximize Rebar Cutting Efficiency
For heavy construction and metalworking operations, hydraulic shear blade blocks are the heart of every hydraulic rebar cutter — they directly determine how well your equipment runs. Constant friction, extreme pressure and repeated cuts on high-grade rebar will wear down blade edges quickly. This leads to unexpected downtime and puts extra strain on your hydraulic system.
Switching to high-quality shear blade blocks is the simplest way to get your machines back to peak performance and cut down on operating costs. Drawing on our in-depth knowledge of materials, structural design and real-world site experience, this guide will help you pick the right Cr12MoV and H13 blade blocks for all types of rebar cutters.
1. Material Comparison: Cr12MoV vs H13 vs 9CrSi
Cheap generic blades easily chip or bend when cutting high-strength rebar. Our industrial-grade shear blade blocks are forged from premium die steels. Below is a straightforward comparison of the three most common materials, covering hardness, toughness, wear resistance and actual on-site uses:
| Material | Hardness (HRC) | Toughness | Wear Resistance | Ideal Application for Hydraulic Shear Blade Blocks |
| Cr12MoV (High-carbon high-chromium tool steel, equivalent to SKD-11) | 55-62 | Medium (Prone to brittleness under heavy impact) | Excellent | Ideal for bulk cutting cold-rolled rebar, threaded bars and plain round steel. The 4-way rotatable design quadruples service life and delivers clean, burr-free cuts. |
| H13 (Premium hot work die steel) | 50-55 | Excellent (Strong impact resistance) | Very Good | Perfect for Grade 60+ deformed rebar, high-speed cutting and scrap steel recycling. It stands up well to thermal fatigue and effectively stops blade edges from chipping. |
| 9CrSi (Cost-effective alloy tool steel) | 55-64 | Medium | Medium | A budget-friendly choice for small and medium projects, suited for regular low and medium-strength rebar. Note: This material is hard but brittle, so do not use it for high-impact cutting jobs. |
Core Advantages of Cr12MoV Blade Blocks (High Hardness & 4-Way Rotation)
Our heavy-duty shear blocks are made from Cr12MoV high-carbon high-chromium alloy and treated with professional vacuum heat treatment. Here are its key strengths:
Great hardness and wear resistance: Rated at 58-62 HRC, it cuts Grade 60 rebar, cold-rolled round steel and threaded bars steadily for long runs.
Superior cutting results: Cuts come out spark-free and completely burr-free, so no extra finishing work is needed.

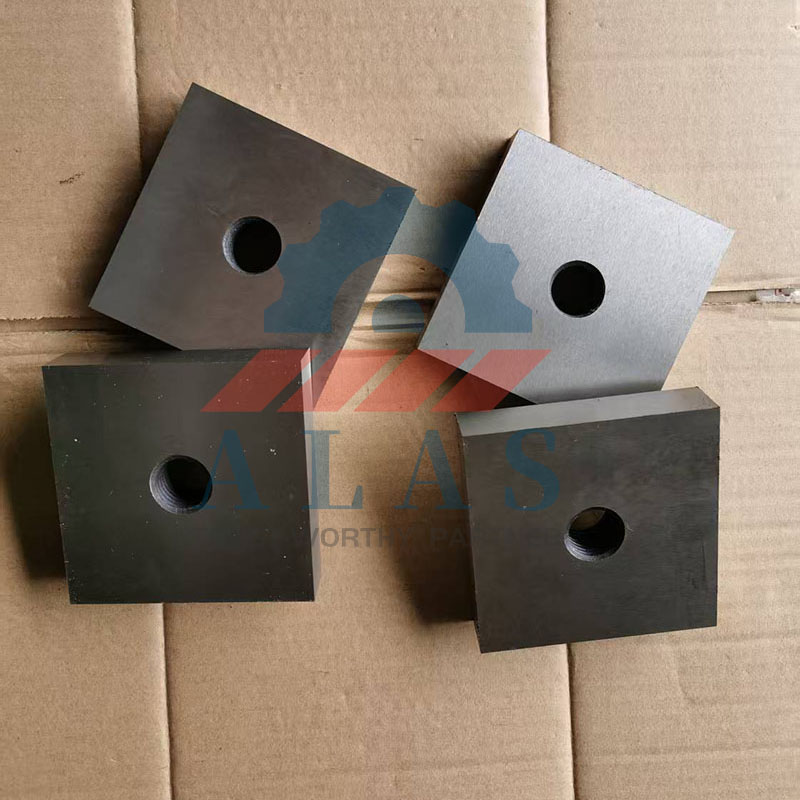

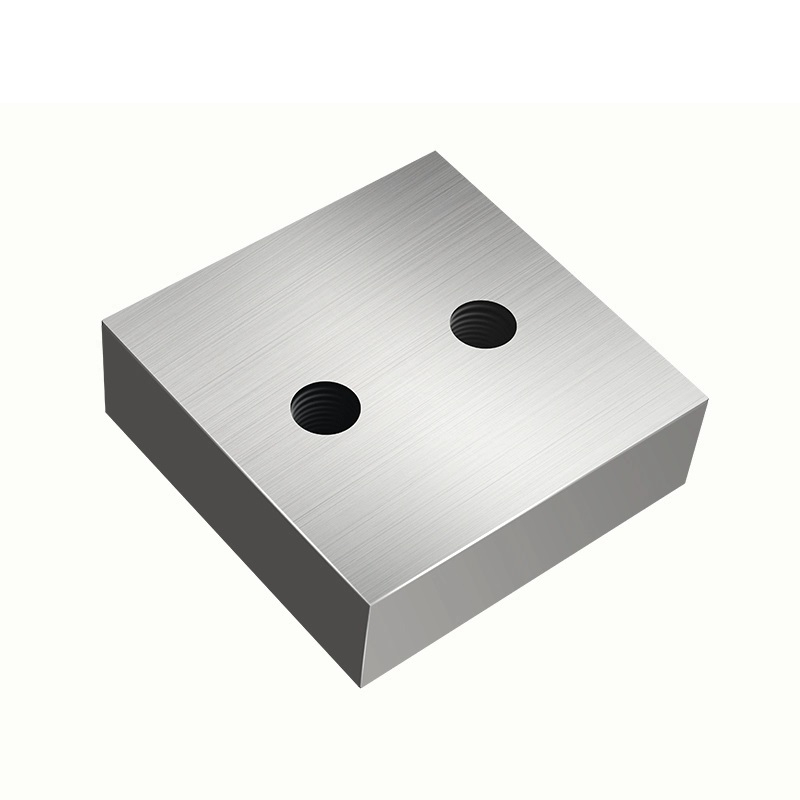

4-way rotatable design (Key feature): Each precision ground square or rectangular block has four separate cutting edges. When one edge wears out, just loosen the bolts, turn the block 90 degrees and retighten the fasteners. You’ll have a brand new sharp edge ready to use. In practice, one set works four times longer than standard blades.
Note: Cr12MoV only offers moderate toughness. Avoid using it for heavy impact work or when blade clearance is too large. Go with H13 for high-impact applications.
2. 4-Way Rotatable Design: One Set Does the Work of Four
On construction sites, less maintenance means higher productivity. Our replacement blades for portable hydraulic rebar cutters feature a practical 4-position rotating structure:
Each block comes with four usable cutting edges. Simply rotate it 90 degrees once one edge wears down. Every set also includes heavy-duty hex socket bolts and spring lock washers for full installation.
Main benefits: 4x longer service life, lower cost per cut, and far less downtime for maintenance.
3. Universal Compatibility & Easy Installation
Equipment downtime always means lost profits. All our shear blade blocks are CNC machined to match standard OEM dimensions exactly. You can install them straight out of the box with no extra grinding or adjustment required. We currently support the models listed below, and our compatible range keeps expanding:

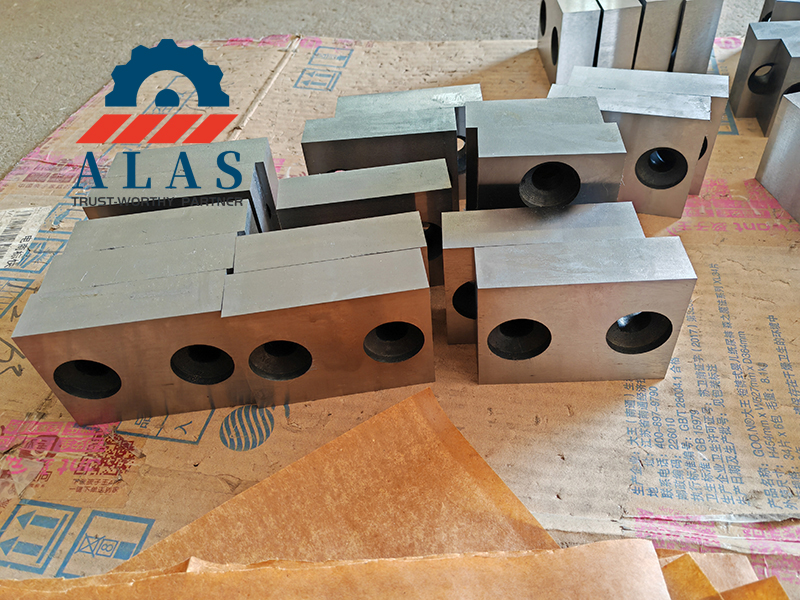

Chinese Domestic Models GQ40, GQ50, GQ60 Global Universal Models M36, M45, M55 H38, H45, H52 B36, B45, B50 C36, C42, C50 Korean Series SMC-32, SMC-42, SMC-52 KMC-25A, KMC-32A, KMC-42A, KMC-55 TYC-HD32, TYC-HD42, TYC-HD55 Handheld Hydraulic Rebar Cutters HBC-19, HBC-25, HBC-32 Professional Tip: Blade sizes vary by manufacturer and production batch. The above models are for reference only. Always check your equipment manual or measure your old blade first to ensure a perfect fit.
4. Troubleshooting: Fix Blade Chipping & Early Wear
Blade chipping and fast wear are the two most frequent issues on job sites. In most cases, these problems happen because the blade material does not match your working conditions, or the blade clearance is set incorrectly.
| Problem | Root Cause | Solution |
| Edge chipping / Fracture | Using low-toughness Cr12MoV for high-impact deformed rebar; improper gap between upper and lower blades | Switch to impact-resistant H13 material; adjust blade clearance according to rebar size |
| Blunt blades too quickly | Using soft 9CrSi blades on high-strength rebar; cutting scrap steel mixed with sand and gravel | Upgrade to wear-resistant Cr12MoV or tough H13; H13 is the top pick for scrap steel cutting |
| Uneven cuts / Heavy burrs | Worn blade edges or misaligned blade holders | Rotate to a new cutting edge; realign and recalibrate the holders |
5. Maintenance Tips to Extend Blade Lifespan
Set blade clearance properly: Adjust the gap between upper and lower blades based on rebar diameter, to prevent excessive friction and hard impacts.
Keep edges sharp and aligned: This cuts power consumption and ensures flat, clean cuts for later welding and thread rolling.
Choose materials based on your rebar type:
High-strength deformed rebar & high-impact cutting → H13
Cold-rolled round steel, threaded bars & regular hard rebar (low impact) → Cr12MoV
Standard rebar for small and medium projects → 9CrSi
Check fasteners regularly: Replace loose or rusted bolts and spring washers in a timely manner.
6. Quick Selection Guide
Pick the right blade block based on your rebar type and daily cutting volume:
| Rebar & Working Condition | Recommended Material | Reason |
| Grade 60+ high-strength deformed rebar, continuous high-impact cutting | H13 | Excellent impact resistance stops edges from chipping |
| Bulk cutting cold-rolled round steel, threaded bars & regular hard rebar (low impact) | Cr12MoV | Great wear resistance plus 4-way rotation for longer service life |
| Small and medium projects, regular low/medium-strength rebar | 9CrSi | Cost-effective and easy to maintain |
| Scrap steel & rusted rebar mixed with sand and gravel | H13 or high-nickel alloy | Balanced wear resistance and impact resistance |
7. Manufacturing Standards for Premium Blade Blocks
Not all shear blade blocks deliver reliable performance. Qualified products must follow strict production standards:
Fully precision ground and vacuum heat treated: Ensures even hardness across the entire block, avoiding partial wear and chipping.
Strong edge retention: Blades stay sharp even after long hours of continuous cutting, so you replace parts less often.
Reliable toughness: H13 resists fracture when cutting high-strength rebar; Cr12MoV holds its sharpness well under heavy wear.
We also offer custom rebar shear blade blocks to solve two common industry headaches. H13 blades effectively stop chipping when cutting high-strength rebar, while Cr12MoV blades handle fast wear on hard rebar. By optimizing hardening depth and material toughness, we deliver dependable solutions for all kinds of construction work.
Conclusion: Don’t Let Dull Blades Slow You Down
Upgrade your equipment with our heavy-duty hydraulic shear blade blocks today. Choose materials to suit your needs: Cr12MoV for superior wear resistance, H13 for strong impact resistance, and 9CrSi for cost savings. Match the blade specifications to your cutter model and follow regular maintenance rules, and you will get these clear benefits:
4x longer service life thanks to the 4-way rotatable design (especially for square Cr12MoV blocks)
Fewer replacements, lower overall procurement and shipping costs
Clean, burr-free cuts to speed up all follow-up processes
Want to bring your rebar cutter back to full working condition? Get in touch with ALAS Machinery. We can make custom hydraulic shear blade blocks tailored to your rebar sizes, machine models and daily cutting capacity.
