| Quantity: | |
|---|---|
Square blades: 4 usable edges, longer life, for high-volume work
Rectangular blades: 1 or 2 edges, for small-tonnage cutters

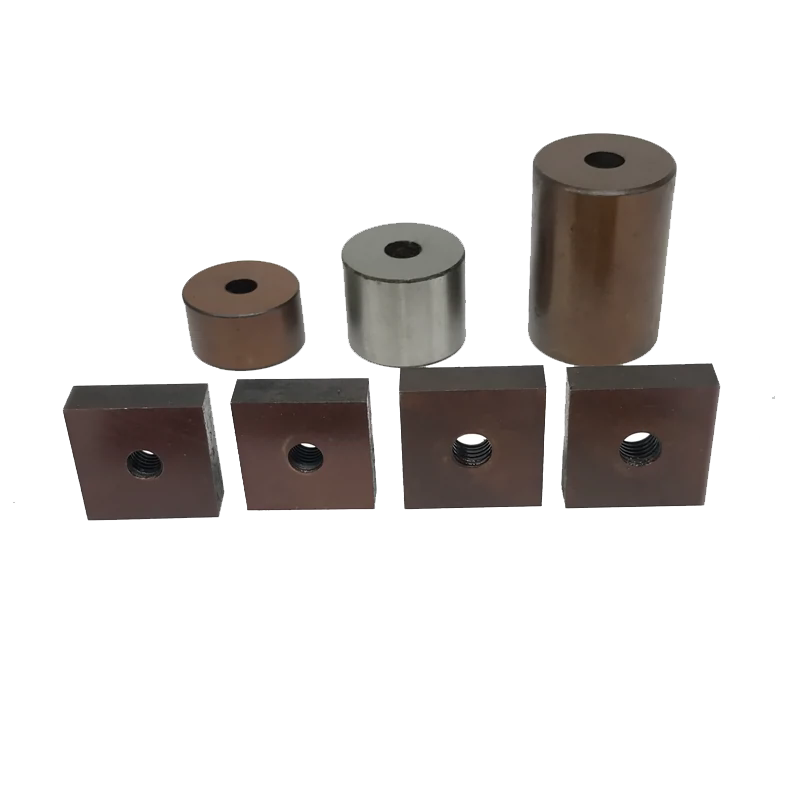

GQ40, GQ50, GQ60 all use standard sizes
Always follow your machine manual
Even hardness
Sharp edge lasts longer
Less chipping and dulling
High wear resistance and toughness
Stable under heavy use
Fewer replacements, lower shipping and customs costs
Low-cost, reliable choice
Good for standard rebar
Popular in small and medium projects
4 sharp edges per blade
Rotate 90° when one edge wears
Standard sizes: 80x80x25mm, 110x110x28mm
Perfect fit, safe for your machine
Clean, straight cuts for threading and welding
Works well on TMT bars, carbon steel, high-tensile rebar
Consistent results every time
Reduce chipping and breaking
Engineering help for difficult jobs
Less downtime with better design
ALAS HardnessMap QC for stable quality
| NO. | Product Name | Specification Dimensions (length x width x height/thickness) ） | Material | Remarks |
| 1 | rebar cutting blade size | 78*78*17 mm | 9crsi，SKD-11，H13 | Customization services are available; we can manufacture according to your drawings, with a minimum order quantity of 2 piece. |
| 2 | 80*80*17 mm | |||
| 3 | 80*80*30 mm | |||
| 4 | 83*83*16 mm | |||
| 5 | 83*83*26 mm | |||
| 6 | 83*83*26 mm | |||
| 7 | 90*90*20 mm | |||
| 8 | 90*90*26mm | |||
| 9 | 100*100*20 mm | |||
| 10 | 100*100*30 mm | |||
| 11 | 110*110*20mm | |||
| 12 | 100*30*75 mm | |||
| 13 | 85x65x30 mm |
Base Grade | Steel Category | Chinese Standard GB/T 1299 | American Standard ASTM | German Standard DIN (W-Nr.) | Japanese Standard JIS |
H13 | Hot Work Die Steel | 4Cr5MoSiV1 | H13 | 1.2344 | SKD61 |
Cr12MoV | Cold Work Die Steel | Cr12MoV | 1.2601 | SKD11 | |
9CrSi | Alloy Tool Steel (Cutting Tool Steel) | 9CrSi | 1.2108 |
Core Principles: Power off and stop completely → Confirm no pressure → Standard disassembly and assembly → Precise adjustment → Test run verification. Avoid pressurized and live electrical operation throughout the process to prevent blade pinching injuries and accidental equipment startup risks.
Turn off the main power supply of the cutting machine, unplug the power cord/switch off the circuit breaker; manually rotate the equipment flywheel to confirm that the blade holder has no inertial movement and is completely stationary, preventing accidental equipment startup.
Loosen the unloading valve of the equipment's hydraulic system (for hydraulic models), completely release the hydraulic pressure inside the blade holder to prevent the blade holder from suddenly rebounding; remove the safety guard and fixing clips at the blade, and clean up rebar scraps and debris between the blade holder and the blade to ensure unobstructed disassembly and assembly space.
Use a special wrench to loosen the blade fixing bolts (disassemble in a diagonal sequence to prevent deformation of the blade holder), strictly avoid directly striking the blade/bolts with a hammer; during disassembly, steadily support the blade with your hand and place the old blade properly in a non-slip, non-impact area.
Smoothly fit the new blade to the positioning surface of the blade holder, confirm that the blade installation direction (cutting edge facing the shearing side) is correct, and gradually tighten the fixing bolts in a diagonal sequence (even torque to prevent blade misalignment); adjust the gap between the moving and stationary blades, the conventional rebar cutting gap is controlled at 0.1~0.3mm, a gap that is too large is prone to material jamming, and a gap that is too small is prone to blade wear.
Reset and lock the safety guard; after switching on the power, jog the equipment 2-3 times without load, check that the blade holder runs smoothly and the blade is free from jamming/abnormal noise, and after confirming that the shearing action is normal, then perform a rebar test cut. If the test cut is successful, it can be used normally.
Based on different working conditions and budget requirements, we offer three general industrial-grade alloy steel materials:
9CrSi (Alloy Tool Steel): An economical choice. It has good hardenability and machinability, suitable for cutting ordinary medium-to-low strength rebar, and is widely used in small and medium-sized projects.
Cr12MoV (Cold Work Die Steel): High-end wear-resistant type. High carbon and high chromium content, after heat treatment, it has excellent wear resistance, making it an ideal choice for continuous cutting of high-strength rebar. Its service life is much longer than 9CrSi.
H13 (Hot Work Die Steel/Red Hard Steel): High toughness and high wear resistance. It exhibits excellent resistance to chipping and thermal stability in rebar cutting applications, especially suitable for high-speed production lines or online cutting of hot-rolled rebar, and cutting of ultra-thick rebar and composite materials of scrap rebar.
Chipping is usually caused by the following factors:
Insufficient toughness: Using ultra-hard but low-toughness materials to cut large-diameter or ultra-hard rebar can easily lead to brittle fracture. In this case, we recommend switching to H13 material, as its excellent toughness can effectively absorb impact forces.
Improper clearance: Too large or too small a gap between the upper and lower blades will lead to uneven stress, resulting in chipping.
Insufficient heat treatment: Internal stress is not completely eliminated. All our blades use vacuum heat treatment technology to ensure uniform hardness from the inside out, greatly reducing the chipping rate.
Wear resistance: Cr12MoV has significantly better wear resistance than 9CrSi. Under the same working conditions, the number of cuts for Cr12MoV is usually 2-3 times that of 9CrSi.
Cost: 9CrSi is more cost-effective, suitable for projects sensitive to initial purchase costs; although the unit price of Cr12MoV is slightly higher, its lower replacement frequency results in a lower overall cutting cost per ton of rebar.
For high-strength or ribbed rebar, we strongly recommend H13:
If you are facing extremely high operating intensity and are concerned about downtime due to blade chipping, choose H13. Its impact fatigue resistance is top-notch in the rebar processing industry.
Yes. We understand that blade specifications vary among different equipment brands (e.g., from Italy, Germany, or China). We are equipped with a full set of CNC machining equipment, and you only need to provide the following information:
Detailed drawings (including length, width, thickness, and hole dimensions).
Material requirements (9CrSi, Cr12MoV, or H13).
Specifications of the workpiece to be processed (rebar diameter and strength grade).
We can provide a 1:1 precise customized solution.
Regular rotation: Our blades are usually designed with 4 or 8 cutting edges. Please rotate the blade promptly when one cutting edge becomes dull.
Tighten bolts: Ensure the blades are securely installed. Any slight looseness will cause destructive impact during the cutting process.
Control the gap: Adjust a reasonable blade gap according to the rebar diameter, usually about 10% of the rebar diameter.
Nanjing Alas International Co., Ltd. is a professional industrial tooling manufacturer focused on shear blades, bending dies, shredder blades, and custom wear parts. We offer full application engineering, material selection, setup guidance, and after-sales support to global customers.
Tell us your requirements, and our engineering team will provide professional solutions for blade specification, tool life optimization, and cost-effective production.
