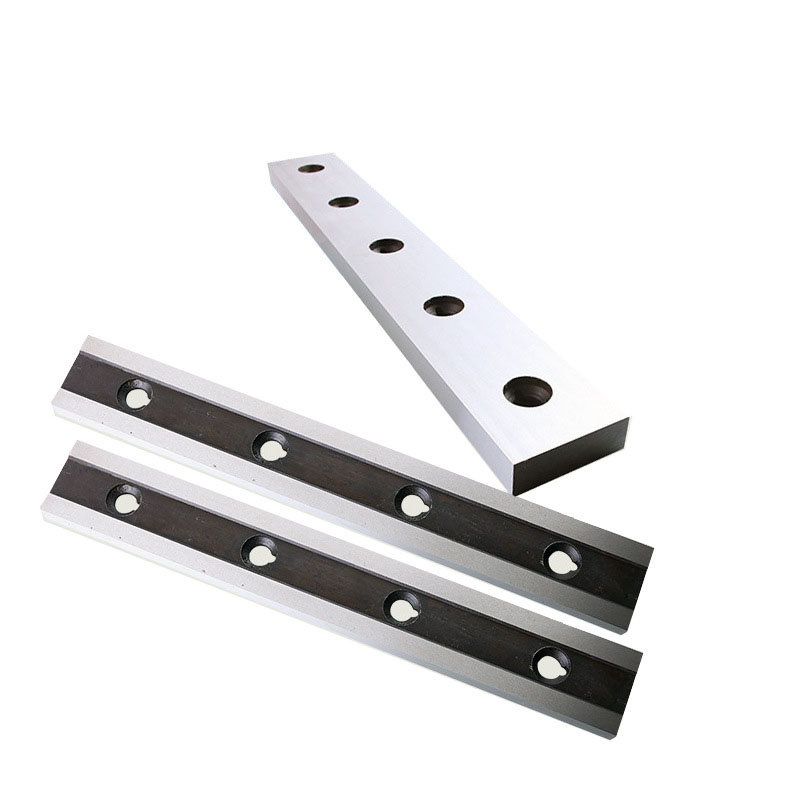

Stainless Steel Shearing Machine Blade

Why Your Stainless Steel Shearing Blades Need Superior Metallurgy？

Why Material Choice Matters for Stainless Steel Shearing？

Key Factors for Success

• Metallurgy Matters: Standard carbon steel blades get dull fast on stainless steel. Our blades use high-quality alloys like Cr12MoV (SKD11) or H13, heated in a deep vacuum to balance toughness and edge retention.

• Hardness vs. Toughness: Harder blades aren’t always better. Too hard, and they chip; too soft, and they get dull. Choose based on the material you’re cutting and how heavy the load is.

• Heat Treatment: Good materials need proper quenching and tempering to work their best. This brings out their wear resistance and toughness.

• Fight Heat and Friction: Cutting stainless steel creates lots of heat. We design our blades to reduce friction, preventing damage to both the blade and the workpiece.

• Prevent Sticking: For sticky materials (stainless steel, titanium alloy, aluminum, copper), use Cr12MoV or SKD11. These blades stop sticking and chipping, making cutting faster and better.

• Precision Gap Settings: Stainless steel needs a tighter blade gap than mild steel. Our blades are made with tiny precision, so you can adjust for burr-free cuts.

• Cost Efficiency: Specialized blades cost more upfront, but they last longer and reduce waste. This saves money in the long run, especially for high-volume work.

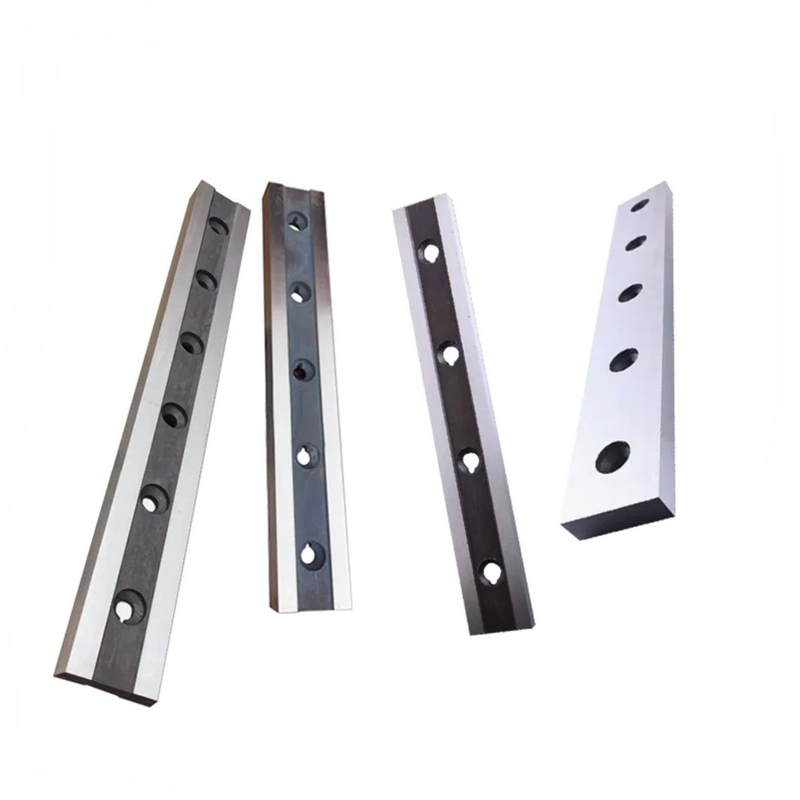

Our High-Performance Blades (For Stainless Steel)

1. Cr12MoV / SKD11 (High Carbon High Chromium Alloy Tool Steel)

• Chemical Composition: C 1.40-1.60%, Cr 11.00-13.00%, Mo 0.40-0.60%, V 0.15-0.30%

• Key Properties: Great wear resistance and hardenability; medium toughness; little deformation after heat treatment; long service life

• Hardness: HRC 58-60 (after heat treatment)

• Best For: Cutting stainless steel (all thicknesses), low carbon steel, Q235, aluminum, and copper

2. H13 (4Cr5MoSiV1) Hot Work Die Steel

• Chemical Composition: C 0.32-0.45%, Cr 4.75-5.50%, Mo 1.10-1.75%, Si 0.80-1.20%, V 0.80-1.20%

• Key Properties: Excellent high-temperature strength; good impact toughness; resists thermal fatigue; stays hard and strong in high heat

• Hardness: HRC 50-55 (after heat treatment)

• Best For: Cold cutting stainless steel thick plates; hot cutting strip steel, thick plates, and high-strength alloy steel

3. D2 (American Standard High Carbon High Chromium Steel)

• Chemical Composition: C 1.40-1.60%, Cr 11.50-13.50%, Mo 0.70-1.20%, V 0.50-1.00%

• Key Properties: Far better wear resistance and hardenability than ordinary alloy steel; strong anti-deformation; excellent chipping resistance

• Hardness: HRC 58-62 (after heat treatment)

• Best For: Cutting stainless steel, medium/low hardness steel (Q195/Q235/45#/40Cr), aluminum, copper, and non-metallic materials

4. LD (7Cr7Mo2V2Si) Cold Work Die Steel

• Chemical Composition: C 0.65-0.75%, Cr 6.50-7.50%, Mo 1.80-2.20%, V 1.80-2.20%, Si 0.80-1.20%

• Key Properties: High strength and toughness; vanadium and molybdenum refine grain; great wear resistance; very strong chipping resistance

• Hardness: HRC 58-62 (after heat treatment)

• Best For: Cutting hard-to-shear stainless steel, high-strength steel, thick plates; used for large hydraulic and heavy CNC shearing machines

Simple Blade Selection Guide (Stainless Steel)

• Light stainless steel / medium strength steel: Choose SKD11 or D2 (balances wear resistance and chipping resistance)

• Stainless steel thick plates / hard-to-shear stainless steel: Choose H13 or LD (handles heavy loads and tough materials)
