Ironworker Punch and Die Set: Products, Performance & Lifespan Maximization
Overview of Ironworker Punch and Dies
Combined punching and shearing machine die sets include punching and forming dies, which match the equipment’s punching, bending, and forming stations. With precise cavities and high positioning accuracy, they support various punching sizes/shapes, angle steel bending, and channel steel forming, meeting diverse structural steel fabrication needs.
Their excellent compressive strength and wear resistance ensure stable forming, resisting deformation and chipping during long-term heavy use—reducing tool replacement frequency and controlling costs.

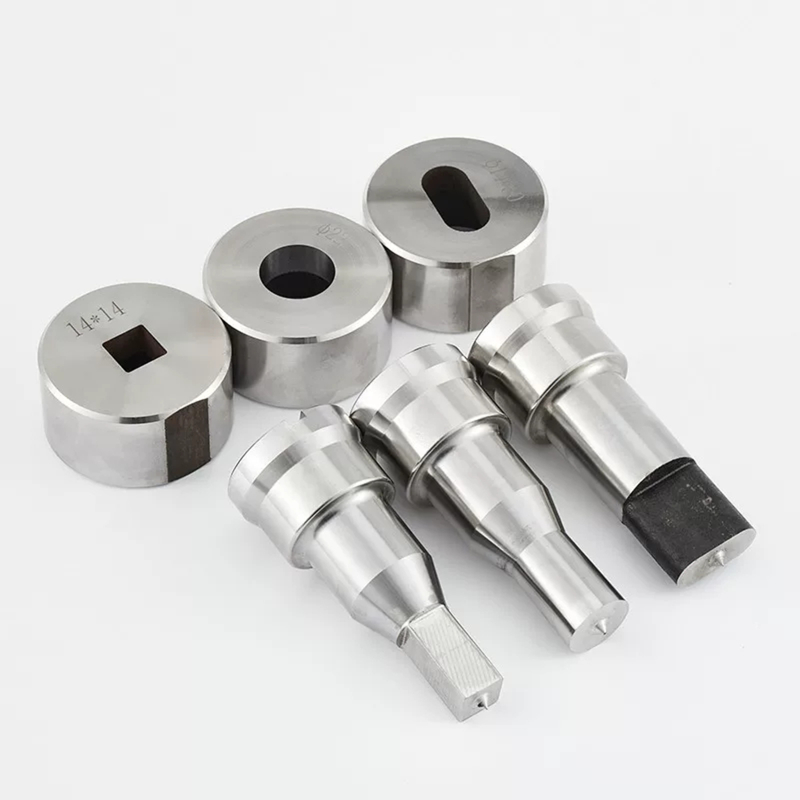

Punch: Core Execution Component
As the core of the punching station, the punch works seamlessly with the die to precisely penetrate metal plates and profiles. Through integrated forging and strengthening, it has uniform hardness and strong impact resistance, maintaining precise dimensions and adapting to different hole diameters without easy breakage or wear.
How to Maximize the Lifespan of Your Ironworker Punch and Dies?
Ironworker punch and dies are critical consumables in structural steel fabrication. Frequent replacement erodes profits—choosing the right material and maintaining proper clearance is key to maximizing ROI and tool lifespan.
Material Selection: 9CrSi, SKD-11 & DC53 Steel
Material choice directly impacts tool life and performance. We offer three high-quality alloy steels, balanced in hardness and toughness, for different applications: 9CrSi, SKD-11, and DC53.
9CrSi Steel: Cost-Effective & Reliable for General-Purpose Use
Chemical Composition & Functions: 9CrSi (low-alloy cold-work steel) contains 0.85-0.95% C (enhances hardness/wear resistance), 0.30-0.60% Si (improves hardenability/toughness), 0.80-1.10% Cr (boosts wear/corrosion resistance), and trace Mn (refines grains/strength)—balancing hardness and toughness for general use.
Performance Characteristics: Heat-treated to HRC 58-62, 9CrSi offers good hardenability and wear resistance, with moderate impact resistance. Ideal for medium-thickness carbon steel, angle irons, and channel steels—cost-effective for regular processing needs.
SKD-11 Steel: High Wear Resistance for High-Volume Production
Chemical Composition & Functions: SKD-11 (high-carbon high-chromium steel) has 1.40-1.60% C (maximizes hardness/wear), 11.00-13.00% Cr (forms wear-resistant carbides), 0.80-1.10% Mo (prevents brittleness), and 0.20-0.40% V (refines grains)—ideal for high-demand, high-volume tasks.
Performance Characteristics: Heat-treated to HRC 60-64, SKD-11 delivers excellent wear resistance and dimensional stability. It resists wear/chipping during high-volume punching, perfect for thin metal mass production and boosting efficiency.
DC53 Steel: Premium Toughness & Wear Resistance for Heavy-Duty Scenarios
Chemical Composition & Functions: DC53 (upgraded SKD-11) has 1.00-1.20% C (balances hardness/toughness), 8.00-10.00% Cr (wear/corrosion resistance), 2.00-3.00% Mo (reduces stress), and 0.15-0.35% V (enhances impact resistance)—solving SKD-11’s brittleness.
Performance Characteristics: Heat-treated to HRC 60-64, DC53 combines toughness and wear resistance. Its strong impact resistance prevents shattering under high-tonnage punching—ideal for thick steel and heavy-duty tasks, with longer life than SKD-11 and 9CrSi.
The Importance of Proper Die Clearance
The "Golden Rule" for punching: 10% clearance relative to material thickness. Improper clearance causes tool failure—too small increases friction/burrs; too large deforms holes. Our CNC-ground sets ensure precise alignment, reducing burrs and premature wear.
This precision protects both tooling and your ironworker’s hydraulic system, effectively extending punch and die lifespan.
For specialized needs, we offer custom oblong, offset, and hexagonal punches/dies. Advanced vacuum heat treatment ensures consistent HRC 58-64 hardness, matching the durability of our stock sets.
We provide replacement punch and die sets for major ironworker models, including:
Avoid low-quality tooling that chips quickly. Upgrade to our 9CrSi, SKD-11, or DC53 punch and die sets for better performance, fewer replacements, and lower costs. Punch and dies are best purchased as a set for optimal compatibility.
Contact us with your machine model for a compatibility check and tailored solution!
