Mastering the Perfect Joint: The Importance of High-Quality Square Tube Notching Dies
In metal furniture, handrails and frame production, square tube joints directly determine product strength and appearance.
Square tube notching is a key step before welding.
Low-quality tools often cause tube collapse or large burrs.
A professional notching die is the best solution.

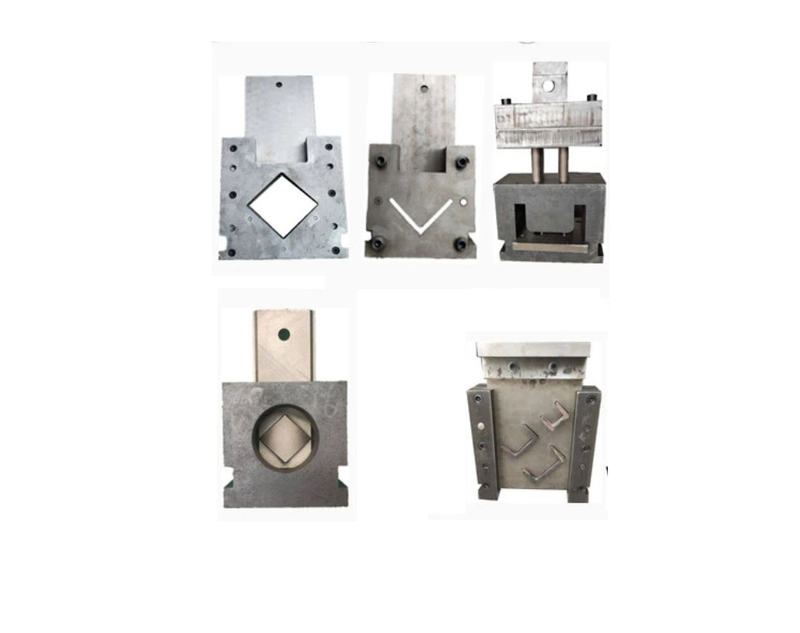

Die Function: What It Does
Punches 45° bevels on square tube ends, perfect for 90° frame joining.
Also creates V-shaped notches to make bending and welding easier.
Die Structure: How It Works
Upper die: Wedge-shaped blade block.
Lower die: Has a positioning cavity to secure the square tube.
Cuts one corner or two corners at the same time.
Die Material & Design Tips
Blade edges need fine grinding to prevent chipping.
For mass production: Use combined dies for easy blade replacement.
Best Materials for Mass Production
Dies use high-quality tool steel. After heat treatment, they have high hardness and toughness. Top choices: SKD11 (also called Cr12MoV) and DC53.
SKD11 / Cr12MoV Tool Steel
It’s a high-carbon, high-chromium steel.
Chemical Composition:
- C: 1.40-1.60%
- Cr: 11.00-13.00%
- Mo: 0.40-0.60%
- V: 0.15-0.30%
- Si & Mn: ≤0.40% (each)
- P & S: ≤0.030% (each)
Key Performance:
Vacuum heat treatment brings hardness to HRC 60-64.
- Strong wear resistance to handle frequent stamping friction.
- It has good toughness and won't chip under impact.
- It has high hardenability, so the whole die has uniform hardness.
Best For:
- Medium to high-volume cutting
- Thick-walled square tubes
- High-frequency mass production
DC53 Tool Steel
This is an improved version of SKD11 (Cr12MoV).
Chemical Composition:
- C: 1.00-1.20%
- Cr: 11.00-13.00%
- Mo: 0.80-1.20%
- V: 0.80-1.20%
- Si & Mn: ≤0.60% (each)
- P & S: ≤0.030% (each)
Key Performance:
- More Mo and V make it tougher and more wear-resistant.
- It resists chipping better during high-speed stamping.
- It has better size stability after heat treatment.
Best For:
- Large automated production lines
- Long-term, stable operation
Why "No-Deformation" Matters Most
When the punch cuts the square tube corner, poor support bends the inner wall.
Our dies fix this with two key designs:
Internal Mandrel Support
Inner support keeps the tube wall straight under cutting pressure—no sinking or deformation.
No sinking or deformation.
Clearance Precision
Tight, precise clearance cuts like a sharp knife.
Clean, burr-free edges every time.
Common Notching Types
90° V‑Notching
Used for square frames.
Bent tubes fit with no gaps.
45° Corner Shearing
Used for angled tube joining.
Creates tight, strong welds.
Custom Profiles
We make custom notches for your unique designs.
How to Optimize Your Production Line
Switch from manual cutting to hydraulic punching and notching dies.
You’ll see clear improvements:
- Finish one piece in under 2 seconds
- Remove extra grinding labor costs
- Improve welding consistency and structural strength
Conclusion
A precision square tube notching die boosts speed, quality and appearance all at once.
It cuts waste, speeds up assembly and delivers better finished products.
Upgrade to industrial-grade notching tools for perfect corners, every single time.
