| Quantity: | |
|---|---|
| NO. | Product Name | Specification Dimensions (length x width x height/thickness) ） | Material | Remarks |
| 1 | Tire Trimming Blade size | 30*56*2.5-3T | HSS | The price varies depending on the quantity, and the blades can be customized. The number of teeth and the hole size can both be customized. |
| 2 | 42*55*2.5-7T | |||
| 3 | 48*51*2-9T | |||
| 4 | 48.5*55.5*2.5-9T | |||
| 5 | 51*32*2.3 -6T | |||
| 6 | 55*25*2.5 -5T | |||
| 7 | 50*50*2.5 -9 | |||
| 8 | 64*59*2.3-23T | |||
| 9 | 75*55*2.5-15T | |||
| 10 | 50*50*2.3-11T | |||

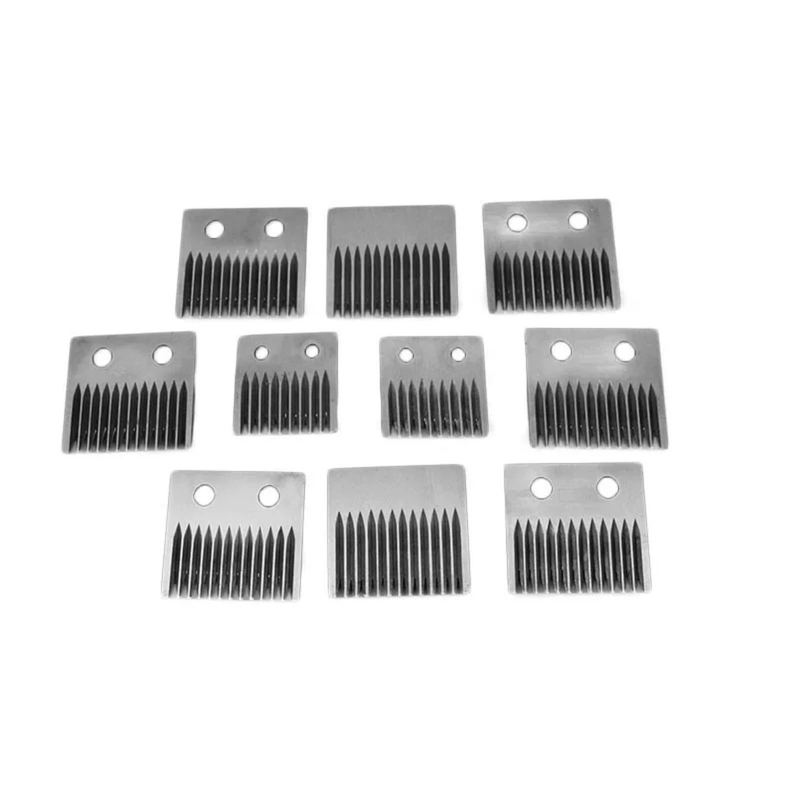

Tire Trimmer Blades:
Tire Trimming Knife,Pin Vent Trimmer Blades and Toothed Knives for Tire Shaving are core precision tools in tire manufacturing and retreading. They are specifically designed to remove excess rubber burrs remaining after tire molding and vulcanization, and are essential for ensuring the appearance and quality of tires.
During tire molding and vulcanization, the mold has fine vent holes to expel internal air. After vulcanization, rubber burrs/flashes form on the sidewalls and shoulders due to these vent holes, affecting the tire's appearance and performance.
Using high-precision sharp edges, they accurately, quickly, and cleanly remove residual rubber from the tire surface, resulting in a smooth and clean surface that meets factory and retreading quality standards.
Application Scenarios
New Tire Manufacturing: Used with robotic arms/dedicated trimming machines on automated production lines for high-speed, online batch trimming;
Tire Retreading/Remanufacturing: After retreading the tread of used tires, fine trimming is performed on the edges and seams to ensure the quality of the retreaded tires;
The shape and material of the blades are adapted to different trimming equipment and process requirements. Selection should consider the high elasticity and abrasive nature of rubber, with the core requirements being high wear resistance, high sharpness, and long service life.
Circular Blades: The mainstream type in the industry, with a small diameter design, suitable for rotary trimming machines, supporting continuous, high-speed cutting, and suitable for trimming large areas of rubber burrs;
V-shaped/Irregular Blades: Customized edge design for precise trimming of special patterns, corners, and other irregular areas of the tire;
Straight Blades: Straight cutting edge, suitable for linear precision trimming of tire edges and seams.
Possesses ultra-high hardness and wear resistance, offering a service life far exceeding steel blades. It maintains sharpness for extended periods, reducing equipment downtime for blade changes and is suitable for large-scale automated production.
Economical and easy to process, suitable for small to medium-batch, non-continuous trimming operations. Requires regular sharpening to maintain cutting performance.
Blade quality and daily maintenance directly affect trimming efficiency, blade lifespan, and the quality of the finished tires. Regular maintenance is essential.
The inner diameter, outer diameter, and thickness of the blade must precisely match the corresponding trimming equipment to avoid installation gaps affecting cutting accuracy;
Opt for mirror-polished edges to reduce rubber residue, lower cutting resistance, and ensure smooth, burr-free trimming;
Promptly remove rubber residue from the blade surface after operation, and regularly apply a special lubricant to reduce friction and prevent rubber adhesion;
