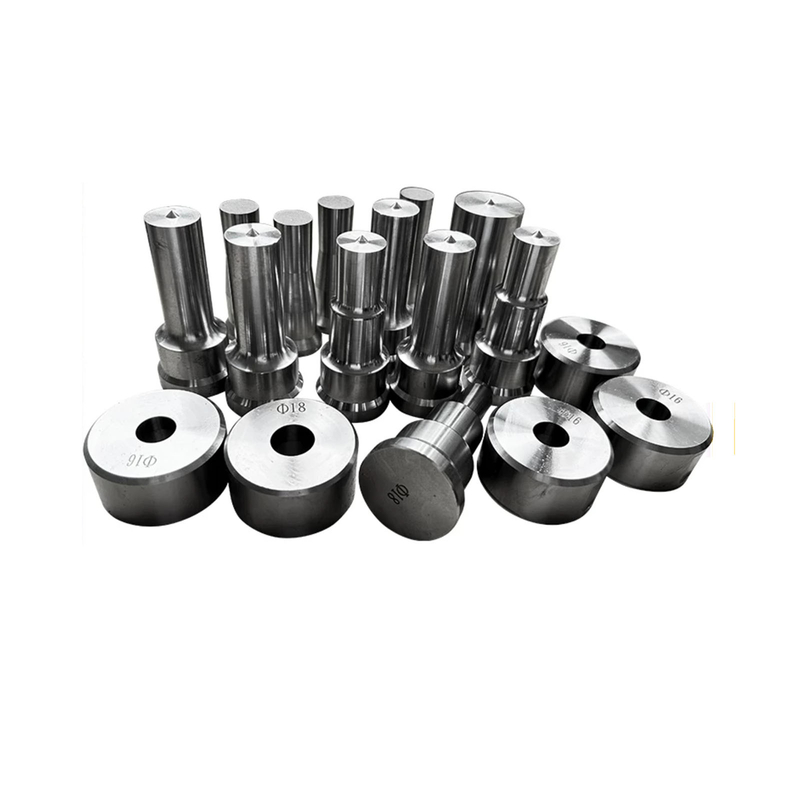

Custom ironworker punches and dies manufactured from cr2mov tool steel

Share to:

Custom Ironworker Punches

Port:
Nanjing, China
Payment Terms:
T/T, Money Gram

Availability:

Quantity:



Inquire Add to Basket

Solving Fabrication Challenges with Custom Ironworker Punches

Standard round holes fall short for complex structural steel projects. When off-the-shelf tooling fails, custom ironworker punches deliver precision—with performance dependent on die steel choice (9CrSi, Cr12MoV/SKD-11, DC53) to meet specialized needs.

Why Custom Ironworker Punches?

Standard punches work for general tasks, but custom options solve complex challenges with these key advantages:

Special Geometries: Hex, star, or complex patterns for decorative and structural needs.

Unique Dimensions: Specific diameters for specialized fasteners (not in standard kits).

Extended Reach: Longer/offset designs for hard-to-access areas on structural beams.

Custom Punch Materials

Material choice is critical for custom punches. Below are three key die steels, with their chemical compositions, performance impacts, and applications:

9CrSi – Entry-Level Economical Die Steel

Chemical Composition (Typical): C: 0.85-0.95%, Cr: 1.20-1.60%, Si: 1.00-1.30%, Mn: ≤0.40%, P: ≤0.030%, S: ≤0.030%.

Performance Impact: Moderate carbon ensures basic hardness/wear resistance; chromium boosts hardenability/corrosion resistance; silicon enhances toughness/heat resistance. Easy to machine, cost-effective, and low-chipping for low-intensity use.

Application: Basic punching/shearing for ordinary sheet metal (low-frequency use), ideal for low-cost entry-level custom dies.

Cr12MoV/SKD-11 – Standard-Grade Die Steel

Chemical Composition (Typical): C: 1.45-1.70%, Cr: 11.00-13.00%, Mo: 0.40-0.60%, V: 0.15-0.30%, Mn: ≤0.40%, Si: ≤0.40%, P: ≤0.030%, S: ≤0.030%.

Performance Impact: High carbon/chromium form wear-resistant carbide (HRC 60-64); molybdenum resists high-temperature softening; vanadium balances wear resistance/toughness for stable conventional use.

Application: Covers most sheet metal punching/shearing scenarios, the mainstream standard for general-purpose custom punches.

DC53 – High-Performance Upgraded Die Steel

Chemical Composition (Typical): C: 1.00-1.10%, Cr: 8.00-9.00%, Mo: 2.00-2.50%, V: 0.80-1.10%, Si: 0.80-1.10%, Mn: 0.30-0.60%, P: ≤0.025%, S: ≤0.010%.

Performance Impact: Modified Cr12MoV with extra molybdenum/vanadium to eliminate brittleness. Balances wear resistance/toughness; low impurities ensure uniformity. Optimal HRC for high-tonnage, precise custom punching.

Application: Ideal for high-intensity, high-precision custom punches and complex metalworking tasks.

Material recommendations for Ironworker Punches

Material	Applicable Working Conditions	Core Advantages	Core Disadvantages
9CrSi	Light-duty machines, ≤5mm thin/soft materials, small-batch	Good toughness, low cost, entry-level general-purpose	Average wear resistance, not for thick/high-strength conditions
Cr12MoV	Small-medium tonnage, ≤10mm ordinary steel/profiles, regular batch	High cost-effectiveness, wear-resistant, small deformation, strong versatility	Average high-impact resistance, not for thick/hard materials
DC53	Small-medium tonnage, 8-15mm medium-thick/low-alloy steel, complex profiles	High toughness, wear-resistant, stable quenching, longer service life	Slightly higher cost than Cr12MoV, upgraded pricing

Custom Order Process

Requirement Analysis:

Share material type, thickness, and performance needs to select die steel.

Drawing/Template:

Provide a CAD file or sketch of the punch shape/dimensions.

Precision Manufacturing:

CNC facilities ensure micron-level tolerances, preserving material performance.

Fast Shipping:

Timely delivery to keep production on track.

Conclusion

Don’t let standard tooling limit production. Custom ironworker punches—paired with the right die steel (9CrSi for economy, Cr12MoV/SKD-11 for standard use, DC53 for high performance)—let you tackle complex contracts with precision. Material chemistry directly drives performance, ensuring your custom punches meet project demands.
