Optimizing Rebar Button Heading: Why Tooling Quality Matters in Pipe Pile Production
In the prestressed concrete (PHC) pipe pile industry, the rebar button heading process is a critical safety step that directly determines the reliability of the subsequent tensioning process. To achieve consistent, high-quality upsetting, not only must the heading die and punch be engineered for extreme repetitive impact resistance, but the entire set of core special accessories—including fixed blades, movable blades, heading dies, and steel bar clamps—must work in coordinated harmony.
These four core accessories cover the entire process of prestressed steel bar processing for pipe piles, from blanking and cutting to end upsetting, and finally to tensioning and clamping. Their precision, material performance, and adaptability directly determine the quality of steel bar processing, which in turn affects the prestressed anchoring effect, structural strength, and qualification rate of finished PHC pipe piles. Among them, material selection—especially the adoption of high-performance Cr12MoV cold work die steel—plays a decisive role in tooling durability and processing quality.

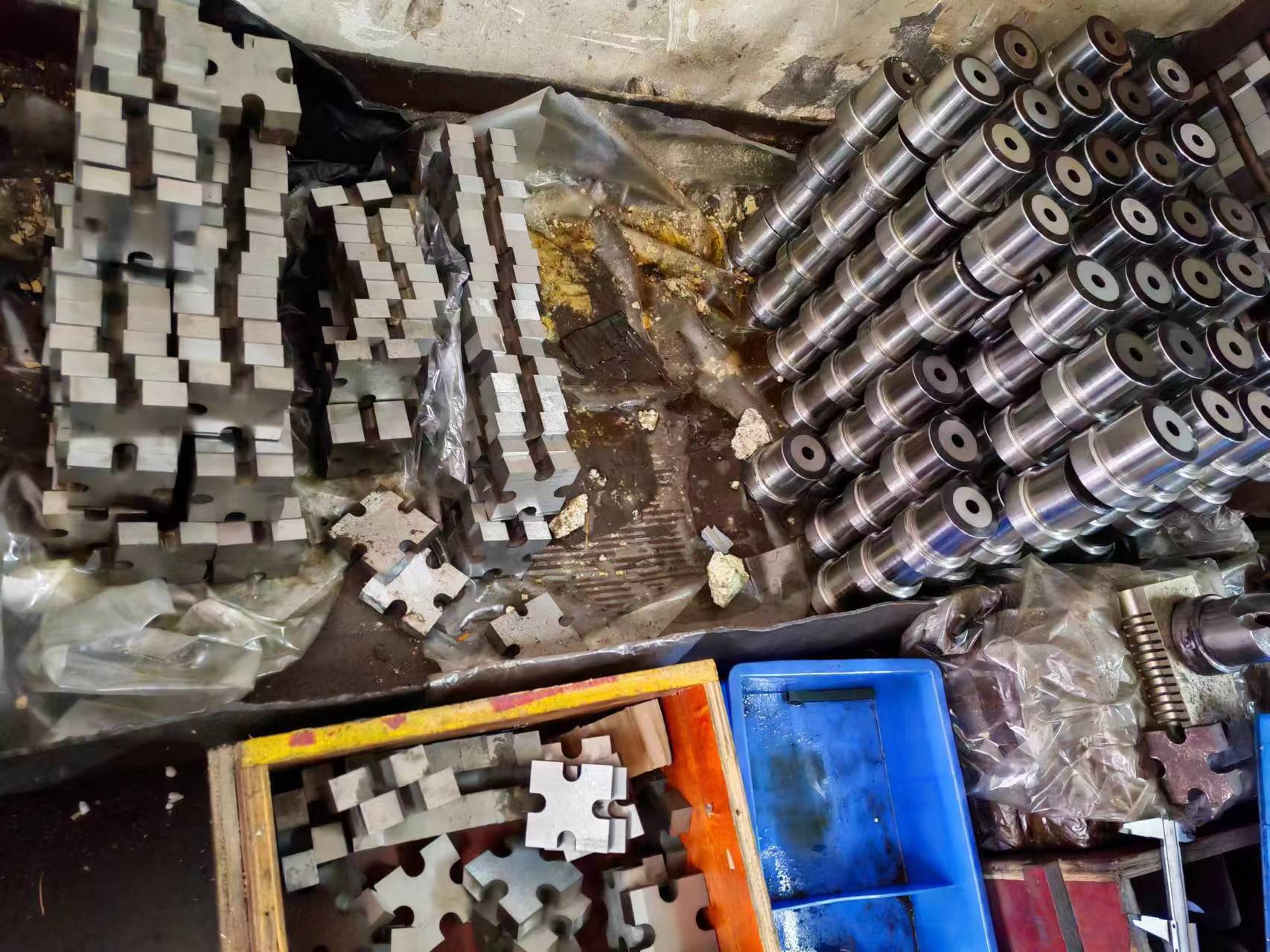

Core Special Accessories for Prestressed Steel Bar Processing
Fixed blades, movable blades, heading dies, and steel bar clamps are the four essential components for prestressed steel bar processing in pipe pile production. Each has a clear division of labor and works in synergy to ensure the stability and reliability of the entire processing line.

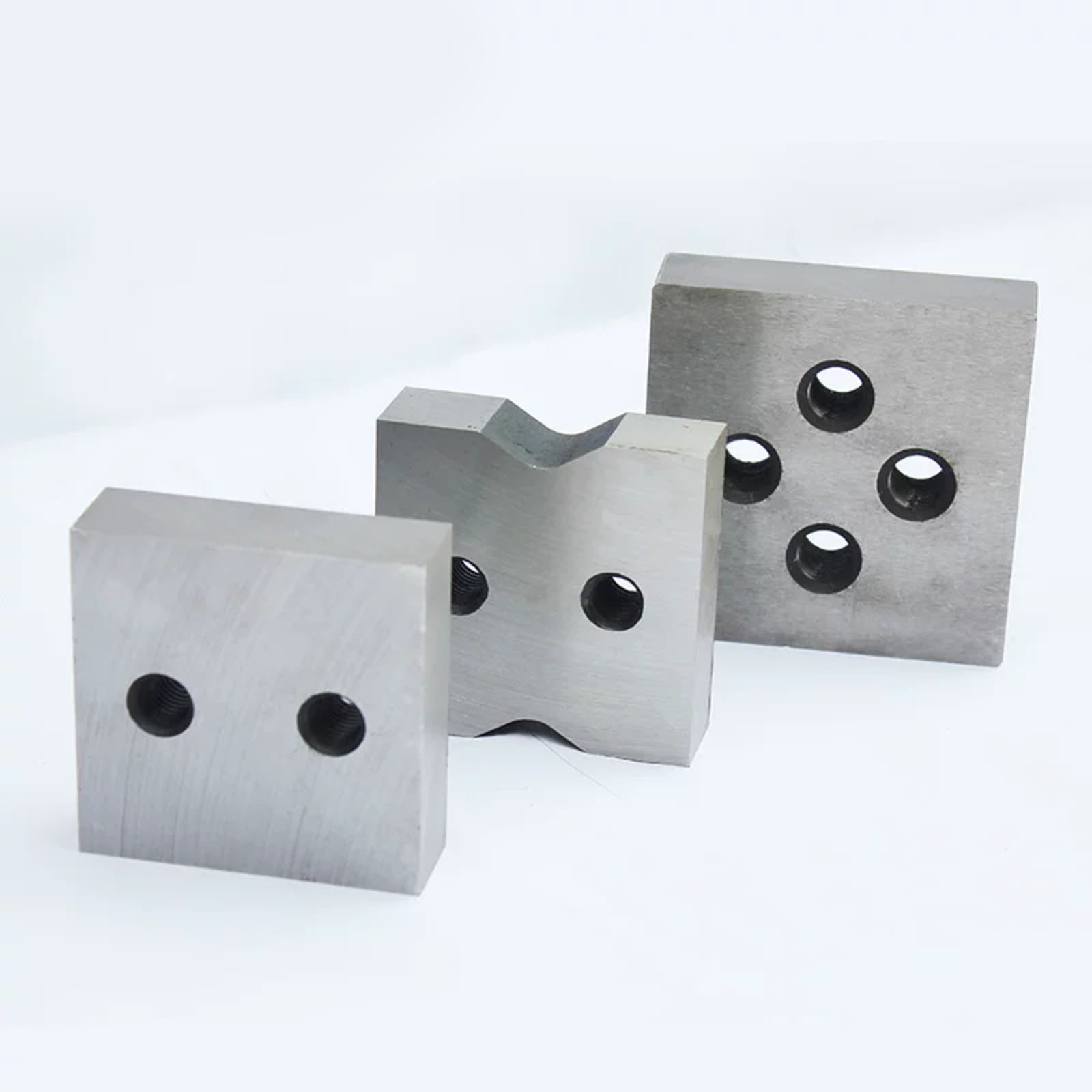

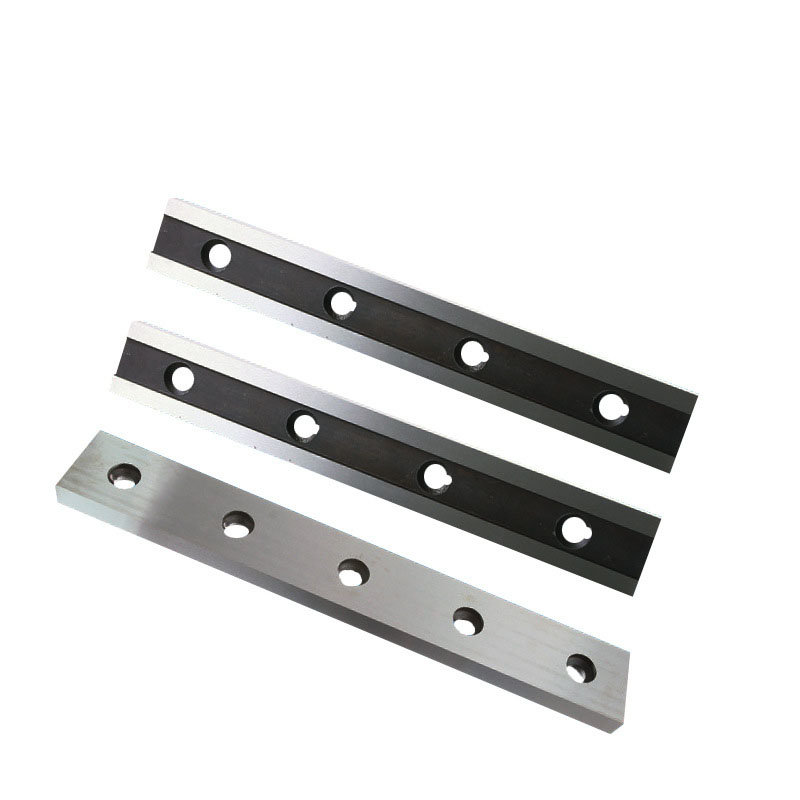

Fixed & Movable Blades: Blanking and Cutting Core Accessories
As dedicated wear parts for steel bar cutting, fixed and movable blades are specially designed for small-diameter, high-strength prestressed steel bars—unlike general cutting tools used for pipe pile blank cutting. Their core function is to realize fixed-length blanking of steel bars and trimming of excess sections after tensioning, serving as the key shearing components in the processing process.
Blade Function
Through the fixed support of the fixed blade and the hydraulically driven reciprocating movement of the movable blade, a precise shearing force is formed. This achieves burr-free and non-bevel cutting of PC steel bars and prestressed steel wires, ensuring the accuracy of steel bar blanking length and avoiding the impact of cutting defects on subsequent upsetting and tensioning processes.
Applicable Steel Bar Specifications
These blades are mainly applicable to common prestressed steel bars for pipe pile production: Φ7.1 mm, Φ9.0 mm, Φ10.7 mm, Φ12.6 mm.
Material Selection: Cr12MoV Cold Work Die Steel
Steel bar cutting involves high-intensity shearing force and continuous metal friction, so the blade material must prioritize high wear resistance and edge chipping resistance. The conventional and optimal choice is Cr12MoV cold work die steel, which balances high hardness, toughness, and dimensional stability under heavy loads—key properties for long-term, high-frequency cutting operations.
Chemical Composition of Cr12MoV and Its Performance Effects
Cr12MoV is a high-carbon, high-chromium alloy tool steel with a typical chemical composition (mass fraction) and corresponding performance impacts as follows:
Carbon (C): 1.45–1.70% — Provides high hardness and wear resistance after quenching, ensuring the cutting edge maintains sharpness during millions of cutting cycles, reducing the frequency of blade replacement.
Chromium (Cr): 11.0–12.5% — Forms massive hard carbides in the steel structure, significantly improving the blade’s wear resistance, hardenability, and corrosion resistance, preventing premature wear caused by metal friction.
Molybdenum (Mo): 0.40–0.60% — Refines the grain structure of the steel, reduces temper brittleness, enhances high-temperature strength and toughness, and prevents blade cracking during high-speed, high-intensity shearing.
Vanadium (V): 0.15–0.30% — Further refines the grain size, improves the blade’s toughness and edge stability, effectively avoiding edge chipping and breakage under impact loads during cutting.
With proper vacuum heat treatment, Cr12MoV can achieve a stable hardness of HRC 58–62, balancing high hardness (for wear resistance) and sufficient toughness (for impact resistance)—a critical combination for withstanding the harsh conditions of pipe pile steel bar cutting.

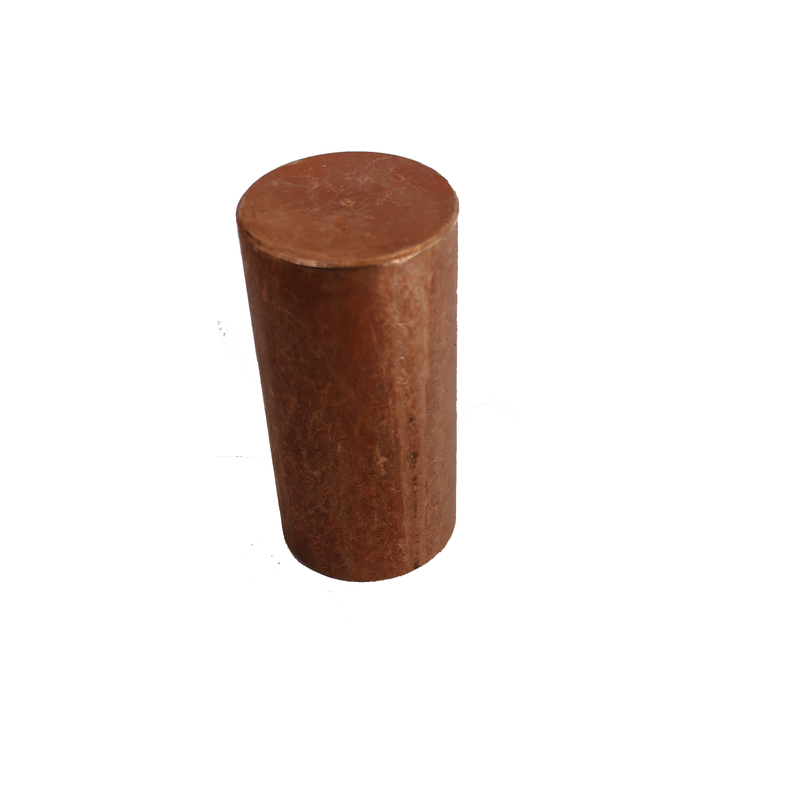

Heading Die: Key Forming Accessory for Rebar Button Heading
The heading die is the core forming component of the steel bar heading mechanism and a critical accessory for prestressed steel bar anchoring—directly related to the quality of the rebar “button head” and the safety of the tensioning process.
Role in Rebar Button Heading
In pipe pile production, the end of the prestressed steel bar must be upset into a regular, symmetrical “button head” to ensure a reliable connection between the steel bar and the anchor during tensioning. The cavity precision of the heading die directly determines the forming quality of the button head—any deviation can lead to off-center or uneven thickness, which may cause catastrophic failure during prestressing.
Material Advantage of Cr12MoV for Heading Dies
Similar to cutting blades, heading dies are also preferably made of Cr12MoV cold work die steel. Its high hardness (HRC 58–62) and excellent impact resistance allow the die to withstand extreme repetitive impact without deformation, chipping, or cracking—common issues with lower-grade tool steels. This ensures consistent button head forming and reduces tool replacement frequency.
Steel Bar Heading Clamp: Precision Positioning & Clamping Guarantee
The steel bar heading clamp is an exclusive positioning and clamping accessory for the prestressed steel bar upsetting process, used in conjunction with the heading die. Its core role is to fix the steel bar firmly, ensure the coaxiality of the steel bar and the heading die cavity, and prevent eccentricity or movement during upsetting—key to forming a round, full, and symmetrical button head.
Key Functions of the Heading Clamp
Steel Bar Positioning: Ensures the coaxiality deviation between the steel bar end and the heading die cavity is ≤0.03mm, preventing defects such as eccentric button heads, flat heads, and material shortage, and ensuring alignment between the button head and the steel bar axis.
Steel Bar Clamping: Fixes the steel bar firmly without axial movement under high upsetting pressure (50~200kN), avoiding insufficient button head length and incomplete forming, and ensuring the button head diameter meets design requirements (usually 1.5~2 times the steel bar diameter).
Steel Bar Protection: The clamping surface is closely attached to the steel bar surface, avoiding surface damage and work hardening caused by high-pressure clamping, and ensuring the mechanical properties of the high-strength prestressed steel bar are not affected.
Why Tooling Quality Matters for Rebar Button Heading Optimization
The reliability of PHC pipe piles starts with the smallest tooling components. Optimizing the rebar button heading process is not only about precision engineering but also about selecting high-quality tooling materials (like Cr12MoV) and ensuring the coordinated operation of all core accessories. Here’s how premium tooling enhances production efficiency and product safety:
1. Shock Resistance & Durability
Cr12MoV tooling (blades and heading dies) maintains high hardness (HRC 58–62) while absorbing the massive kinetic energy generated during upsetting. This prevents common issues like chipping, cracking, and deformation that plague lower-grade tool steels, ensuring long-term tool stability.
2. Precision Geometry for Safe Tensioning
Premium heading dies (made of Cr12MoV) and precision-ground punches ensure the button head is perfectly symmetrical. This allows anchor grippers and end plates to sit flush, distributing tensioning force evenly across the reinforcement cage and eliminating the risk of catastrophic failure during prestressing.
3. Reduced Production Downtime
In high-volume pipe pile factories, a broken die or blade can stop the entire automation line. Cr12MoV tooling, when subjected to vacuum heat treatment, achieves up to 30% more cycles per tool compared to standard OEM parts. This reduces tool changes, minimizes downtime, and lowers the cost-per-cut in the rebar processing line.
Conclusion
Optimizing rebar button heading in PHC pipe pile production relies on two key factors: the coordinated operation of fixed blades, movable blades, heading dies, and clamps, and the adoption of high-performance tooling materials like Cr12MoV. The unique chemical composition of Cr12MoV—high carbon, chromium, molybdenum, and vanadium—endows tooling with exceptional wear resistance, impact resistance, and dimensional stability.
Investing in premium Cr12MoV tooling and following proper maintenance practices is the most effective way to guarantee consistent button head quality, enhance production efficiency, reduce downtime, and ultimately ensure the safety and reliability of finished PHC pipe piles.
