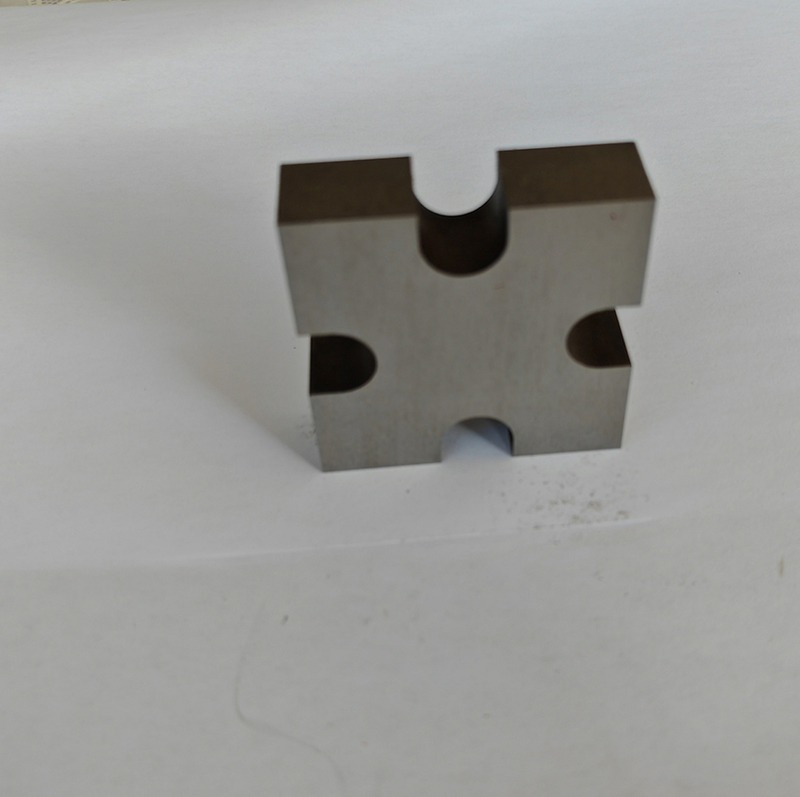

Reinforcement Cutting Blades for Concrete Pipe Piling Machines

Core Special Accessories for Prestressed Steel Bar Processing of Concrete Pipe Pile Driver

1. Fixed & Movable Blades: Blanking and Cutting Accessories

Key Functions

• The fixed blade provides stable support, and the movable blade moves back and forth by hydraulic drive.

• They work together to produce precise shearing force, cutting PC steel bars and prestressed steel wires without burrs or bevels.

• Ensure the length of steel bar blanking and avoid cutting defects affecting subsequent processes (upsetting and tensioning).

Applicable Steel Bars

Material Selection

2. Heading Dies: End Upsetting Forming Dies

Key Functions

• In pipe pile production, the end of the steel bar must be upset (formed into a regular "heading") to ensure firm connection between the steel bar and the anchor during tensioning.

• The precision of the heading die’s cavity directly determines the forming quality of the heading, which affects the safety of pipe pile prestress tensioning.

3. Steel Bar Clamps: Upsetting Positioning Accessories

Key Functions

• Positioning: Ensure the coaxiality deviation between the steel bar end and the heading die cavity is ≤0.03mm. Prevent defects such as eccentric heading, flat head and insufficient material. Keep the heading aligned with the steel bar axis.

• Clamping: Fix the steel bar firmly, without axial movement under high upsetting pressure (50~200kN). Avoid insufficient heading length and incomplete forming. Ensure the heading diameter meets design requirements (usually 1.5~2 times the steel bar diameter).

• Protection: The clamping surface fits closely with the steel bar surface. Avoid surface damage and work hardening caused by high-pressure clamping, and ensure the steel bar’s mechanical properties are not affected.

4. Summary of Core Accessories

• The four core accessories (fixed blades, movable blades, heading dies, clamps) have clear division of labor and work together. They determine the quality of steel bar processing from blanking to end upsetting, then to tensioning and positioning.

• Fixed and movable blades: Wear parts, need accurate selection and regular replacement according to cutting conditions.

• Heading dies: Forming dies, directly affect the safety of prestressed anchoring.

• Clamps: Force transmission and positioning accessories, their clamping reliability and positioning precision determine the uniformity of pipe pile prestress distribution.

Reinforcement Cutting Blades for PHC Pile Production

Advantages of Our Blades

• Special Alloy Material: Use high-quality H13 or customized shock-resistant tool steel. The blades keep sharp even under high heat and pressure of high-speed piling lines.

• Strong Impact Toughness: Optimized heat treatment to prevent brittle fracture. The blades can handle the sudden break of high-tension steel bars without cracking.

• Precision Fit: Designed to fit major pipe pile equipment perfectly, reducing mechanical vibration and ensuring accurate cutting alignment.

Benefits for PHC Pile Manufacturers

• Less Downtime: Long-life blades reduce tool change stops, keeping production lines running.

• Clean Cutting Surface: Precision grinding ensures square, clean cuts on all PC bars, which is essential for proper heading and tensioning.

• Cost Savings: Superior regrinding ability and longer service intervals reduce the "cost per cut".
