Quality Materials: We use Cr12MoV or H13 tool steel for strong hardness and toughness.
Advanced Heat Treatment: Every blade gets vacuum induction hardening (50–62 HRC) to avoid early dulling.
Perfect Fit: Precision-ground to fit most global brands (GQ, GWH, hydraulic portable cutters).

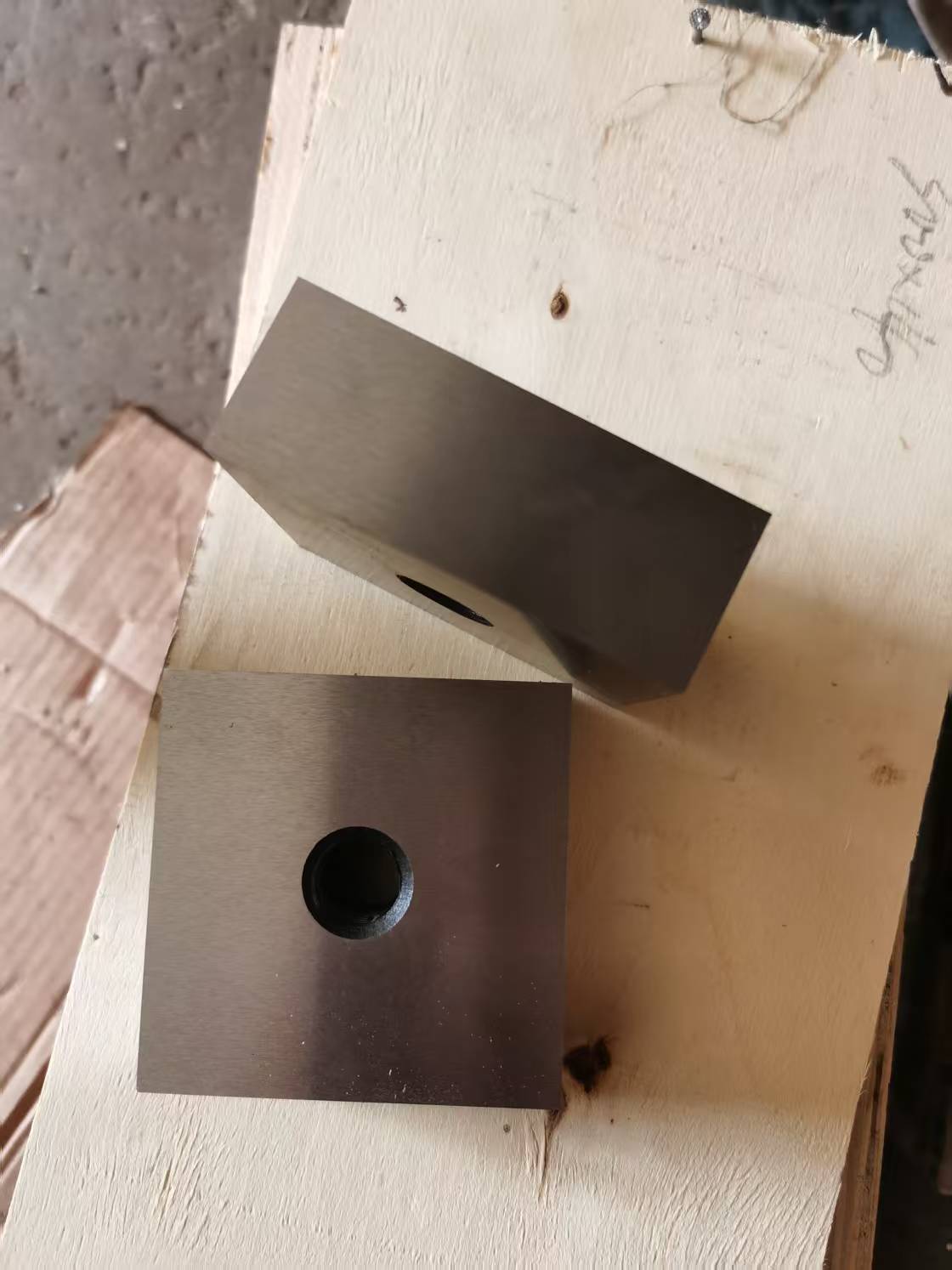

4-Sided Use: Most block-style blades are reversible—4 sharp edges for the price of 1.
H13 Material: Popular high-quality choice. Wear-resistant, tough and heat-resistant. Great for long, heavy cutting of high-strength rebar (no bending or chipping).
Cr12MoV Material: Hard and wear-resistant (harder than regular alloy blades). Good for hard cold-rolled rebar. Note: Less tough—don’t use for high-impact or large-gap cutting.
9CrSi Material: Cheap and practical. Easy to process. Good for ordinary medium- and low-strength rebar (ideal for small/medium projects).

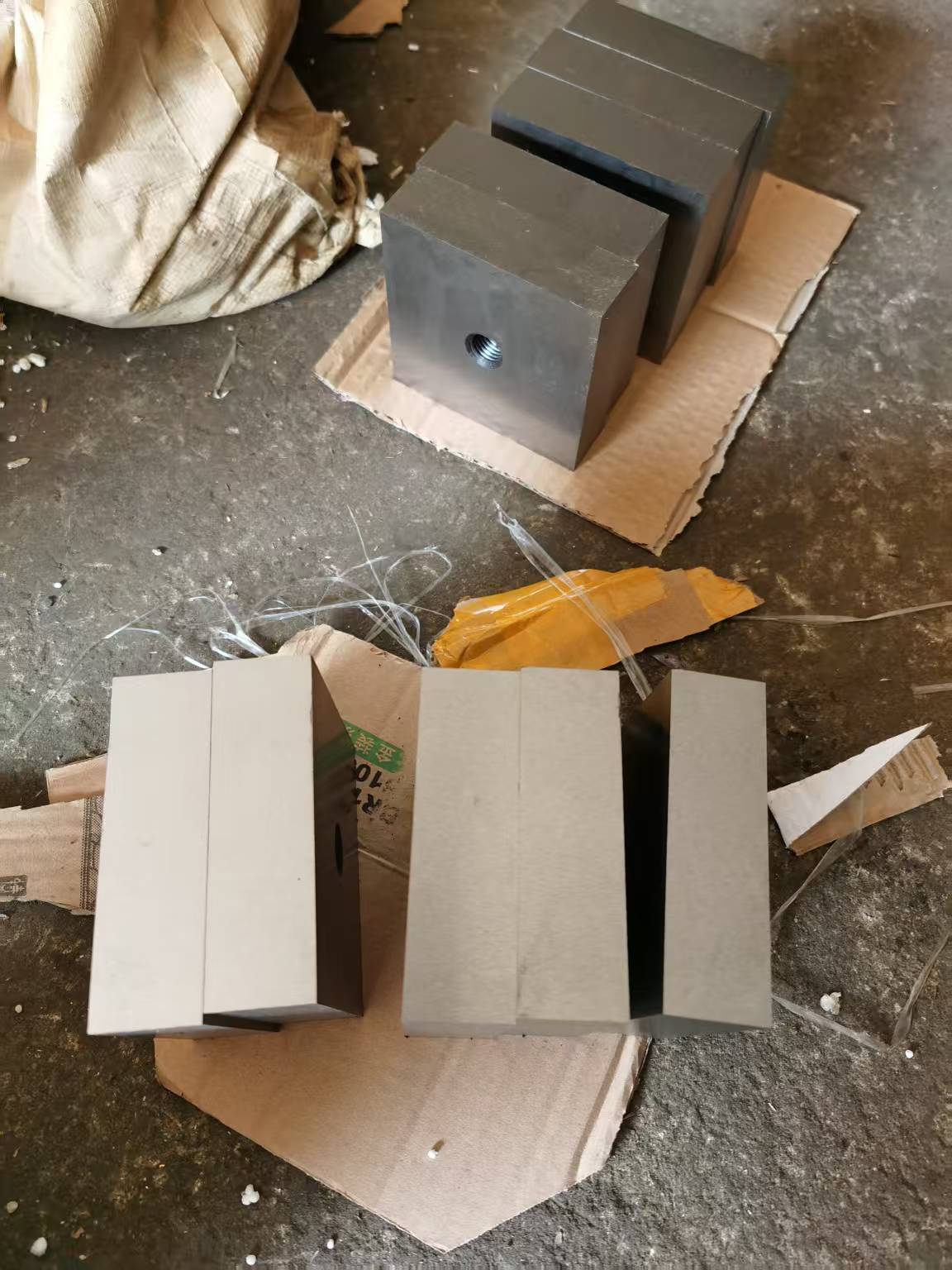

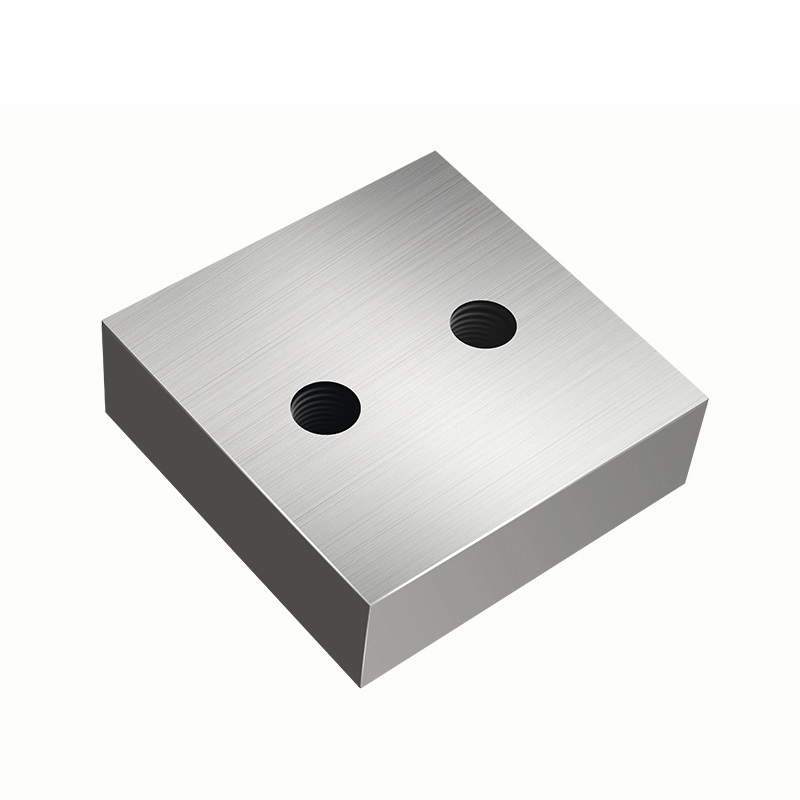

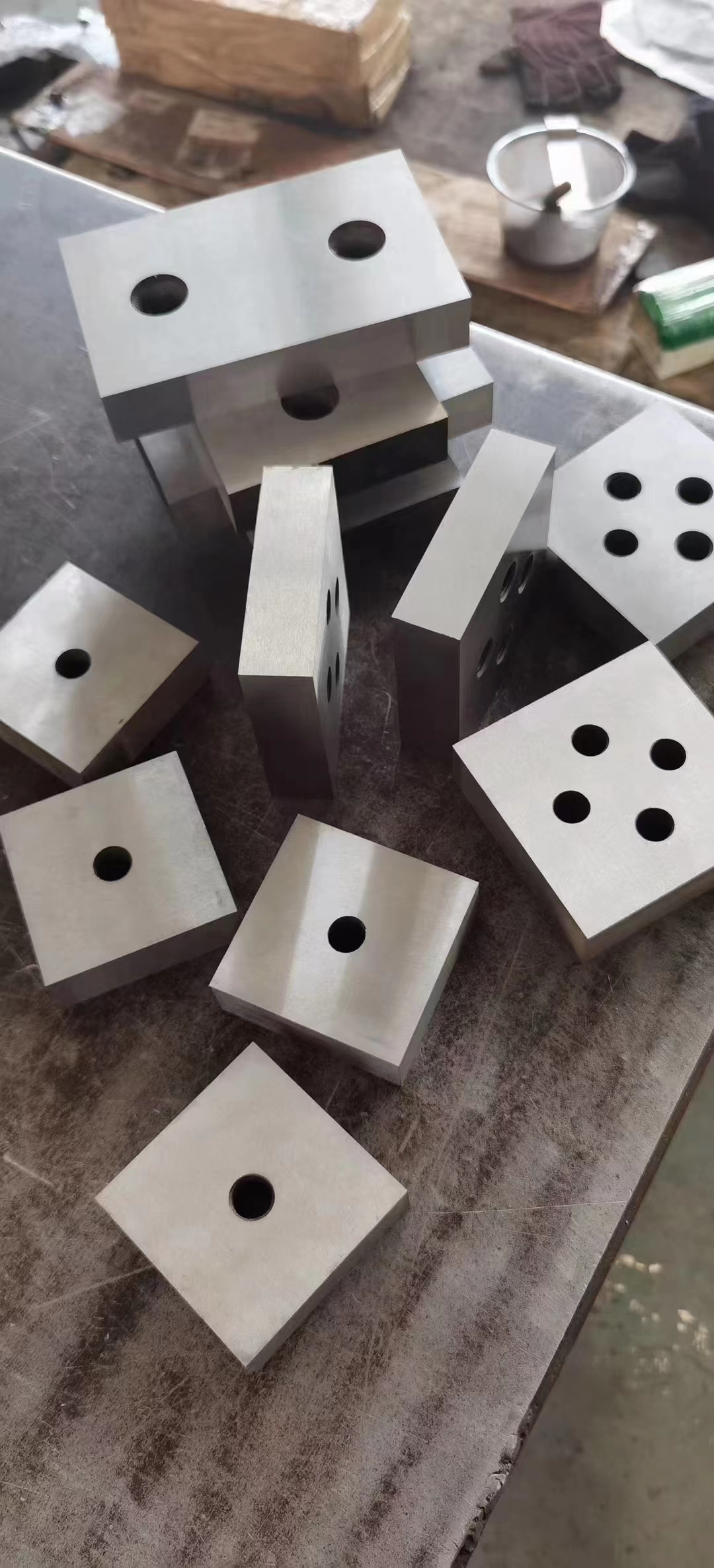

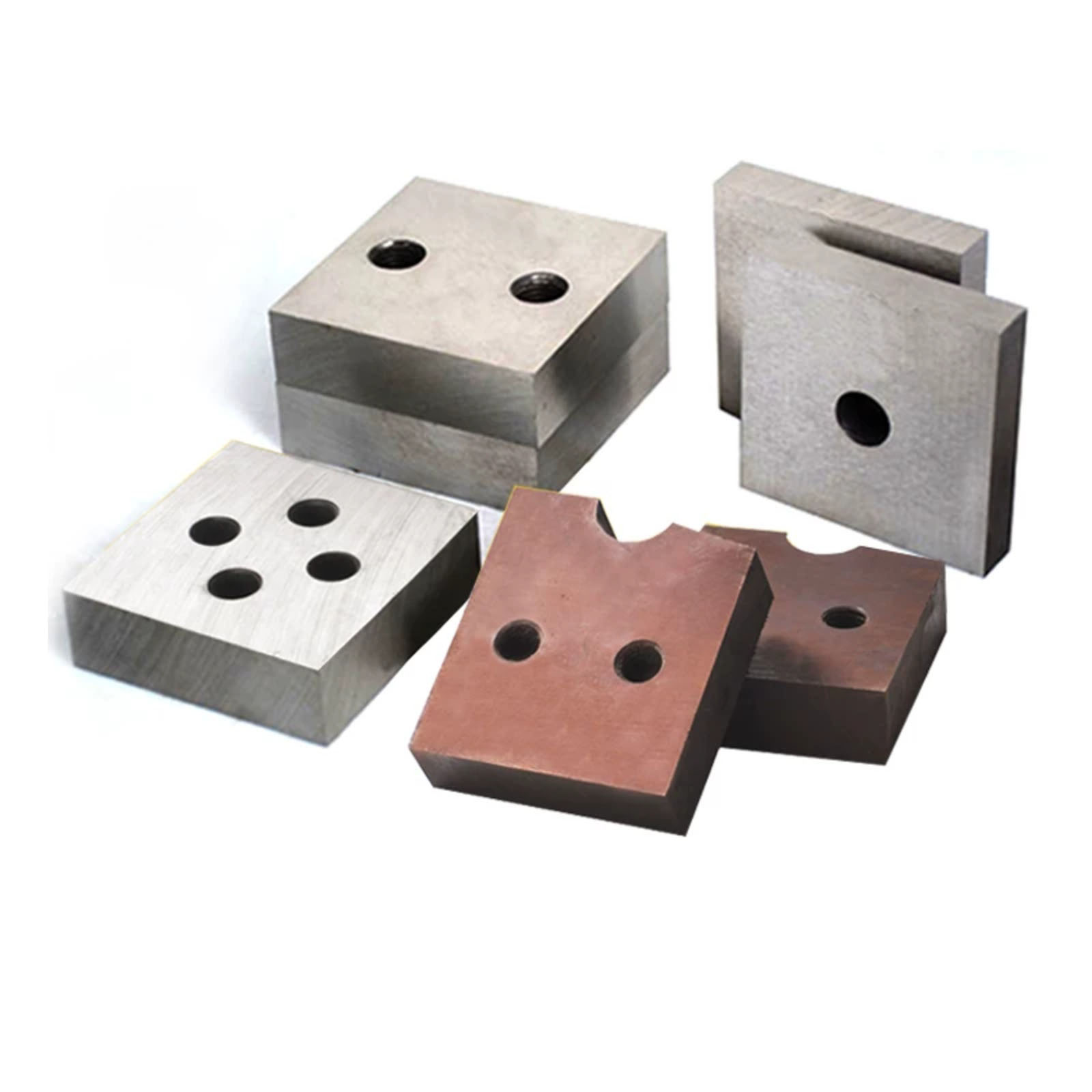

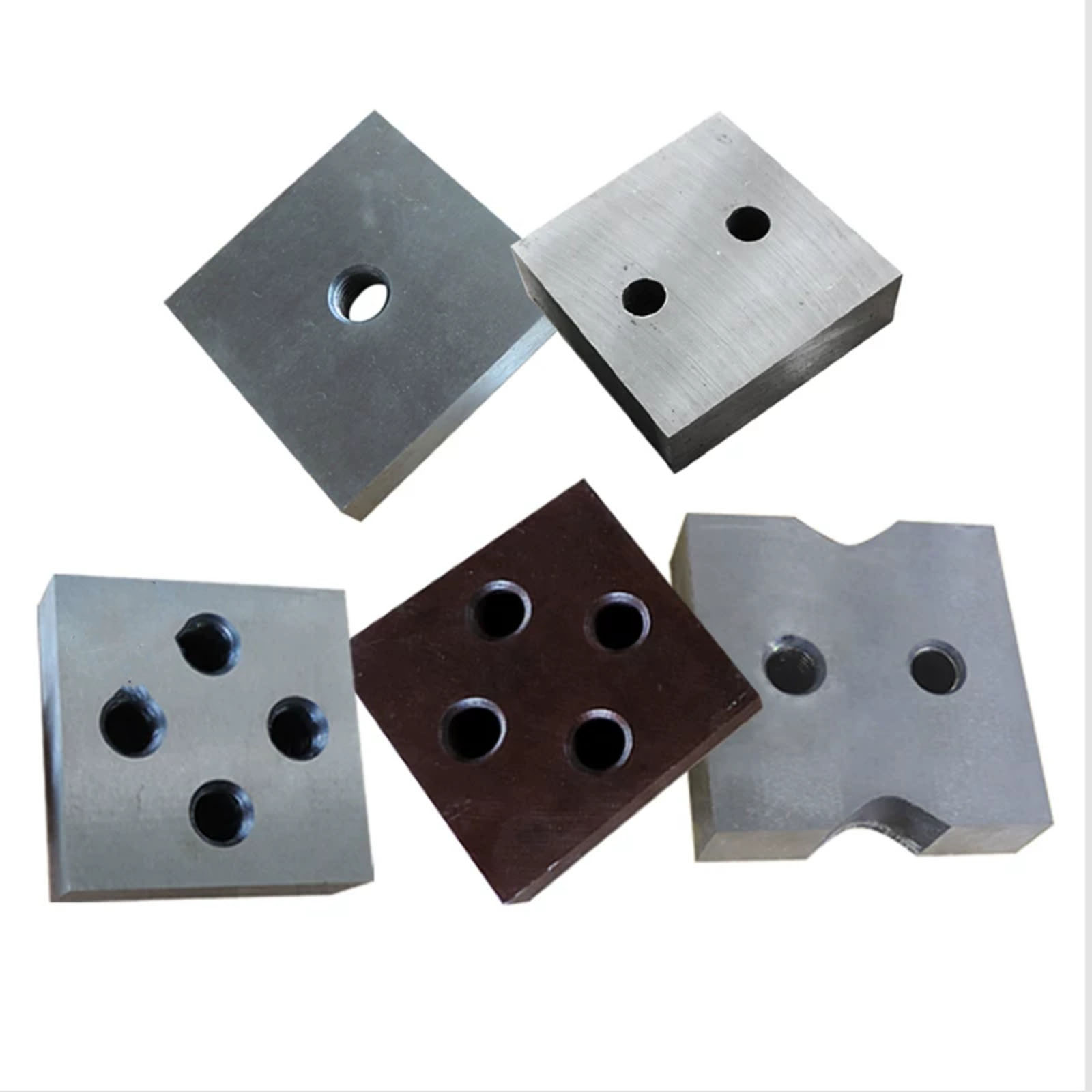

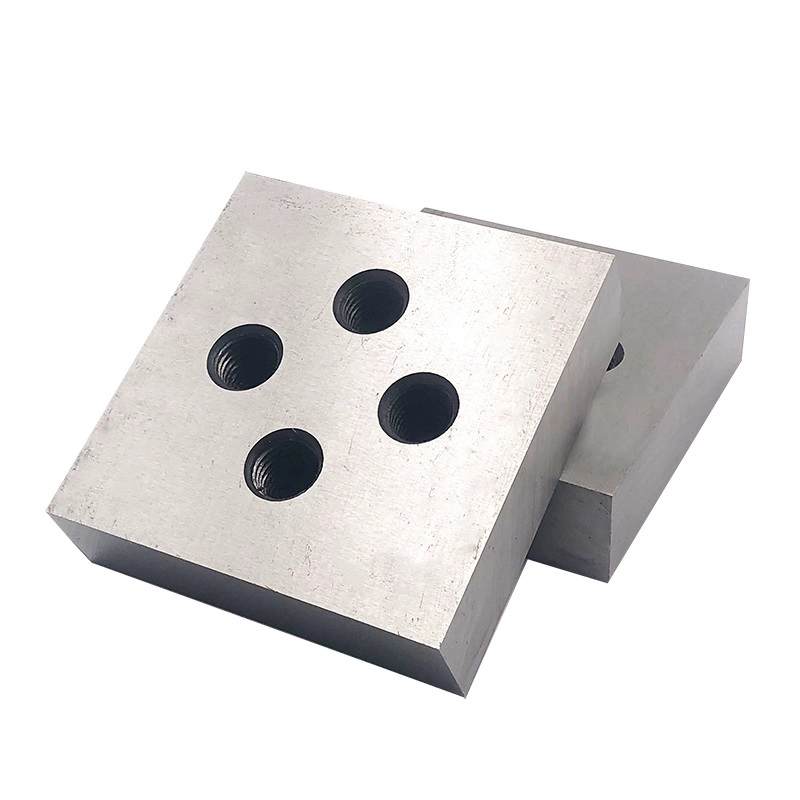

Square: 4 usable edges (rotates to last longer) – best for large-scale work.

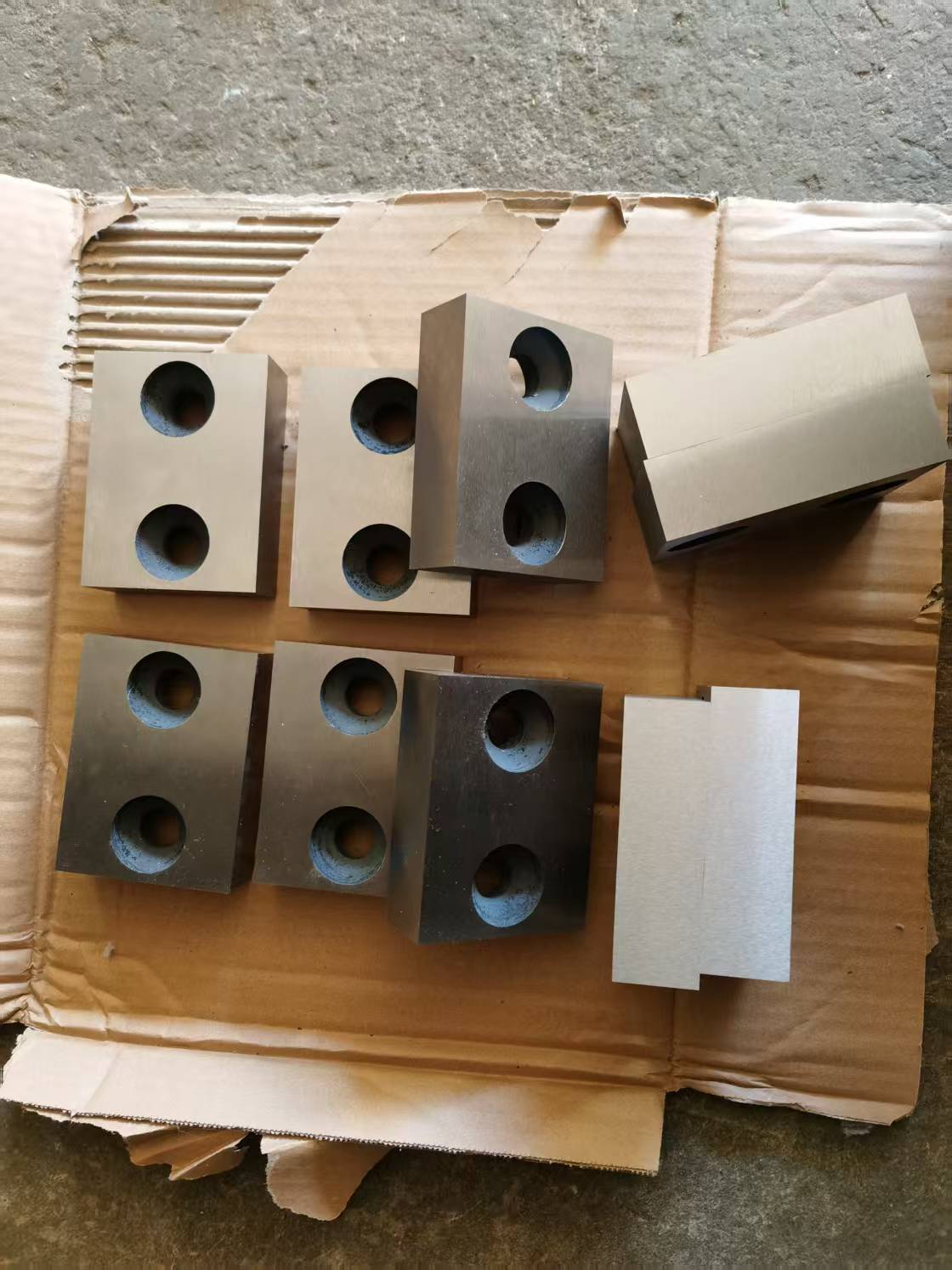

Rectangular: 1 or 2 usable edges – best for small-tonnage cutters.

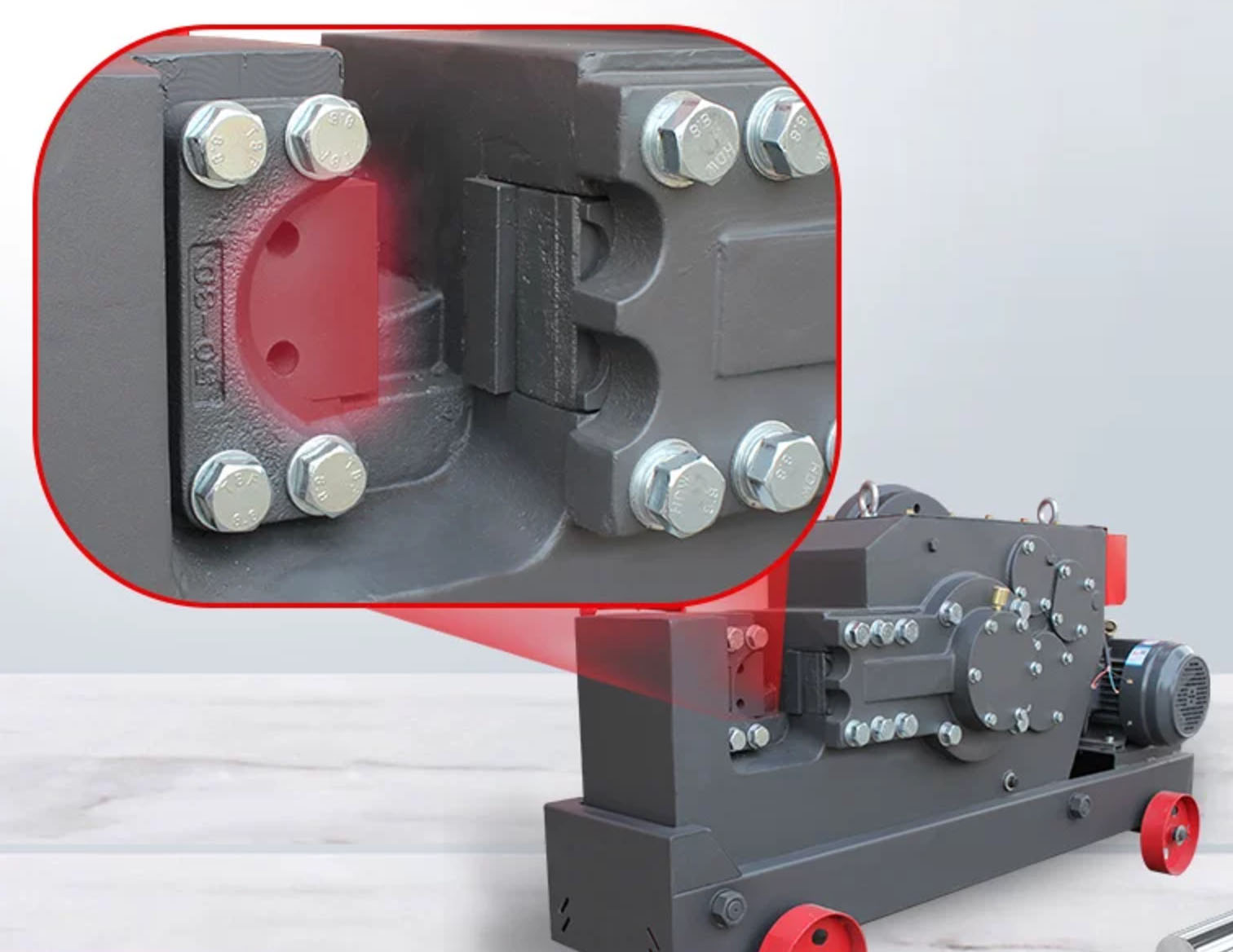

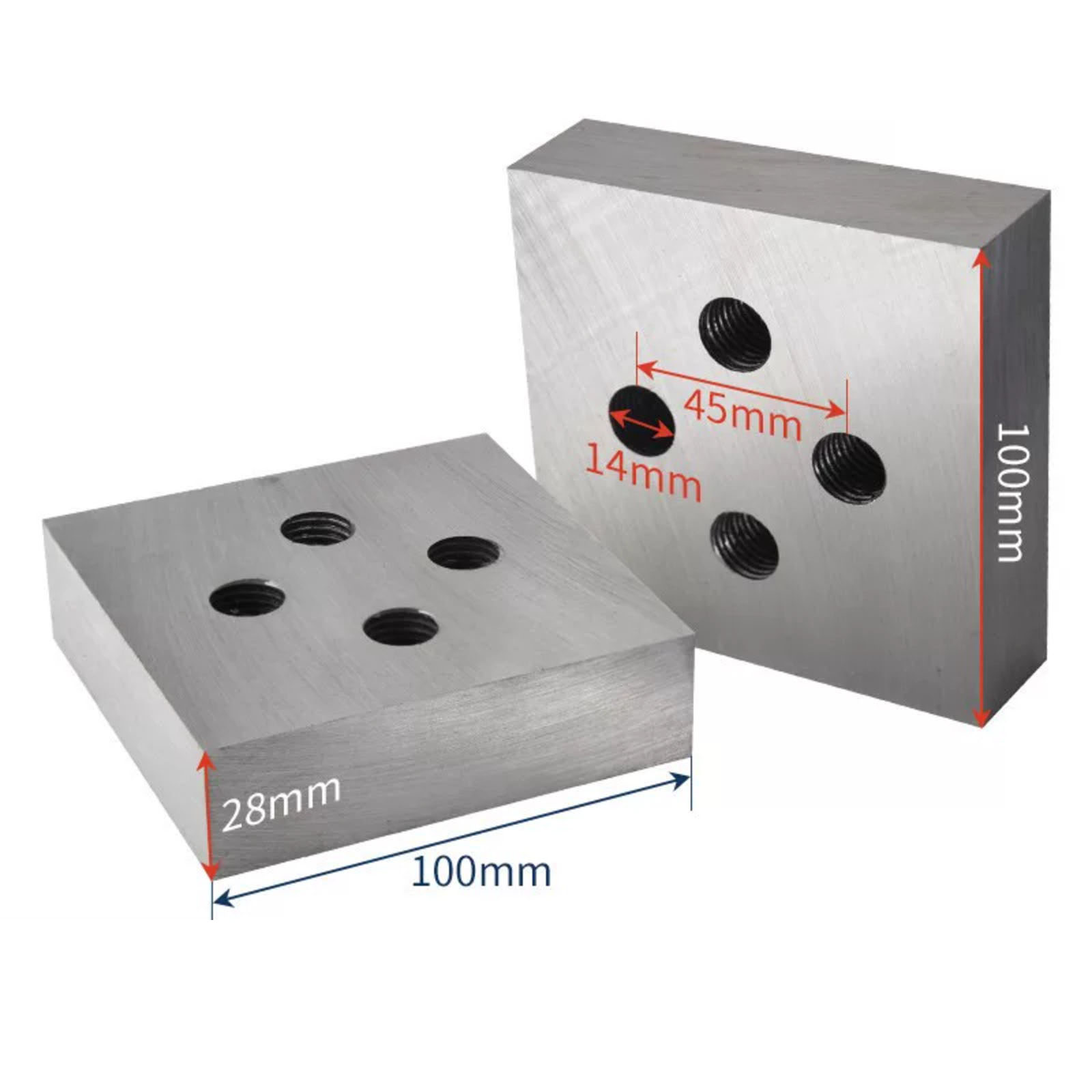

Size Matching: Machines like GQ40, GQ50, GQ60 need specific blade size (thickness, length, bolt holes). Follow your machine’s manual.
Ordinary Round Steel: Soft and easy to cut. 9CrSi or Cr12MoV works well (saves money).
High-Strength Ribbed Rebar: Hard, ribbed surfaces wear blades quickly. Use H13 (resists wear and chipping for heavy use).
Our custom blades have better hardening and toughness—fixing the common problem of breakage when cutting high-strength rebar.
H13 blades are great for international trade: they last long, so you replace them less (saves shipping and customs costs).

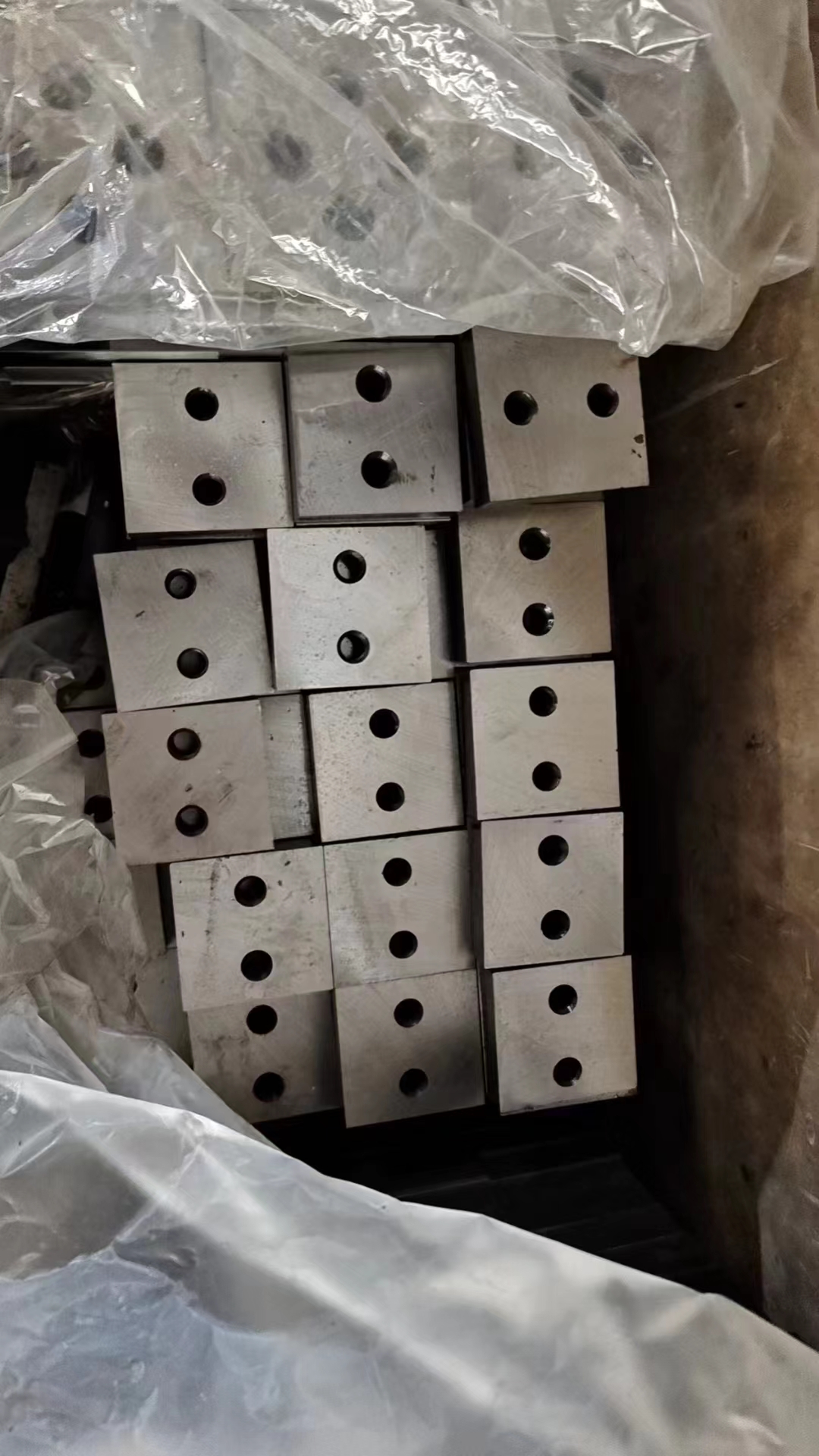

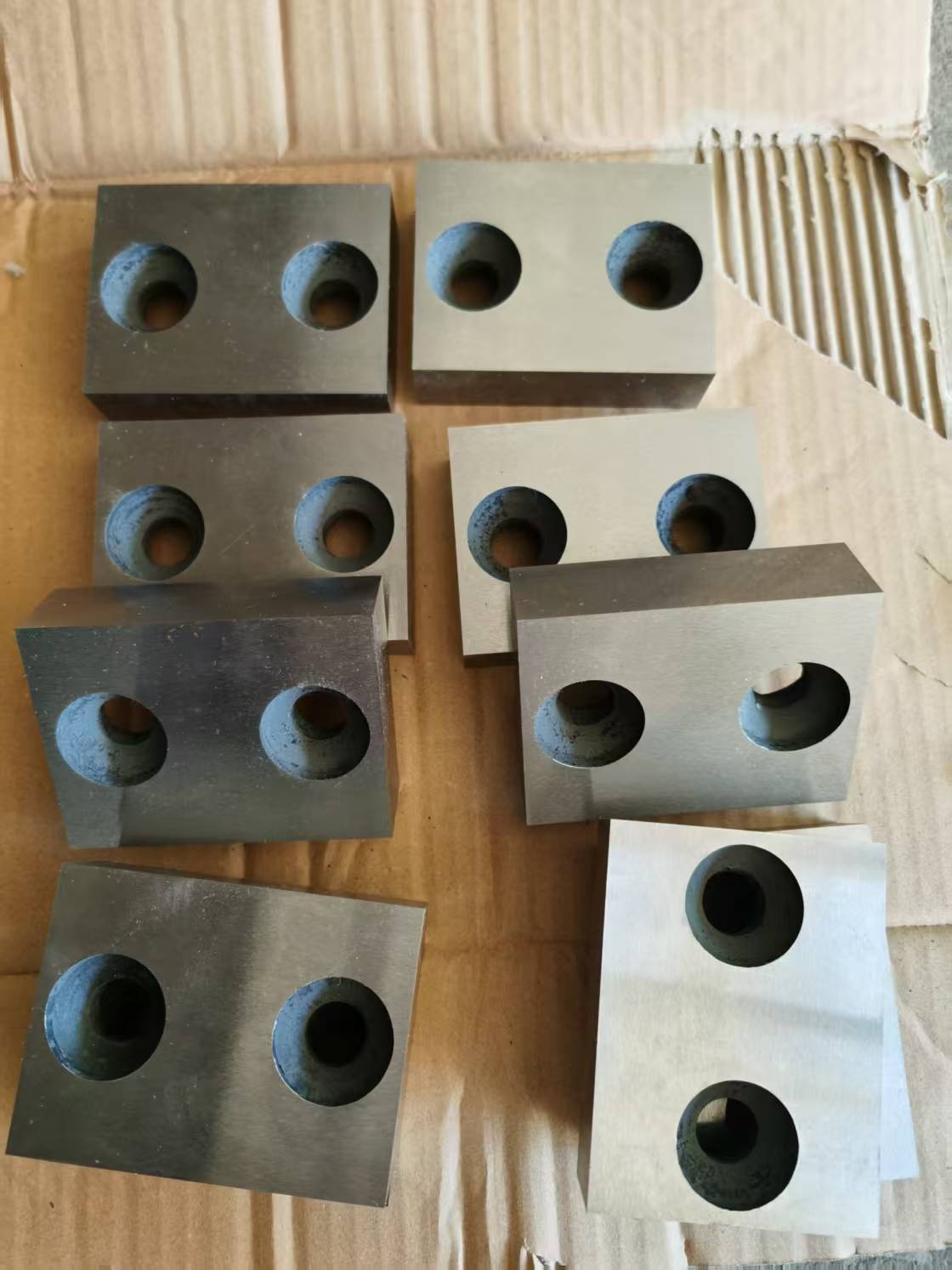

| NO. | Product Name | Specification Dimensions (length x width x height/thickness) ） | Material | Remarks |
| 1 | rebar blade size | 78*78*17 mm | 9crsi，SKD-11，H13 | Customization services are available; we can manufacture according to your drawings, with a minimum order quantity of 2 piece. |
| 2 | 80*80*17 mm | |||
| 3 | 80*80*30 mm | |||
| 4 | 83*83*16 mm | |||
| 5 | 83*83*26 mm | |||
| 6 | 83*83*26 mm | |||
| 7 | 90*90*20mm | |||
| 8 | 90*90*26mm | |||
| 9 | 100*100*20mm | |||
| 10 | 100*100*30mm | |||
| 11 | 110*110*20 mm | |||
| 12 | 100*30*75 mm | |||
| 13 | 85x65x30 mm | |||

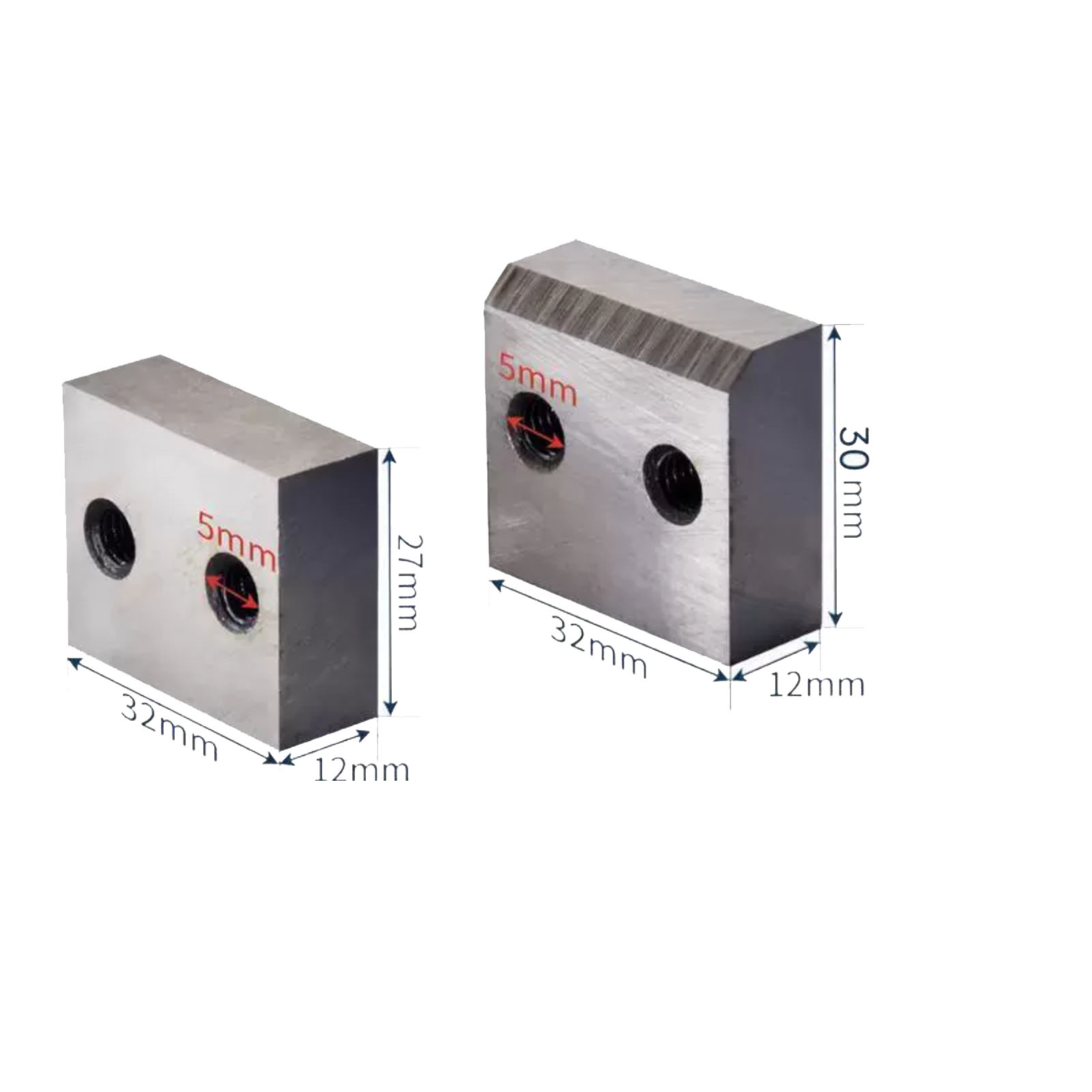

| 14 | Handheld rebar cutting machine blade | 26×20×10 mm | ||
| 15 | 30×24×11 mm | |||
| 16 | 36×28×14 mm | |||
| 17 | 40×30×15 mm | |||
Base Grade | Steel Category | Chinese Standard GB/T 1299 | American Standard ASTM | German Standard DIN (W-Nr.) | Japanese Standard JIS |
H13 | Hot Work Die Steel | 4Cr5MoSiV1 | H13 | 1.2344 | SKD61 |
Cr12MoV | Cold Work Die Steel | Cr12MoV | 1.2601 | SKD11 | |
9CrSi | Alloy Tool Steel (Cutting Tool Steel) | 9CrSi | 1.2108 |
English: Rebar Blade | Reinforcing Bar Cutting Blade
French (Français): Lame pour fer à béton | Couteau de coupe de barre d'acier
Portuguese (Português): Lâmina de vergalhão | Faca de corte de barras de reforço
Polish (Polski): Nóż do prętów zbrojeniowych | Noże do cięcia stali zbrojeniowej
Turkish (Türkçe): İnşaat Demiri Bıçağı | Demir Kesme Makas Bıçakları
Vietnamese (Tiếng Việt): Lưỡi dao cắt sắt xây dựng | Dao cắt thép thanh
Thai (ภาษาไทย): ใบมีดตัดเหล็กเส้น | ใบมีดสำหรับเครื่องตัดเหล็กข้ออ้อย
Filipino: Blade ng Rebar | Kutsilyo para sa Pagputol ng Bakal
Arabic (العربية): شفرة قص حديد التسليح | سكاكين مقصات قضبان الحديد
Hindi (हिन्दी): सरिया काटने वाला ब्लेड | रिबार कटिंग चाकू
Indonesian (Bahasa Indonesia): Pisau Potong Besi Beton | Bilah Shearing Rebar
Malay (Bahasa Melayu): Bilah Mesin Pemotong Besi Rebar | Pisau Gunting Keluli
Dutch (Nederlands): Betonstaal snijblad | Mes voor betonijzer schaar
Swedish (Svenska): Armeringsklippblad | Skär för armeringsstål
Hungarian (Magyar): Betonacél vágó penge | Betonacél nyíró kés
Greek (Ελληνικά): Λεπίδα οπλισμού | Μαχαίρι κοπής σιδήρου
Based on different working conditions and budget requirements, we offer three general industrial-grade alloy steel materials:
9CrSi (Alloy Tool Steel): An economical choice. It has good hardenability and machinability, suitable for cutting ordinary medium-to-low strength rebar, and is widely used in small and medium-sized projects.
Cr12MoV (Cold Work Die Steel): High-end wear-resistant type. High carbon and high chromium content, after heat treatment, it has excellent wear resistance, making it an ideal choice for continuous cutting of high-strength rebar. Its service life is much longer than 9CrSi.
H13 (Hot Work Die Steel/Red Hard Steel): High toughness and high wear resistance. It exhibits excellent resistance to chipping and thermal stability in rebar cutting applications, especially suitable for high-speed production lines or online cutting of hot-rolled rebar, and cutting of ultra-thick rebar and composite materials of scrap rebar.
Chipping is usually caused by the following factors:
Insufficient toughness: Using ultra-hard but low-toughness materials to cut large-diameter or ultra-hard rebar can easily lead to brittle fracture. In this case, we recommend switching to H13 material, as its excellent toughness can effectively absorb impact forces.
Improper clearance: Too large or too small a gap between the upper and lower blades will lead to uneven stress, resulting in chipping.
Insufficient heat treatment: Internal stress is not completely eliminated. All our blades use vacuum heat treatment technology to ensure uniform hardness from the inside out, greatly reducing the chipping rate.
Wear resistance: Cr12MoV has significantly better wear resistance than 9CrSi. Under the same working conditions, the number of cuts for Cr12MoV is usually 2-3 times that of 9CrSi.
Cost: 9CrSi is more cost-effective, suitable for projects sensitive to initial purchase costs; although the unit price of Cr12MoV is slightly higher, its lower replacement frequency results in a lower overall cutting cost per ton of rebar.
For high-strength or ribbed rebar, we strongly recommend H13:
If you are facing extremely high operating intensity and are concerned about downtime due to blade chipping, choose H13. Its impact fatigue resistance is top-notch in the rebar processing industry.
Yes. We understand that blade specifications vary among different equipment brands (e.g., from Italy, Germany, or China). We are equipped with a full set of CNC machining equipment, and you only need to provide the following information:
Detailed drawings (including length, width, thickness, and hole dimensions).
Material requirements (9CrSi, Cr12MoV, or H13).
Specifications of the workpiece to be processed (rebar diameter and strength grade).
We can provide a 1:1 precise customized solution.
Regular rotation: Our blades are usually designed with 4 or 8 cutting edges. Please rotate the blade promptly when one cutting edge becomes dull.
Tighten bolts: Ensure the blades are securely installed. Any slight looseness will cause destructive impact during the cutting process.
Control the gap: Adjust a reasonable blade gap according to the rebar diameter, usually about 10% of the rebar diameter.
