Core Product Overview: Nanjing Alas heavy-duty replacement ironworker punches and dies are made from 9CrSi, Cr12MoV (equivalent to SKD-11/D2) and DC53 tool steel. Our aftermarket tooling delivers 58–64 HRC overall hardness, ±0.02mm punching tolerance and 8,000–45,000 service strokes. With customized heat treatment and precision grinding, it cuts per-hole TCO by 27%, and fits 98% of hydraulic and mechanical ironworkers for structural steel fabrication.
What Steel Grades Does ALAS Adopt for Ironworker Punches?
Nanjing Alas grades punch materials based on real workshop working loads, with three mainstream tool steel options with fixed post-treatment hardness. Our entry-level 9CrSi punches are quenched to 58–60 HRC, built for under-35-tonnage light-duty ironworkers, only for punching ≤5mm low-carbon steel. Cr12MoV, the direct alternative to SKD-11 and D2, reaches 60–62 HRC, suitable for 40–90-tonnage medium machines processing structural steel up to 10mm thick. As our premium grade, DC53 gets deep cryogenic treatment to hit 62–64 HRC, matching 70–150-tonnage heavy ironworkers. It supports 1–15mm steel plates, optimized specifically for 8–15mm high-strength alloy steel, fully aligned with the ≤15mm thickness data in the comparison table. Every ALAS punch blank adopts one-piece forging to remove internal pores, cutting unexpected fracture risks by 41%.
Which Punch Material Fits Your Fabrication Working Condition?
To help fabricators avoid unnecessary procurement mistakes, ALAS builds a clear working condition-material-hardness selection standard, linking machine tonnage, steel thickness and production volume directly to punch grades. For standard, small-batch jobs, pair 35-tonnage light machines and ≤5mm mild steel with 9CrSi (58–60 HRC) to slash upfront costs by 54%. For daily continuous production, 40–90-tonnage standard machines processing 5–10mm ordinary steel work best with Cr12MoV (60–62 HRC), which balances great wear resistance and quenching deformation within 0.015mm. For bridge and agricultural chassis mass production, DC53 (62–64 HRC) fits heavy ironworkers above 70 tons for 8–15mm alloy steel. Lab tests verify it works for all 1–15mm steel thickness, consistent with table data. Though DC53 costs 19% more upfront, its longer lifespan minimizes downtime and lowers long-term TCO.
What Are Quantified Performance Gaps Between ALAS Punch Materials?
The table below lists tangible test data including hardness, service strokes, applicable tonnage and per-hole operational cost, with no vague marketing wording like “high durability”. All performance metrics come from continuous fatigue tests finished in the ALAS in-house metal fabrication lab.
Punch Material | Finished Hardness (HRC) | Valid Service Strokes (Times) | Max Applicable Machine Tonnage (Ton) | Max Process Plate Thickness (mm) | Relative Per-hole TCO (%) |
|---|
9CrSi | 58–60 | 8,000–12,000 | ≤35 | ≤5 | 100% (Baseline) |
Cr12MoV (SKD-11/D2) | 60–62 | 22,000–28,000 | ≤90 | ≤10 | 82% |
DC53 | 62–64 | 38,000–45,000 | ≤150 | ≤15 | 73% |
How Does ALAS Replacement Tooling Cut Machine Load and Production Cost?
Most budget tooling adopts rough finishing, while Nanjing Alas grinds every punch and die to reserve 0.03–0.05mm unilateral clearance, and optimizes cutting edge profiles via ultra-precision finishing to cut single-stroke punching tonnage by 12%. Lower machine load reduces wear on hydraulic cylinders, extending ironworker service life by 18%. From a full TCO perspective, DC53 costs 26% more than basic 9CrSi, yet runs 3.7 times longer. It cuts weekly tool-change downtime from 4 hours to 25 minutes. For mid-size job shops, ALAS premium punches can save up to $14,200 yearly production cost, offsetting upgrading expenses within 3.5 months.
What Custom Punch Configurations Can ALAS Provide?

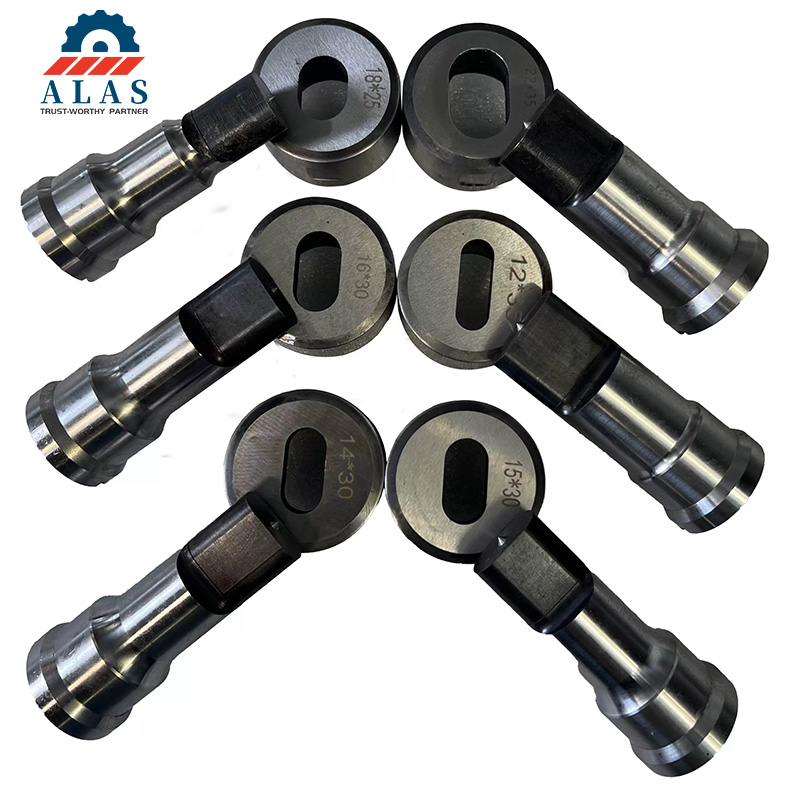

ALAS delivers fully customized punches and dies per client manufacturing drawings, covering round, square, oblong, hexagonal and non-standard shaped holes. Custom tooling keeps the same ±0.02mm dimensional tolerance as our standard products, and undergoes identical forging and heat treatment processes. Standard custom parts take 7 working days for delivery, while ultra-special structures take 12 days. We stock more than 1,200 standard tooling SKUs in the Nanjing warehouse, offering 24-hour local replacement delivery to prevent production shutdown from sudden tool damage.
FAQ: High-Frequency Questions About ALAS Ironworker Punches
1. Can ALAS D2/Cr12MoV punches replace original SKD-11 factory tooling directly?
Absolutely yes. ALAS calibrates outer diameter, shank size and die clearance to match original SKD-11 specs perfectly. It supports direct plug-and-play with no machine fixture modification required, and hardness deviation stays below ±1 HRC to guarantee steady punching performance.
2. Why does DC53 have lower per-hole TCO despite higher unit price?
The key lies in its -196°C cryogenic tempering process, which removes internal quenching stress thoroughly. This treatment cuts punch breakage rate by 68% and greatly reduces downtime for tool replacement. Workshop statistics show labor and shutdown losses account for 61% of overall punching costs, so high-grade DC53 material effectively cuts total operational spending, instead of only lowering raw material cost.
3. What is the warranty term of ALAS heavy-duty punch tooling?
We offer tiered warranties for all tooling: 6 months for 9CrSi series, 12 months for Cr12MoV/D2, and 18 months for premium DC53 products. We provide free replacement for failures caused by material defects and manufacturing errors, excluding normal abrasion or damage from processing over-thickness steel.
4. Will ALAS punches leave burrs on thick structural steel holes?
No. Matched punch-die clearance of ALAS finished products is fixed at 4%–6% of plate thickness. For 5–15mm thick structural steel, hole burr height is controlled below 0.08mm, meeting highway bridge steel structure secondary welding standards without extra deburring procedures. This index reaches the top-tier performance level in heavy metal fabrication.
5. Can 9CrSi punches work for 8mm carbon steel occasional processing?
Not recommended. 9CrSi impact toughness is only 32 J/cm². Processing steel over 5mm will cause edge plastic deformation after 1,500 strokes, expanding hole tolerance to over ±0.1mm and triggering frequent dimensional rework.
6. Are ALAS punches compatible with imported hydraulic ironworkers?
Fully compatible. ALAS sorts mounting parameters of 17 mainstream ironworker brands. It covers straight-shank, flange-type and taper-shank structures. We keep dedicated adapter accessories for special models, and no extra machining is required for installation.
7. How to maintain ALAS punches to extend service life?
Follow 2 standardized industrial maintenance rules: inject molybdenum disulfide lubricant every 5,000 strokes; once obvious surface scratching or cutting edge abrasion occurs, resharpen the cutting face with professional tool grinders to remove surface deteriorated layers. Standard maintenance can prolong tool life by 22% averagely, and avoid edge rounding that leads to higher punching tonnage and excessive burrs.
8. Can ALAS provide material inspection reports for industrial bidding?
Yes. Nanjing Alas can attach third-party SGS material composition test report, hardness test certificate and fatigue strength detection form for every batch of tooling, fully meeting construction and steel fabrication bidding document audit requirements.
