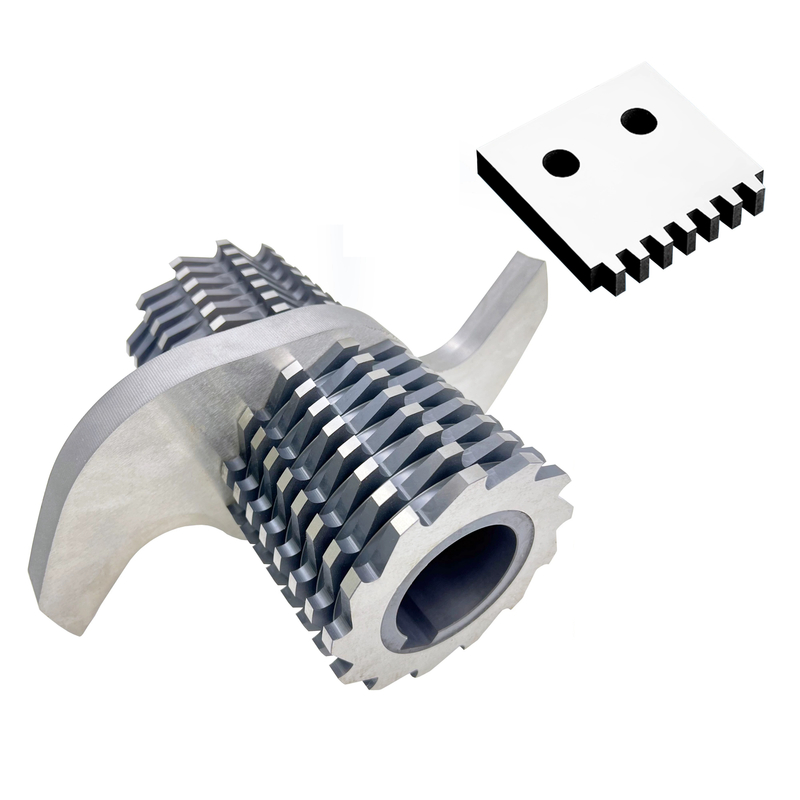

Slow Speed Crusher Knives

Scissor-Action Shearing: Engineered for low-RPM, high-torque beside-the-press granulators (25–30 RPM) to shear engineering polymers without material shattering, suppressing dust and fines at the source.
Closed-Loop Regrind Integrity: Face flatness held strictly to ≤ 0.02 mm/m (in a free, un-clamped state), maintaining a repeatable 0.1 mm shearing gap to enable immediate, high-purity material reintroduction.
Thermal Softening Defense: Triple vacuum tempering protects the cutting edge matrix from premature deformation and micro-chipping under cyclic, intermittent torque loads.
  • ALAS

  • L/C, T/T, Paypal, Money Gram

  • 2

  • Wooden Crate Packaging

Availability:
Quantity:

How Blade Geometry Affects Beside-the-Press Crushing Efficiency

An analytical engineering layout displaying an ALAS slow-speed crusher blade assembly, an industrial hook claw segment, and individual replacement cutting teeth.

Unlike high-speed granulators that smash materials via rotational impact, slow-speed beside-the-press crushers operate at 25–35 RPM to reduce sprues and runners through high-torque, scissor-action shearing. This mechanics requires excellent edge retention and tight geometrical tolerances to cut engineering resins cleanly without fracturing or creating excessive fines.

1. Material Specifications & Heat Treatment

Beside-the-press granulator blades function under continuous cyclic loads with minimal cooling air inside a compact cutting chamber. To prevent edge rounding when processing glass-filled polymers (e.g., PA66+GF30) and rigid engineering resins (PC, ABS, PBT), material integrity is critical.

  • Base Materials: Certified virgin SKD-11 (AISI D2) and Premium DC53 matrix tool steel.

  • Heat Treatment: Vacuum through-hardening followed by triple tempering to ensure metallurgical stability.

  • Target Hardness Allocation:

    • Standard SKD-11: Locked precisely at 58–60 HRC to achieve an optimal balance between wear resistance and edge toughness.

    • Premium DC53: Maintained at 60–62 HRC. By leveraging DC53’s superior chromium-matrix dispersion, this specific profile delivers higher cold-work abrasion resistance and superior edge-holding capability than standard D2 without sacrificing fatigue strength.

2. Rotor & Stator Design & Configurations

Chamber view of an operational beside-the-press slow-speed granulator processing rigid grey engineering resin sprues and runners, showing polymer fractions inside the cutting teeth.

The tooling suite enables stable, closed-loop inline recycling directly next to injection molding machines while meeting modern factory noise standards.

  • Thermal Protection: Operating strictly within a 25–35 RPM range minimizes frictional heat build-up. This prevents localized polymer melting, thermal degradation, and molecular weight loss in the regrind.

  • Screenless Particle Sizing: The system operates without a traditional discharge screen mesh. Particle size is governed primarily by the precision interlocking gap between the staggered rotor teeth and the bed stators, maintaining output dimensions within a tightly defined typical range.

  • Acoustic Control: Precision-ground flat interfaces eliminate structural blade play and side-rubbing friction. Combined with a balanced dynamic rotor setup and standard machine soundproof enclosures, this micro-tolerance alignment helps maintain overall operational noise below 85 dB(A) to comply with factory floor environments.

  • Application Compatibility:

    • Engineering Polymers: PC, PA66 (Nylon), ABS, and POM sprues, rejects, and thick-walled runners.

    • Soft Polyolefins & Elastomers: High-volume runners of PP, LDPE, and TPE.

3. Manufacturing Tolerances & Quality Control

Large-scale factory stock and mass production of ALAS slow-speed granulator blades, bed stators, and circular cutters on a quality control station with dynamic calipers.

Micro-Flatness

Blade face flatness is held strictly to ≤ 0.02 mm/m in a free, un-clamped state to eliminate axial wobble and side-rubbing friction during intermeshing.

Shearing Clearance & Multi-Point Calibration

Combined with a precision parallelism tolerance of ≤ 0.02 mm, the assembly holds a baseline 0.1 mm cutting clearance for rigid engineering sprues across the entire shaft length. To ensure this clearance holds true without deviation along the assembly span, technicians must execute a mandatory 5–8 point equidistant feeler gauge check along the shaft. The maximum allowable lateral shearing clearance variation across all check-points must be held within ≤ 0.03 mm to prevent thin sections from slipping through uncut. The system maintains field-adjustable capability via calibrated shims, expanding the gap to 0.15 mm to 0.30 mm for soft polyolefins and thin flexible films to absorb frictional heat and prevent motor stalls.

Traceability

Every rotor assembly undergoes a 5-point digital Rockwell hardness test. Shipments include a signed inspection certificate and positive material identification (PMI) spectrum reports.

4. Synchronized Set-Matching & Pre-Assembly

  • The Component-Mismatch Risk: Sourcing individual slow-speed rotor rollers or bed stators from loose catalog brokers frequently leads to operational failures. Horizontal side-clearance variations exceeding 0.05 mm cause blade-on-blade collisions and tooth shattering.

  • Factory Master-Shaft Alignment: Every recycling tooling suite is pre-assembled onto a factory master shaft before crating rather than shipping uncalibrated individual components.

  • 0.1 mm Shearing Line Sign-Off: Technicians perform feeler gauge mapping to secure a uniform 0.10 mm shearing clearance in a free state, eliminating onsite alignment errors and motor stalls.

Technical FAQ

Q1: Why is material selection critical for slow-speed knives processing glass-filled resins?

A: Slow-speed beside-the-press crushers rely on high torque and narrow gaps. When processing abrasive materials like PA66+GF30, the glass fibers exert severe abrasive wear on the cutting edge apex. Utilizing standard SKD-11 (58–60 HRC) or upgrading to premium DC53 matrix tool steel (60–62 HRC) provides the rigid structural matrix needed to resist friction while preventing the interlocking claws from micro-chipping under intermittent torque loads.

Q2: How do these blades minimize dust and fines in the regrind?

A: Excess fines and dust result from blunt cutting edges or wide, uncalibrated clearance gaps that crush the plastic instead of shearing it. These blades are precision-ground to ≤ 0.02 mm/m face flatness (free state) to maintain a strict, repeatable 0.1 mm lateral shearing clearance tailored for rigid polymer sprues. This ensures clean, scissor-action dicing, suppressing dust at the source so molders can safely execute closed-loop material reintroduction at qualified ratios without gating blockages. For flexible film or thin bag lines, this horizontal gap is dynamically adapted to a broader 0.15 mm to 0.30 mm window via calibrated shims to prevent excessive friction-induced polymer melting while ensuring clean fiber cuts.

Q3: What is the typical service life of these blades before resharpening?

A: Due to the triple vacuum tempering process which stabilizes the steel microstructure, these high-alloy tools deliver extended runtimes compared to conventional carbon steel cutters. Factory continuous-run evaluations indicate a 3x service life expansion for standard SKD11 (58–60 HRC) profiles, and up to a 5x service life expansion for premium DC53 (60–62 HRC) matrix profiles when processing abrasive engineering polymers. This runtime extension reduces per-ton recycling processing costs across maintenance cycles.

Q4: Are these replacement knives compatible with mainstream granulator brands?

A: Yes. They are engineered as drop-in replacement knives matched to original equipment mounting geometries. Alternative blade profiles are regularly manufactured for Wittmann, Shini, Moretto, and Cumberland lines. To prevent edge collisions caused by dynamic clearance misalignments during field operation, the engineering department pre-verifies all critical mounting dimensions. Custom quotes require the specific machine model, shaft dimensions, or dimensioned hand sketches.

Q5: Can these staggered rotor blades and stators be re-sharpened, and what are the cooling requirements?

A: Yes, they support multiple professional regrinds. However, constant, high-volume fluid flood cooling is mandatory during the resharpening process to keep surface temperatures below 200°C. Never dry-grind. Dry grinding sparks edge temperatures above 250°C, triggering localized thermal annealing that drops edge hardness below 40 HRC and permanently ruins the wear resistance of the tool steel.

High-volume fluid flood coolant applied during the precision cylindrical grinding process of an ALAS staggered-tooth slow-speed crusher blade to prevent thermal annealing.
A batch of finished ALAS low-speed crusher knives and matching bed stator blades neatly organized inside a heavy-duty wooden box ready for cross-border logistics.

Shattering Engineering Plastics or Dealing with Loud, Friction-Heavy Crushing?

Don't let blunt edges or loose catalog brokers contaminate your closed-loop regrind purity next to your press. Upgrade to ALAS high-precision slow-speed crusher knives. Pre-assembled on factory master shafts, our tooling undergoes a mandatory 5–8 point equidistant feeler gauge check to control lateral clearance variation under ≤0.03 mm, minimizing edge collision risk. Field-adjustable from a baseline cutting clearance for rigid resin up to a broader gap via calibrated shims for soft polyolefins, we greatly reduce dust and fines while maintaining operational noise below 85 dB(A). Contact our engineering team today for a factory-direct quote on custom Wittmann, Shini, Moretto, or Cumberland retrofits (SKD-11/Premium DC53).
