Guide to Replacement Punches for Ironworkers: Material Selection & Application Guide
Introduction: The Critical Role of Ironworker Punches
In a busy metal fabrication shop, your ironworker is only as productive as the tooling inside it. Choosing the right replacement punches for ironworkers is more than just finding a fit—it’s about balancing hardness, toughness, and heat resistance to minimize downtime and maximize hole quality.
As the core execution component of the punching station, punches work in conjunction with dies to precisely penetrate various metal plates and profiles. Selecting the optimal material ensures long-term durability, consistent performance, and reliable results across different production runs.
Core Material Options for Ironworker Punches
Below is a comprehensive breakdown of top material options and their critical applications to guide your decision-making.
1. Material: 9CrSi – The Entry-Level Workhorse
Applicable Conditions for 9CrSi Punches
Engineered for light-duty machines. Ideal for processing thin/soft materials with a thickness of ≤5mm, and suitable for small-batch production runs.
Core Advantages of 9CrSi Material
Offers excellent toughness at a low cost, making it the go-to choice for entry-level general-purpose applications.
Key Limitations to Consider
Provides average wear resistance. Not suitable for thick or high-strength materials, as it may wear quickly or deform under heavy loads.
2. Material: Cr12MoV – The High-Value Performer
Applicable Conditions for Cr12MoV Punches
Designed for small-medium tonnage machines. Perfect for cutting ordinary steel/profiles up to ≤10mm in thickness, supporting regular batch production.
Core Advantages of Cr12MoV Material
Delivers a superior high cost-performance ratio. Features outstanding wear resistance and minimal deformation during quenching, ensuring strong versatility and stable quality.
Key Limitations to Consider
Has average impact resistance. Not recommended for extremely thick or hard materials that demand exceptional impact resistance.
3. Material: DC53 – The Premium Upgrade
Applicable Conditions for DC53 Punches
Ideal for small-medium tonnage machines processing 8-15mm thick medium-low alloy steel and complex profiles.
Core Advantages of DC53 Material
An upgraded option boasting high toughness and excellent wear resistance. Guarantees stable quenching results and a significantly longer service life, reducing replacement frequency.
Key Limitations to Consider
Slightly higher in cost than Cr12MoV. Targeted for scenarios demanding premium performance and reduced overall downtime.
Key Features & Benefits of Our Replacement Punches
Our ironworker punches are manufactured through precision integrated forging and advanced strengthening treatments, resulting in uniform hardness and exceptional impact resistance.
Superior Durability & Wear Resistance
Resistant to breakage and wear, ensuring consistent performance over extended production cycles.
Ultimate Precision for Consistent Hole Quality
Maintains tight punching dimensions to meet the strict requirements of various hole diameters, delivering clean, accurate holes.
Broad Compatibility & Versatility
Engineered to fit a wide range of ironworker machine models, making them a versatile choice for any workshop.
Conclusion & Final Recommendations
Choose the right punch based on your machine's tonnage, material thickness, and production volume. For high-volume, precision applications, DC53 offers the best longevity. For general-purpose use, Cr12MoV provides excellent value.
Contact our technical team for a custom material recommendation tailored to your specific processing needs.
Ironworker punches drawing

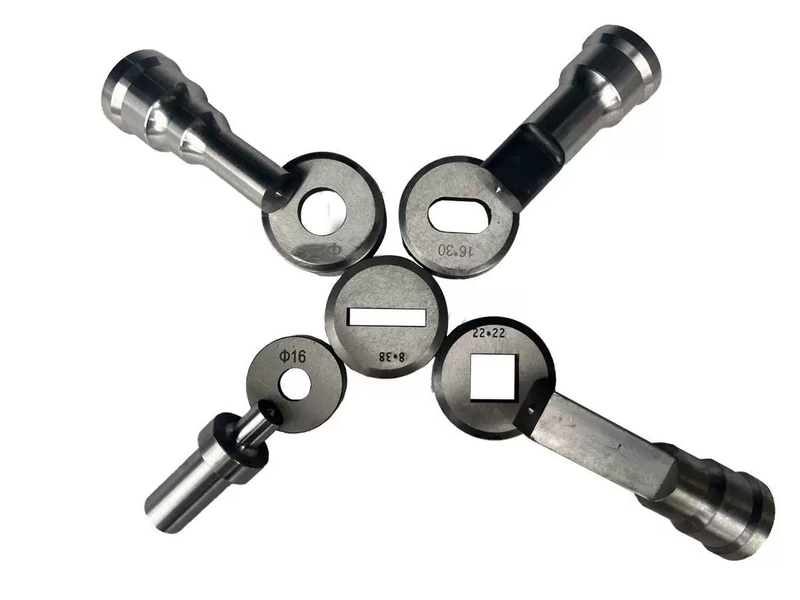

can customize various sizes
9CrSi - Entry-Level Economical General-Purpose
Cr12MoV - Standard General-Purpose
DC53 - High-Performance Upgrade for General-Purpose
