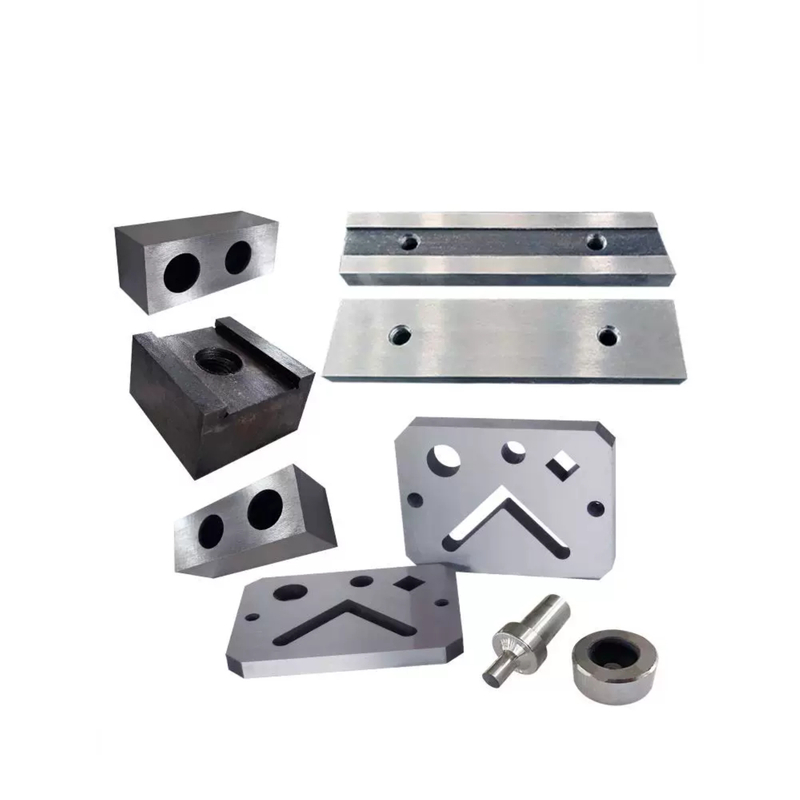

A collection of replacement ironworker parts including punches, dies, and flat bar shear blades

Share to:

Replacement Ironworker Parts

Port:
Nanjing, China
Payment Terms:
T/T, Money Gram

Availability:

Quantity:



Inquire Add to Basket

The Complete Guide to Ironworker Replacement Parts: Quality, Materials & Maintenance

In any high-volume steel fabrication shop, downtime is costly. As the backbone of production, ironworker machines rely on quality replacement parts—choosing the right parts isn’t just about cost, but reliability, efficiency, safety, and equipment longevity. When a blade dulls or a punch chips, production grinds to a halt; high-quality parts prevent this, optimizing performance and extending machine life. This guide simplifies key information on material selection, performance, maintenance, and compatibility.

Why Quality Replacement Parts Matter

Low-grade ironworker replacement parts lead to costly consequences; not all tooling is created equal. Key issues with substandard parts:

Increased machine stress: Poorly fitted punches require more hydraulic pressure, straining the motor and shortening equipment life.

Frequent downtime: Soft steel blades and punches dull or chip quickly, forcing constant stops for sharpening or replacement.

Safety risks: Substandard tool steel can chip or shatter under high tonnage, endangering operators.

What Are Ironworker Replacement Parts?

Ironworker replacement parts (primarily punches, dies, and shear blades) are core wear-resistant components for combined punching and shearing machines. Designed for cold shearing and punching of metal profiles—including angle steel, flat steel, round steel, channel steel, and square steel—they are used in steel structure factories, construction sites, and metal processing plants. These parts bear high shear impact, edge extrusion, and repeated friction; their material selection, heat treatment, and precision processing directly determine cutting efficiency, workpiece quality, and equipment service life.

Key Material Selection: Punches & Dies vs. Shear Blades

Material selection depends on workload, with the core principle of balancing hardness, wear resistance, and toughness to prevent chipping and deformation. We distinguish two categories for clarity:

Punch & Die Materials (9CrSi, Cr12MoV, DC53)

9CrSi Alloy Tool Steel (Entry-Level):

Chemical Composition (Mass Fraction, %): C 0.85-0.95, Cr 1.20-1.50, Si 1.00-1.30, Mn ≤0.40, P ≤0.030, S ≤0.030, Fe Balanced. Moderate hardness/wear resistance, easy on-site regrinding, cost-effective. Suitable for light intermittent punching, small profiles, and low-frequency use on small/medium ironworkers.

Cr12MoV Cold Work Die Steel (Mainstream):

Chemical Composition (Mass Fraction, %): C 1.45-1.70, Cr 11.00-13.00, Mo 0.40-0.60, V 0.15-0.30, Mn ≤0.40, Si ≤0.40, P ≤0.030, S ≤0.030, Fe Balanced. Core Hardness: HRC 58-62 (vacuum quenching + low-temperature tempering). Balanced wear resistance and impact resistance, 2-3 times longer service life than 9CrSi. Suitable for medium-heavy, high-frequency continuous punching, mass production in steel structure factories, and 90% of medium-heavy ironworkers.

DC53 Cold Work Die Steel (High-Performance):

Chemical Composition (Mass Fraction, %): C 1.00-1.10, Cr 8.00-10.00, Mo 2.00-3.00, V 0.80-1.20, Mn ≤0.50, Si ≤0.40, P ≤0.030, S ≤0.030, Fe Balanced. Higher toughness and wear resistance than Cr12MoV, excellent dimensional stability after heat treatment. Suitable for high-precision, heavy-load punching, hard materials, large-spec profiles, and harsh working conditions.

Shear Blade Materials (SKD-11, H13)

SKD-11 Cold Work Die Steel (Mainstream):

Chemical Composition (Mass Fraction, %): C 1.40-1.60, Cr 11.00-13.00, Mo 0.80-1.20, V 0.20-0.50, Mn ≤0.50, Si ≤0.40, P ≤0.030, S ≤0.030, Fe Balanced. Core Hardness: HRC 58-62 (vacuum quenching). Excellent wear resistance and edge retention, ideal for medium-heavy shearing of flat/angle steel (30mm-200mm angle steel, ≤50mm flat steel).

H13 Die Steel (Severe Conditions):

Chemical Composition (Mass Fraction, %): C 0.32-0.45, Cr 4.75-5.50, Mo 1.10-1.75, V 0.80-1.20, Si 0.80-1.20, Mn 0.20-0.50, P ≤0.030, S ≤0.030, Fe Balanced. Core Hardness: HRC 52-56 (after quenching). Extreme toughness, anti-chipping and anti-fracture performance, adaptable to harsh conditions (impurities, weld scars, hard slag on profiles). Suitable for extra heavy-load shearing, large-spec profiles (≥100mm angle steel/channel steel), and high-strength alloy steel cutting.

Core Performance Requirements

Precision hardness control:

Stable edge hardness (no over-hardening or under-hardening), tied to material composition and heat treatment.

Excellent toughness:

Withstands instantaneous shear impact and punching force without chipping, cracking, or deformation.

High wear resistance:

Maintains a sharp edge during high-frequency use, reducing regrinding and replacement frequency.

Dimensional stability:

Precise size to ensure perfect fit and consistent performance for punches, dies, and blades.

Essential Replacement Parts to Stock

Avoid costly downtime by keeping these core parts on hand:

Punch and Die Sets (round, oblong, square): Preferred materials—Cr12MoV (mainstream) or DC53 (high-precision/heavy-load).

Shear Blades: Reversible blades for flat bar and angle iron stations—preferred materials—SKD-11 (mainstream) or H13 (severe conditions).

Applicable Cutting & Punching Scenarios

Angle Steel:

30mm-200mm (equal/unequal), compatible with SKD-11/H13 shear blades and Cr12MoV/DC53 punches/dies.

Flat Steel:

≤40mm thickness, ensuring smooth, burr-free cutting with SKD-11/H13 blades and precise punching with Cr12MoV/DC53 tools.

Round Steel:

≤25mm diameter, no deformation during cutting/punching.

Channel/Square Steel:

Customized punches, dies, and blades for non-standard profiles and heavy-duty industrial needs.

ALAS Advantage: Vacuum Heat Treatment

The lifespan of replacement parts is determined by heat treatment. All our tools undergo vacuum heat treatment, ensuring uniform hardness (matching material HRC standards: 58-62 for Cr12MoV/SKD-11/DC53; 52-56 for H13; 52-55 for 9CrSi). This process eliminates internal stresses, making our parts far more durable than those treated with standard salt bath quenching.

Extend Part Service Life

Scientific use and daily maintenance reduce costs and prolong part life. Key operation points:

Avoid over-spec use: Strictly match part specifications to profile size to prevent chipping.

Precise blade clearance: Set shear gap to 0.05-0.1×profile thickness (too large causes burrs; too small increases equipment load).

Clean workpieces: Remove weld scars, hard slag, and rust before cutting/punching to avoid edge damage.

Regular lubrication: Add butter to machine guide rails and pin shafts for smooth operation and even force distribution.

Universal Compatibility

Our parts are CNC-machined to exact OEM specifications for the world’s leading ironworker brands, ensuring a perfect fit:

Why Choose Our Ironworker Parts?

Professional material customization

Select 9CrSi/Cr12MoV/DC53 for punches/dies and SKD-11/H13 for blades, with 100% raw material quality assurance (material certificates).

Advanced heat treatment

Vacuum quenching for stable hardness, uniform structure, and balanced performance.

High-precision CNC processing

Strict size tolerance control, smooth edges, and perfect fit (no mismatches).

Long service life

Industrial-grade wear resistance, far longer than ordinary carbon steel parts.

Customized service

Non-standard part customization for special machine models/scenarios, supporting OEM/ODM.

Complete after-sales service

On-site use guidance and regrinding suggestions to solve all cutting/punching problems.

Conclusion

Don’t wait for catastrophic equipment failure to order spares. Keeping a "maintenance kit" of standard punches, dies, and backup blades is the hallmark of a well-run shop. Investing in high-quality, material-matched replacement parts ensures cleaner workpieces, less secondary grinding, reduced downtime, and longer equipment life. Contact ALAS today for a comprehensive catalog tailored to your ironworker model.
