Low Speed Shredder Blades for Plastic Recycling

Alloy Formats: 100% direct-milled from certified, traceable virgin mill stock of SKD11 (AISI D2) and premium upgraded DC53 Matrix Steel, backed by verifiable furnace batch records and positive material identification (PMI) data.
Bore Engagement: Precision wire-cut and finish-broached to precision OEM-matched fitments for hexagonal and splined drive shafts (with loose installation margins engineered strictly for keyed seats).
Thermal Control: Regulated low-velocity operations (25–35 RPM) minimize localized frictional heat, preventing polymer melting and molecular weight degradation.
Target Application: Tailored for dense polymer lumps, purgings, high-abrasion glass-filled resins (PA66+GF30), thick-walled PVC pipes, and PET preforms.
  • ALAS

  • L/C, T/T, Paypal, Money Gram

  • 2

  • Wooden Crate Packaging

Availability:
Quantity:

1. Product Performance & Assembly Core

Shearing Mechanism: Designed for heavy-duty, low-speed dual-shaft plastic shredders. Uses a scissor-action shearing profile to reduce bulky plastics while minimizing dust and fines at the source.

Chamber view of an operational low-speed dual-shaft plastic shredder processing rigid engineering resin sprues and runners, showing red plastic fractions inside the cutting teeth.

Through-Hardening Protocol: Processed via deep vacuum through-hardening and triple tempering to establish a homogenous grain structure. Hardness is specified at 58–60 HRC for SKD11 and 60–62 HRC for Premium DC53 to optimize edge-holding fatigue life.

Stack-Up Tolerance Control: Individual blade thickness is held within ±0.05 mm. Assembly utilizes 0.01–0.02 mm graded precision shims to control cumulative stack-up deviation within specified functional tolerances under continuous axial and radial loads.

2. Structural Configurations & Anti-Wrapping Mechanics

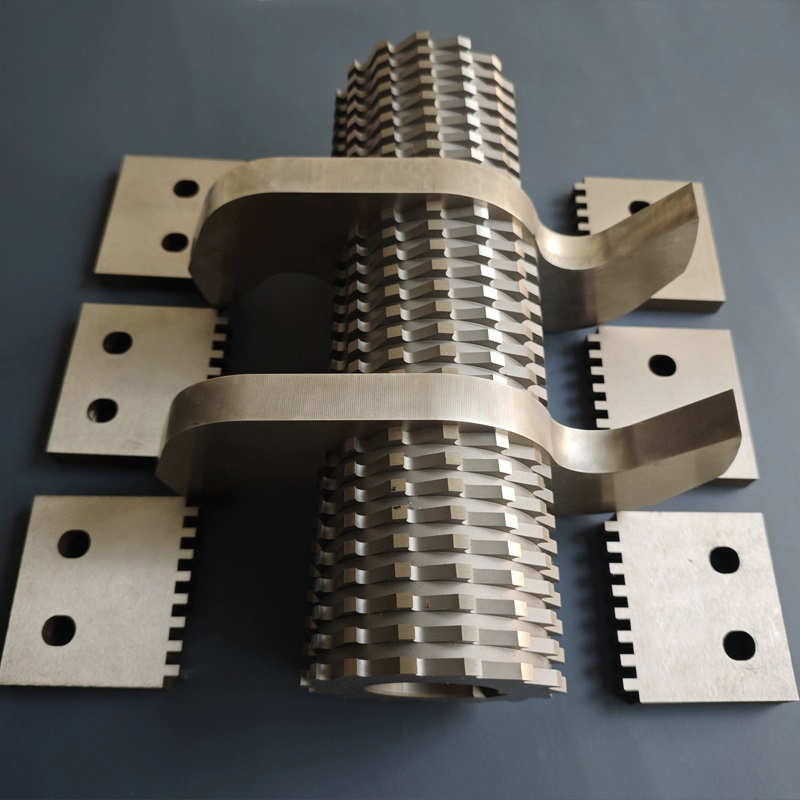

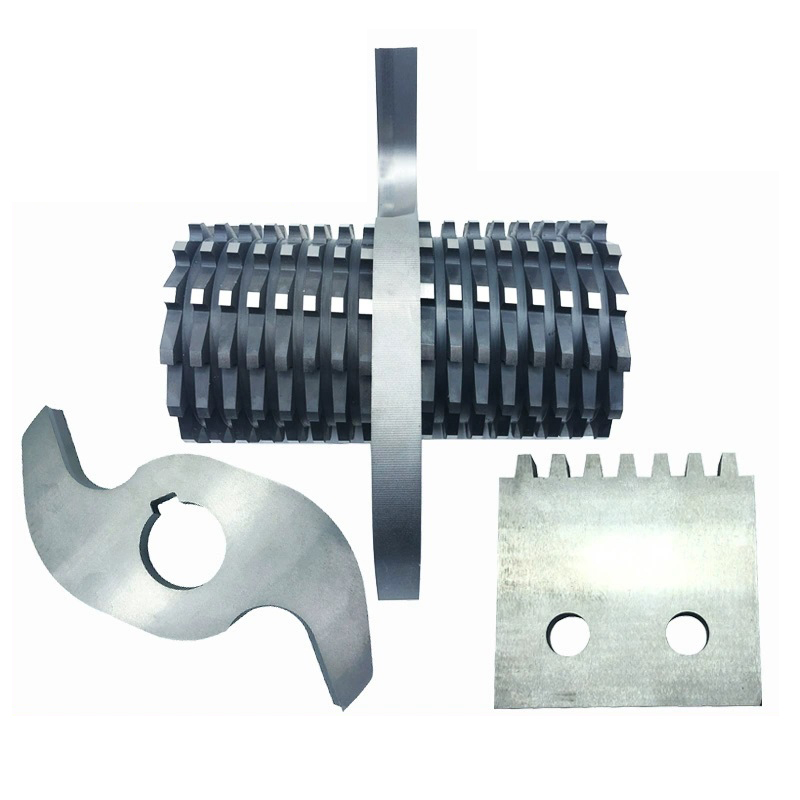

ALAS replacement low-speed staggered-tooth plastic shredder rotor blade featuring an ISO H9 finish-machined flat keyway bore seat

Staggered-Tooth Geometry

Multi-claw hooks and staggered rotor tooth configurations provide continuous material pull-in for dense plastic lumps and bulky purgings, preventing bridging in the hopper.

Side-Clearance Calibration & Multi-Point Inspection

Blade face flatness is ground to ≤ 0.02 mm/m in a free, un-clamped state, with a parallelism error < 0.03 mm. To ensure this tight tolerance holds the horizontal knife-to-knife cutting gap at a baseline 0.1 mm clearance without deviation along the shaft, technicians must execute a mandatory 5–8 point equidistant feeler gauge check along the assembly span. The maximum allowable lateral shearing clearance variation across all check-points must be held strictly within ≤ 0.03 mm to prevent thin polyolefin films from slipping through uncut, eliminating friction-induced shaft-wrapping and motor current spikes. This gap remains field-adjustable using calibrated shims to match specific thin-film resilience on-site.

Bore Fatigue Mitigation

Internal hexagonal and splined bores are rough-cut via wire-EDM and finish-broached to ensure uniform 120° corner contact against the drive shaft. This calibrated fitment minimizes point-contact and controls rotational backlash risk during abrupt reverse cycles, reducing operational stress concentration to protect the drive shaft from localized corner rounding and keyway distortion.

3. Material Selection Matrix: SKD11 vs. DC53

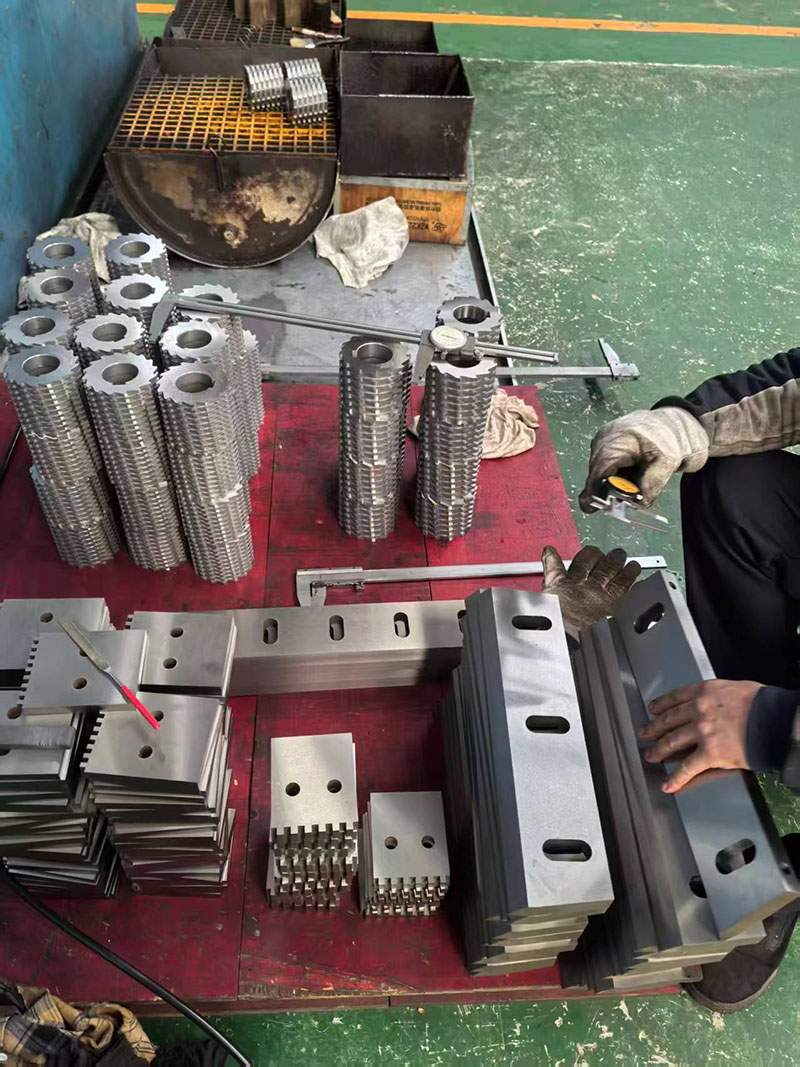

Three finished batches of tool steel staggered-tooth low-speed shredder blades for plastic lumps and purging recycling, resting side-by-side on a workshop background.

Material Grade

Target Hardness

Primary Target Applications

Mechanical Advantages

SKD11 (AISI D2)

58–60 HRC

Unfilled polymers, general plastic recycling, thin films, and standard runners.

High sliding abrasion resistance under uniform, non-impact loads.

Premium DC53

60–62 HRC

Glass-filled engineering resins (e.g., PA66+GF30), flame-retardant polymers, thick-walled purgings, and dense lumps.

Refined chromium-matrix dispersion; provides enhanced impact toughness compared to standard D2, resisting corner chipping and macro-fracturing under cyclic shock loads.

4. Technical FAQ

A: Specify premium DC53 matrix steel at 60–62 HRC. Glass-filled resins (such as PA66+GF30) exert severe abrasive wear on the blade apex, while solid polymer lumps create extreme cyclic shock loads. Traditional SKD11 has high wear resistance, but its coarse primary carbide distribution makes it more prone to chipping under heavy intermittent impact loads. Premium DC53 features a refined chromium-matrix dispersion, providing twice the impact toughness of standard D2. This minimizes corner fracturing and edge chipping on contaminated recycling lines.

Q2: Why does standard SKD11 tend to chip when shredding thick-walled plastic pipes?

A: SKD11 is a conventional cold-work alloy steel that excels under pure, uniform sliding abrasion. However, when shredding thick PVC profiles or dense engineering plastics, the blade hooks sustain sudden, high-torque impact shocks as they bite into the material. Because SKD11 has lower core impact toughness, these torque spikes can trigger localized stress concentrations at the tooth corners, making the edges more vulnerable to micro-chipping. Upgrading to tough-tempered DC53 (60–62 HRC) or 6CrW2Si (54–56 HRC) properly resolves this failure mode.

Q3: What are the heat treatment requirements? Will blade hardness drop after resharpening?

A: Avoid surface induction or flame hardening. Low-cost catalog parts often use localized surface heating, which only creates a thin hardened skin. After 1 or 2 routine resharpenings, this wear-resistant skin is ground away, exposing the soft, unhardened core (below 40 HRC) and causing rapid edge rolling. Blades must undergo 100% vacuum through-hardening followed by triple tempering to establish a homogenous grain structure from the surface to the core. Hardness remains stable through up to 4 professional wet-regrinds within our verified process limits (depending on original hook margins).

Refined fluid flood cooling application during the precision cylindrical grinding process of ALAS staggered-tooth plastic recycling shredder blades.

Q4: How can we prevent plastic film and thin woven bags from wrapping around the twin shafts?

A: Operational material wrapping is heavily driven by uncalibrated or inappropriate side clearances. However, generic guidelines that prescribe an overly tight 0.1 mm gap across all polymer types risk accelerating localized frictional heat, causing flexible plastics to soften, smear, and bind onto the shaft under continuous load. To prevent film bypass and friction-induced wrapping, the baseline cutting clearance must be dynamically tuned to match the material's structural resilience.

For rigid resins and brittle engineering sprues, a tight 0.10 mm gap delivers excellent scissor-action dicing. Conversely, flexible thin polyolefins, packaging stretch wraps, and woven bags require a broader, more forgiving initial running clearance of 0.15 mm to 0.30 mm to accommodate material elasticity and safely absorb severe frictional heat.

To secure this operational boundary, ALAS ensures precise blade manufacturing and graded precision shims for dynamic onsite adjustments.

A finished low-speed plastic shredder rotor spindle assembly tightly wrapped in protective film inside an export-standard seaworthy wooden box, paired with heavy stationary bed counter knives.

Suffering from Rotational Backlash, Cracked Keyways, or Severe Shaft-Wrapping?

Don't let uncalibrated clearances damage your drive shafts under heavy purging loads. Upgrade to ALAS premium low-speed plastic shredder blades. Direct-milled from certified virgin tool steel, our blades feature a ±0.05 mm thickness tolerance and finish-broached bores to maximize corner contact and control backlash risks. By securing side clearance variation under ≤0.03 mm via a 5–8 point gauge check, our systems deploy a balanced cutting gap for rigid resins or a tuned 0.15–0.30 mm window for packaging films to mitigate wrapping and polymer melting. Contact our engineering team for a factory-direct quote on DC53 (60–62 HRC) and SKD11 replacements.
