Press Brake Top Tooling

Press Brake Top Tooling: Key Info & Advantages

What is Press Brake Top Tooling?

Core Functions

• Attached to the press brake’s moving slider (active forming part)

• Pushes down to press sheet metal into the lower die

• Sets the workpiece’s shape, bending angle, and rounded edges

• Reduces material springback and avoids damage to bent parts

Material & Performance

• Hardness: HRC45–HRC50

• Strong, tough, and wear-resistant

• Handles heavy loads and frequent use without breaking

• Lasts long and ensures consistent bending

Common Types & Uses

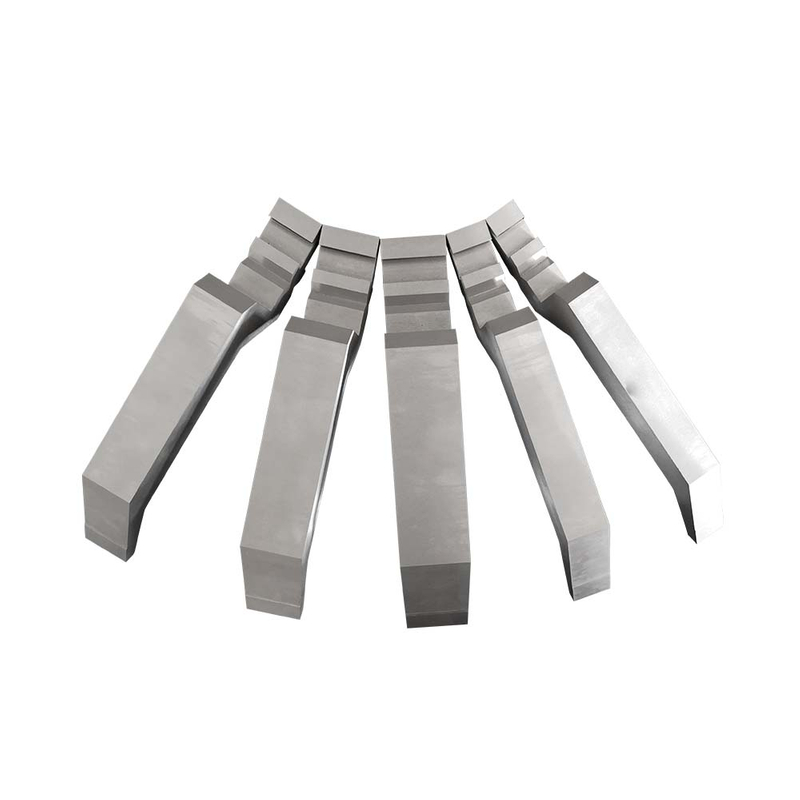

• Standard Straight-Edge Punch: Most common, for regular 90° bends and straight edges (works with mild steel, galvanized steel).

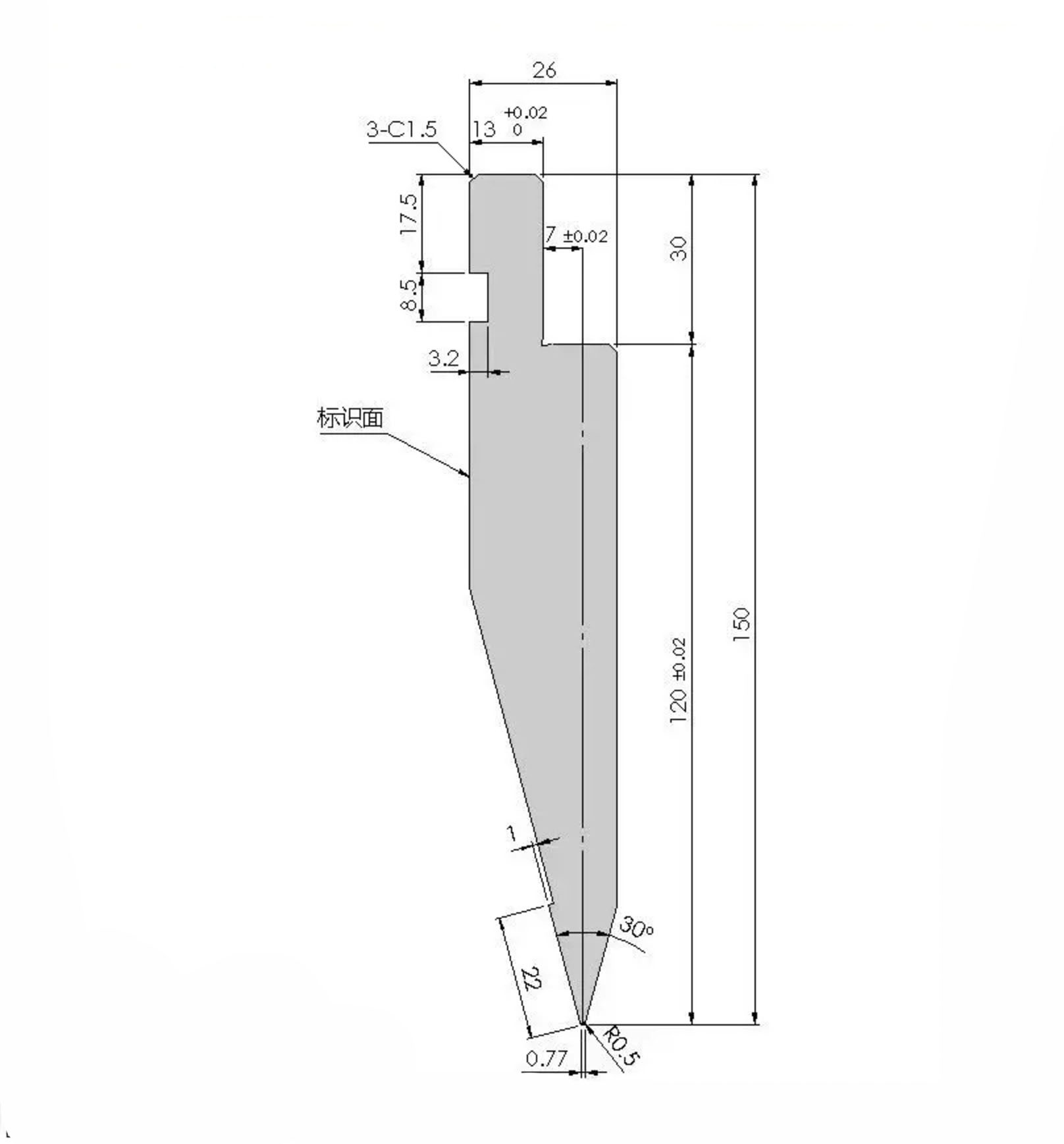

• Standard Acute Punch: Smaller angle (85°–88°), for precise small bends and reducing springback (good for stainless steel).

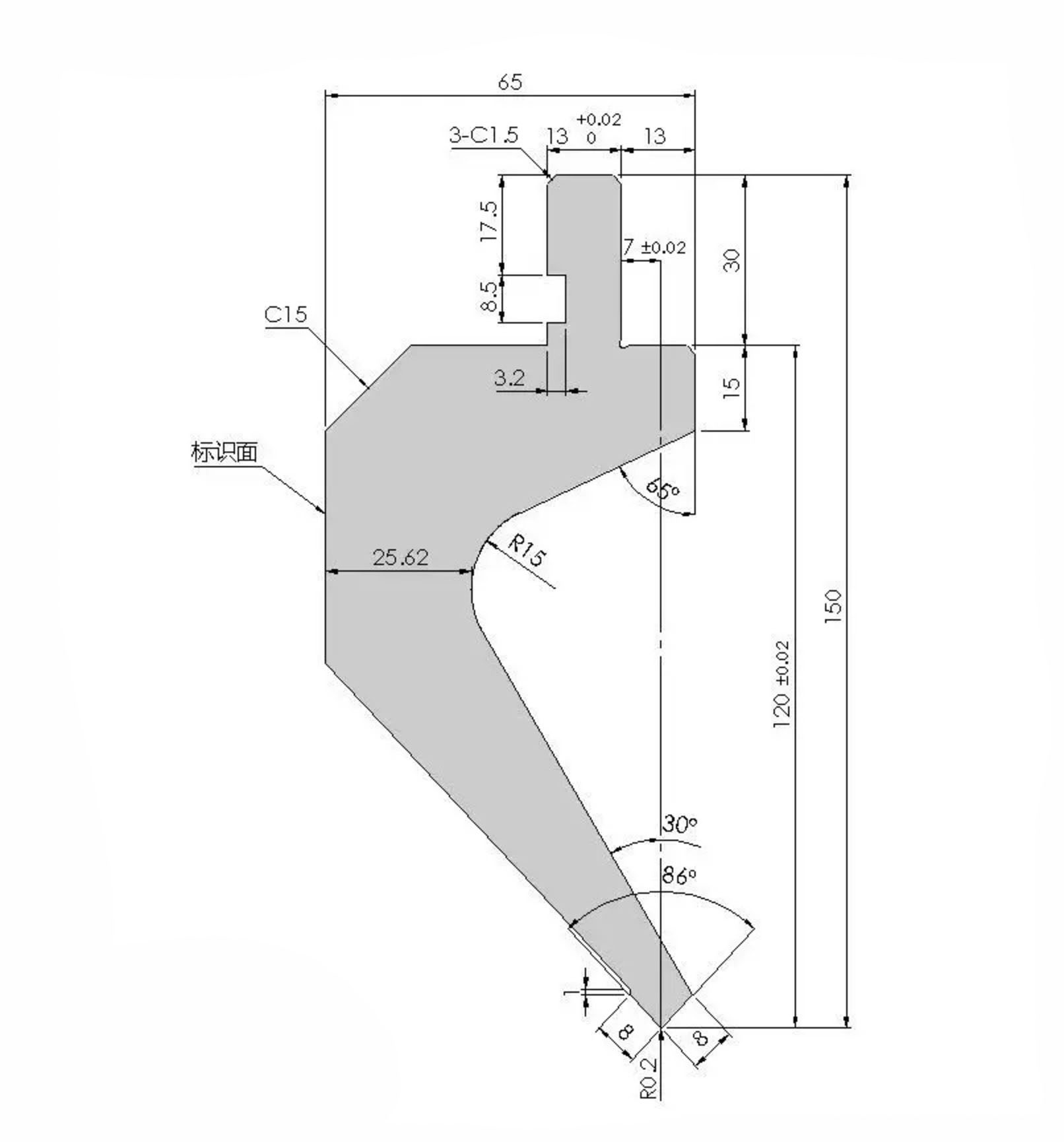

• Gooseneck Punch: Curved design, for deep U-shaped parts and avoiding damage to bent edges.

• Sash Punch: For specialized box and pan bending tasks.

• Arc & Radius Punch: Rounded shape, for bending arcs and smooth edges (prevents scratches on thin sheets).

• Custom Irregular Punch: Made to order for unique, non-standard bending needs (e.g., automotive parts, cabinets).

Versatility & Compatibility

• Fits major global press brake systems: Amada-style (Euro), Trumpf-Wila, and American style clamping.

• Works seamlessly with your existing equipment (no extra adapters needed).

How to Choose the Right Tooling

• Match Material Springback: Mild steel (little springback) → 86°–88° punch; stainless steel (more springback) → 85° punch.

• Match Workpiece Shape: Straight bends → standard punch; U-shapes → gooseneck punch; arcs → radius punch; box/pan → sash punch.

• Fit Your Press Brake: Choose a punch that matches your machine’s clamping system (Amada, Trumpf-Wila, etc.).

• Check Height & Stroke: The punch’s height must fit the machine’s slider stroke (too tall/short causes problems).

• Handle Bending Force: Pick a punch strong enough for your material’s thickness and type (overloading breaks tools).

Why Choose Our Tooling?

• Precision Ground: Every tool is ground to ±0.02mm tolerance (perfect alignment, consistent accuracy).

• Long-Lasting: High-grade materials mean less sharpening and replacement (cuts maintenance costs).

• Customizable: Made-to-order tools based on your drawings and material thickness (e.g., stainless steel).

Conclusion
