9CrSi Plastic Shredder Blades

Why 9CrSi is the Ideal Material for Your Plastic Shredder Blades?

In the competitive world of plastic recycling, choosing the right blade material can mean the difference between high productivity and constant downtime. Among various alloy steels, 9CrSi has emerged as a top choice for plastic shredder blades. But what makes this specific material so effective for granulating polymers?

The Unique Properties of 9CrSi Alloy Steel

9CrSi is a low-alloy, high-speed tool steel characterized by its excellent hardenability and tempering stability. When used for shredder knives, it provides:

High Wear Resistance: The chromium (Cr) and silicon (Si) content ensures the blade maintains a razor-sharp edge even when processing abrasive plastics.

Exceptional Hardness: Through professional vacuum heat treatment, our 9CrSi blades reach a hardness of HRC 57-60, allowing for clean, burr-free cuts.

Impact Toughness: Unlike more brittle steels, 9CrSi can handle the occasional shock load without immediate chipping, making it reliable for mixed plastic waste.

Applications in Plastic Recycling

Our 9CrSi granulator blades are versatile and compatible with various recycling lines:

PET Recycling: Efficiently grinding bottles into uniform flakes.

Soft Plastics: Cleanly cutting PE/PP films and woven bags without snagging.

Rigid Scraps: Handling thick-walled PVC pipes and ABS electronic housings.

Maintenance Tips for 9CrSi Blades

To maximize the lifespan of your 9CrSi plastic shredder blades, we recommend:

Regular Sharpening: 9CrSi responds exceptionally well to regrinding, restoring its original cutting edge multiple times.

Gap Adjustment: Ensure the clearance between the rotary and fixed blades is calibrated to the thickness of your material to prevent unnecessary friction heat.

Removal of Contaminants: Always pre-sort your plastic to remove metal or stones, which are the leading cause of premature blade failure.

Investing in 9CrSi plastic shredder blades offers a cost-effective solution for recycling facilities looking for high performance without the premium price tag of D2 or Carbide. With the right heat treatment and maintenance, 9CrSi delivers a lower "cost-per-ton" for your production line.

Characteristics of Different Types of Plastics and Blade Material Selection

The hardness, toughness, and fiber content of plastics determine the stress points during shredding. Hard and brittle materials are prone to impact, soft materials are prone to blade entanglement and adhesion, and fiber-reinforced materials are prone to wear on the cutting edge. Blade selection should follow the principles of high hardness, wear resistance, and impact resistance for hard materials; high toughness and shear force for soft materials; and high wear resistance and resistance to chipping for fiber-reinforced materials. Precise matching can reduce costs and improve efficiency.

Shredder Blades for Hard Plastics (ABS/PS/Hard PVC)

Plastic Characteristics

Hard plastics are hard and brittle. During the shredding process, the blades are susceptible to instantaneous impact forces, leading to problems such as chipping and rapid dulling of the cutting edge. This requires extremely high hardness, wear resistance, and impact resistance from the blades.

Recommended Material

SKD-11 High-carbon high-chromium alloy steel

Core Material Characteristics

1. Possesses extremely high hardness and superior wear resistance, maintaining a sharp cutting edge for a long time and significantly reducing the frequency of dulling;

2. Excellent impact resistance, able to withstand the instantaneous impact force of hard plastic shredding, preventing chipping and breakage;

3. High cutting edge strength, suitable for high-speed cutting of hard and brittle materials. 1.3 Shredder Blades for Soft/High-Toughness Plastics (PE/PP/PA/Soft PU/Film)

Plastic Characteristics

Soft/high-toughness plastics have strong elasticity and good ductility.  They are difficult to cut during shredding, leading to problems such as blade entanglement, material sticking to the blade edges, and material being discharged in strips. This requires blades with high toughness, shear strength, and smooth cutting edges.

Recommended Material

9CrSi Chromium Silicon Steel (Special alloy tool steel can be used for ultra-thin materials such as films/woven bags)

Core Material Characteristics

1. Excellent toughness, not easy to break, suitable for the high-speed shearing motion of the shredder, effectively cutting highly elastic plastics;

2. High precision grinding of the cutting edge and smooth surface reduce sticking and entanglement of soft plastics, ensuring efficiency;

3. Good processing performance, allowing for fine grinding of the cutting edge.

Shredder Blades for Fiber-Reinforced/Thick/Mixed Materials

Plastic Characteristics

Fiber-reinforced plastics (glass fiber/carbon fiber reinforced plastics) contain hard fibers, which can quickly wear down the blade edges; when shredding thick/mixed materials, the blades are subjected to multiple forces including impact, wear, and shear, making this the scenario with the highest demands on the overall performance of the blades.

Recommended Material

DC-53 High-Strength Tough Alloy Steel

Core Material Characteristics

1. Superior wear resistance compared to SKD-11, with excellent hardness and toughness, addressing the blade wear problem of fiber-reinforced materials and significantly increasing service life;

2. Outstanding resistance to chipping and fracture, suitable for the strong impact force of thick material crushing and the complex stress environment of mixed material crushing;

3. Good high-temperature stability; the cutting edge is not easily deformed during long-term continuous crushing of thick/mixed materials, maintaining a stable shearing effect.

Drawings of the blades for a plastic shredder

ABS/PS/PVC shredder blades

PE/PP/PA shredder blades

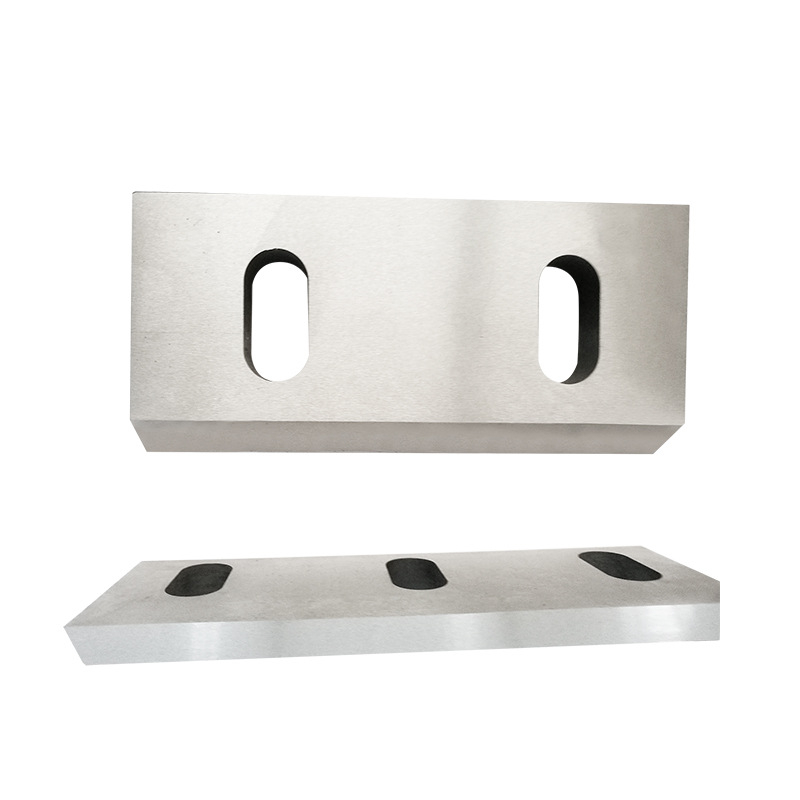

9CrSi chromium-silicon steel shredder blades
