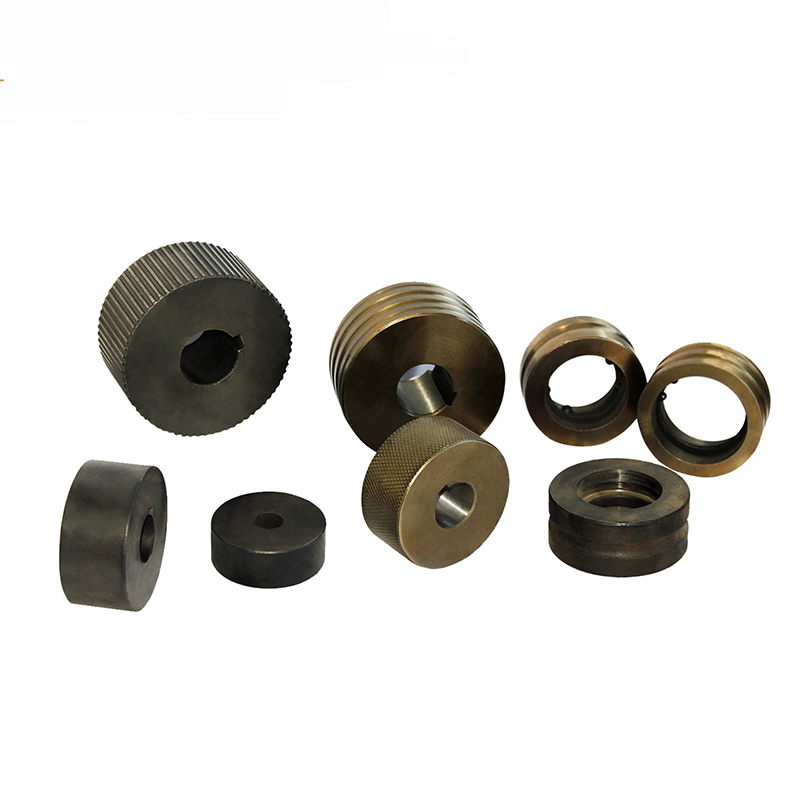

High-Precision Encoder Measuring Wheel for Rebar Processing Machinery

High-precision encoder measuring wheel for rebar length tracking

Availability:

Quantity:



Inquire Add to Basket

High-Performance Rebar Length Measuring Wheels

In the fast-paced environment of steel bar processing, accuracy is the difference between a perfect batch and a pile of expensive scrap. Also referred to as meter counter wheels, steel bar measuring rollers, and wire straightening machine measuring wheels, rebar length measuring wheels are core critical components installed on automatic rebar straightening and cutting machines. They guarantee that every single piece of rebar is cut to precise specified dimensions consistently throughout mass production.

Why Accuracy is Non-Negotiable

Manual measurement has been completely phased out in modern industrial production. Contemporary construction engineering requires strict dimensional tolerances within millimeters. A degraded, worn or poorly manufactured measuring wheel will result in severe production issues including cumulative errors that amplify continuously during continuous production, excessive material waste from undersized steel bars unable to meet structural application requirements, and overall rising operational costs brought by extra reprocessing labor consumption and wasted raw materials.

Engineering Excellence: AlasMachinery Measuring Wheel

AlasMachinery designs and manufactures heavy-duty measuring wheels built to endure harsh working conditions at steel mills, construction sites and heavy industrial processing workshops. We provide two series of high-performance products with distinct material systems to meet diverse working demands, both achieving outstanding durability and measuring stability.

1. Premium Wear-Resistant Material Options

High-Grade Cold Work Tool Steel

Manufactured from premium Cr12 and Cr12MoV alloy steel with professional vacuum heat treatment, this solid steel measuring wheel series achieves superior wear resistance and outstanding dimensional stability.

Cr12: High-carbon high-chromium tool steel with 2.0–2.3% carbon and 11–13% chromium content. It features remarkable hardness, abrasion resistance and structural stability, with hardness reaching HRC 60–62.
Cr12MoV: Upgraded alloy steel added with molybdenum and vanadium elements for greatly enhanced toughness. With chemical composition of 2.0–2.3% C, 11–13% Cr, Mo and V, it possesses ultra-high wear resistance, excellent deformation resistance and extended service life, with hardness up to HRC 62–64.

2. Anti-Slip & High-Precision Surface Design

All products feature precision-engineered surface texture to maintain stable contact with rebar and transmit consistent signals to encoders. The optimized anti-slip surface remains effective even when steel bars are oily, damp or dusty. Meanwhile, precision machining ensures perfect concentricity and zero runout, low vibration under high-speed feeding, and self-cleaning surface performance that effectively reduces iron scale accumulation on the wheel surface. Stable contact performance throughout operation guarantees continuous accurate length counting.

3. Seamless & Wide Compatibility Installation

Our measuring wheels support effortless integration with mainstream industrial equipment. With standardized shaft bore sizes and versatile mounting configurations, they are universally compatible with conventional rebar cutting production lines, customized CNC bending machines, most CNC rebar straighteners, steel bar shear lines and automatic stirrup bending machines.

Application Scope

Rebar straightening machines, automatic steel bar cutting production lines, wire mesh welding plants, CNC rebar processing equipment and wire straightening machinery.

Maintenance Tips for Sustained Peak Performance

To maintain long-term stable measuring precision of your length counting system:

Regular Cleaning: Remove metal shavings, dust and surface iron scale regularly to avoid thickness deviation errors caused by foreign matter adhesion.
Tension Inspection: Keep consistent contact pressure between the measuring wheel and rebar. Insufficient pressure leads to slipping errors, while excessive pressure accelerates premature wheel wear.

Why Choose AlasMachinery Measuring Wheels

Exceptional material hardness and outstanding wear resistance for ultra-long service life
Stable and reliable measuring precision with reduced frequent equipment calibration
Effectively cut down steel material waste and comprehensively upgrade overall production efficiency
Standardized anti-slip structure, low high-speed vibration and self-cleaning surface
Universal adaptability to global mainstream rebar processing machinery
Sufficient large stock supply and reliable export-grade packaging
Factory direct pricing, support for bulk wholesale orders and customized dimension customization

Product Aliases

Rebar Measuring Wheel, Steel Bar Measuring Roller, Wire Straightening Machine Measuring Wheel, Meter Counter Wheel, Encoder Tracking Wheel
