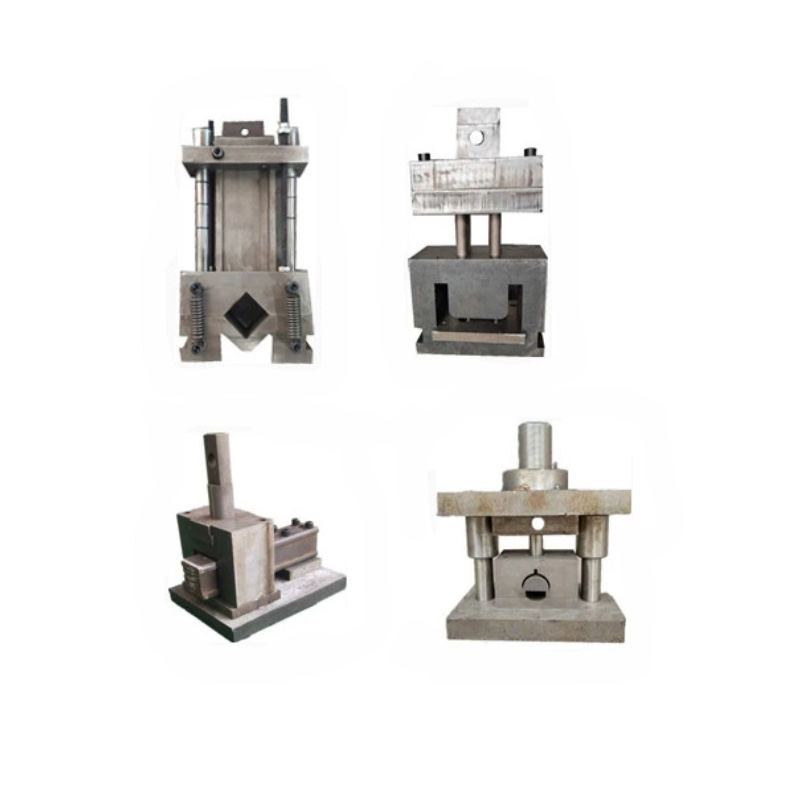

Precision punching die for square and round tube with clean hole edges

Share to:

Tube Punching Dies Square Round

Tube Punching Dies for Square & Round Pipes | High Precision Tooling

Port:
Nanjing, China
Payment Terms:
T/T, Money Gram

Availability:

Quantity:



Inquire Add to Basket

Square Tube and Round Tube Punching Dies: Types, Design, Selection & Maintenance

1. Technical Challenges of Pipe Punching

Square Tube: When punching, the pipe tends to sink inward under pressure, which ruins its appearance.

Round Pipe: Its curved surface can cause inaccurate punch positioning, leading to hole deviation or pipe flattening.

Our Solution: Use Internal Mandrel technology or Contoured Die Sets. These support the pipe from the inside out when pressed, so there is no deformation during punching.

2. Mold Material: Why Choose SKD11?

All our pipe punching dies are made of high-quality SKD11 or DC53 tool steel. Here’s why they work well:

High Hardness: After vacuum heat treatment, their hardness reaches HRC 60-62, making them strong and durable.

Long Service Life: They last 3-5 times longer than ordinary carbon steel molds. One mold can handle hundreds of thousands of punches.

Smooth Cuts: Precision edge grinding reduces friction and heat, leaving the cut surface smooth and clean.

3. How to Choose the Right Mold

To get the perfect mold for your needs, confirm these simple details:

• Pipe type and size: Square tube, round tube, or special-shaped tube (and their exact dimensions).

• Wall Thickness: Our molds can handle thick-walled steel pipes up to 6mm.

• Hole Type: Round hole, square hole, waist drum hole, or custom special-shaped hole.

4. Mold Types & Their Uses

4.1 By Pipe Type

Square Tube Punching Dies: Have flat cavities and positioning blocks. They keep hole spacing even and prevent the pipe from sinking inward. Great for guardrails, shelves, and steel structure parts.

Round Tube Punching Dies: Have curved cavities to stop the pipe from rotating or deforming. Ideal for stair handrails, anti-theft nets, and pipe supports.

Universal Dual-Mode Set: One set can switch between square and round dies quickly. Saves cost for small-batch production with multiple pipe types.

4.2 By Driving Method

Hydraulic Type: Best for thick-walled pipes and large holes. It’s efficient and has stable pressure.

Pneumatic Type: Perfect for thin-walled pipes and small holes. It’s low-cost and fast.

Mechanical Type: Works with punch presses for large-scale, continuous production.

5. Key Mold Design Features

• Round tube dies have curved positioning and anti-rotation pins to avoid hole deviation and pipe flattening.

• Square tube dies use flat benchmarks and side pressure blocks to keep hole spacing consistent.

• Stripper plates and springs prevent material jamming and scratches on the pipe surface.

• Chip grooves quickly remove iron chips to protect the mold from damage.

6. Operation & Safety Tips

• Always match upper and lower dies correctly—never install them backwards.

• Clean iron chips and check lubrication before turning on the machine.

• Do not take apart the quick connector under working pressure (to avoid injury from high-pressure oil).

• Test 3-5 pieces before mass production to check hole position, diameter, and burrs.

• Do not use the mold beyond the pipe’s wall thickness or hole size (this can break the punch).

7. Daily Maintenance

• Clean the mold cavity and punch, then apply special stamping oil every shift.

• Check the punch edge regularly. Grind or replace it if it’s worn or chipped.

• Apply anti-rust oil when storing the mold to prevent rust.

• Keep a record of punching times. Replace the punch regularly (for example, DC53 punches for stainless steel pipes need grinding or replacement after about 100,000 punches).

8. Common Problems & Fixes

• Hole Deviation: Tighten positioning, add support, or replace the guide sleeve.

• Punch Breakage: Increase pressure, preheat materials, grind the edge, or add a stripper device.

• Pipe Scratches: Adjust spring pressure or add a protective pad.

• Too Many Burrs: Grind the edge or adjust the gap between the punch and die.

Conclusion

High-quality pipe punching dies are more than just tools—they boost production efficiency and product quality. As a professional mold manufacturer, we offer one-stop service from design to testing, ensuring every hole is accurate and perfect. Whether you need Pipe punching tools, Hydraulic hole puncher, Stainless steel tube punching, Fence post hole maker or Tube piercing solutions, we can meet your needs.
