Heavy-Duty Ironworker Parts & Premium Replacement Tooling | ALAS
ALAS heavy-duty ironworker replacement tooling includes punches, dies and shear knives manufactured from Cr12MoV, DC53 and H13 high-grade tool steel with CNC vacuum heat treatment. It holds ±0.01 mm tight machining tolerance, up to 4x longer blade service life and graded hardness ranging HRC 50–64, directly fitting mainstream international and domestic ironworker models to slash your workshop total cost of ownership (TCO) via fewer tool changes and less unplanned downtime.

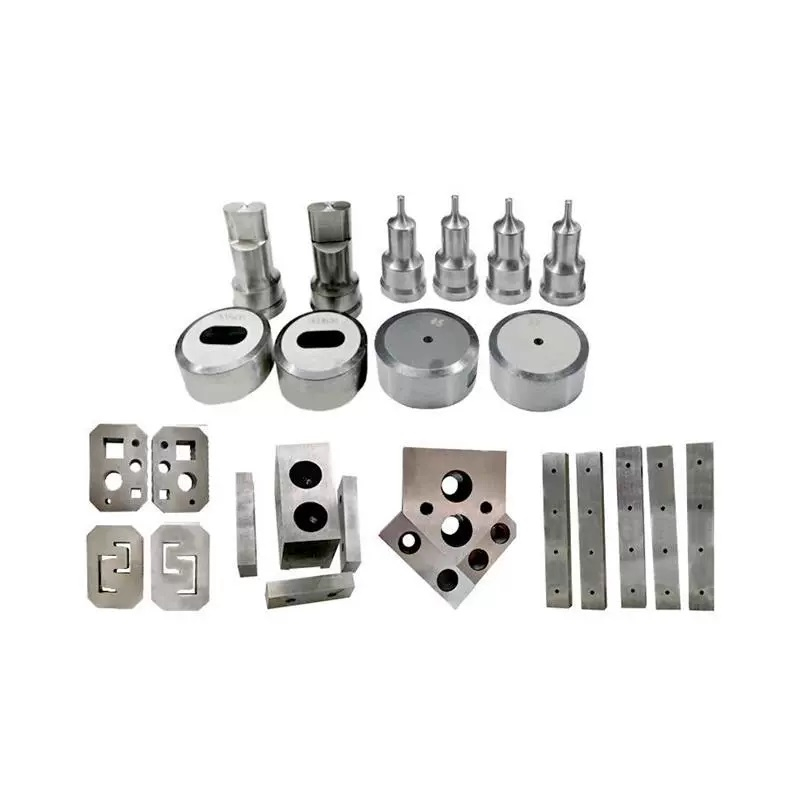

Precision Engineering: Key Specs of ALAS Ironworker Wear Parts

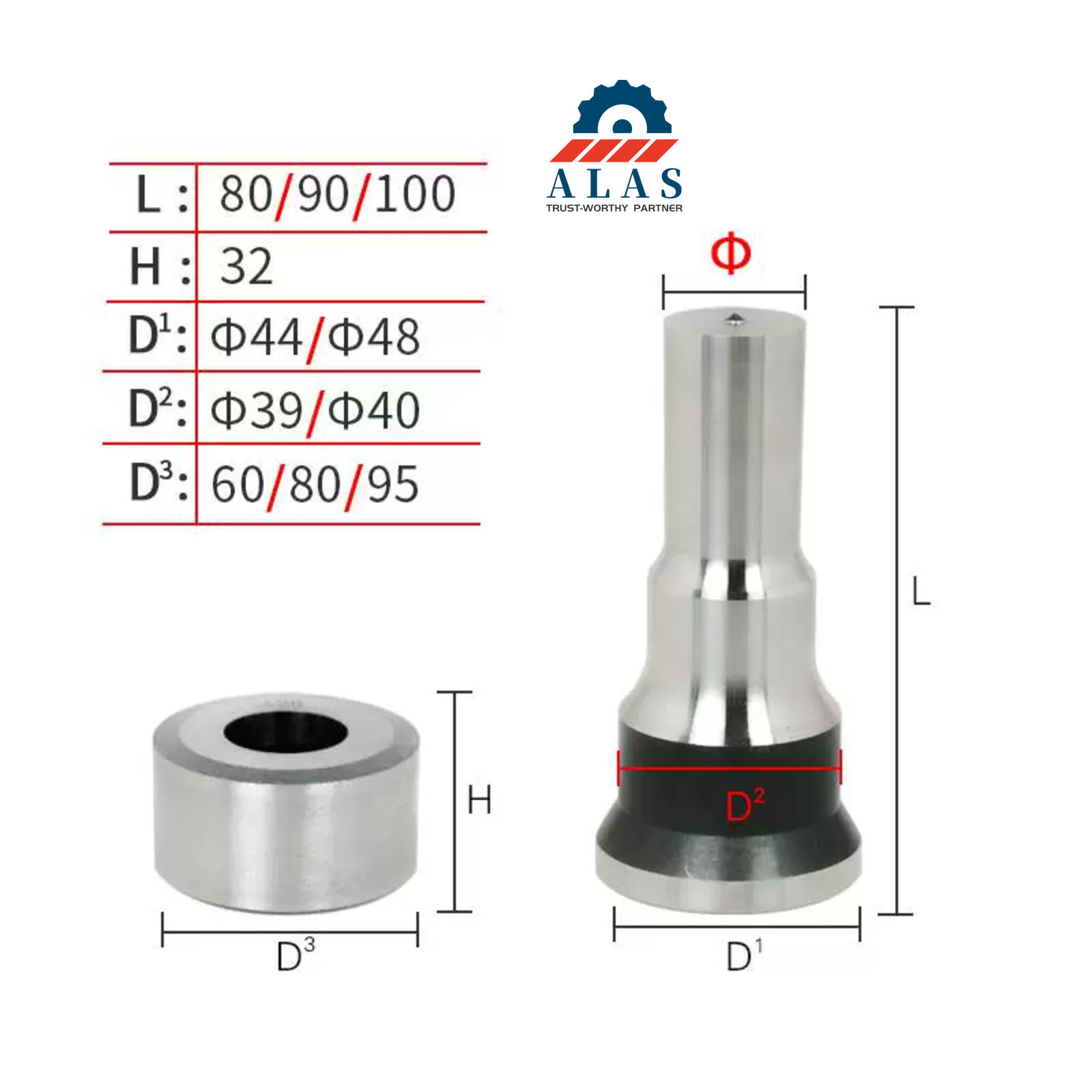

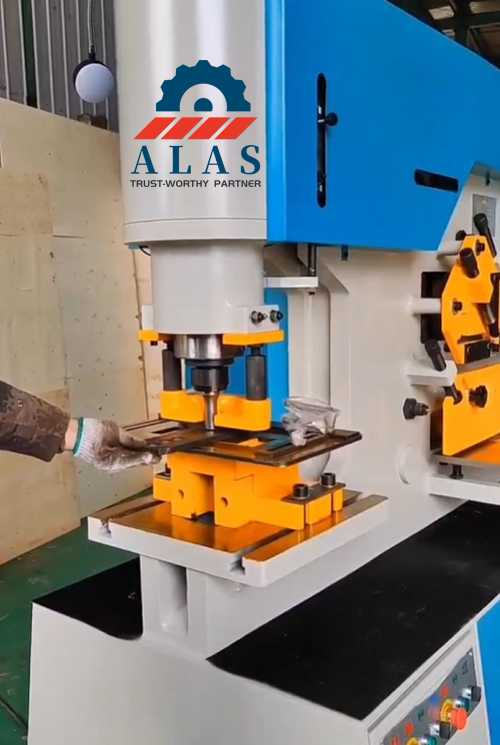

We design all consumables against rigid industrial tolerances so plant buyers and field technicians can match exact sizes for daily steel processing lines, split into two core functional stations with measurable performance metrics. The punching station produces round, square, rectangular, slotted and custom eccentric punch/die sets machined to ±0.01 mm tolerance; we control bilateral clearance at 8%–15% of workpiece thickness to suppress material rollover and prevent punch edge chipping.

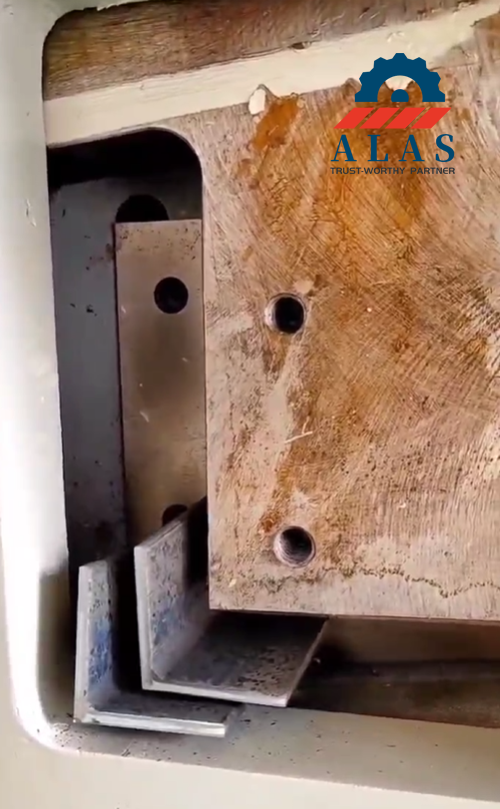

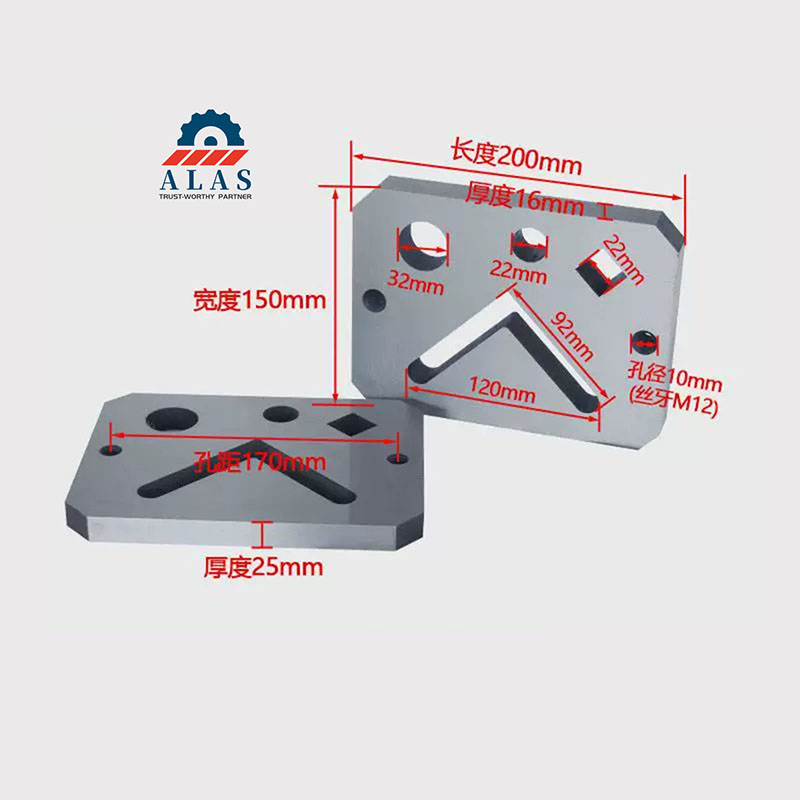

The shearing station supplies four-way reversible flat bar shear blades that deliver 4x usable lifespan before regrinding, plus angle/channel cutting knives with V-shaped and diamond profiles to stop section deformation during downward apex shearing.
Maximize TCO: Choosing the Right Tool Steel Grade & Hardness
Tool material directly determines total service life and TCO of your ironworker tooling; ALAS follows a strict “working condition – material grade – target hardness” matching rule to maximize return on investment for different cutting scenarios. Below is a quantified comparison of our three mainstream tool steel options with clear application boundaries:
| Material Grade | Equivalent Grade | Hardness Range | Core Measurable Property | Best Matching Working Condition |
| Cr12MoV | SKD-11 | HRC 58–62 | Standard abrasion resistance, cost-effective base option | General structural steel shearing & punching (covers ~90% conventional steel fabrication jobs) |
| DC53 | Premium upgrade variant | HRC 60–64 | Impact toughness 2× higher than SKD-11, anti-cracking performance | Stainless steel, high-tensile alloy cutting, high-frequency heavy punching loads |
| H13 | Hot-work tool steel | HRC 50–56 | Outstanding shock resistance, anti-fracture stability | Heavy-duty thick-plate cold shearing, avoid tool cracking under extreme instant impact loads |
Each formulation undergoes computer-controlled vacuum heat treatment to guarantee uniform through-hardness, eliminating inconsistent surface hardness that triggers premature edge failure under continuous heavy tonnage impact loads.
Full OEM Fit: Compatible Global & Domestic Ironworker Models
All ALAS hydraulic ironworker tooling is built for drop-in OEM-grade replacement with zero modification needed. Precise dimensional tolerances reduce extra pressure on hydraulic cylinders, protect internal machine assemblies and extend overall equipment lifespan while simplifying inventory management. For international brands, our punches, dies and shear blades seamlessly match Geka, Piranha, Sunrise, Edwards, Kingsland, Ficep, Mubea and Peddinghaus ironworker equipment. For domestic Chinese equipment, we supply fully compatible consumables for Q35Y-16, Q35Y-20, Q35Y-25 and Q35Y-30 standard hydraulic ironworker series. Note that part dimensions shift between different machine generations and production years; confirm OEM part numbers or original engineering drawings with the ALAS technical team before bulk wholesale orders to avoid fit errors.
Cross-Reference & Part Number Compatibility
We stock and custom-manufacture direct-replacement ironworker components following original OEM specifications. Our inventory includes punch stems, coupling nuts, oversized die holders, and polyurethane strippers compatible with:
Edwards® Ironworkers: Jaws IV, Jaws V, 30-Ton, 50-Ton, 55-Ton, 60-Ton, 65-Ton, 75-Ton, 100-Ton, and Elite series replacement tooling.
Piranha® Ironworkers: P-50, P-65, P-90, P-110, P-140, P-3, and P-2 punch nut assemblies and flat bar shear blades.
Geka® Ironworkers: Microcrop, Minicrop, Multicrop, Hydracrop 55/110, 80/150, 110/180, and Bendicrop series punching dies.
Sunrise® & Scotchman®: Full tooling cross-reference for standard round punches (Style 116 / Type 82) and dies (Style 121 / Type 83).
Troubleshooting: How to Prevent Premature Tool Failure in Structural Steel Fabrication?
Improper clearance, wrong material selection and dull cutting edges frequently cause stuck blades, material pulling, workpiece scratching and early tool scrapping. This practical troubleshooting guide helps you extend tool service life and stabilize production quality:
❌ Problem – Punch Shattering: Often caused by improper clearance when upgrading from mild steel to stainless steel.✔️ Solution: Upgrade your ironworker parts to DC53 material and increase the bilateral clearance to 12%–15% of the plate thickness.
❌ Problem – Heavy Burr on Shear Cut: Indicates the blade gap is too wide or the blade edge is dull.✔️ Solution: Rotate our 4-way reversible flat bar blades to a fresh cutting edge or adjust the blade seat tolerance to 0.05 mm.
❌ Problem – Material Pulling & Surface Scratches: Usually triggered by worn strippers or misaligned punch-die assembly.✔️ Solution: Replace aged polyurethane strippers and re-calibrate concentricity between punch stems and die holders before batch production.
Custom Ironworker Parts & Non-Standard Tooling Services
Cannot find your machine model in our catalog?
ALAS provides rapid OEM/ODM custom manufacturing for vintage, heavy-duty, or modified hydraulic ironworkers, perfectly solving the trouble of discontinued original spare parts for older imported machines.
Submit Your Requirements: Send us your hand sketches, broken parts photos, or machine nameplates with relevant dimension data.
CAD Drawing Approval: Our engineering team will generate precise 2D/3D CAD blueprints with exact dimensions for your technician's double-check within 24 hours.
Precision CNC Production: Once approved, we manufacture your custom shape punches (eccentric, hexagonal, slotted) with identical vacuum-treated HRC profiles, fully matching original installation size and load performance.
Export-Grade Packaging & Rust-Proof Logistics Protection

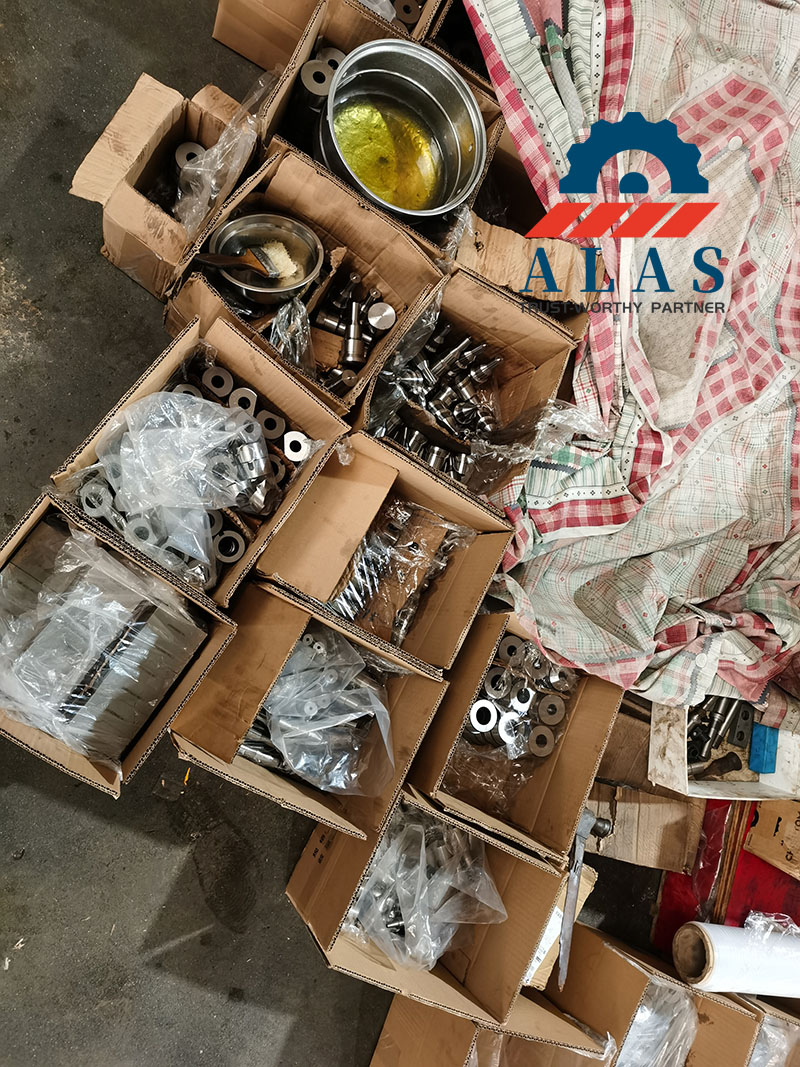

Because ironworker parts are heavy-tonnage precision steel consumables, a single scratch on the cutting edge can ruin its service life. ALAS implements a rigorous 3-layer packaging standard for global sea/air shipping to eliminate rust, collision and edge damage during long-distance transit:
Layer 1: Industrial anti-rust oil coating applied on all cutting and grinding surfaces to block oxidation during ocean transportation.
Layer 2: Heavy-duty vacuum sealed plastic wrap and individual bubble pocket isolation to prevent parts from rubbing against each other.
How does switching to ALAS tooling cut your per-cut total cost of ownership?
Many workshops choose low-cost generic ironworker tooling upfront, yet these cheap inserts dull rapidly, generate heavy burrs on cut surfaces and suffer frequent catastrophic fracture. These failures create costly unplanned production downtime and require extra labor for secondary manual deburring operations, pushing up long-term TCO significantly. ALAS vacuum heat-treated high-alloy tool steel consumables minimize burr formation and premature breakage; field data proves workshops can reduce per-cut operational cost by 40%–60% after switching. Longer tool service intervals lower recurring purchasing frequency, cut downtime losses from tool changeovers, and eliminate dedicated deburring labor hours, delivering steady net profit improvement for your steel fabrication workflow over months of continuous production.
How can you get a factory-direct customized quotation from ALAS?
To maintain maximum productivity and stable profitability for your structural steel fabrication lines, durable, dimension-matched ironworker replacement tooling is essential. The ALAS technical sales team supports two clear ordering pathways to meet standard and bespoke production demands. You may submit your exact machine model number to receive a tailored full product catalog listing corresponding punch, die and shear blade specs for direct ordering. If your operation requires non-standard sizes, special-shaped punching profiles or custom shear geometries, send your engineering blueprints to our team for precision custom machining production. We review drawings, confirm material selection aligned with your actual cutting workload, calculate unit pricing and bulk order discounts, and issue a formal factory-direct quotation with clear lead time and tolerance guarantee details.
FAQ Section
Q1: Why is DC53 harder and tougher than standard Cr12MoV/SKD-11 ironworker tooling?
A1: DC53 delivers twice the impact toughness of SKD-11 (Cr12MoV) at HRC 60–64 hardness; its refined alloy composition suppresses micro-cracking and punch shattering under repeated heavy impact, making it ideal for stainless steel and high-strength alloy processing where conventional Cr12MoV tends to chip easily.
Q2: What clearance setting does ALAS recommend between punch and die for best cutting quality?
A2: We specify bilateral punch-to-die clearance equal to 8%–15% of workpiece thickness, machined to ±0.01 mm tolerance. This range limits edge rollover on finished holes and drastically reduces early punch edge chipping from uneven stress concentration.
Q3: How many times can ALAS four-way shear blades be rotated before regrinding is required?
A3: Our flat bar shear blades feature four usable cutting edges, allowing for three rotations to utilize all four sides before requiring professional regrinding.
Q4: Will ALAS parts fit old-generation Geka and Piranha ironworker machines?
A4: Compatibility depends on machine production year and original OEM part number. We recommend sharing your machine serial number or original component drawing with our engineering team for pre-verification to prevent dimension mismatch on older equipment models.
Q5: Is H13 suitable for heavy-duty cold shearing applications?
A5: Yes. H13 is heat-treated to HRC 50–56 with exceptional shock and fracture resistance. It prevents sudden tool cracking under instantaneous heavy impact when shearing thick steel plates, outperforming Cr12MoV and DC53 under extreme load cold-shear scenarios.
Q6: What TCO savings can I expect after switching to ALAS vacuum-treated tool steel?
A6: Our customers record a 40%–60% reduction in per-cut total cost of ownership, driven by less frequent tool replacement, eliminated secondary deburring labor, and fewer production halts caused by sudden tool fracture and downtime.
Q7: Does ALAS support custom non-standard punch and die manufacturing?
A7: Absolutely. Submit your custom engineering drawings with required dimensions, target material grade and hardness requirement; our factory can produce bespoke eccentric, offset, special-profile punches and dies to match unique non-standard processing requirements for your workshop.
Disclaimer: Edwards®, Piranha®, Geka®, Sunrise®, and Scotchman® are registered trademarks of their respective owners. ALAS is an independent manufacturer of premium replacement parts and is not affiliated with, sponsored by, or endorsed by these OEM brands. All OEM part numbers and model designations are used for cross-reference and identification purposes only.
