Metal Shear Replacement Blades

Shear Blade Materials: Simplified Guide & ALAS Products

1. Blade Material Types & Key Details

1.1 9CrSi Alloy Tool Steel

• Features: Hard, wear-resistant, medium toughness, good value, most widely used

• Hardness (after heat treatment): HRC 58–60

• Use for: Thin cold-rolled, galvanized, aluminum, copper plates; plastic, leather

1.2 6CrW2Si Alloy Tool Steel

• Features: Contains tungsten/silicon, stays hard at high temps, stronger than 9CrSi, better toughness

• Hardness (after heat treatment): HRC 60–62

• Use for: Hot shearing; light stainless steel, medium-strength steel

1.3 Cr12MoV / SKD11 High-Carbon High-Chromium Steel

• Features: Very wear-resistant, easy to harden, medium toughness, long life, resists small impacts

• Hardness (after heat treatment): HRC 58–60

• Use for: Low-carbon steel (all thicknesses), Q235, aluminum, copper plates

1.4 H13 (4Cr5MoSiV1) Hot-Work Die Steel

• Features: Strong at high temps, tough, resists heat damage, stays hard/sharp in high heat

• Hardness (after heat treatment): HRC 50–55

• Use for: Hot shearing strip steel/thick plates; cold shearing high-strength alloy/stainless thick plates

1.5 D2 (American Standard)

• Features: Very hard/wear-resistant, resists deformation, hard to chip

• Hardness (after heat treatment): HRC 58–62

• Use for: Medium/low hardness steel (Q195/Q235/45#/40Cr); aluminum/copper/brass; plastic/rubber/paper

1.6 LD (7Cr7Mo2V2Si) Cold-Work Die Steel

• Features: Strong, tough, fine grain (from vanadium/molybdenum), wear-resistant, hard to chip

• Hardness (after heat treatment): HRC 58–62

• Use for: High-strength steel, thick plates, stainless steel; large hydraulic/CNC shears

1.7 Powder Metallurgy Steel (e.g., ASP23, ASP60)

• Features: Made via powder process, very hard (HRC 62–65+), ultra-wear-resistant, stable performance

• Use for: High-precision shearing; high wear/service life needs

2. Simple Material Selection Guide

• Ordinary carbon steel (Q195, Q235): Choose 9CrSi or Cr12MoV (good value)

• Medium/low hardness steel/aluminum/copper: Choose SKD11 or D2 (long life, wear-resistant)

• Light stainless steel/medium-strength steel: Choose SKD11 or D2 (stable cutting)

• Thick stainless steel/high-strength steel: Choose H13 or LD (tough, hard to chip)

• Hot shearing/high temps: Choose H13 or H13K (resists heat softening)

• High-precision/heavy cutting: Choose powder metallurgy steel (ASP23/ASP60)

3. Important Notes

• Harder is not better: Balance hardness and toughness (too hard = easy to chip; too soft = easy to dull)

• Heat treatment matters: Good materials need proper heat treatment to work well

• Sticky materials (stainless steel, aluminum, copper): Choose Cr12MoV or SKD11 (prevents sticking/chipping)

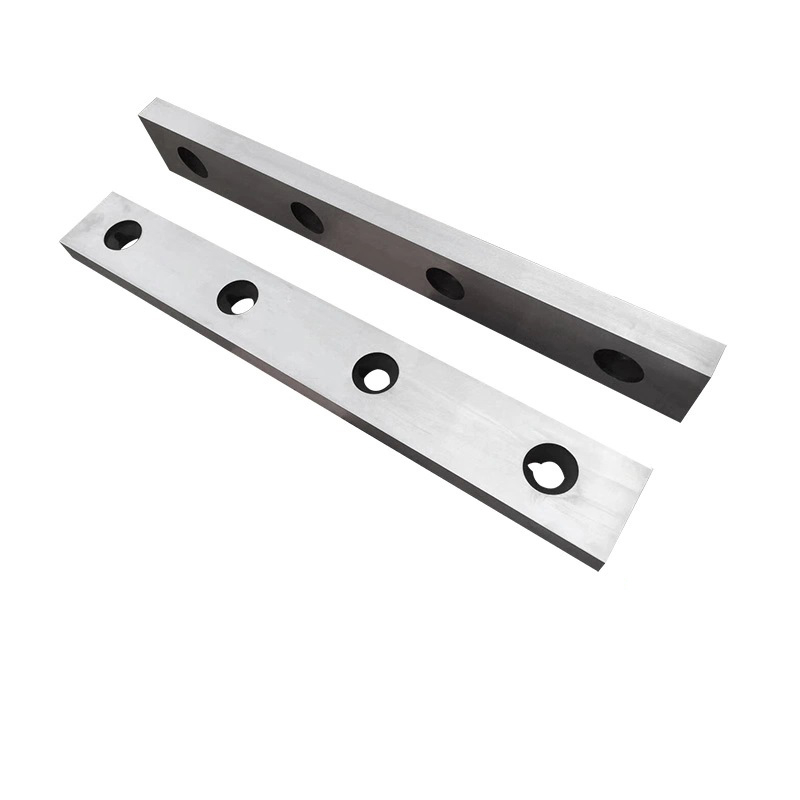

4. ALAS Metal Shear Replacement Blades

4.1 High-Quality Metallurgy

• Uses premium D2 and H13 steel, vacuum heat treatment

• Stays sharp even on high-tensile materials; no micro-chipping or edge rolling

4.2 Restore Machine Precision

• Dull/chipped blades slow production

• Precision blades = clean cuts, less machine stress, longer equipment life

4.3 Custom Solutions

• Fits thin or thick plates

• Custom blade clearance, lengths (standard or custom)
