1. Product Overview
Most metal fabrication shops rely on separate machines for cutting, punching and bending, which pushes up equipment costs and slows down overall production efficiency. ALAS Industrial’s heavy-duty press brake attachments solve this common industry pain point by upgrading your existing hydraulic ironworker into a dedicated precision bending unit. Designed for quick bolt-on installation, these bending tool sets eliminate the need for standalone press brakes when processing flat bars and medium-thickness steel plates. With years of specialized manufacturing experience in ironworker auxiliary tooling, we produce durable, dimensionally stable bending attachments compatible with most mainstream global ironworker models. Every tool supports multi-spec bending and custom springback adjustment, delivering consistent, high-precision bending results for daily batch and custom production.
Core Selling Points
Bolt-on plug-and-play design fits original ironworker punch and shear cavities, enabling fast on-site retrofitting without extra modification
High-toughness alloy steel build resists cracking and fatigue, standing up to continuous high-tonnage bending operations
Integrated multi-V die structure allows quick switching between different bending thicknesses, no full tool disassembly required
2. Core Technical Specifications
Structured Product Schema Enabled | All parameters can be customized per project requirements
Parameter | Standard Value | Customizable Option |

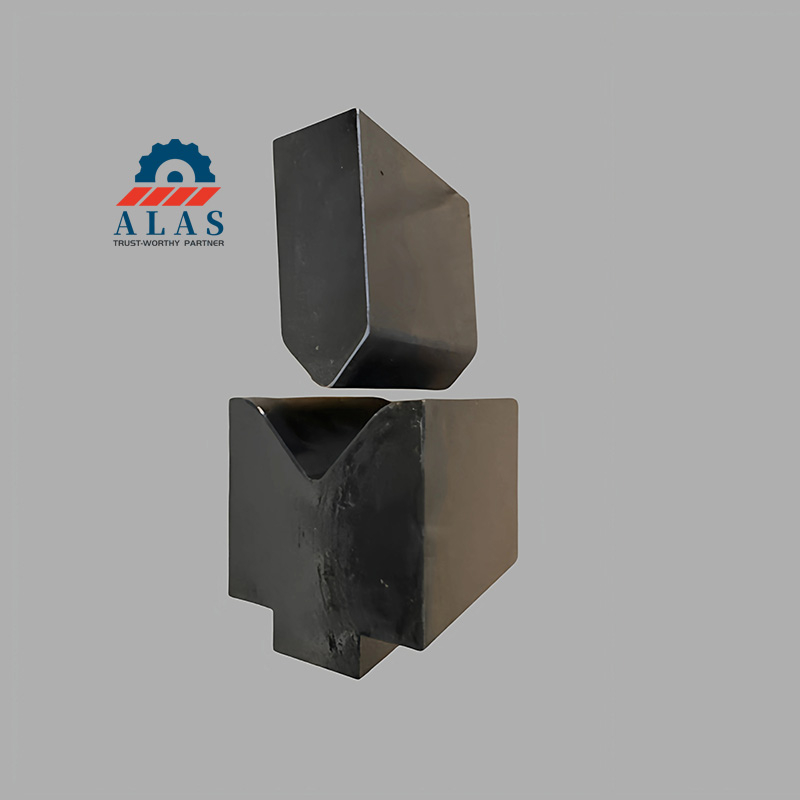

Attachment Style | Universal Top Punch + Multi-V Bottom Die Block Assembly | Custom single-V dies and wide-opening heavy-duty configurations based on customer drawings |
Material Grade | AISI 4140 (42CrMo) Chrome-Moly Alloy Steel (quenched & tempered core, ASTM A322 standard) | H13 hot-work tool steel for ultra-thick plate and high-pressure bending scenarios |
Surface Hardness | HRC 48–52 (induction hardened only on critical bending surfaces) | Full-body anti-oxidation coating upgrade for harsh working environments |
Bending Capacity | Max 300mm bending length, 12mm plate thickness (subject to machine tonnage) | Extended bending length up to 600mm, custom thickness tolerance available |
Angular Accuracy | ±0.5° tolerance, precision-ground 88° / 90° punch profile | Custom springback-compensated angles including 85° punch options |
Surface Roughness | Ra 0.4μm precision-finished die shoulders | Super-fine polishing for high-standard architectural metalwork |
Compatible Machines | All mainstream global hydraulic ironworker models | Custom coupling brackets for special and discontinued machine models |
3. Product Advantages
3.1 Crack-Resistant Alloy Steel Structure
Low-cost generic bending tooling often develops stress cracks at die roots or punch shanks after repeated high-tonnage operation, leading to frequent replacement and production downtime. Our tooling adopts forged AISI 4140 alloy steel with professional quenching and tempering treatment. Only core bending surfaces undergo induction hardening, retaining sufficient toughness and elasticity for the tool body. This optimized structure effectively avoids sudden fracture and fatigue failure, delivering 35% longer service life than ordinary non-hardened carbon steel tooling, greatly reducing daily maintenance costs.
3.2 Multi-V Die Block for Efficient Size Switching
Our integrated bottom die block comes with four commonly used V-opening sizes: 8mm, 16mm, 24mm and 32mm. Operators can switch between thin sheet and thick flat bar bending in seconds simply by rotating the die block, with no need for full tool disassembly or replacement. This flexible design cuts tool inventory investment by nearly 40% and significantly boosts production efficiency for mixed-batch fabrication jobs.
3.3 Precision Springback Compensation for One-Time Qualified Bending
Carbon steel, stainless steel and high-tensile steel plates all produce elastic springback after hydraulic bending, which easily leads to unqualified open-angle workpieces. Our top punches are CNC-machined with optimized 85° and 88° relief angles to offset material springback. This precise over-bending design ensures workpieces form standard 90° corners in a single bending cycle, minimizing rework and material waste while maintaining a strict ±0.5° angular tolerance for mass production consistency.
3.4 Polished Die Surface for Scratch-Free Bending
Rough, unpolished die shoulders generate strong friction during high-pressure bending, leaving permanent scratches and edge cracks on workpiece surfaces. We finely grind and polish all die contact shoulders to a uniform Ra 0.4μm smooth round surface. This eliminates abrasive friction during bending, effectively protecting galvanized sheets, stainless steel panels and architectural decorative plates from surface damage, improving the overall yield of finished products.
4. Material & Manufacturing Quality Assurance
4.1 Premium Industrial-Grade Alloy Steel Selection
We adopt ASTM A322-standard AISI 4140 (42CrMo) chrome-moly alloy steel for all standard bending tooling. This alloy structural steel features outstanding tensile strength, impact toughness and stable hardness under continuous hydraulic pressure, perfectly adapting to long-term daily structural steel bending work. For extreme working conditions with ultra-thick plates and high tonnage, we upgrade to H13 hot-work tool steel, which offers superior resistance to thermal fatigue and high-stress deformation compared with conventional tool steel.
4.2 Strict Full-Cycle Production Process
Every bending attachment is manufactured under a standardized, full-process quality control system. We start with spectral testing of raw steel materials to verify composition purity. Integral forging removes internal porosity and enhances structural density. Precise heat treatment balances tool hardness and toughness to prevent brittleness or cracking. Key bending areas are induction hardened for enhanced wear resistance. Finally, full CNC precision grinding and anti-rust surface treatment ensure consistent dimensional accuracy and long-term durability. All production procedures are fully recorded for complete quality traceability.
5. Application Scenarios
5.1 Structural Steel Fabrication
Ideal for installation on heavy-duty hydraulic ironworkers to bend structural flat bars and small steel plates. Widely used for building frame components and structural steel parts that require high toughness and stable bending accuracy under continuous heavy-load operation.
5.2 General Job Shop Production
Perfect for small and medium-sized fabrication shops looking to expand machine functionality without purchasing additional standalone press brakes. Suitable for batch processing of sheet metal and medium-thickness plates, helping factories save equipment investment and workshop space.
Specially applicable for bending galvanized steel, stainless steel decorative panels and custom architectural profiles. The ultra-smooth polished die surface ensures scratch-free forming, meeting the strict surface aesthetic requirements of construction and decoration projects.
5.4 On-Site Mobile Processing
The lightweight bolt-on design fits mobile ironworker units, supporting on-site steel bending at construction sites. Contractors can process custom bent parts locally, avoiding the hassle and cost of transporting bulky raw materials back to the factory for secondary processing.
6. Quality Control System
We implement strict full-process quality inspection for all bending tool sets in accordance with ISO 9001 quality management standards, ensuring stable, zero-defect product quality for every order.
Raw Material Inspection: All steel raw materials undergo chemical composition and mechanical property testing to screen out unqualified materials at the source.
In-Process Monitoring: Real-time hardness testing and dimensional inspection are carried out after heat treatment and grinding processes to correct processing deviations promptly.
Finished Product Testing: Each tool set is individually tested for bending angle accuracy and surface roughness to fully comply with published technical specifications.
Pre-Shipment Inspection: Final visual and functional checks are completed before delivery. All products receive professional anti-rust treatment and shockproof packaging to prevent transit damage. SGS third-party inspection is available upon request.
7. Customization Service
We provide one-stop OEM and ODM customization services to tailor tooling solutions for special machine models and personalized production needs.
Customizable Items: AISI 4140/H13 material upgrade, extended bending length, custom springback compensation angle, special V-die opening size, non-standard coupling bracket size and customized anti-corrosion coating.
MOQ & Lead Time: Standard in-stock products support 1-piece minimum order for replacement and trial use. Bulk orders of 5 sets or above enjoy preferential wholesale prices. Standard products are shipped within 3 working days; custom tooling takes 7–10 working days for production.
Service Scope: We support custom drawing development, laser logo engraving, personalized packaging and exclusive parameter debugging for global distributors and manufacturing clients.
8. Company Strength & Credibility
Founded in 2012, ALAS Industrial is a professional manufacturer specializing in hydraulic ironworker supporting tooling, based in Nanjing, Jiangsu, China. We own a 6200㎡ standardized modern production workshop, with a monthly output of over 800 sets of ironworker bending tooling and accessories. Our products serve metal fabrication enterprises, structural steel manufacturers and field engineering teams across more than 30 countries.
All our products comply with ISO 9001 quality certification and ASTM A322 industrial standards. With 13 years of focused R&D and production experience in ironworker auxiliary tooling, we deliver cost-effective, high-stability bending solutions for global B2B customers. Learn more about our factory strength.
9. Frequently Asked Questions (FAQ)
Q1: How to calculate the required tonnage for bending steel plates?
We adopt the industry-standard complete bending tonnage calculation formula: $$P = \frac{1.42 \times UTS \times L \times T^2}{V}$$. Unified calculation rules to avoid errors: Calculated result P = ton (T), bending length L = meter (m), plate thickness T and V-die opening V = millimeter (mm), UTS stands for material tensile strength (MPa). For reference, a standard 50-ton ironworker can safely bend 200mm-wide, 6mm-thick steel plates with a standard 8×thickness V-die. Bending thick plates with narrow V-dies will sharply increase tonnage load and may damage machine guide rails.
Q2: Why do bent workpieces have scratches and edge cracks?
This issue is mainly caused by unpolished, sharp die shoulders. Sharp tool corners produce intense friction during high-pressure bending, scratching and tearing the workpiece surface. Our bending dies adopt Ra 0.4μm high-precision rounded polishing, which eliminates abrasive friction completely, ensuring clean, scratch-free bending results for carbon steel, galvanized steel and stainless steel plates.
Q3: Which ironworker brands are your attachments compatible with?
Our universal bending attachments fit all mainstream global hydraulic ironworker brands, including Piranha, Sunrise, Geka, Edwards, Scotchman, Kingsland and Megabal. We also provide customized adapter brackets for special and discontinued machine models.
Q4: What is your minimum order quantity?
We support 1-piece MOQ for all standard in-stock tooling sets, suitable for equipment replacement, small-batch production and customer trial orders. Bulk orders of 5 sets and above are eligible for discounted wholesale prices for long-term cooperative customers.
Q5: What is your delivery cycle?
All standard in-stock attachments will be delivered within 3 working days after passing pre-shipment precision inspection. Custom-sized, special-angle and non-standard architectural tooling requires 7–10 working days of production cycle, with real-time order progress updates available.
Q6: What after-sales warranty do you provide?
Every tool set undergoes 100% full inspection before shipment. We provide long-term quality after-sales support and free replacement for quality problems caused by manufacturing defects. Normal wear and tear from daily operational use is not covered by the warranty.
Q7: Do you provide technical support and installation guidance?
Yes. We equip every order with detailed English installation manuals and operation tutorial videos. For bulk orders and project customers, we provide one-on-one remote technical guidance to ensure correct tool installation and parameter debugging.
