Fixed blades, movable blades, heading dies and steel bar clamps are the core special accessories for prestressed steel bar processing of concrete pipe pile drivers, serving the whole process of blanking and cutting, end upsetting, tensioning and clamping of special prestressed steel bars for pipe piles. The precision, material and adaptability of the accessories directly determine the quality of steel bar processing, which in turn affects the prestressed anchoring effect, structural strength and qualified rate of finished pipe piles.

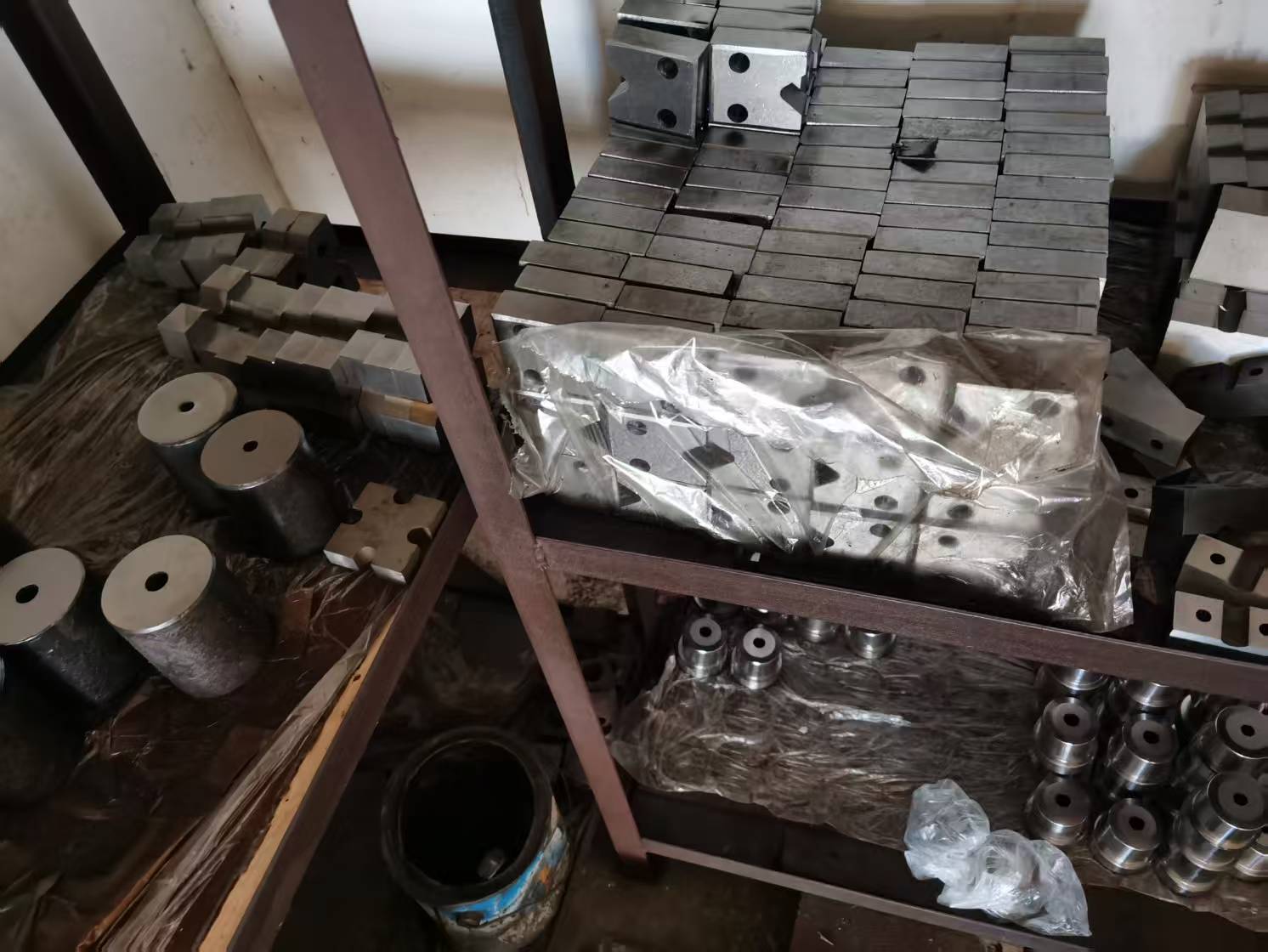

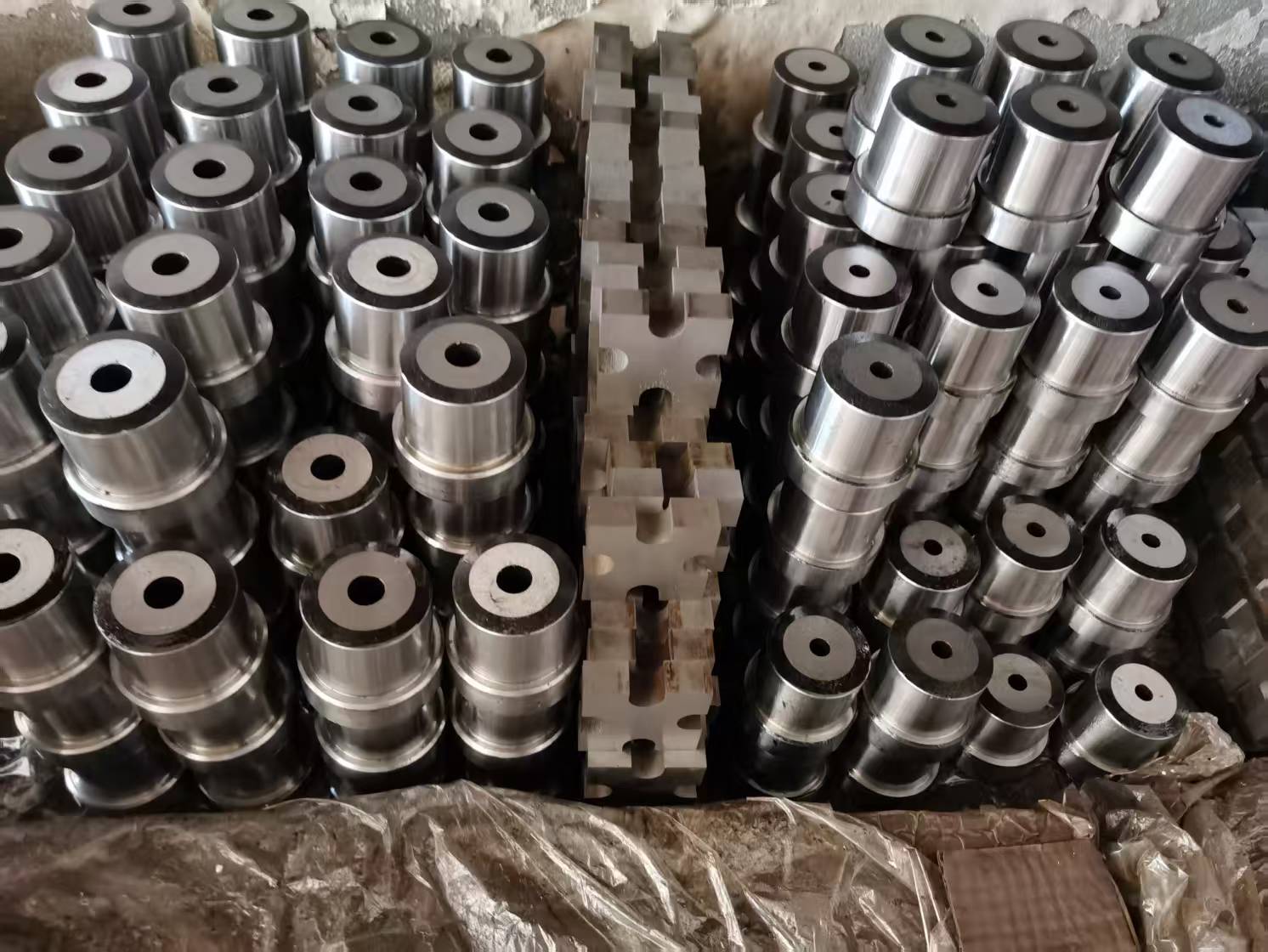

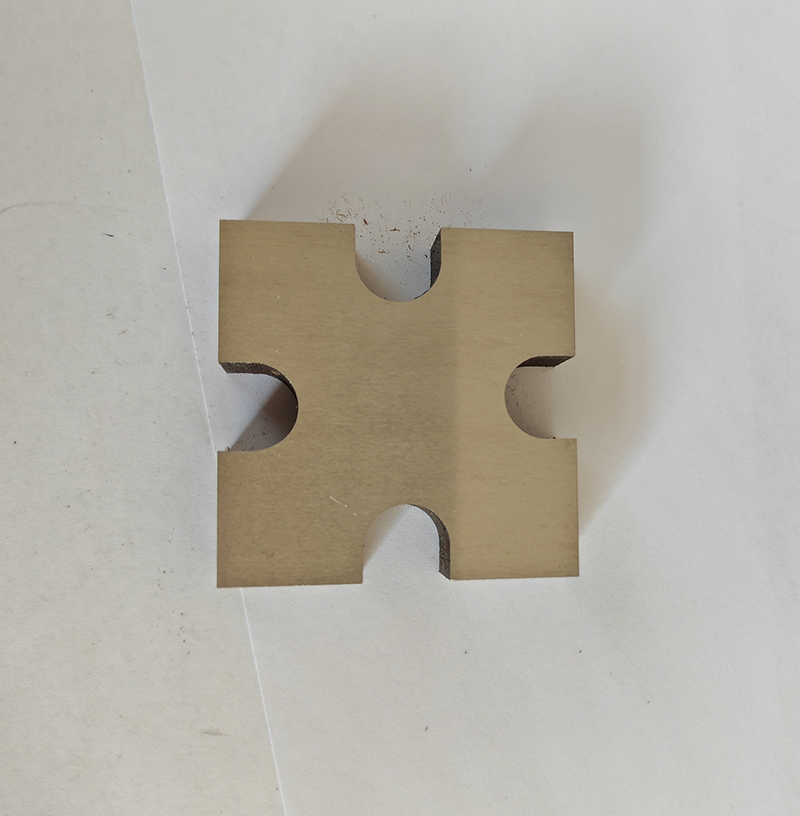

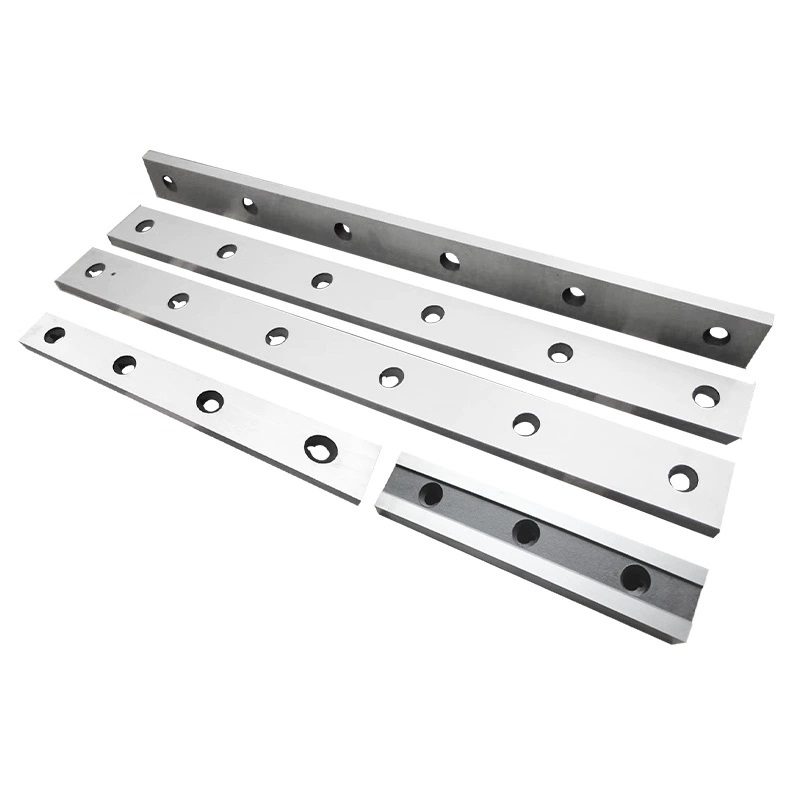

The fixed and movable blades of a pipe pile driver are special matching wear parts for steel bar cutting. Different from the general cutting tools for pipe pile blank cutting, such blades are specially designed for small-diameter, high-strength prestressed steel bars. Their core function is to realize fixed-length blanking of steel bars and cutting of excess sections after tensioning, acting as the shearing accessories for steel bar processing.
Through the fixed support of the fixed blade and the hydraulically driven reciprocating movement of the movable blade, a precise shearing force is formed to realize burr-free and non-bevel cutting of PC steel bars and prestressed steel wires. This ensures the blanking length of steel bars and avoids the impact of cutting defects on the adaptability of subsequent upsetting and tensioning processes.
Steel bar cutting bears high-strength shearing force and metal friction, so the tool material focuses on high wear resistance and edge chipping resistance. Cr12MoV cold work die steel is conventionally selected.
Special Forming Die for Prestressed Steel Bar End Upsetting
The heading die is the core forming die of the heading mechanism of a pipe pile driver and a key accessory for prestressed steel bar anchoring. In pipe pile production, the end of the steel bar must be upset to form a regular "heading" to ensure the reliable connection between the steel bar and the anchor during tensioning. The cavity precision of the heading die directly determines the forming quality of the heading, which in turn affects the safety of pipe pile prestress tensioning.
The clamp for the steel bar heading machine is an exclusive positioning and clamping accessory for the prestressed steel bar upsetting process, used in conjunction with the heading die. Its core function is to fix the steel bar and ensure the coaxiality of the steel bar and the heading die cavity, prevent the steel bar from eccentricity and movement during upsetting, and ensure the heading is formed round and full. It is one of the key components affecting the anchoring reliability of prestressed steel bars.
Key Functions of the Heading Machine Clamp in Prestressed Steel Bar Upsetting
Ensure the coaxiality deviation between the steel bar end and the heading die cavity is ≤0.03mm, prevent defects such as heading eccentricity, flat head and material shortage, and ensure the alignment of the heading and the steel bar axis.
Fix the steel bar without axial movement under the high upsetting pressure (50~200kN), avoid insufficient heading length and incomplete forming, and ensure the heading diameter meets the design requirements (usually 1.5~2 times the steel bar diameter).
The clamping surface is closely attached to the steel bar surface to avoid steel bar surface damage and work hardening caused by high-pressure clamping, and ensure the mechanical properties of the steel bar are not affected.
Fixed blades, movable blades, heading dies and clamps are the four core accessories for prestressed steel bar processing of concrete pipe pile drivers. These accessories have distinct division of labor and work in coordinated cooperation, and determine the quality of steel bar processing throughout the process from steel bar blanking and cutting to end upsetting and then to tensioning and positioning. Among them, fixed and movable blades are wear parts that need to be accurately selected and regularly replaced according to cutting conditions; the heading die is a forming die that directly affects the safety of prestressed anchoring; the clamp is a force transmission and positioning accessory, and its clamping reliability and positioning precision determine the uniformity of pipe pile prestress distribution.
