Why Integrated Bending Machine Die and Punch Sets Define Your Precision
In the world of sheet metal fabrication, the Bending Machine Die and Punch are two halves of a single precision equation. Even the most advanced CNC press brake is neutralized if the upper punch and lower die do not share the same metallurgical integrity and dimensional accuracy. Inconsistent tooling leads to angle springback variations and premature tool fatigue, forcing your operators into endless test-bending cycles.
At Alas Machinery, we engineer our bending machine die and punch sets to deliver synchronized performance and unmatched longevity.
Overview & Core Applications
What Are Bending Machine Die And Punch?

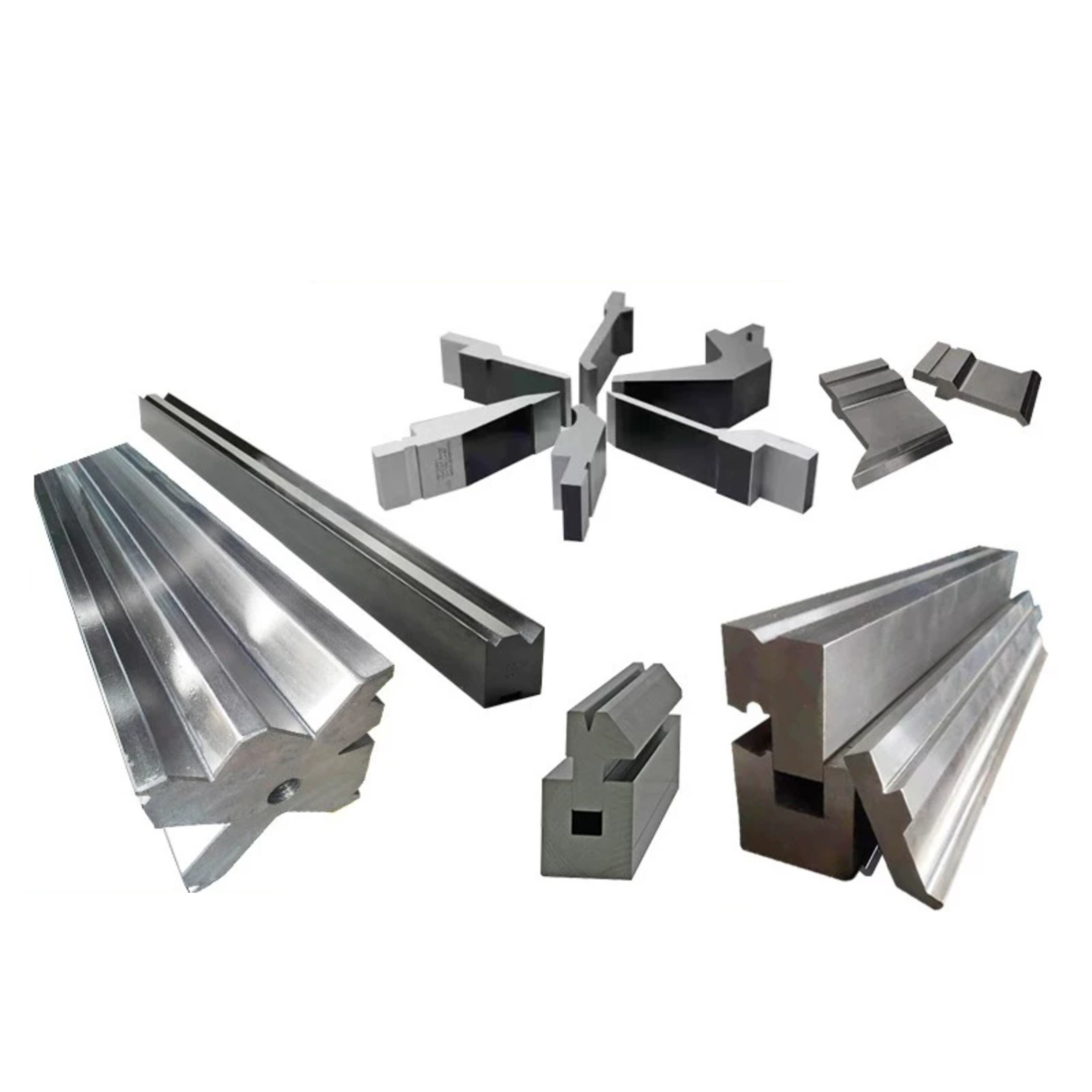

Bending machine die and punch are specialized forming molds used with press brakes. As the core working parts for sheet metal bending and forming, they mainly consist of two key components: the upper punch and the lower die. Through the relative movement of the press brake’s ram and worktable, the sheet metal is pressed between the punch and die, producing plastic deformation to form workpieces with set angles, shapes, and dimensions — such as 90° right angles, U-shapes, V-shapes, and more.
Key Industry Applications
They are widely used in sheet metal processing fields including: mechanical manufacturing, sheet metal fabrication, hardware production, cabinet making, automotive parts processing, aerospace sheet metal components.
Core Components & Working Principle
Upper Punch — The Active Pressure Component
Definition & Positioning
The upper punch is installed on the moving ram of the press brake and serves as the active pressure-applying part. Its vertical movement drives the sheet metal during the bending process.
Shape Determines Contour

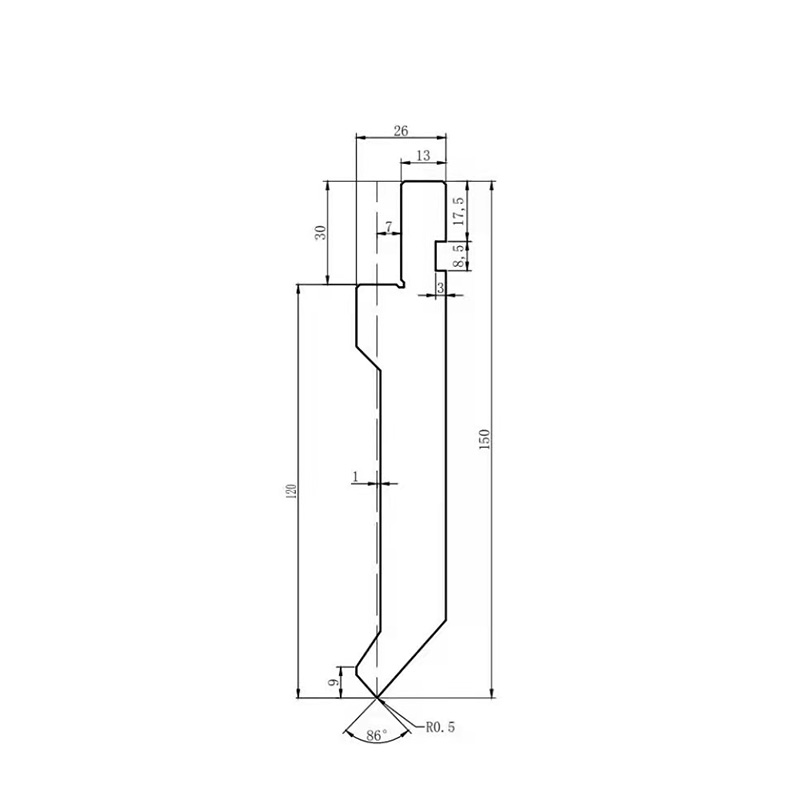

The punch’s profile — including standard straight, sharp-angle, gooseneck, radius, and special profiles — directly determines the outer contour and final shape of the bent workpiece.
Lower Die — The Fixed Support Component
Definition & Positioning
The lower die is fixed on the press brake worktable and acts as the stationary support. It is the foundation that positions and holds the sheet metal during forming.

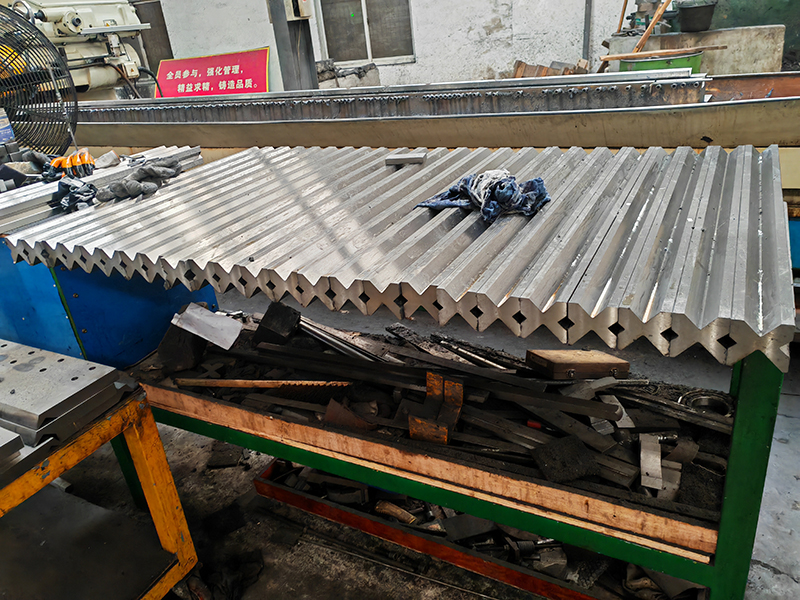

V-Groove Structure
The lower die is mostly designed with a V-shaped groove. The width of the V-groove directly affects three critical factors: bending force, inner fillet size, and overall forming quality.
Complete Working Principle
1. Place the metal sheet on the V-groove of the lower die. 2. The ram drives the upper punch downward vertically. 3. The sheet is forced to fit the contours of both the punch and die, undergoing irreversible plastic deformation. 4. Once the preset stroke and pressure are reached, bending is completed. 5. The punch retracts, and the finished workpiece is removed.
Key Features & Advantages
High Rigidity and Wear Resistance
Premium Material Selection

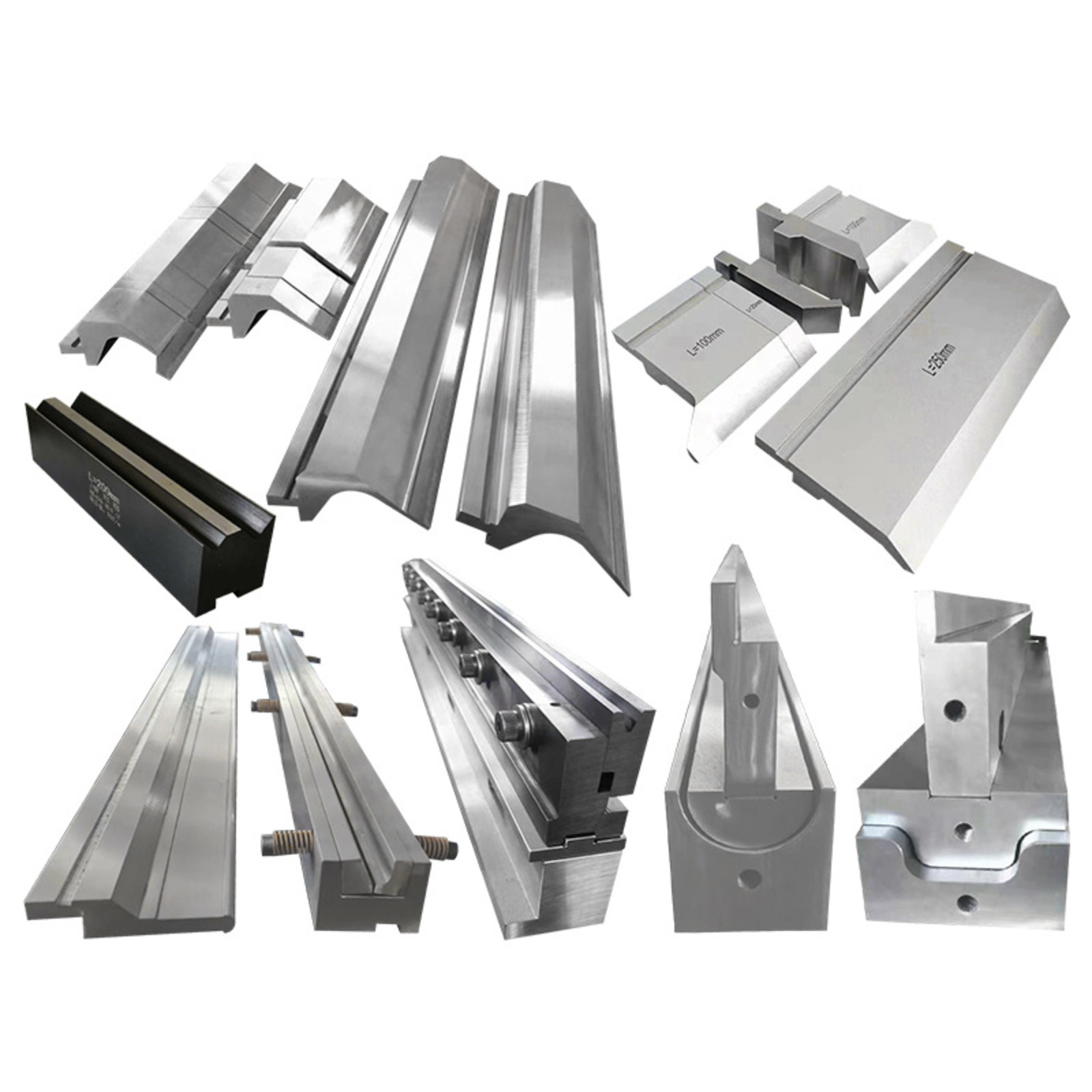

Our bending machine die and punch are mainly made from high-quality alloy structural steel such as 42CrMo.
Advanced Heat Treatment Process
Processed through quenching, tempering, and surface induction hardening, our tools achieve a consistent hardness of HRC45–HRC50. This ensures strong rigidity, superior load capacity, and excellent wear resistance to withstand extreme high pressure and friction during bending.
High Customization Capability
Custom Punch Shapes
According to specific workpiece requirements (angle, shape, size, material thickness), we can customize punches into arc, gooseneck, or special irregular profiles to meet unique processing demands.
Versatile Die Grooves
We can machine lower dies with V-grooves of various widths (8mm, 16mm, 24mm, etc.) or process special non-standard groove types to accommodate diverse material thicknesses and bending scenarios.
Strong Equipment Compatibility
Full Dimensional Matching
Dimensions such as height, shank type, and installation size are fully compatible with the clamping system, ram stroke, and rated tonnage of the press brake.
High Forming Accuracy
Forming sizes strictly follow part drawings, ensuring consistent bending accuracy and a high yield rate for mass production.
Standardization & Serialization
Universal Standard Sizes
Conventional bending machine die and punch come in universal standard specifications compatible with major brands such as Amada, Trumpf, and Wila, allowing direct purchase and use.
Flexible Custom Solutions
For special processing needs, we provide fully customized tooling solutions based on actual production requirements.
Common Classifications
Classified By Forming Shape
Standard Straight Punches
Suitable for conventional straight edge bending, the most widely used type in general sheet metal processing.
Sharp-Angle Punches
Ideal for small angle bending or springback compensation, enabling high-precision sharp-angle forming.
Gooseneck Punches
Perfect for U-shaped grooves and deep channel workpieces, they can avoid interference with already bent edges of the workpieces.
Radius Punches
Designed for arc and rounded corner bending and forming, suitable for arc-shaped workpieces and transition rounded corner processing.
Special-Shaped Punches
Custom-made according to unique part drawings, designed for irregular bending requirements.
Classified By Application Scenario
Standard Bending Tools
Suitable for ordinary sheet metals such as low-carbon steel and galvanized steel, offering high cost-effectiveness.
High-Strength Steel Bending Tools
Featuring a thickened design and high-hardness materials, they are suitable for difficult-to-bend materials such as stainless steel and high-strength alloy plates.
Thin-Sheet Special Tools
Precision-machined to prevent warping, deformation, and scratching during the bending of thin materials.
Classified By Installation Interface
Amada / Promecam Type
Fully compatible with the clamping system of Amada series press brakes.
Trumpf / Wila Type
Suitable for Trumpf and Wila series press brakes, ensuring perfect matching.
New Standard Type
Universal interface design, suitable for most domestic press brakes on the market.
How To Select The Right Bending Machine Die And Punch
Selection Principle Overview
Selecting the right bending machine die and punch is critical for ensuring bending accuracy, production efficiency, and tool service life. The selection must match material characteristics, bending processes, workpiece requirements, and equipment parameters — none of which can be dispensed with.
Key Selection Criteria
Criterion 1 — Match Material Properties
Different metals exhibit distinct springback behaviors.
- Mild steel: Low springback; an 86°–88° punch is often used for 90° bending.
- Stainless steel & high-strength steel: Significant springback; an 85° punch or targeted angle adjustment is required to avoid angular deviation. Material thickness must also align with die specifications to prevent tool damage or poor forming.
Criterion 2 — Follow The “8x Principle” for V-Groove Width
The core industry standard formula is: V = 8 × T (Lower die V-groove width = 8 × Material thickness).
- Medium-thick plates (3–8mm): Follow the 8x principle for ideal results.
- Thin plates (T＜3mm): Reduce to V=6T to achieve a smaller fillet radius.
- Thick plates (T＞8mm): Increase to V=10T–12T to reduce bending force and prevent cracking.
Criterion 3 — Pressure Tonnage Matching
Always ensure the tool can withstand the actual bending force. Overloading will cause tool breakage or equipment damage. - The press brake’s actual working tonnage must be below the tool’s rated capacity, with a 10%–15% safety margin. - For thick plates and high-strength steel, use reinforced or segmented tools to disperse pressure and extend service life.
Criterion 4 — Choose The Correct Punch Shape
Punch geometry must perfectly match the final shape of the workpiece to avoid interference or forming defects: - Standard punches for general bending. - Sharp-angle punches for small angles or springback compensation. - Gooseneck punches for deep channels and U-shaped parts. - Radius or special-shaped punches for curved or irregular workpieces.
Criterion 5 — Ensure Full Equipment Compatibility
- Shank Type Matching: Confirm the shank type matches the press brake’s clamping system (Amada/Promecam, Trumpf/Wila, or New Standard).
- Height Matching: Tool height must suit the ram stroke and worktable opening to avoid installation failure or production inefficiency.
Important Selection Notes
Critical Do’s and Don’ts
- Don’t ignore springback: This will lead to inaccurate bending angles.
- Don’t deviate from the 8x rule: This may cause workpiece cracking and premature tool failure.
- Don’t skip compatibility checks: Ensure perfect matching between tooling and equipment to avoid installation errors.
- Do prioritize material matching: Select the right tooling based on the processed material and thickness.
- Do reserve a safety margin: For safe and stable long-term operation.
