Press Brake Upper & Lower Dies: Complete Explanation & Selection Guide

Press brake tooling relies on upper punches to apply forming force and lower dies to block and profile the sheet. Working together, this upper and lower setup bends raw sheet metal into precise workpiece geometries.

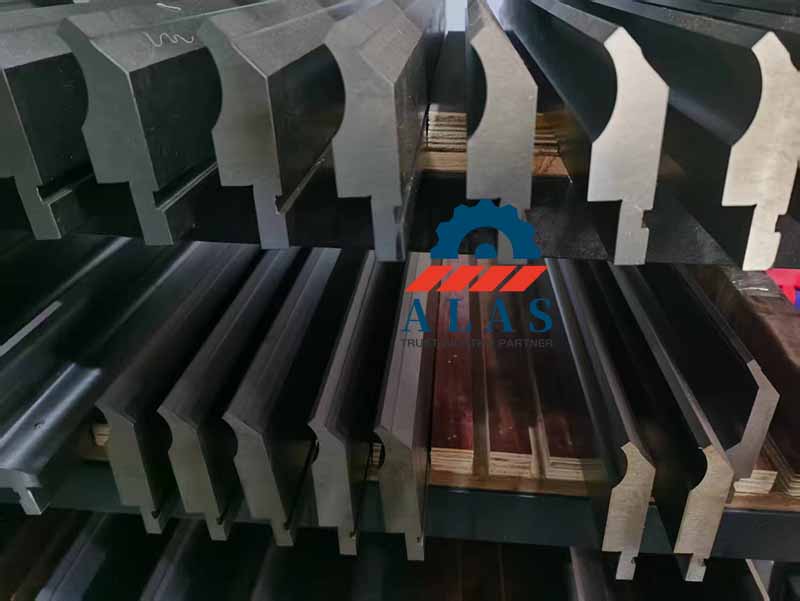

Classification of Press Brake Upper Dies

Punch selection dictates your minimal flange limitations, clearance for returning legs, and maximum tonnage thresholds. Below are the core upper tool profiles utilized on the shop floor:

Acute-Angle Punch

Also simplified as an acute punch, this profile fabricates small bend angles, typically engineered for operations within 30° while remaining versatile enough to handle 60° openings. The solid tool body paired with a sharp tip eliminates springback variations. Standard floor specifications include 30°-R0.6 and 60°-R0.8.

Door Jamb & Profile Punch

A highly specialized bending tool featuring an ultra-thin profile and a slanted tip. This unique geometry allows the punch to clear pre-formed sections, making it the standard choice for manufacturing complex door jambs and commercial window frames.

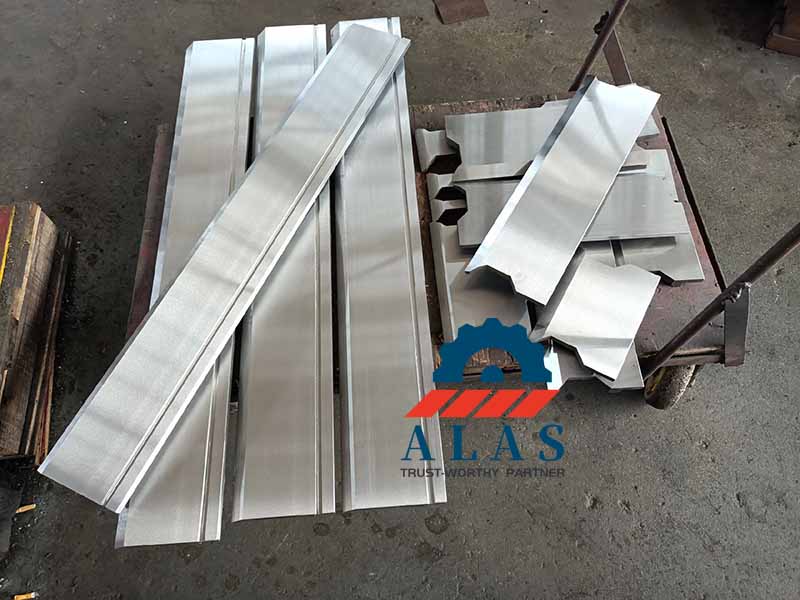

Standard Straight Punch

The most versatile choice for heavy-gauge air bending. Built with a thicker, reinforced body, it absorbs substantial forming tonnage when processing thick plates. A subtle relief concave milled into its inner face facilitates tight, short-flange operations. Under high-tonnage batch setups, shops stock high-strength Standard Straight Press Brake Punches to avoid tip failure.

Joggle & Z-Bend Punch

Commonly designated as a joggle tool, this slim-bodied punch is engineered for offset and S-shaped steps. It represents a critical custom tooling option, delivering a complete Z-bend or stepped profile in a single mechanical stroke.

Radius Punch

Designed with a blunt, cylindrical nose rather than a pointed tip, this punch forms smooth, sweeping U-bends without causing sharp stress creases in the material skin. It is typically paired with matching U-shaped lower dies to process radiused components.

Narrow Blade & Sword Punch

Characterized by a uniform, blade-like thickness along its full vertical axis. This profile accesses tight, restricted zones where standard bulky punches would collide with the metal sheet—making it essential for the final closing bends of deep electrical enclosures and enclosures. Production floors rely on precisely aligned Precision Segmented Press Brake Tooling Sets to section these tools for complex box forming.

Gooseneck Punch

Engineered with a deep, swept-back cavity to clear deep, vertical returning legs during box forming. Because its shape forms a structural cantilever under load, a gooseneck punch has much lower tonnage thresholds than straight punches. Use with caution on heavy-gauge stock. To prevent unpredicted structural failure or cracking on these undercut profiles, your setup personnel must follow the rigid maintenance metrics outlined in our Press Brake Tooling Maintenance Guide.

Classification of Press Brake Lower Dies

Positioned beneath the workpiece, the lower die supports the metal sheet and bears the concentrated tonnage transmitted from the upper punch. Because of this extreme mechanical stress, lower dies must feature deep structural strength. Below are the standard lower die profiles used in production:

Bidirectional Self-Centering V Die

Engineered with two parallel V-grooves on a self-centering base. This profile increases setup efficiency compared to conventional single V dies; operators can switch between bend angles or adjust for material variances without unclamping the tool holder or performing a full die swap.

Single V Die

Featuring a single V-groove milled into the top working face, this is the most versatile and widely deployed lower die block. Selection follows the standard 8X rule, where the V-opening width equals 8 times the sheet metal thickness. For daily low-carbon steel runs and general sheet fabrication, shops deploy cost-effective CNC Precision Single & Double V Dies to optimize changeover speed and limit initial tooling investments.

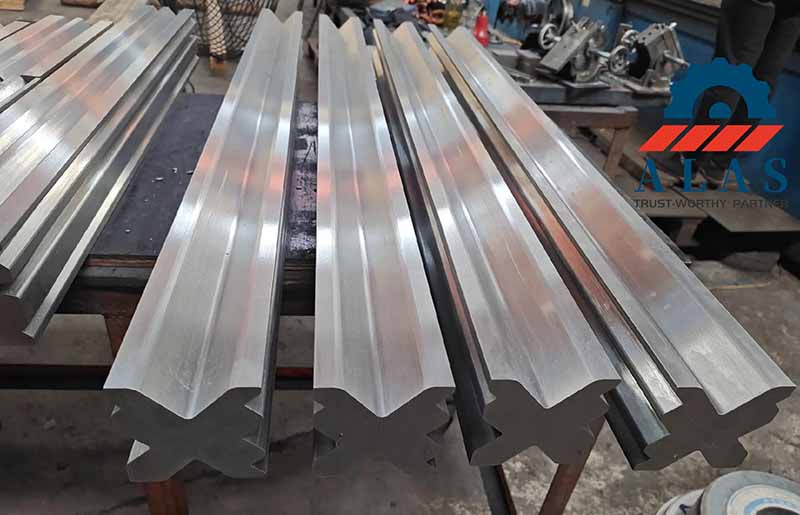

Multi-V & 4-Way Die Blocks

These blocks integrate multiple V-grooves of varying widths onto a single, solid square or rectangular steel block. By turning or rotating the block in the die holder, operators can instantly match different sheet thicknesses and bend radii, drastically lowering the shop's total tooling inventory requirements.

U-Channel Forming Die

Designed to strike complete U-profiles or deep channels from a flat blank in a single downward mechanical stroke. While standard V-dies require two separate bending hits to form a U-shape, this custom tool eliminates the secondary cycle entirely.

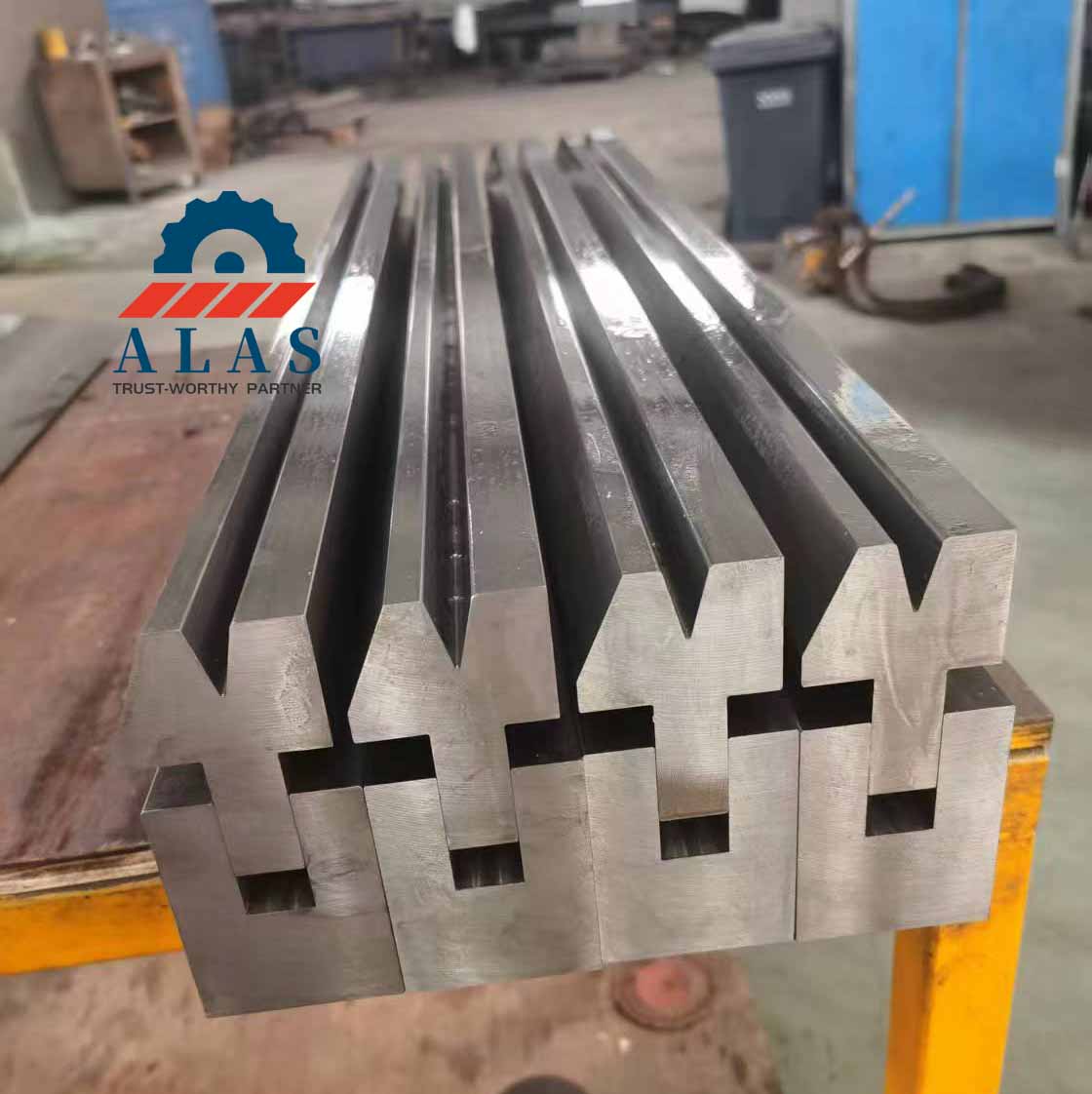

Hemming & Flattening Tools

A combination tool setup built to first pre-fold a sheet edge into an acute angle, and then completely flatten it into a crushed hem. Available in both rigid U-base frames and spring-loaded configurations, this setup is standard for forming hemmed safety edges on enclosure doors and cabinet panels.

Common Materials for Press Brake Dies

To handle high-tonnage forming pressures without experiencing permanent deformation, bending punches and dies must be forged from high-yield, hardened tool steels:

• 42CrMo (Chromium-Molybdenum Alloy Steel): The industry baseline standard for mass production. When processed through professional quenching and tempering (Q&T) for core toughness, combined with localized induction hardening on the high-wear V-groove lips and punch tips, it delivers an ideal balance of fatigue life and structural cost-efficiency.

• Cr12MoV / SKD11 (High-Carbon High-Chromium Cold-Work Steel): The upgrade choice for continuous stainless steel production lines. Tempered at a controlled 52–55 HRC to maximize fracture toughness, it provides excellent resistance against abrasive wear and metal-on-metal friction scratching. For high-volume galvanized or stainless components, it must be paired with a surface nitriding treatment to completely stop material transfer and adhesive galling.

• H13 & LD Steel (High-Toughness Refined Alloys): Prioritized for high-impact, thick-gauge structural bending and ultra-high-strength plates (e.g., Q460 or Q690). Hardened to 50–53 HRC, these steels offer deep through-hardenability and exceptional cross-sectional impact toughness, eliminating the risk of catastrophic die shattering under extreme tonnage.

• ASP60 (Premium Powder Metallurgy Steel): Reserved for specialized, high-precision custom inserts running ultra-high-volume continuous automotive high-strength thin blanks. Its ultra-dense micro-carbide structure yields extreme wear life but requires strict machine tool alignment and proper lubrication to prevent brittle micro-chipping.

Factors Affecting Die Selection

Selecting the correct bending setup requires balancing material specifications against machine limits to prevent tool failure and part scrap:

V-Groove Opening and Inside Bend Radius

Choosing the proper V-opening controls material stretching. When the chosen V-opening creates an inside bend radius smaller than the sheet thickness, extreme tensile stress causes side bulging, cracking, and dimensional warping. Selecting a V-opening that allows the inside radius to meet or exceed the sheet thickness stabilizes the material flow and eliminates structural deformation risks.

Sheet Material Properties

The mechanical properties of the blank dictate your entire tooling configuration. Thicker plates and high-tensile materials demand wide die openings, sharper tool angles, and higher yield strength steels. Sheet length also shifts structural loads; running short, heavy-gauge plates on tools meant for light-gauge thin sheets causes instant localized indentation and damages both the die and the ram.

The 8X Rule

The 8X Rule is the global reference baseline for calculating V-die openings on standard cold-rolled mild steel with a tensile strength of approximately 60,000 PSI: V-groove opening width = 8 × sheet thickness. Operating within this baseline yields an inside bend radius roughly equal to the material thickness while keeping forming tonnage within standard safety boundaries.

This multiplier must adjust with plate thickness variations. Depending on the job, V-openings can shift to 6X, 10X, or 12X. When forming heavy-gauge plate or low-ductility high-strength steel, operators must expand the V-opening to 10X or 12X to distribute forming forces. These setups require heavy-duty Heavy-Duty High-Tonnage Press Brake Dies to handle the severe lateral pressures and protect the V-groove shoulders from collapsing.

Minimum Flange Height Limitations

The blank must span and rest securely across both shoulders of the V-die during the initial downstroke. If the flange leg is too short, the material slips straight into the V-cavity, causing immediate part distortion and severe angular inaccuracy. Wide V-die openings demand much larger minimum flange heights:

• Standard V Dies: Minimum flange height ≈ 70% of the V-groove opening width.

• Acute Dedicated Dies: Minimum flange height can exceed 110% of the V-groove opening width.
  During setup positioning, ensure the material extends past the inner V-edge by at least 20% of the total V-opening width to guarantee stable shoulder contact.

The 1/6 Rule (Air Bending Inside Radius Calculation)

In conventional air bending setups, the final inside bend radius of mild steel is dictated by the V-die opening rather than the punch tip radius, following the 1/6 Rule:

Inside bend radius ≈ V-groove opening width ÷ 6 (typically 15% to 17% of the total V-opening).

Widening the V-groove directly increases the final inside bend radius. Higher-tensile alloys increase this percentage further, yielding a larger radius inside the same V-cavity. For parts with strict cosmetic finishes where you must completely eliminate die lines and contact marks on sensitive aluminum or polished stock, follow the operational steps outlined in our guide: How to Eliminate Bending Indentations: 5 Mainstream Mark-Free Bending Solutions.

Tool Maintenance & Care

Proper preservation extends structural lifespan and maintains tight precision bounds:

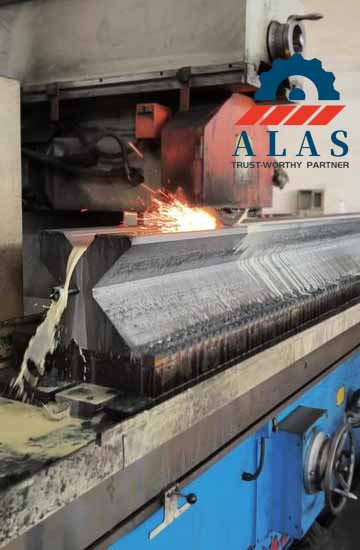

• Edge Regrinding: Periodic fine-grinding preserves sharp punch radii and eliminates tolerance drift caused by dull tooling profiles. Dull profiles accelerate premature die wear.

• Tonnage Limits: Operations must strictly respect the rated load thresholds of specific profiles. Overloading causes rapid tool degradation and catastrophic press brake failure.

• Dedicated Storage: Storing tooling components inside dedicated cabinets located near machine zones optimizes changeover logistics and shields precision surfaces from debris.

• Daily Cleaning: Removing built-up scale, oil, and micro-shavings at the end of shifts using vendor-approved cleaning solutions targets the root causes of pitting corrosion.

• Tooling Inspection: Regularly check for wear tracking, micro-cracks, and rust. Replace degraded components promptly, as continuing production with defective dies yields batches of non-conforming parts.

• Storage Environment: Maintain dry storage areas completely free of moisture and corrosive gases to eliminate rust risks.

• Lubrication Protocols: Applying specialized forming lubricants lowers interfacial friction and upgrades workpiece surface finish. Avoid prolonged dry forming when processing stainless steel or galvanized runs, as dry friction causes severe material galling and tears up die radii.

5.Summary

Press brake upper and lower dies serve as the core tooling for precision sheet metal forming. Matching the proper profile, steel grade, and heat treatment parameter to your floor workpiece specifications directly dictates bending accuracy, surface aesthetics, and your plant's overall tooling ROI.

6.FAQ: Press Brake Tooling Selection & Troubleshooting

Q: Why do my gooseneck punches experience faster deformation or cracking compared to standard straight punches?

A: Gooseneck punches utilize a deep cantilever structure to clear returning workpiece flanges. This design naturally compromises the tool's core rigidity, resulting in a much lower rated tonnage capacity than standard straight punches. Overloading a gooseneck punch on thick plates or high-strength alloys accelerates micro-cracking and deformation. Always double-check your machine's tonnage limits and avoid pushing gooseneck profiles beyond their rated capacities.

Q: How do I choose between a single V die and a multi-V die block for general fabrication?

A: It comes down to a balance between setup time and long-term precision:

• Single V Dies: Preferred for automated or high-volume continuous lines where maximum rigidity and constant angular accuracy are critical. They match perfectly with the 8X rule for a dedicated thickness.

• Multi-V Die Blocks: Ideal for job shops handling a wide variety of short-run parts and frequent sheet thickness changes. Rotating a single block saves significant tool changeover time, though the block itself requires more storage space and reduces localized support layout flexibility.

Q: Can I use standard 42CrMo dies to bend high-strength steel plates like Q460 or Q690?

A: Standard 42CrMo dies that are only quenched and tempered (without localized surface hardening) will deform rapidly or cave in under the extreme tonnage required for high-strength steel. If your shop processes high-strength structural plates frequently, you must upgrade your tooling material to H13 or LD steel, heat-treated to HRC 50–54. This setup delivers the deep cross-sectional toughness needed to prevent structural cracking while handling heavy bending shocks.
