Press Brake Tooling Maintenance Guide: How to Extend Tool Life and Preserve Precision

Introduction

• Hook: Precision-ground tooling maintained within a factory tolerance of ±0.02 mm (±0.0008 inches) determines final part accuracy. Neglecting tooling maintenance leads to premature wear, angular variation, sheet marking, and dangerous structural failures under heavy loads.

• Objective: A step-by-step Standard Operating Procedure (SOP) covering daily care, proper operation, corrosion prevention, and systematic storage.

Section 1: Daily Inspection and Cleaning Protocol (Pre-Operation)

• Daily Wipe-Down: Clean punches, V-dies, and clamping systems using lint-free microfiber cloths and light degreasers to remove metal dust, scale, and shop grime.

• Visual Damage Inspection: Inspect punch tips and die shoulder radii for pitting, micro-cracks, burrs, or galling (material transfer).

• Critical Rule: Never operate with cracked or chipped tooling—concentrated stress under high tonnage can cause catastrophic fragmentation on the shop floor.

Section 2: Operational Best Practices (During Use)

• Tonnage Limit Adherence: Never exceed the maximum load rating (expressed in Tons per meter or T/m) laser-etched on the tool body. When purchasing heavy-duty CNC Press Brake Tooling and Bending Dies, always cross-reference your machine tonnage charts with the tool specs.

• Centerline and Ram Alignment: Ensure upper and lower tool centerlines are accurately aligned to eliminate side-thrust loads that strain tool tangs and machine guides.

• Distributing Wear (Avoiding Point Loading): Avoid repeatedly performing small, high-tonnage bends in the exact center of a long bed segment. Rotate work positions across the bed length to ensure uniform wear.

Section 3: Surface Protection and Stainless Steel Care

• Managing Sheet Galling: Bending stainless steel or galvanized sheets often causes zinc or mill scale to weld onto die shoulders.

• Prevention Techniques: Use urethane protective film (bending film) or specialized heavy-duty bending lubricants to prevent direct metal-to-metal contact.

• Safe Deposit Removal: Use brass scrapers or specialized fine polishing compounds—never wire wheels, angle grinders, or coarse abrasive pads that erode ground dimensions.

Section 4: Rust Prevention and Long-Term Storage

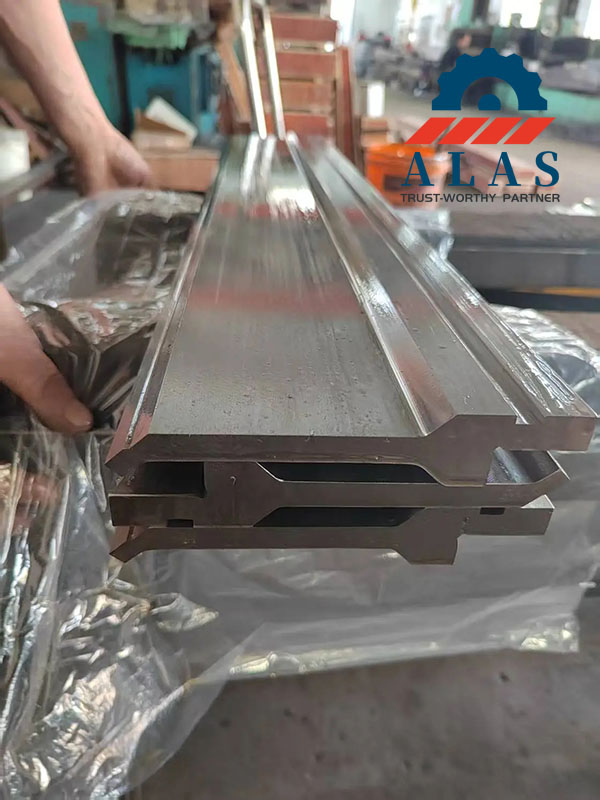

• Corrosion Control: Apply a uniform layer of rust-preventative oil or storage wax across all ground surfaces before moving tools out of production.

• Dedicated Storage Infrastructure: Store tools in dedicated cabinets or plastic- or wood-lined vertical racks to eliminate metal-to-metal collisions.

• Sectionalized Set Management: Keep matched, segmented punch and die sets together in numbered sequences to preserve height uniformity across long bending setups. This is why keeping premium Precision Segmented Tooling Sets organized in their original factory order is essential.

Section 5: Troubleshooting and Maintenance FAQ

Q1: Can we regrind worn press brake tools?

• Yes, provided the tools undergo precision surface grinding by an experienced manufacturer and retain sufficient effective induction-hardened case depth (typically 2 to 3 mm)

Q2: Why is wire brushing or grinding die surfaces strictly forbidden?

• Focus: Abrasives destroy the factory-ground precision tolerances of ±0.02 mm (±0.0008 inches) and the premium surface finish of Ra 0.4 to 0.8 μm, causing immediate dimensional inaccuracy.
