How to Eliminate Bending Indentations: 5 Mainstream Mark-Free Bending Solutions

Introduction

Bending indentation is one of the most common cosmetic defects in sheet metal fabrication. For workpieces with strict surface standards—such as aluminum alloy, brushed stainless steel, and mirror-finish sheets—indentations and scratches caused by conventional bending frequently lead to costly rework and scrapping. This article explains the physical causes of bending indentations, systematically compares five mainstream mark-free bending solutions in terms of cost, service life, and application scenarios, and provides practical selection criteria to completely eliminate bending marks.

Section 1: Physical Mechanism of Bending Indentations

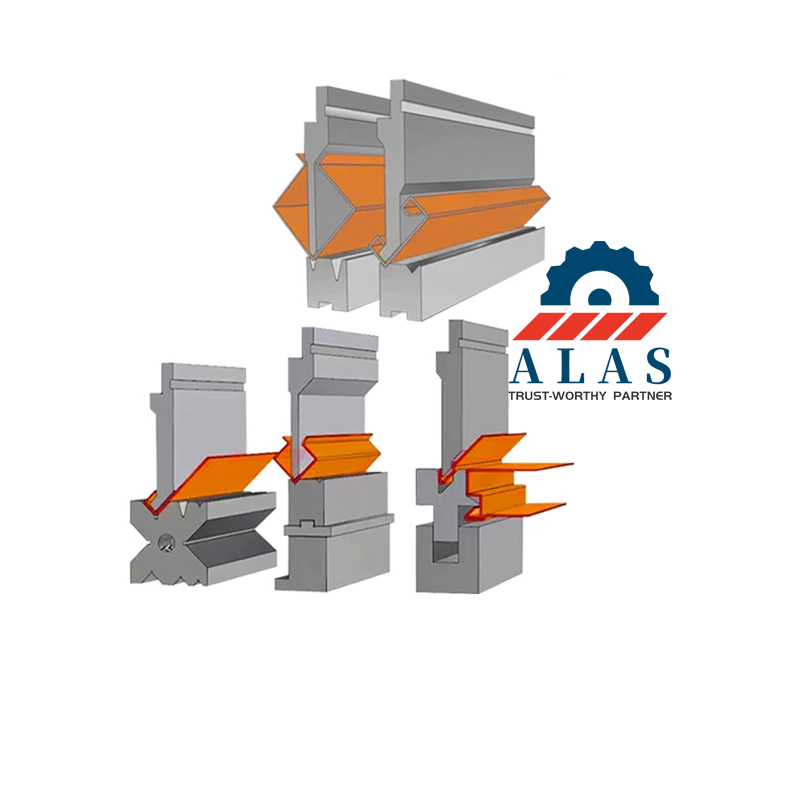

Bending indentations are formed by high-pressure extrusion and friction during the press brake stroke. During operation, the radius of the upper punch tip and the shoulder of the lower V-die form rigid mechanical contact. Under immense pressing force, strong extrusion and sliding friction occur between the tooling and the sheet surface, resulting in permanent dents and witness marks on the workpiece.

The severity of the indentation depends heavily on material hardness, surface finish, and sheet thickness. Soft and ductile materials—such as pure aluminum, soft aluminum alloys, and copper—are highly susceptible to indentation. For stainless steel with brushed, polished, or mirror surfaces, even minor surface marks are classified as defects. Conventional rigid bending molds are only suitable for ordinary carbon steel structural parts with no cosmetic requirements and cannot meet high-precision surface standards.

Section 2: Comparison of Five Mainstream Mark-Free Bending Solutions

Section 3: Practical Selection Decision Tree

This standardized selection logic is designed based on material type, surface finish, and production volume for direct on-site shop floor application:

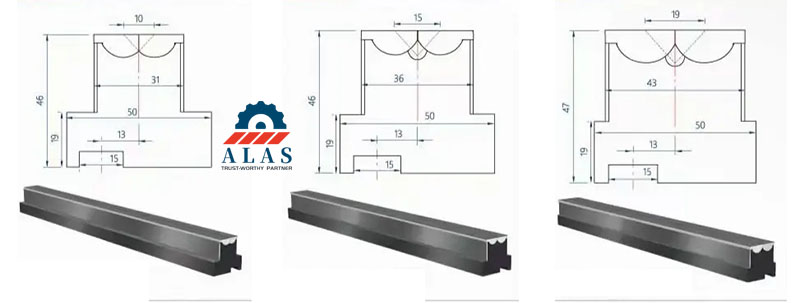

Pre-Painted / Powder-Coated Sheets: For workpieces bent after painting or spraying, ball bearing lower dies or roller-type tooling are mandatory. Only pure rolling friction ensures zero damage and zero scratches on coated surfaces.

Thin Stainless Steel (Thickness < 2 mm): The optimal cost-effective combination is a polyurethane film cushion combined with a TiN-coated upper punch. This setup effectively eliminates indentations on brushed and polished stainless steel sheets for small-to-medium batches.

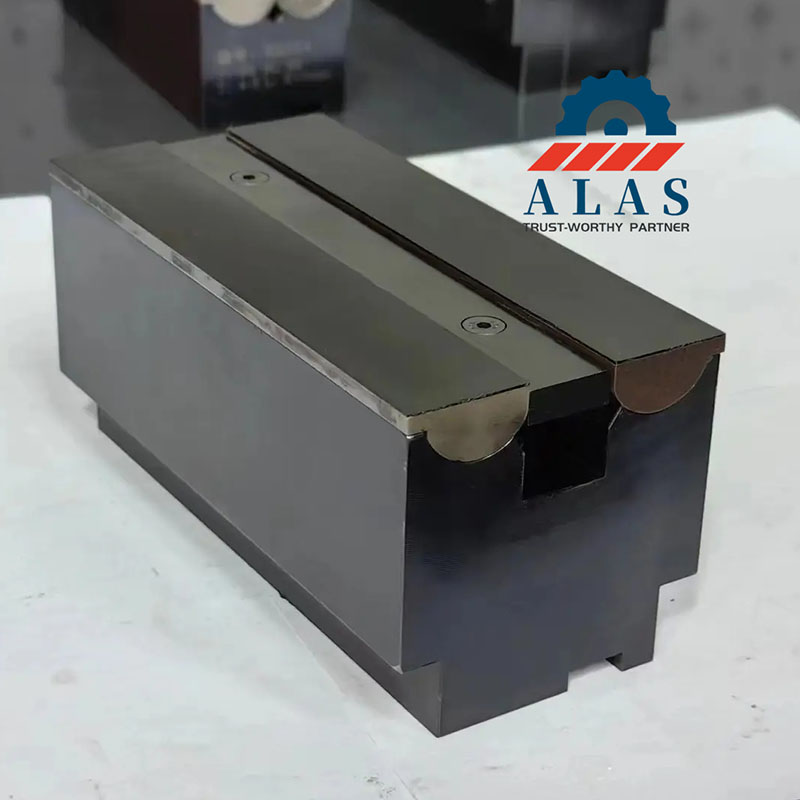

Mass Production (Monthly Output > 5,000 pcs): Adopt premium ball bearing mark-free lower dies. Integrating these with high-end Precision Segmented Tooling Sets ensures both modular flexibility and pristine surface finishes across long-run orders.

Conclusion

Eliminating bending indentations relies on accurate process matching according to material properties, surface requirements, and production scale rather than the blind adoption of high-end molds. Polyurethane cushions suit low-volume prototyping; coated molds and basic polishing balance cost and quality for regular stainless steel and aluminum batches; ball and roller mark-free dies are ideal for high-volume, high-precision mirror and soft material workpieces. Reasonable process selection completely resolves bending scratch issues, reduces scrap, and improves cosmetic yield for high-precision sheet metal manufacturing.
