Standard Straight Press Brake Punches | High-Tonnage 90-Degree Upper Tooling

High-Rigidity Straight Profile: Engineered with a robust, un-recessed solid vertical body optimized for high-frequency 90° right-angle bends, delivering superior structural resistance against lateral deflection.
1000 kN/m High-Load Rating: Retains maximum cross-sectional mass without throat relief, allowing the solid upper tool to bear continuous industrial forming loads up to 100 Tons/Meter (1000 kN/m) without mechanical fatigue.
Precision-Hardened Working Tips: The critical punch nose and shoulder radii undergo highly controlled structural heat treatment, reaching a stable, verified working hardness of HRC 47±3 (HRC 45–50 range) to ensure uniform compressive resistance and zero deformation under continuous high-tonnage cycling.
Standard 13mm Amada/Euro Tang: Equipped with a precision-ground 13mm European standard mounting shank and safety click slots, ensuring a flawless direct-fit into Amada, Promecam, Safan, and Durma hydraulic quick-clamping systems.
  • 42CrMo

  • ALAS

  • L/C, T/T, Paypal, Money Gram

  • 1

  • Wooden Crate Packaging

Availability:
Quantity:

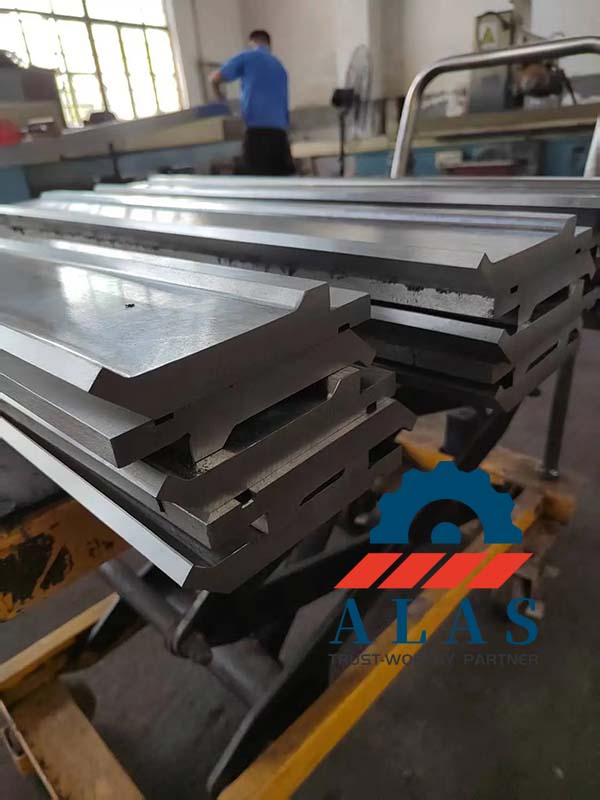

Standard Straight Press Brake Punches Product Description

Maximize your high-frequency production throughput on everyday right-angle profiles. The ALAS-Standard Straight Press Brake Upper Punch (also known as the straight top blade) is a high-load vertical tool engineered specifically for universal hydraulic rams. By retaining maximum cross-sectional mass without aggressive throat recesses or offset curves, this solid straight punch delivers ultimate resistance against lateral deflection, guaranteeing tight angular precision across high-volume mild steel and galvanized sheet runs.

Optimized Application Scenes & Mechanical Advantages

Unlike specialized gooseneck tools that compromise structural mass for flange clearance, our standard straight punches maximize cross-sectional rigidity. It is the premier choice for workshops focused on routine high-tonnage sheet metal fabrication:

  • Standard 90° Right-Angle Bending: Optimally balanced for standard L-profiles, reinforcing ribs, brackets, and simple metal channels up to 6.0mm thickness.

  • 1000 kN/m High-Load Bearing Capacity: Built to endure heavy continuous forming cycles up to 100 Tons-Per-Meter (1000 kN/m) without structural deformation or mechanical fatigue.

  • Prism Centerline Alignment: Precision ground mounting tangs ensure immediate self-centering and perfect linear tracking along the machine bed axis.

Authentic Forged 42CrMo Metallurgy: Balanced Through-Hardened Longevity

To resist localized compression stress at the punch nose, every ALAS straight top blade is forged from genuine 42CrMo high-tensile alloy steel (equivalent to AISI 4140). The entire tool undergoes a strict, highly controlled volumetric quenching and high-temperature tempering process. This brings the full body to a verified, stable working hardness of HRC 47±3 (HRC 45-50 range).

This strict industrial hardness window achieves the perfect structural equilibrium: elite compressive strength at the tip to prevent edge flattening, backed by deep core toughness to resist shock fracture under off-center loads.

Cross-Border Material Equivalents Reference Index

Standards Body / Region

Standard Code

Corresponding Material Grade

Verified Base Hardness

United States (AISI / ASTM)

ASTM A29

AISI 4140 / AISI 4142 Alloy Steel

47 ±3 HRC

China (GB)

GB/T 3077

42CrMo / 42CrMo4 Forging Matrix

47 ±3 HRC

International Standard (ISO)

ISO 683-1

42CrMo4 Structural Steel

47 ±3 HRC

Germany (DIN / EN)

DIN EN 10083

1.7225 / 42CrMo4

47 ±3 HRC

Japan (JIS)

JIS G4105

SCM440 / SCM440H

47 ±3 HRC

Industrial Hardness Matching Rule for Bending Precision

To guarantee excellent wear resistance and prevent material cold-welding (galling) on stainless steel, ALAS strictly adheres to the industry-standard Upper-to-Lower Hardness Delta Rule:

  • ALAS Straight Upper Punch: Standardized at HRC 47±3 for high impact and friction resistance at the punch nose.

  • ALAS Matching Lower Die Block: Generally maintained at HRC 42±3.

Engineering Principle: Keeping the upper punch tip slightly harder than the lower die shoulder prevents the punch nose from premature flattening during continuous air bending, ensuring long-term repeatability of the final bending angle.

Tooling Availability: Solid Full-Length & Custom Length Systems

ALAS standard straight punches are manufactured in precise linear blocks to fit standard mechanical clamping setups. All functional edges maintain a strict ±0.02mm precision-ground tolerance across the entire profile to ensure uniform angle tracking:

  • Solid Full-Length Blocks: Stocked in standard 835mm and 415mm single integral sections – perfect for continuous, seamless long straight-line sheet metal processing.

  • Bespoke Max Length: Custom solid single-piece milling available up to 6000mm length upon technical approval.

  • Standard Clamping Interface: Machined with a precision 13mm Amada/European standard mounting tang with built-in safety click grooves, providing native compatibility with Amada, Promecam, Safan, Durma and regional hydraulic rams.

Technical Procurement FAQ

Q1: Why choose a standard straight punch instead of an acute 30° punch for 90° bending?

Straight punches feature an un-recessed, thicker body profile. This extra mass provides significantly higher structural rigidity and resistance against lateral deflection. For regular 90° right-angle parts, straight punches support much higher tonnage load ratings and offer a substantially longer edge life than thin, acute-angle blades.

Q2: Can ALAS straight punches be utilized for processing high-strength structural plates?

Yes. Because the tool retains its full cross-sectional core mass without a gooseneck curve, it is highly optimized for heavy forming loads. However, operators must verify that the calculated air bending force (P = 650 × T² × L / V) does not exceed our standard 1000 kN/m rated structural threshold.

Q3: What are the primary tip angles available for ALAS straight upper dies?

Our standard off-the-shelf straight punches feature 86° or 88° tip angles to smoothly offset the natural elastic springback of conventional mild steel and galvanized sheets, allowing operators to hit a perfect 90° final profile effortlessly.

Critical Engineering Operational Limits & Safety Warning

  • Strict Origin Calibration Restriction: Always utilize a solid punch section longer than 300mm to calibrate your machine's mechanical origin or Y-axis zero point. Never use short fractional segmented blocks for origin calibration, as tiny seating misalignments can introduce severe cumulative scaling errors into the CNC controller.

  • Uniform Vertical Height Guard: Never install upper punch sections with mismatched physical vertical heights on the same press brake ram table. Mismatched punch heights will trigger extreme localized high-tonnage spiking, resulting in instant destruction of the quick-clamps or fracturing the punch body.

  • Box Flange Collision Warning: This straight profile tool lacks gooseneck relief clearance. It is strictly forbidden for forming deep-drawn pans or complex boxes with pre-bent vertical legs higher than 15mm, as the moving sheet will violently crash into the flat tool neck.

Mechanical Rigidity Analysis: Solid Straight Profile vs. Gooseneck Clearance

When selecting press brake top tooling, a critical trade-off exists between structural clearance and maximum load capacity. The ALAS High-Rigidity Standard Straight Punch retains full cross-sectional core mass, ensuring extreme resistance to high-tonnage compression and bending stress.

  • Solid Straight Punch Performance Matrix: Because this tool does not feature an aggressive back throat recess or offset curvature, a standard 90° straight upper blade easily bears continuous heavy industrial loads up to 50 Tons per foot (approx. 100 Tons-Per-Meter). This solid engineering makes it the ultimate workhorse for high-frequency ordinary sheet metal lines.

  • The Gooseneck De-rating Comparison: For reference, while an offset gooseneck die provides essential clearance for tall pre-formed box flanges, that throat relief pocket sacrifices crucial structural mass. An 88° gooseneck tool typically supports only around 15 Tons per foot. Operating under heavy air bending environments without a 15% safety load buffer will result in immediate structural cracking or base distortion.

Procurement Consensus: For continuous, high-volume production of regular 90° right-angle profiles, U-channels, and reinforcing plates, deploying the high-tonnage solid straight upper punch delivers up to a 3X longer edge lifespan and lower capital cost per stroke cycle.

Engineering Selection Guide: Target Angles & Tip Radius Mechanics

Forming metallic components always triggers natural material elastic springback. To achieve a flawless 90° final part profile without repetitive operator trial-and-error, selecting the appropriate pre-milled punch tip angle is crucial.

1. Angle Selection Guide for 90° Right-Angle Forming

Target Part Angle

Recommended ALAS Straight Punch Angle

Matching Lower V-Die Angle

Onsite Material Application Case

90° (Standard Right-Angle)

86° ~ 88° (Springback Offset)

88° Multi-V Lower Block

Routine mild steel panels, commercial brackets, and HVAC sheet ducting.

90° (High-Elastic Alloys)

85° (Deep Over-bending)

85° / 88° Lower V-Slot

High-tensile stainless steel structures, marine plates, and spring steel workpieces.

2. Tip Radius Selection & Surface Indentation Control

The punch nose tip radius directly determines the internal corner profile of the bent part. Managing the tip radius balance prevents localized fracture while maintaining aesthetic part surfaces:

  • Standard Nose Radius (0.2mm to 1.0mm): Optimized for regular sheet processing. A smaller tip radius generates a sharp inner corner, but increases the risk of deep surface indentation and scoring marks.

  • Dedicated Co-centric Radius Options: For components with strict interior engineering R specifications, ALAS supplies matched custom radius punches (including precision R0.3, R1.0, R4.0, and R8.0 tips) to smoothly shift forming stress points and eliminate material thinning.

Sub-Millimeter Quality Standards: Why Upper Punch Precision Matters More

The final bending angle and linear alignment are heavily dictated by the upper tooling matrix. Minor machining discrepancies on the punch mounting tang can accumulate into severe twist tolerances along a long bed length. Every ALAS precision straight punch is ground to synchronized industrial tolerance limits:

Critical Tooling Profile Part

Common Low-Precision Failure Mode

ALAS Precision Ground Tolerance Limit

Cutting Nose Edge Angle

Out-of-tolerance part angles and erratic springback tracking.

≤ ±0.2°

Tip Radius Symmetry

Irregular internal corner radius and cracked bend shoulders.

≤ ±0.05 mm

Mounting Shank Tang Parallelism

Loose tool installation, clamping shift, and angular variation.

≤ 0.02 mm

Overall Full-Length Straightness

Inconsistent part angles across long straight sheet metal panels.

≤ 0.1 mm/Meter

CNC System Integration: Combining ALAS high-precision straight punches with world-class CNC press brakes (ram repeatability ≤ ±0.01mm) yields completely stable, repeatable air-bending results over years of high-volume shift schedules.

Shop-Floor Maintenance Matrix for Extended Service Life

Because upper punch tips endure intense frictional wear during high-load air bending cycles, implementing a systematic maintenance plan stabilizes precision and prevents edge chipping.

Daily Shift Checklist

Blow off structural metal chips and abrasive iron scale with compressed air. Conduct a visual inspection along the full linear edge to verify there is zero localized cracking or corner chipping before initiating automated strokes.

Monthly Parameter Audit

Utilize electronic micrometers to verify tool alignment. Measure the nose radius wear profiling and check interface clamping gaps along multi-piece combined rails. Apply a layer of premium anti-rust oil for warehouse rack storage.

Regrinding Restriction Limits: The tool nose area wears fastest. Do not execute professional regrinding operations more than 3 times across the lifespan of the tool. Excessive surface material removal will systematically shift the tip radius center and overall shut height, introducing calculation deviations into the CNC controller.

Technical Procurement FAQ for Standard Straight Tooling

Q1: What is the optimal hardness ratio required between the straight upper punch and lower die?

To maximize the operational life of your tooling setup, ALAS strictly implements the Upper-Harder Delta Rule. The straight upper punch is volume-tempered to HRC 47±3 because its concentrated nose radius bears intense continuous sliding friction. The corresponding lower die block is typically maintained at HRC 42±3. Keeping the upper punch slightly harder prevents premature nose flattening and micro-deformation during high-frequency air bending lines.

Q2: Why is it strictly forbidden to install upper punches with different physical heights on the same ram table?

Mismatched total physical heights introduce severe structural risks. When the hydraulic ram descends to its bottom dead center (BDC), the taller punch segments will absorb 100% of the cylinder's localized tonnage stroke, spiking way past their calculated elastic limits. This results in instant destruction of the hydraulic quick-clamps, fracturing the punch base body, and creating a critical operator safety hazard.

Q3: How do I read the rated structural tonnage limits for full-length straight punches?

ALAS straight tool load limits are permanently laser-engraved on the steel shank in Tons-Per-Meter (Tons/m) or kN/m. Because our straight punches retain full cross-sectional core mass without a back throat recess, they support a robust rating up to 100 Tons-Per-Meter. When grouping fractional sections together along the rail, your CNC controller's automated tonnage stroke must always be calibrated to follow the maximum load rating of the weakest individual section utilized.

Q4: Is this straight upper punch natively compatible with my existing press brake bed?

This tooling line features a precision-ground 13mm Amada/European standard mounting shank equipped with localized safety click grooves. It is a 100% direct-fit, plug-and-play solution for Amada, Promecam, Safan, Durma and all universal hydraulic clamping tables. (Note: For proprietary special-structure hydraulic clamping rails or traditional thick-slot American punch rails, a specialized upper conversion adapter rail must be utilized).

Why Lead-Tier Metal Fabricators Rely on ALAS Straight Punches

  • Authentic 42CrMo Steel Core: Hot-forged from premium chromium-molybdenum alloy matrices. Full volumetric heat treatment eliminates subsurface stress risers and guarantees zero structural cracking.

  • Verified Hardness Window: Strictly quality-controlled body tempering maintaining a uniform HRC 47±3 across all critical linear working points.

  • Sub-Millimeter CNC Grinding: Edge angle alignment tolerance restricted within ≤±0.2° and mounting tang parallelism held tightly within 0.02mm to enable fast tool-change without manual alignment work.

  • Mass Production Flow Optimization: Solid vertical geometry provides up to a 3-times longer sharpening cycle compared to clearance-recessed alternative tools when processing routine 90° sheet channels.

Standard Technical Specification Sheet

Base Metallurgy Material

Authentic Forged 42CrMo Alloy Steel (AISI 4140 Equivalent)

Volumetric Hardness Window

HRC 47±3 (Verified uniform tempering across full cross-section core)

Standard Pre-Milled Angles

86°, 88°, 90° (Engineered for standard 90° right-angle air bending)

Standard Punch Nose Radius

0.2 mm, 0.6 mm, 1.0 mm (Bespoke radius profiles ground to order)

Stock Solid Length Availability

835 mm, 415 mm (Max integral single solid piece up to 6000 mm)

Clamping Shank Interface

Standard 13mm Amada / Euro Style Mounting Tang with safety slots

Surface Roughness Finish

Precision CNC ground contact surfaces down to ≤ Ra 0.8 μm

Operational Load Threshold

Rated up to 100 Tons-Per-Meter (1000 kN/m) maximum continuous compression load

Looking to optimize your 90-degree straight bending precision? Contact Nanjing ALAS International for the ultimate hardened upper die match. We deliver stable industrial-grade tooling to maximize your shop-floor capacity. Request an Instant Wholesale Quote Today.

Complete Guide & Technical Overview: What is a Press Brake Punch?

Q&A: What is a press brake upper die?

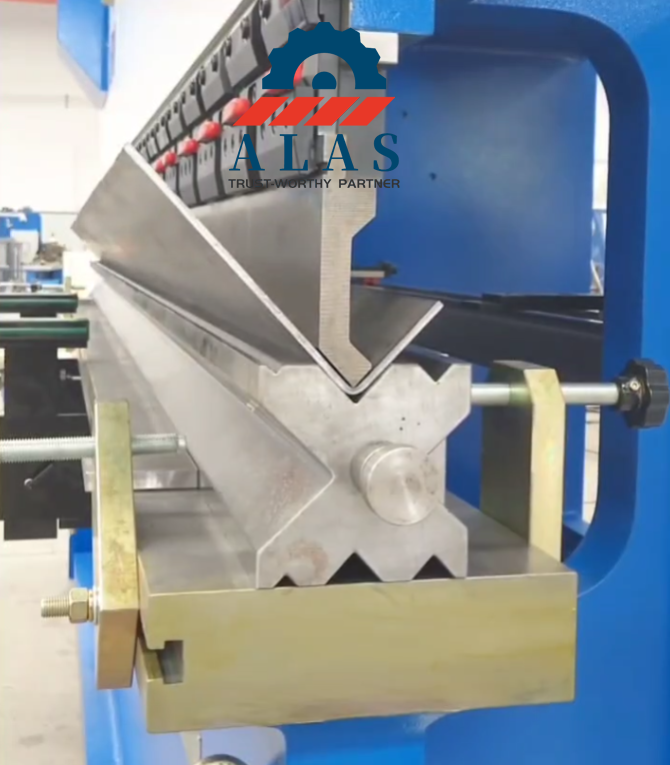

Also called punch or top blade, the ALAS upper die is installed on the press brake ram. It moves downward with the ram to press metal sheets into the V-slot of the lower die, creating permanent bends. It is the key part that decides the final bending angle and overall bending precision.

Main Types of ALAS Press Brake Upper Dies

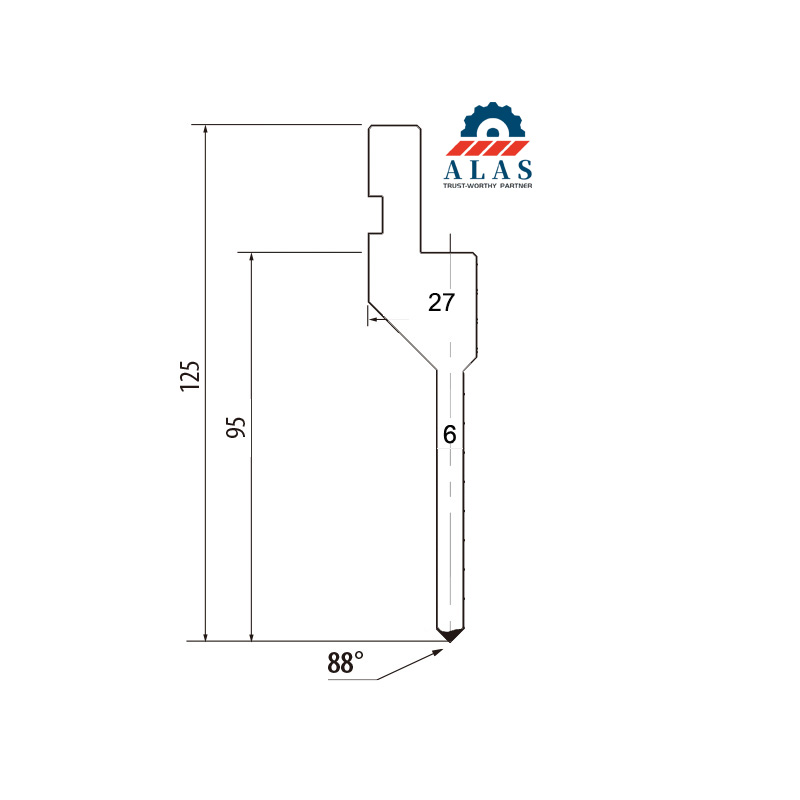

ALAS straight press brake punch blueprint: 150mm height, 86 degree tip angle, and standard Euro style clamping profileALAS gooseneck press brake punch drawing: 150mm height blueprint with 85 degree tip and Euro style clamping profile

Upper dies are mainly categorized by shape into straight dies, acute angle dies, gooseneck dies, radius dies and forming dies. Structurally, they fall into two types: solid dies and segmented dies.

Comparison of Common ALAS Upper Dies

Die Type Angle Range Main Usage Typical Application
Straight Die 90° Standard 90-degree right angle bending Regular sheet metal parts
Acute Angle Die 15° ~ 30° Sharp angle bending and pre-bending before hemming Sharp angled parts, pre-forming for full hemming
Gooseneck Die 86° ~ 88° Avoid collision for box and deep profile bending Box parts and workpieces with return flanges
Radius Die Based on required R value Smooth curved bending Decorative panels and rounded components
Forming Die Custom made One-step forming for special shapes Irregular and complex bent parts
Window Frame Die Custom made Narrow space bending Door and window frame production
Straight dies work well for small standard bent parts. Gooseneck dies are ideal for complex workpieces where tool collision is likely during multiple bending steps. Acute angle dies are widely used for 30-degree pre-bending before full hemming.

Materials, Hardness and Heat Treatment Standards for ALAS Upper Dies

ALAS gooseneck press brake punch during precision surface grinding process on a heavy-duty industrial grinder machine

Most press brake upper dies are made of 42CrMo alloy steel (AISI 4140), with overall hardness controlled at HRC 47~52. The upper die must be harder than the lower die to guarantee good wear resistance and impact resistance. The die tip is usually treated with local induction hardening to extend service life.

Material Performance Comparison

Material Hardness (HRC) Features Application
42CrMo 47~52 High strength, good toughness and wear resistance Mass production and heavy-duty bending
Cr12MoV 50~58 Excellent wear resistance High precision and high frequency bending work
T7/T8/T10 45~50 Cost effective General light-duty bending and occasional use
55SiCr 46~50 Good elasticity Working conditions requiring high toughness
42CrMo features high strength and good hardenability. After tempering, it delivers improved fatigue resistance and impact resistance, which makes it a top choice for ALAS press brake dies and other heavy mechanical components. Upper dies are required to have hard wear-resistant surfaces, strong anti-fracture performance and high tensile strength.

Recommended Heat Treatment Process

  • Overall quenching and high-temperature tempering: Achieve balanced mechanical properties.

  • Local high-frequency induction hardening on die tips: Enhance wear resistance.

Standard hardness match: Upper die HRC 48~52, Lower die HRC 42~45. The upper die is always kept harder than the lower die.

Solid Upper Die vs Segmented ALAS Upper Die

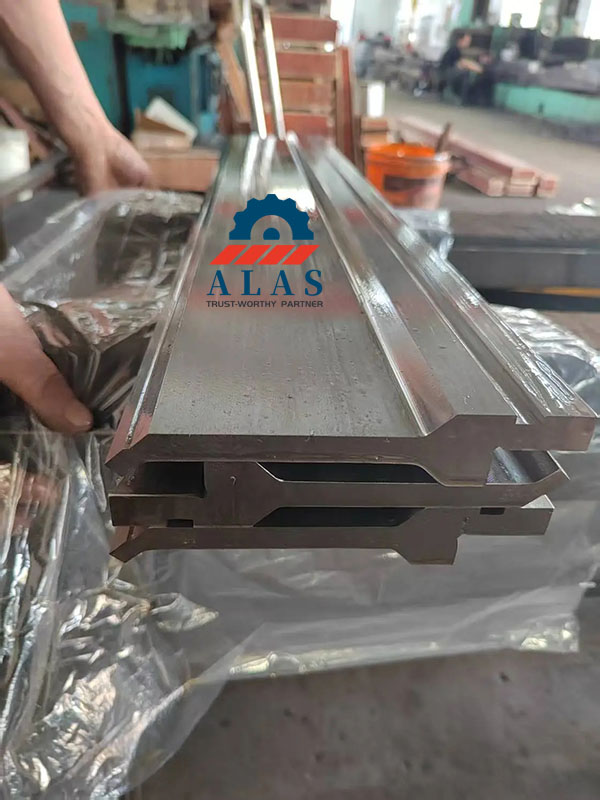

ALAS full-length and segmented press brake punches, precision CNC ground 42CrMo upper tooling for sheet metal bendingALAS segmented press brake punches with laser-engraved sizes, packed in an export wooden crate with protective film

Solid upper dies are one-piece tools for long straight bending. Segmented upper dies consist of multiple short sections in standard sizes, easy to assemble for box parts and short workpieces with great flexibility.
Features Solid Upper Die Segmented Upper Die
Standard Sizes 835mm, 415mm 10, 15, 20, 40, 50, 100, 200, 300mm
Max Length Up to 6000mm (custom) Unlimited by free combination
Application Long straight bending, mass production Box parts, short workpieces, mixed small-batch production
Flexibility for Die Change Low High
Bending Marks Even across the whole length Slight joint marks at segment connections
Storage Occupies large space Stackable to save storage area

ALAS Segmented dies are essential for box bending. When processing closed box parts, gaps between segments allow flanges to pass through and avoid collision.

ALAS 835mm segmented set includes: 300mm, 200mm, 100mm (left), 100mm (right), 50mm, 40mm, 20mm, 15mm and 10mm sections.

Important Reminders
  1. Always use dies longer than 300mm to calibrate machine origin. Never use short segmented dies for this work.

  2. Do not install upper dies with different heights on the same press brake.


Why ALAS Gooseneck Dies Are Indispensable for Box Bending

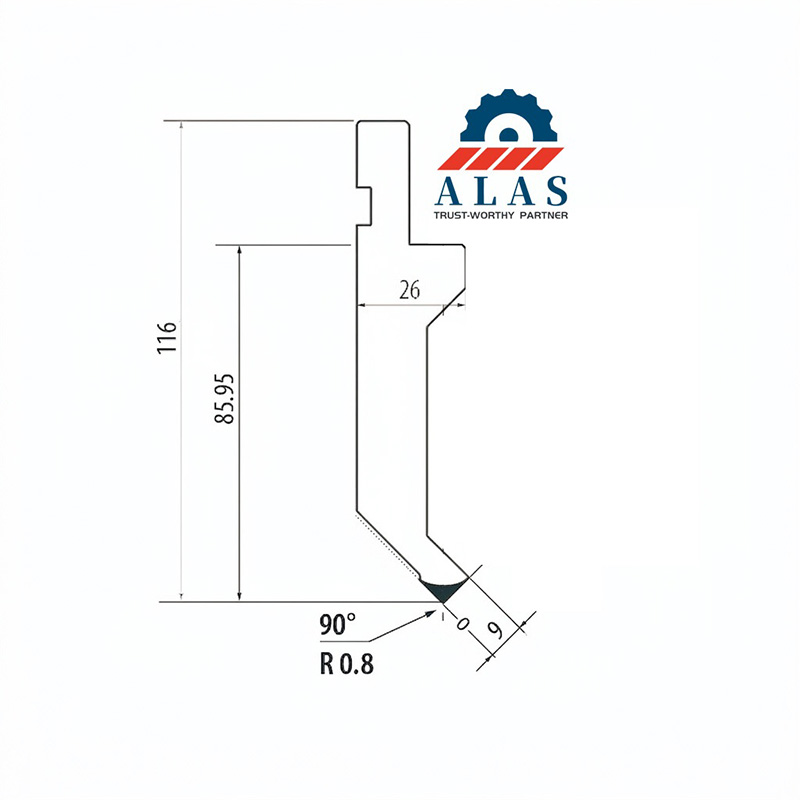

ALAS gooseneck press brake punch drawing: 150mm height, 86 degree tip angle, and R30 clearance profile specifications

ALAS heavy duty gooseneck press brake punches, full-length and segmented 42CrMo upper tools for box bending metalwork

Gooseneck dies are designed with deep recessed clearance on the back. When bending the third and fourth sides of box parts, this space prevents pre-bent flanges from hitting the die body, namely flange interference. Deep box parts can hardly be processed without gooseneck dies.

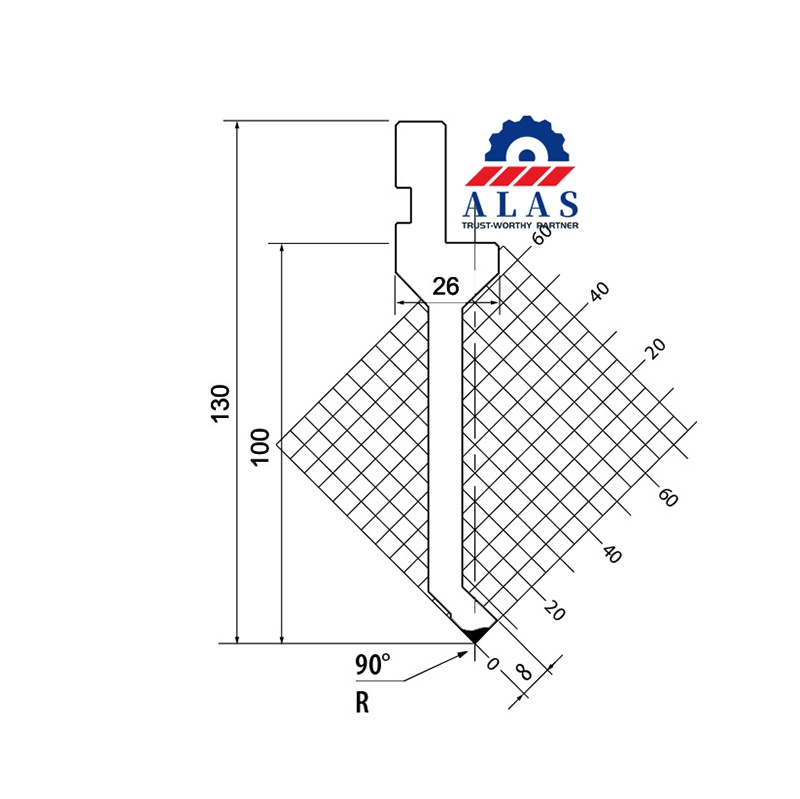

Interference Principle

Digital models show perfect folding in CAD software, but in actual operation, pre-bent side flanges will rise while the ram moves down. A straight die thickens gradually from tip to body, so tall flanges will crash into the die. The recessed area of gooseneck dies reserves enough space for flanges to move.
This clearance design sacrifices part of structural strength. For reference, a standard straight die can bear 50 tons per foot, while an 88° gooseneck die only supports around 15 tons per foot. Never exceed the rated load of gooseneck dies during use.

Gooseneck Die Selection Tips

  1. The throat depth of the die must be greater than the maximum height of work piece flanges, otherwise the workpiece will be damaged.

  2. Larger throat depth means lower load capacity.

  3. Segmented gooseneck dies with left and right end sections are recommended for better flange clearance.


How to Select Proper ALAS Die Angle and Tip Radius

Bending metal will produce springback. As a general rule, choose an upper die with angle 2°~3° smaller than the target bending angle to compensate springback. The tip radius directly decides the inner corner of finished workpieces. Too small radius causes obvious indentations, while oversize radius leads to unstable bending position.

Angle Selection Guide

Target Bending Angle Recommended Upper Die Angle Matching Lower Die V-slot Angle Notes
90° 86° ~ 88° 88° Standard right angle bending for springback compensation
Below 90° (Sharp Angle) 30° 30° Sharp angle bending and pre-bending for hemming
Curved Bending Matched with workpiece arc Matched with upper die Upper and lower dies must be supporting sets
Full Hemming 30° (Pre-bend) 30° Bend to 30° first, then flatten with dedicated hemming die
For bending angles equal to or above 88°, select 88° or 30° lower dies. For angles below 88°, use 30° lower dies only. Poor die angle accuracy will result in out-of-tolerance bending angles.

Tip Radius Selection & Surface Indentation

  • Smaller tip radius brings deeper indentations on workpiece surfaces.

  • Larger tip radius creates bigger inner corners and shifts bending stress points.

General selection rules:
  1. Use tip radius from 0.2mm to 1mm for regular work, adjust according to surface appearance requirements.

  2. For workpieces with specified inner R values, adopt dedicated radius dies such as R0.3, R1, R4, R8 and R10.

  3. For positioning line marking during bending, use sharp tip dies. Keep upper and lower dies flat without steps.


Installation & Safety Operation Rules for Upper Dies

  1. Check the machine stroke before installation. Make sure it is longer than the total height of assembled dies to avoid damage and accidents.

  2. Fasten dies firmly after installation, and check the straightness of cutting edges.

  3. Align upper die with lower die during adjustment. Do not use short segmented dies to calibrate origin.

  4. Test run before formal production. Reserve a gap equal to sheet thickness when the ram moves to the lowest position.

  5. Never put hands between upper and lower dies during operation. Do not wear gloves when bending small parts. Assign two operators for long workpieces.

  6. Do not work with single-side or single-point load. Avoid bending extra thick plates or hardened steel.

  7. After work, align upper die with lower die before shutting down. Clean iron scraps and dirt on die surfaces.


Die Precision Tolerance & Why Upper Die Matters More

The final bending angle is mainly controlled by the upper die, so its precision requirement is stricter than the lower die. The accuracy of die tip affects bending angle; tip radius decides inner corner size; cavity profile influences clearance performance; mounting shank precision ensures stable installation.
Die Part Problems Caused by Low Precision Recommended Tolerance
Cutting Edge Out-of-tolerance bending angle ≤ ±0.2°
Tip Radius Irregular inner corner, poor appearance ≤ ±0.05mm
Cavity Flange jam and workpiece deformation Custom as per drawing
Mounting Shank Loose installation and parallelism error ≤ 0.02mm
Overall Straightness Inconsistent angles on long workpieces ≤ 0.1mm/m
High precision upper dies paired with CNC press brakes (ram repeat accuracy ≤±0.01mm) deliver stable bending results. Manual press brakes normally have an angle deviation of ±2°~3° in daily use.

Daily Maintenance for Upper Dies

  • Daily: Clean iron scraps and dirt. Inspect edges for cracks and chipping.

  • Weekly: Check tightness of fastening bolts and wear condition of cutting edges.

  • Monthly: Measure wear of tip radius and check gaps between segmented sections.

  • Quarterly: Test straightness and parallelism. Grind working surfaces when necessary.

  • Yearly: Full precision inspection. Replace severely worn dies.

Important Notes
  1. Die tips wear fastest. Do not regrind the die more than 3 times. Excessive grinding will change tip radius and die height, leading to dimensional errors.

  2. Cut off power, activate emergency stop and hang warning signs before any maintenance work.

  3. Apply anti-rust oil on dies for long-term storage.


FAQ

Q1: What is the proper hardness ratio between upper die and lower die?

A: The upper die must be harder. Standard setting: Upper die HRC 48~52, Lower die HRC 42~45. As the active working part, the upper die bears more friction, so higher hardness ensures longer service life.

Q2: Why can’t we use upper dies with different heights together?

A: Different die heights make the ram stroke unable to match all dies properly. Some dies will be overloaded and damaged, while others cannot reach the working position. It causes defective products and safety risks.

Q3: What is the throat depth of a gooseneck die?

A: It refers to the horizontal depth of the recessed clearance behind the die tip. For box bending, the throat depth must be larger than the flange height of workpieces. Larger throat depth means lower load capacity of the die.

Q4: How to read the rated tonnage of upper dies?

A: Die load is marked in tons per meter. When using combined segmented dies, the maximum allowable tonnage follows the weakest single section.

Q5: Are your upper dies compatible with my press brake?

A: Our dies adopt 13mm Euro standard holders compatible with Wila, Trumpf, Amada, LVD, Durma and other mainstream press brake brands. Send us your machine model and existing holder dimensions for full confirmation.


Why Choose ALAS Press Brake Upper Dies

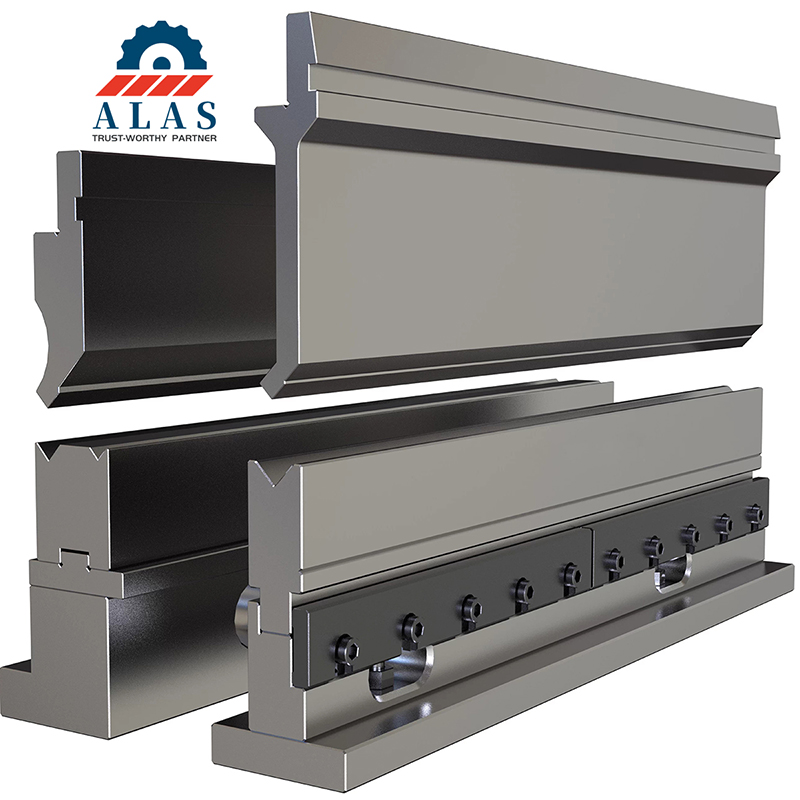

ALAS press brake punches and dies factory stock: full range of straight punches, gooseneck tools, and multi-V die blocks

  • Material: 42CrMo alloy steel, overall tempering plus tip induction hardening, hardness HRC 48~52.

  • Precision: CNC precision grinding, angle tolerance ≤±0.2°, overall straightness ≤0.1mm/m.

  • Full product range: Straight dies, acute angle dies, gooseneck dies, radius dies and forming dies available.

  • Structure options: Solid dies in standard lengths and segmented die sets for flexible use.

  • Wide compatibility: 13mm Euro standard holders fit most mainstream press brakes.

  • Custom service: Special angles, tip radii and customized profiles are available per drawings.

Standard Specifications

Parameter Details
Material 42CrMo (AISI 4140)
Hardness HRC 48~52 (Tip induction hardened)
Standard Angles 86°, 88°, 90°, 30° (Custom available)
Standard Tip Radius 0.2mm ~ 1mm (Custom available)
Solid Die Length 835mm, 1000mm, 2000mm, max 6000mm (custom)
Segmented Die Sizes 10, 15, 20, 40, 50, 100, 200, 300mm
Holder Type 13mm Euro standard (Wila/Trumpf), custom holders supported
Surface Finish CNC ground, Ra ≤ 0.8µm

Looking to improve your bending accuracy?

Contact ALAS for the perfect upper die match for your press brake. We deliver durable, high-quality dies—standard or custom—to keep your production running efficiently.

CNC Precision Surface Grinding Process of Forged Press Brake Tooling


Watch the heavy-duty surface grinding process of ALAS press brake dies. Utilizing industrial-grade precision grinders and continuous coolant flow, we eliminate micro-surface irregularities to ensure flawless straightness tolerances and uniform tonnage distribution across the entire bending length.

Previous:
Next:
ALAS - Trust-Worthy Industrial Machinery Tooling Partner Logo
Phone:
86-15852949220
Address:
Jiangning District, Nanjing
About Us

Nanjing Alas International Co., Ltd. is a professional industrial tooling manufacturer focused on shear blades, bending dies, shredder blades, and custom wear parts. We offer full application engineering, material selection, setup guidance, and after-sales support to global customers.
Tell us your requirements, and our engineering team will provide professional solutions for blade specification, tool life optimization, and cost-effective production.

Subscribe
Sign up for our newsletter to receive the latest news.
Copyright © 2021-2026 NANJING ALAS INTERNATIONAL CO., LTD 苏ICP备2021025144
