Plastic Crusher Blades Guide: Material Selection, Structural Design, And Lifespan Optimization

Abstract: Selecting the proper plastic granulator and crusher blade material is the deciding factor in safeguarding processing throughput, regrind purity, and your plant’s cumulative operating expenditure (OPEX). This technical guide reviews the floor limitations of low-cost unalloyed blades, analyzes the performance matrix of mainstream alloys (9CrSi, SKD11/D2, DC53, and solid carbide), and establishes a data-driven ROI tool steel upgrade framework for global B2B plastics recyclers.

I. Core Takeaways

• Lifespan Bottlenecks: Blade degradation, micro-chipping, and edge bluntness dictate over 75% of unplanned size-reduction line shutdowns, driving up auxiliary repair labor and product scrap rates.

• Material Matrix: While economical 9CrSi alloy serves as the high-value shop benchmark for clean soft film recycling, rigid engineering resins and contaminated municipal scrap require SKD11 or high-toughness DC53 to prevent catastrophic tool failure.

• Total Cost of Ownership (TCO): Upfront procurement costs represent less than 15% of a blade’s total operational lifecycle cost. Premium-grade engineered tool steels offset higher initial acquisition fees by stretching regrind intervals up to 5 times.

II. Core Value of Proper Blade Specification

Mismatched cutting specifications bottleneck your entire size-reduction line. Aligning blade metallurgy with exact resin profiles optimizes long-term asset lifecycle returns across four operational dimensions:

1. Throughput Maximization & Shear Efficiency

• Uniform Granulation: High-alloy edges deliver clean scissor-cuts with minimal plastic stringing or fines, reducing the operational load on downstream washing and pelletizing lines.

• Stable Power Consumption: High-abrasion grades process rigid PET and glass-filled ABS without experiencing rapid edge dulling, keeping instantaneous machine amperage low and eliminating feed-neck blockages.

2. Downtime Suppression & Maintenance Control

• Chipping Resistance: Upgrading from generic carbon steel to targeted alloys stretches tool life multiples over. Switching from standard SKD11 to high-toughness DC53 eliminates brittle edge-fracture on unseparated post-consumer fractions.

• Reduced Labor Hours: Optimized knife geometries with precise bevel configurations cut down manual clean-out times and lower the recurring cost of shift-based knife adjustments.

3. Total Ownership Cost (TCO) Metrics

Initial acquisition cost represents less than 15% of a granulator knife’s true operational lifespan cost. Budget unalloyed knives incur hidden long-term liabilities via chronic line clear-outs, premature blade retirements, and auxiliary structural fatigue. While premium-grade engineered components command higher upfront capital, their extended production runtime delivers superior net-long-term operational savings (OPEX).

4. Downstream Pitfalls of Low-Cost Consumable Procurement

Opting for low-grade tier-3 knives to cut immediate toolroom spending triggers cascading machine issues and inflates cumulative processing costs:

• Frequent Replacement Cycles: Accelerated wear tracks escalate recurring procurement friction and inflate monthly consumable budgets.

• Throughput Compression: Chronic blade changeouts break continuous line cycles, shrinking effective plant utilization rates and wasting technical labor hours.

• Component Fatigue: Dull cutting profiles induce severe material bridging and high-impact rotor jamming. Prolonged irregular shock loading accelerates bearing failure and shifts centerline tolerances on rotor shafts, leading to expensive major overhauls.

Scientific blade specification focuses on total ownership cost rather than one-time purchase cost. High-quality blades offset higher initial cost through fewer replacements, reduced breakdowns and improved productivity gains.

III. Properties & Processing Challenges of Common Recycled Plastics

1. Resin-Specific Tooling Mismatches

Each polymer group possesses unique mechanical properties that dictate shear mechanics and wear progression. Tooling configurations must align with these specific physical profiles:

PET (Polyethylene Terephthalate): Rigid, highly dimensionally stable. Its severe abrasive wear characteristics quickly round off the cutting edges of low-alloy knives, causing rapid dulling.

HDPE (High-Density Polyethylene): Highly ductile and chemically inert. High elongation-at-break values cause the resin to stretch rather than fracture, leading to severe blade wrapping and rotor lockups.

PP (Polypropylene): Flexible and lightweight. A dominant soft fraction that requires sharp, minimal-clearance setups to prevent thin-walled sheets and films from slipping through the blade gap.

PVC (Polyvinyl Chloride): Modified into rigid or highly flexible profiles. Thermal degradation releases chlorine trace elements, generating a mildly corrosive micro-environment that attacks unprotected low-alloy carbon steels.

ABS (Acrylonitrile Butadiene Styrene): High-impact structural engineering amorphous plastic. Subject to high mechanical impact loads, demanding tool steel that balances high yield strength with shatter resistance.

2. Physical Property Discrepancies (ABS vs. HDPE)

3. Structural Failures & Feedstock Wear Triggers

Rigid & Brittle Fractions

High-hardness engineering scraps (ABS, PC, PET) generate intensive abrasive friction. Standard tooling blunts rapidly under these conditions, causing irregular flake sizing, excessive fines generation, and lower regrind purity that compromises downstream compounding.

High-Toughness Ductile Stock

Flexible materials (HDPE, PP, LDPE film) stretch under compressive load instead of undergoing immediate shear fracture. Standard flat knives fail to pierce the polymer skin, causing material to wrap around the rotor. This leads to friction-induced heat generation, localized plastic melting, and machine blockages. Claw or aggressive V-hook tooth geometries are mandatory to force initial material penetration.

Contamination & Foreign Matter Interclusions

Post-consumer fractions contain sand, dirt, grit, paper labels, and chemical residues that accelerate abrasive tool degradation. Stray metal fasteners, structural rivets, and tramp metal introduce unpredictable shock loads, causing immediate edge chipping and accelerating fatigue failure in low-toughness alloy matrices.

Unsorted Mixed Polymer Fractions

Feeding unseparated streams with varying hardness and ductility yields irregular cutting loads and inconsistent regrind sizing. This concentrates wear tracks on specific areas of the blade profile, drastically lowering the tool's usable lifespan.

Unstable Infeed Rates

Overfeeding packs the cutting chamber, overloading the rotor assembly and inducing severe torque spikes that cause blade chipping. Conversely, underfeeding underutilizes machine capacity and generates unnecessary frictional heat through empty air-cuts.

4. Consolidated Resin Wear Profiles

PET: High abrasive friction leading to rapid edge dulling.

HDPE / PP: High flexibility and elongation causing blade wrapping and clogging.

ABS / PC: High impact resistance triggering premature edge chipping.

PVC: Corrosive gas release causing chemical pitting on standard steels.

Glass-Filled Compounds: Extreme abrasive wear requiring specialized carbide matrices.

IV. Blade Configuration, Cutting Profile & Clearance Selection

1. Equipment Selection by Rotor Engineering

• Single-Shaft Granulators: Engineered for homogeneous, rigid plastics. Delivers precise, controllable particle sizing ideal for dedicated compounding and pelletizing lines.

• Dual-Shaft Shredders: Provides high-torque, powerful tearing action for bulky mixed post-consumer scrap, large electronic appliance casings, and heavily contaminated feed.

• Four-Shaft Precision Shredders: Designed for multi-stage size reduction workflows, ensuring uniform particle output in high-throughput automated recycling plants.

• Claw-Style Rotors: Delivers superior grabbing and localized tearing forces to eliminate wrapping issues on elastic, tangled flexible waste.

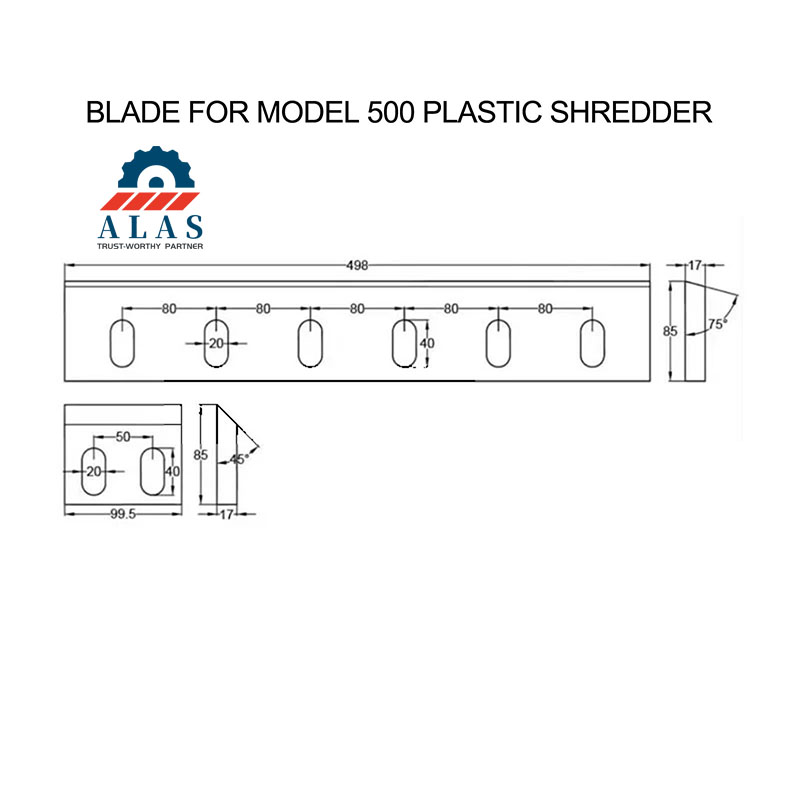

2. Cutting Edge Geometry Applications

• Flat Straight Edge: General-purpose, cost-effective profile optimized for thin film, woven bags, and soft flexible plastics.

• Slice Bevel Edge: Produces clean scissor-like fracture cuts, perfect for brittle PET resin bottle flakes.

• V-Sharpened Edge: Concentrates high cutting pressure at the point of contact to shear thick-walled rigid engineering plastics.

• Claw Hook Edge: An anti-wrap, anti-jam interlocking profile engineered exclusively for tangled HDPE/PP stretch film and chaotic flexible scrap.

3. Blade Gap Clearance Tuning

Adjusting the tolerances between rotary (moving) and counter (stationary) knives directly controls sizing accuracy, heat generation, and power consumption:

• Narrow Clearance (0.3 mm – 0.8 mm): Specified for thin films, fibers, and fine pre-pelletizing stages. It ensures clean shearing to prevent flexible materials from slipping and jamming, but increases equipment amp draw and requires higher toolroom adjustment frequencies to prevent blade collision due to thermal expansion.

• Wide Clearance (1.0 mm – 2.5 mm): Maximizes hourly throughput and lowers energy consumption for coarse primary shredding or rigid thick-walled plastics. It significantly reduces tool maintenance intervals where loose final particle sizing tolerance is acceptable.

V. Full Industrial Blade Material Breakdown (In-Depth 9CrSi & DC53 Analysis Included)

1. Carbon Steel

• Hardness: HRC 50–54

• Core Pros: Lowest raw cost, easy machining, sharp initial cutting performance

• Cons: Prone to rust, poor abrasion resistance, rapid dulling and low impact toughness

• Suitable Use Case: Light-duty sporadic small-batch clean soft plastic only for temporary low-volume workshop operation

• Forbidden Application: Rigid resin, dirty mixed scrap, grit-contaminated or metal-bearing feedstock

• Summary: Outdated phased-out grade with highest long-term total ownership cost despite cheap upfront pricing

2. 9CrSi Alloy Steel

• Hardness: HRC 58–61

• Core Positioning: Dominant economical domestic alloy upgrade over carbon steel, industry staple for mid-small soft plastic recyclers

• Advantages: Optimized chrome-silicon alloying delivers uniform carbide distribution and reduced large-scale chipping; excellent hot hardness resists thermal softening during continuous soft plastic processing; easy field regrind via standard abrasive wheels without costly diamond grinding consumables; service life reaches 2.5–3× ordinary carbon steel at competitive pricing

• Limitations: Moderate abrasion resistance unable to withstand heavy grit or high glass fiber; marginal toughness prone to localized chipping from accidental stray metal impact; unsuitable for high-hardness engineering rigid plastic

• Optimal Feedstock: PE film, PP injection sprues, dry low-corrosion flexible PVC tubing, clean domestic mixed soft plastic, flexible rubber-plastic blends

• Prohibited Scenarios: Solid ABS/PC rigid stock, high glass-filled resin, metal-fleck contaminated scrap, heavily soiled high-grit PET, damp highly corrosive PVC

• Compatible Equipment: Small single-shaft granulators, film dedicated shredders, auxiliary pelletizer cutting assemblies

3. Standard Multi-Alloy Tool Steel

• Hardness: HRC 59–62

• Core Features: Chrome-molybdenum-vanadium alloy formulation with balanced tensile strength and moderate rust resistance

• Pros: Versatile for general mixed clean post-consumer plastic with mild damp contamination tolerance

• Cons: Insufficient abrasion resistance for severely grit-laden high-filler feedstock

• Application: Standard mixed municipal plastic recycling production lines

4. SKD11 / D2 High-Chromium Cold-Work Steel

• Hardness: HRC 60–63

• Core Positioning: Industry benchmark abrasion-resistant grade for rigid engineering plastic processing

• Advantages: Exceptional abrasive wear resistance suited for PET, solid ABS and low-percentage glass-filled compounds (<10% GF)

• Limitations: Limited impact toughness vulnerable to edge chipping from random metal inclusions or high shock loading

• Optimal Feedstock: Clean rigid engineering plastics, low-glass filled resin below 10% fiber content

• Restriction: High-impurity mixed scrap, frequent shock-heavy feedstock, drastically varied rigid-flex blended waste

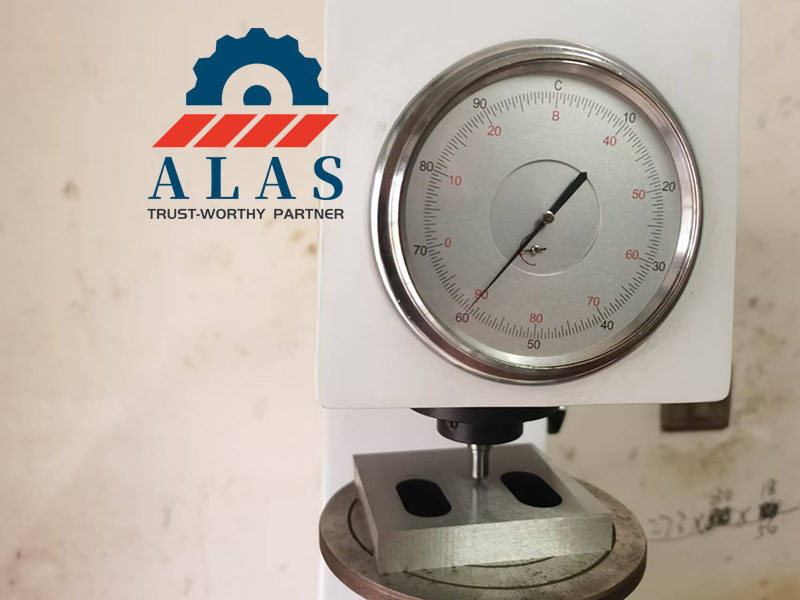

5. DC53 High-Toughness Modified Cold-Work Steel

• Hardness: HRC 61–64

• Core Positioning: Premium universal all-round alloy, upgraded improved iteration of conventional SKD11 and top choice for contaminated mixed post-consumer plastic recycling

• Key Performance Upgrade: Double the fracture toughness of standard SKD11/D2 while retaining equivalent abrasion resistance; superior high-temperature temper stability eliminates thermal softening and blade deformation under sustained heavy loads; improved foreign-object impact tolerance against incidental stray metal flecks

• Pros: Balanced wear resistance + outstanding anti-chipping toughness, highest fault-tolerance rating among conventional shredder blade alloys for mixed contaminated workflows

• Limitations: Outperformed by solid carbide under extreme high-grit / >30% glass fiber severe abrasion conditions; higher unit purchase cost vs SKD11

• Ideal Feedstock: Mixed household appliance plastic, automotive composite scrap, rigid-flex blended resin, screw/metal fleck contaminated waste, wrap-prone HDPE, thick-wall solid ABS, medium glass-filled plastic (10%~30% GF)

• Target Equipment: Heavy-duty dual-shaft industrial shredders, large-scale multi-functional full-process recycling plants, continuous high-throughput round-the-clock production lines

• Cost Efficiency Note: Higher initial purchase price is offset via drastically reduced unplanned downtime and extended service life, delivering superior total lifecycle economics vs SKD11 on mixed contaminated feedstock applications.

6. High-Speed Steel (HSS)

• Hardness: HRC 62–65

• Features: Outstanding hot hardness prevents high-temperature softening during heat-prone sticky engineering plastic cutting under continuous high-load operation

• Suitable Application: Thermally adhesive high-performance engineering resin requiring sustained elevated-temperature cutting

• Cons: Moderate impact toughness, elevated material cost

7. Stainless Steel Grade

• Core Attributes: Full corrosion resistance against acidic/alkaline conditions, simplified post-operation cleaning

• Best For: Damp highly corrosive PVC and food-grade clean plastic recycling environments

• Drawback: Subpar abrasion performance ruling out rigid or grit-laden abrasive feedstock

8. Carbide-Tipped (Solid Tungsten Insert) Blade

• Hardness: HRC 65–68+

• Core Advantage: Industry-leading extreme abrasion resistance and unmatched service lifespan under severe abrasive environments

• Optimal Feedstock: High-grit contaminated PET, >30% glass-filled reinforced plastic and severely abrasive contaminated industrial scrap

• Limitations: High inherent brittleness prone to catastrophic tip fracture under heavy impact; highest material cost and complex specialized repair/regrinding requirements

VI. Consolidated Full Material Specification Comparison Table

Price Remark: Listed values are market reference ranges; final pricing fluctuates based on finished dimension, precision heat treatment specification and supplier terms. General cost ranking: 9CrSi ≤ SKD11 ≤ DC53.

VII. Targeted Material Matching By Plastic Feedstock Type

• PE/PP flexible film & clean domestic soft scrap: 9CrSi preferred for optimal cost-performance

• Clean rigid PET / solid engineering hard plastic: SKD11/D2 primary selection

• Mixed appliance/automotive plastic with embedded fastener/metal impurities: DC53 specified

• Wrap-prone high-toughness HDPE tangled scrap: DC53 for superior anti-chipping tear resistance

• Glass-Filled Reinforced Resin:

  • <10% GF: SKD11 or DC53 acceptable

  • 10%~30% GF: DC53 mandatory primary grade

  30% GF: Carbide-tipped insert blades only

• Heavy grit severely abrasive scrap: Primary pick = carbide tipped; secondary alternative = SKD11

• Corrosion-prone PVC Processing:

  • Dry low-corrosion operating environment: cost-saving 9CrSi

  • Damp highly corrosive working conditions: 420J2 / 440C stainless steel or surface-coated alloy blades

VIII. Production Efficiency Maximization & Maintenance Protocol

1. Daily Operational Monitoring

Shift-based routine inspection covering cutting edge integrity, abnormal operating noise, bolt looseness and feed bridging; formal maintenance log creation enabling proactive wear prediction for early blade replacement planning.

2. Standardized Preventative Maintenance Schedule

• Full equipment cleaning per production shift

• Complete mechanical inspection weekly

Regrind & Replacement Cycle Reference (9CrSi and lower-tier alloys):

• Routine regrind every 40–80 operating hours

• Full blade condition evaluation for replacement every 200–500 runtime hours

High-grade DC53 / carbide-tipped variants extend service intervals by 2~5×: DC53 typical usable lifespan reaches 1800–2200 operating hours with regrind cycles stretched to 150–300 working hours.

Formalized standardized maintenance extends overall blade service life by 25%–35%.

3. Tiered Blade Upgrade Roadmap

• Carbon Steel → 9CrSi: Soft plastic line throughput improvement + reduced unplanned downtime

• Frequent SKD11 chipping → DC53 retrofit: ≥60% reduction in unexpected edge fracture incidents

• Excessive abrasive wear on rigid grit-heavy feed → upgrade to carbide-tipped construction

IX. Prevalent Blade Selection Industry Pitfalls

1. Blindly choosing low-cost carbon steel driven solely by upfront purchase cost leading to inflated long-term total ownership expense

2. Specifying low-toughness grades for rigid high-impact feed or low-abrasion alloys for contaminated mixed scrap

3. Neglecting routine scheduled maintenance cutting theoretical blade lifespan by nearly half

4. Procuring without qualified supplier technical consultation resulting in mismatched blade specification

5. Over-specifying premium high-cost DC53 on clean low-abrasion soft feedstock creating unnecessary over-investment

6. Applying 9CrSi to metal-contaminated mixed scrap triggering frequent catastrophic blade chipping and premature scrappage

7. Ignoring quantified glass fiber percentage when selecting material (SKD11 viable below 10% GF; carbide mandatory above 30% GF)

X. Real-World Field Application Case Studies

Video: Precision CNC Wet Grinding Process for Shredder Blades. Continuous green coolant delivery absorbs extreme friction heat during the surface grinding of heavy-duty multi-claw shredder blades, effectively preventing tool steel metallurgy annealing while locking strict parallelism tolerances

Case 1: PE Agricultural Film Upgrade (9CrSi Replaces Carbon Steel)

Pre-Upgrade: Carbon steel blades dull rapidly for agricultural PE film processing requiring roughly 10 changeouts monthly alongside persistent film wrapping restricting rated line throughput.

Post-Upgrade: Full conversion to dedicated 9CrSi blades eliminates excessive sticking, cutting monthly replacements down to 3 instances only; simplified field regrind reduces auxiliary maintenance spending.

Result: Sharp production downtime reduction with 52% drop in cumulative blade consumable cost, proven viable for mass-scale PE soft film recycling.

Case 2: Rigid PET Bottle Processing Switch to SKD11

Outcome: Monthly blade replacement count falls from 8 down to 2; minimized unplanned downtime alongside substantially improved finished particle uniformity for large-volume PET bottle recycling.

Case 3: Mixed Appliance Plastic DC53 Retrofit Replacing SKD11

Original Pain Point: Household appliance scrap preloaded with stray screws and small metal fragments triggers regular SKD11 chipping averaging 5~8 broken blade segments monthly due to insufficient base toughness.

Solution: Full production line blade swap to DC53 grade.

Measured Outcome: Monthly chipping incidents drop below 1 piece; 35% extended blade service life alongside 45% reduction in maintenance man-hours spent on repair work. Approximately 3-month investment payback despite 30% higher DC53 unit cost via downtime savings and extended component lifespan.

Case 4: High-Glass-Filled Abrasive Feed Upgrade to Carbide-Tipped Blades

Operating Condition: >30% glass fiber reinforced plastic mixed with heavy mineral grit leading to extreme rapid wear on conventional alloy blades.

Remedy: Full conversion to carbide-tipped insert cutting edges.

Performance Gain: Minimum 3× extended blade service life eliminating chronic frequent changeout and production halt losses.

XI. Frequently Asked Technical Questions

1. Selection between 9CrSi and DC53?

Specify economical 9CrSi for clean pure soft plastic with tight procurement budget; select premium DC53 for contaminated mixed scrap, heavy-duty continuous production and operations prioritizing minimal unplanned downtime.

2. Is cost-premium DC53 justified vs SKD11?

DC53 delivers definitive economic advantage for wrapped contaminated mixed scrap prone to incidental metal contact via drastically reduced chipping and downtime-related losses; cost-effective SKD11 remains superior for consistently clean pure rigid hard plastic workflows.

3. Can 9CrSi handle glass-filled reinforced plastic?

Temporary short-run processing allowed only below 10% glass fiber content; strictly prohibited above 10% GF with unsustainably accelerated abrasive wear rates.

4. Typical blade service replacement intervals?

Standard 9CrSi: 200–500 operational hours (750–1200 hrs with disciplined regular regrind);

DC53 industrial grade: up to 1800–2200 working service hours, variable based on feedstock cleanliness and maintenance frequency.

5. Which grade delivers maximum universal feedstock adaptability?

DC53 ranks as the most versatile all-purpose alloy with superior process fault tolerance for nearly all mainstream recycled plastic blends across standard recycling plants.

6. Handling scrap containing spent batteries or random embedded metal?

Mandatory pre-shredding sorting: manual inspection + magnetic separator + eddy-current non-ferrous separation to fully remove hazardous metallic inclusions preventing irreversible blade damage and safety hazards.

XII. Final Graded Blade Selection Summary

Tiered Material Upgrade Ladder

Carbon Steel → Economical Soft-Grade 9CrSi → General-Purpose Standard Alloy → Hard Rigid Plastic SKD11/D2 → All-Round Mixed-Scrap DC53 → Extreme Abrasion Carbide-Tipped Insert

All recycling operations can define optimal blade material by evaluating five core criteria: plastic hardness, foreign impurity loading, feed wrapping tendency, glass fiber filler percentage and available procurement budget to achieve high-throughput stable production with minimized long-term operational cost.
