The Role of Quality Dies in Steel Fabrication
Precision and power are the heart of metalworking. At the center of this process are high-quality ironworker dies. These tools don't just punch holes; they protect your hydraulic systems and ensure every cut is clean and professional.
By using reliable tooling, you turn raw steel into perfect components, keeping your shop productive and your machines running longer.
Why Precision Matters
Professional punch and die sets do more than move metal. They are engineered to provide:
Clean Cuts: Optimized gaps between the punch and die reduce "burrs" (rough edges) and lower the strain on your machine.
Strength and Toughness: Through vacuum heat treatment, the steel reaches the perfect balance of hardness and impact resistance.
Universal Fit: These tools work with major brands like Geka, Piranha, Edwards, Kingsland, and Sunrise.
Tools for Every Task
While round holes are the standard, modern fabrication often requires specialized shapes. Available tooling includes:
Oblong & Slotted: Best for adjustable connections in structural steel.
Square & Hexagonal: Used for special fasteners and custom designs.
Offset Tooling: Designed to punch close to the edges of channel or angle steel.
Choosing the Right Material
Selecting the right steel for your dies depends on your specific workload. Here are the three main options:
1. 9CrSi (Economy Grade)
Best for: Light machines and thin materials (under 5mm).
Pros: Very affordable and tough.
Cons: Wears out quickly on thick or hard steel.
2. Cr12MoV (Standard Grade)
Best for: Medium-sized machines and ordinary steel (up to 10mm).
Pros: Great value, stays sharp, and handles regular batches well.
Cons: Not ideal for high-impact or extremely thick plates.
3. DC53 (High-Performance Grade)
Best for: Heavy-duty work and thick steel (8–15mm).
Pros: Extremely durable, high wear resistance, and longer life.
Cons: Costs more than standard materials, but lasts longer.
The Benefits of Quality Tooling
Less Maintenance: Hardened steel (HRC 58–62) prevents cracking and chipping.
Saves Time: High-precision punches mean you don't have to spend time grinding or cleaning up rough holes.
Safer Operation: Better tools lead to more stable machine performance and a safer workspace.
Conclusion
An ironworker is only as good as its tools. By upgrading to premium dies, you ensure better accuracy, faster production, and a longer life for your equipment. Optimize your workshop today with tools built for the long haul.

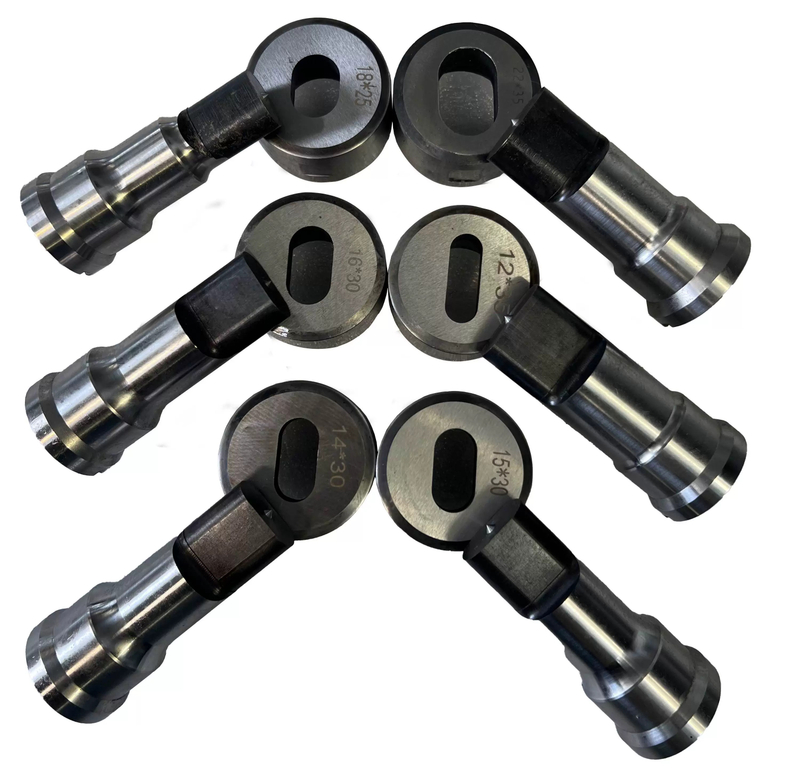

Ironworker punch and die set drawing
Global Supply: High-Performance Ironworker Punches & Dies
We manufacture premium Ironworker Dies (Material: S7, D2, H13, 6CrW2Si) engineered for hydraulic ironworking machines and punching stations. Our punches and dies feature exceptional toughness and precision, optimized for shearing, notching, and hole punching in angle iron, flat bar, and plate steel. Available in standard round, oblong, and square shapes, with custom profile manufacturing to fit your specific fabrication needs.
