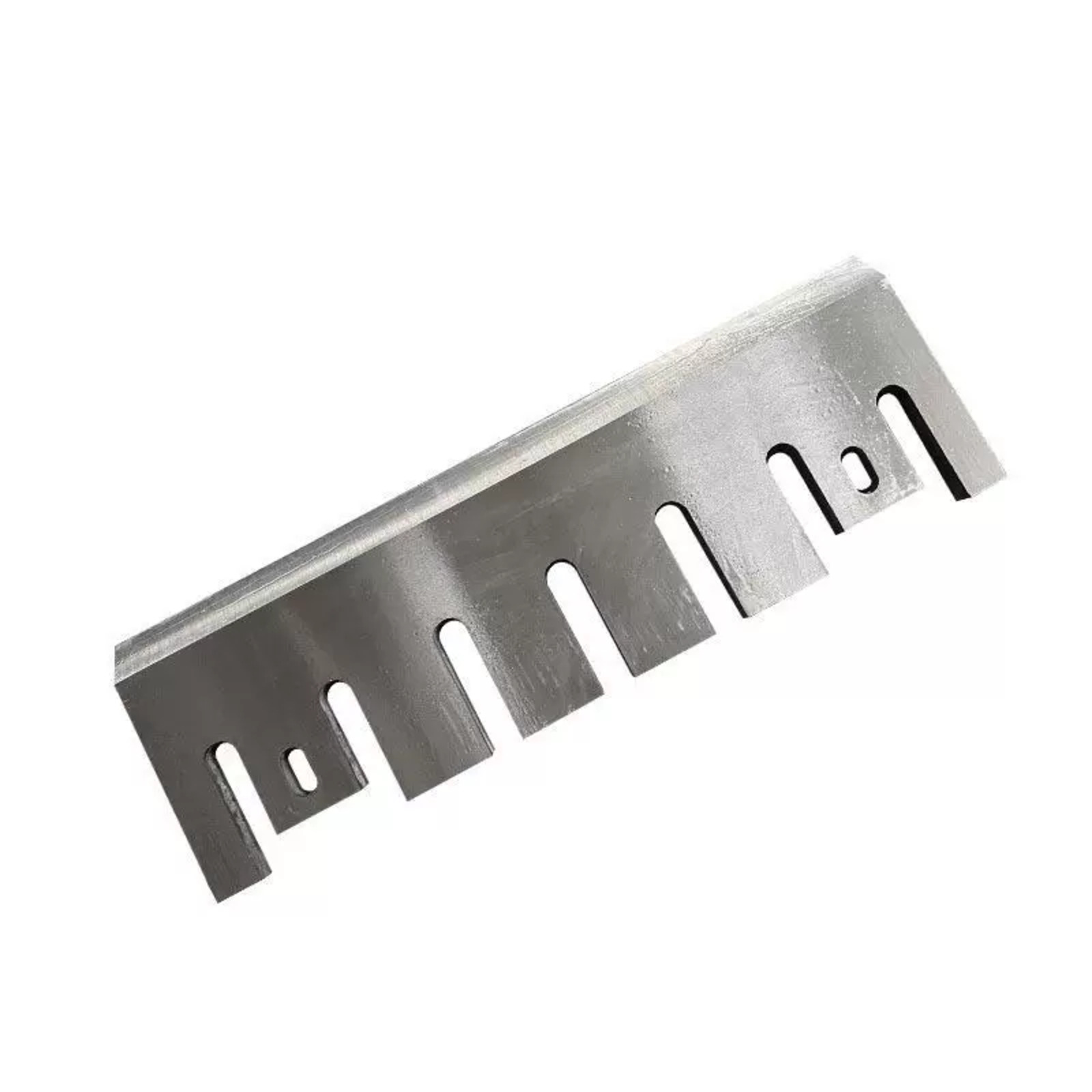

Wood chipper blades are the core cutting components of wood chippers, primarily used to cut logs, branches, bark, and recycled wood into uniformly sized wood chips. They are widely used in the raw material preparation stages of industries such as papermaking and pulping, engineered wood products (particleboard/MDF), and biomass energy.
Disc Blades: Mounted on a rotating cutter head, commonly available in 4-6 blade configurations, 8-12 blade configurations, and spiral blade designs. Suitable for cutting large-diameter logs, producing high-quality chips with clean cuts, making it the mainstream choice for paper mills.
Drum Blades:Fixed to the surface of a cylindrical cutter drum, offering excellent adaptability to raw materials (can handle bark, wood chips, and small-diameter wood). Suitable for small to medium-sized processing plants and applications with complex raw material requirements, but the uniformity of the wood chips is slightly inferior to disc blades.
A8, A8B, and D2 are three commonly used alloy tool steel materials for chipper blades. Their core differences lie in the balance of toughness, wear resistance, hardness, and cost: A8 has the best toughness and strong impact resistance; A8B is a modified upgrade of A8 with stronger comprehensive performance; D2 has the highest wear resistance and hardness, the longest service life, but the weakest toughness and the highest price.
Comparison Items | A8 | A8B (A8 Modified) | D2 |
Material Type | High Toughness Cold Work Die Steel | A8 Optimized & Upgraded Steel | High Carbon High Chromium Cold Work Die Steel |
Core Advantages | Extremely high toughness, strong impact resistance, not easy to break | Dual advantages of toughness and wear resistance, high temperature resistance | Top-level wear resistance, high hardness, long service life |
Typical Hardness | HRC 58–62 | HRC 58–62 (more stable) | HRC 60–62 |
Toughness | ★★★★★ (Optimal) | ★★★★☆ (Better than A8) | ★★☆☆☆ (Weakest) |
Wear Resistance | ★★★☆☆ | ★★★★☆ (Better than A8) | ★★★★★ (Optimal) |
High Temperature Resistance | Good | Excellent (not easy to anneal) | Average (easy to soften at high temperature) |
Corrosion Resistance | Average | Good | Semi-stainless steel (better than A8/A8B) |
Price | Medium-Low | Medium | High |
Positioning: Focusing on high toughness and high impact resistance, it has a low carbon content, and the alloy ratio of chromium, molybdenum, and vanadium emphasizes toughness.
Advantages: Not easy to chip or break when cutting hardwood, knotty wood, or wet wood, suitable for scenarios with high impact and complex working conditions.
Application: Small and medium-sized chippers and branch shredders, processing raw materials with strong impact such as logs, branches, and mixed wood.

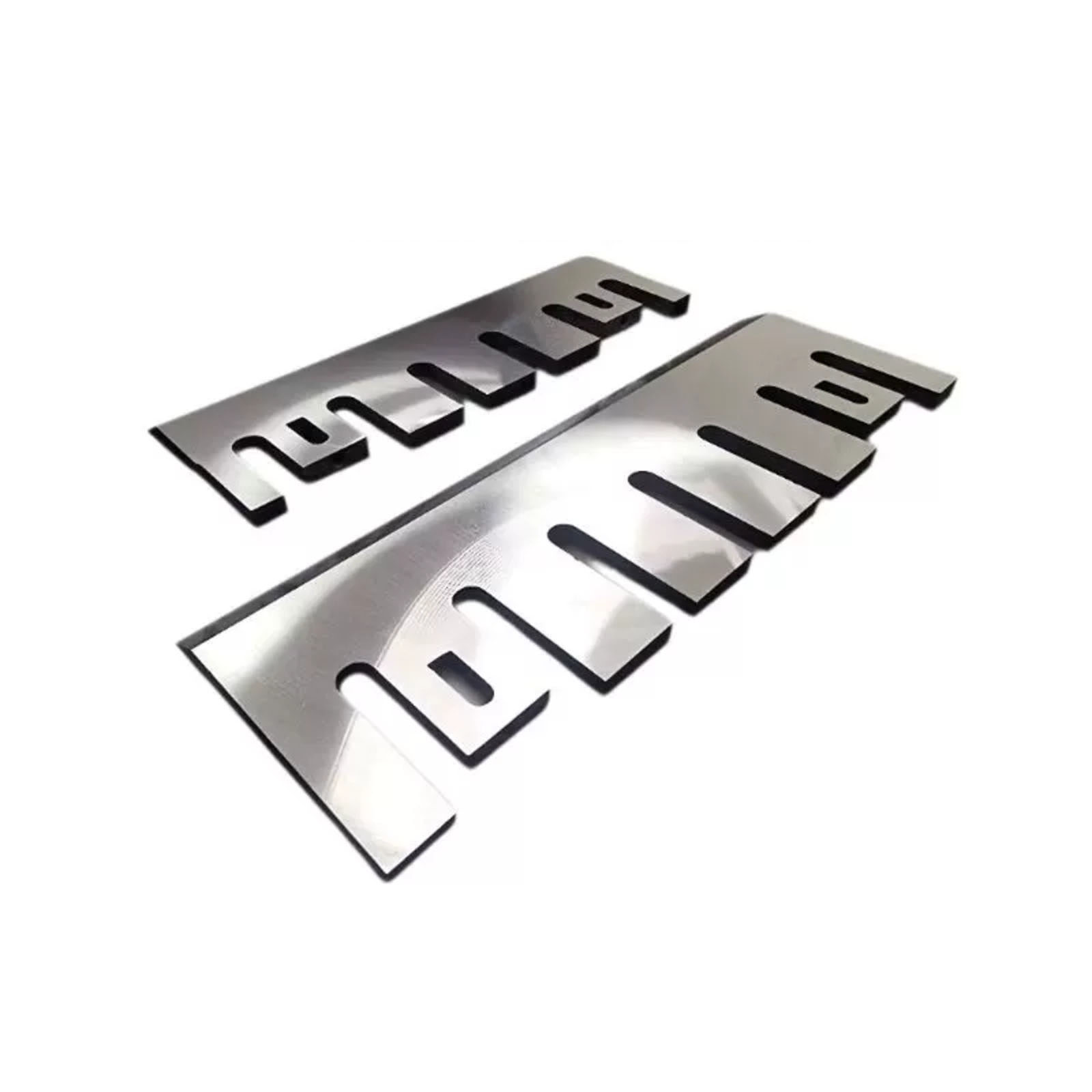

Positioning: A modified and optimized steel grade of A8. By adjusting the alloy composition and heat treatment process, it greatly improves wear resistance and high-temperature stability while retaining the high toughness of A8.
Advantages: Toughness is approximately equal to A8, and wear resistance is significantly better than A8; it is not easy to anneal under high temperature during continuous operation, the cutting edge remains sharp longer, and it has the highest comprehensive cost performance.
Application: Medium and large-scale continuous production lines such as papermaking, wood-based panels, and pulping, processing hardwood such as rubber wood and eucalyptus, balancing efficiency and service life.
Positioning: A high carbon and high chromium (≈12% Cr) cold work steel, known as "semi-stainless steel", famous for its extreme wear resistance, high hardness, and long service life.
Advantages: Wear resistance is 2–3 times that of A8, the cutting edge retention is extremely strong, and the replacement frequency is the lowest; corrosion resistance is better than A8/A8B.
Disadvantages: Poor toughness and high brittleness, easy to crack under high impact; high price and high processing difficulty.
Application: Large-scale, high-capacity, continuous operation chippers, processing raw materials with high wear and low impact such as softwood, bamboo, and straw, pursuing ultra-long service life and low maintenance.
The core difference between the three chipper blade materials A8, A8B, and D2 lies in the different ratios of alloy elements such as carbon (C), chromium (Cr), molybdenum (Mo), and vanadium (V), which directly determine toughness, wear resistance, hardness, and cost. The following is a comparison of their standard chemical compositions (mass percentage, wt%) and key functions.
Element | A8 | A8B (A8 Modified) | D2 | Key Functions |
Carbon (C) | 0.50–0.60% | 0.55–0.65% | 1.40–1.60% | Determines basic hardness and wear resistance; the higher the content, the harder and more brittle |
Chromium (Cr) | 4.75–5.50% | 5.20–6.00% | 11.0–13.0% | Improves hardenability and corrosion resistance; forms hard carbides (e.g., Cr₇C₃) |
Molybdenum (Mo) | 1.15–1.65% | 1.40–1.80% | 0.70–1.20% | Refines grains, improves toughness and high-temperature stability; inhibits temper brittleness |
Vanadium (V) | 0.80–1.40% | 1.00–1.50% | 0.50–1.10% | Forms extremely hard VC carbides, significantly improves wear resistance; prevents grain growth |
Tungsten (W) | 1.00–1.50% | 1.20–1.70% | — | Improves hot hardness and high-temperature wear resistance |
Manganese (Mn) | 0.20–0.50% | 0.30–0.60% | 0.10–0.60% | Deoxidation, improves hardenability |
Silicon (Si) | 0.20–0.80% | 0.50–1.00% | 0.10–0.60% | Deoxidation, improves strength and oxidation resistance |
Phosphorus (P) | ≤0.030% | ≤0.025% | ≤0.030% | Harmful impurity, reduces toughness |
Sulfur (S) | ≤0.030% | ≤0.025% | ≤0.030% | Harmful impurity, reduces toughness |
Low C, medium Cr, high Mo/W: Carbon content is only 0.5–0.6%, ensuring matrix toughness; chromium is about 5% to provide basic wear resistance; molybdenum and tungsten work together to strengthen, achieving impact resistance and not easy to break.
Positioning: Priority to impact resistance, suitable for high-impact working conditions such as hardwood, knotty wood, and wet wood.
Fine-tuned on the basis of A8: C, Cr, Mo, V, and W are all slightly increased, greatly improving wear resistance and high-temperature stability while retaining the high toughness of A8.
Positioning: Optimal comprehensive performance and highest cost performance, suitable for medium and large-scale chippers with continuous production.
High C, ultra-high Cr, appropriate Mo/V: Carbon content is as high as 1.4–1.6%, forming a large number of hard carbides; chromium is about 12%, known as "semi-stainless steel", with top-level wear resistance and corrosion resistance.
Cost: The worst toughness and highest brittleness, easy to crack under high impact; high price and high processing difficulty.
Positioning: Priority to wear resistance and longest service life, suitable for raw materials with high wear and low impact such as softwood, bamboo, and straw.
