Summary: Procurement Economics & Operational ROI

In high-volume recycling operations, shredder blades represent a highly volatile wear-part expense. Based on our field experience, aligning your tool steel alloy and sharpening cycles with your actual feedstock conditions can typically reduce annual tooling costs by 30% to 40%. Conversely, running mismatched metallurgy causes chronic toolroom changeouts, driving up maintenance overhead and limiting plant throughput via unscheduled downtime.

Because feedstock variability is the main cost driver, knife selection should follow a feedstock-based matrix rather than a single, high-hardness specification:

• Clean Plastics & Regrind: AISI D2 / SKD11 / Cr12Mo1V1-type cold-work steel to maximize edge retention and abrasion resistance.

• Light Metals & Baled Scrap: Toughness-oriented alloys such as S7, modified H13, or A2 where impact loads are moderate, minimizing premature chipping.

• Steel-Belted Tires & Contaminated Mixed Streams (MSW/RDF): Heavy-duty DC53 cold-work steel, selected for improved toughness and resistance to compound impact without catastrophic fracture.

In over 15 years of industrial knife manufacturing and global field-failure analysis, two operational mistakes recur most often. Facilities either buy budget, low-alloy carbon steel blades that round off within two weeks—causing the shredder to push rather than cut—or they blindly optimize for Rockwell hardness (HRC). The latter places brittle steel on a mixed-waste line, leading to severe damage when unseparated structural channel or a broken heavy shaft enters the hopper, breaking the rotor knives, snapping the grade 12.9 bolts, and warping the knife pockets.

This brief focuses on field-proven metallurgy and geometry rather than general theory, so that procurement and maintenance teams can effectively align knife specifications with real-world feedstock conditions.

About the Manufacturer & Technical Backing

This guide is compiled by the application engineering division at Nanjing Alas Machinery Co., Ltd. Based in Nanjing, China, we manufacture heavy-duty single-shaft and twin-shaft shredder rotors, granulator knives, and scrap shear blades. Our core competency focuses on engineering direct-replacement and upgraded wear tooling fully compatible with Vecoplan, WEIMA, and Lindner lines—specifically solving the problem of knife longevity in severe-service environments.

What Are Industrial Shredder Blades and Why Do They Matter?

Industrial shredder blades include rotating cutters—such as fly knives or rotatable square cutters—and static counter-knives (bed knives). The rotating cutters are mounted on the rotor or shaft, while the counter-knives are fixed to the machine housing to form the opposing shear edge. These components are one of the main drivers of daily throughput, specific energy consumption, and output particle consistency, rather than just ongoing consumables.

In our experience, substandard knife geometry and incorrect material choice hit a recycling line through compounding negative operational effects:

• Reduced volumetric throughput: As cutting edges dull, the mechanism shifts from clean shearing to high-friction tearing and compression, decreasing the volume of material processed per hour.

• Higher amp draw per ton: Blunted edges require higher torque. This forces the main drive motors to run at elevated amperage, increasing the plant's energy consumption per ton.

• Potential rotor and pocket wear: When knives dull prematurely, un-shredded material can wedge between the rotor body and the counter-knives, leading to accelerated wear on rotor pockets and requiring eventual weld repairs.

Field Case Study: PET Recycling Line

To illustrate the economic impact, consider a 45-kW single-shaft PET recycling plant in Jiangsu that previously ran budget-grade cutters. The line experienced rapid edge rounding every 2 to 3 weeks, contributing to higher fines, irregular flakes, and increased screen blinding risk.

The tooling was replaced with vacuum heat-treated D2/SKD11-class cutters manufactured with a controlled geometry to maintain an effective cutting angle. The first set ran continuously for 11 weeks before requiring a standard knife rotation.

Following the upgrade, the plant reported a 14% reduction in average motor amp draw, although other operating variables were not independently isolated. Over a six-month tracking period, the facility realized customer-reported savings of more than $40,000, covering reduced downtime, associated labor, and a lower consumption rate of replacement wear parts.

From an application-engineering perspective, the upfront tool-steel cost is typically a minor line item compared with the operational losses caused by unscheduled downtime and inefficient kilowatts-per-ton operation.

What Are the Main Types of Industrial Shredder Blades?

In industrial recycling, the terms blades, cutters, and knives are often used interchangeably to describe tool-steel wear components. For practical selection, these components are typically grouped by machine architecture and operational duty: single-shaft indexable inserts, twin-shaft hooks, four-shaft multi-stage cutters, and granulator fly/bed knives. Selecting the correct geometry requires aligning the blade's mechanical interface with the machine’s shaft configuration, available drive torque, and target screening specifications.

Single-Shaft Shredder Blades

Single-shaft cutters are typically square or rectangular indexable inserts or blocks mounted into precision rotor pockets. They rotate at medium-to-high speeds, executing a shearing action against a series of static counter-knives. This configuration is standard in polymer reclamation because the combination of a consistent rotor-counter knife gap and a downstream screen helps achieve a more uniform particle size distribution.

Because these cutters feature a symmetrical bolt-on design, maintenance teams can index (rotate) the insert to utilize all four cutting edges before requiring a full regrind. However, maintaining strict cutting clearance is critical. Improper torque during indexing or incorrect gap calibration against the counter-knife can accelerate edge rounding and increase frictional heat, increasing the risk of material melting and premature tool failure.

Double-Shaft Shredder Knives

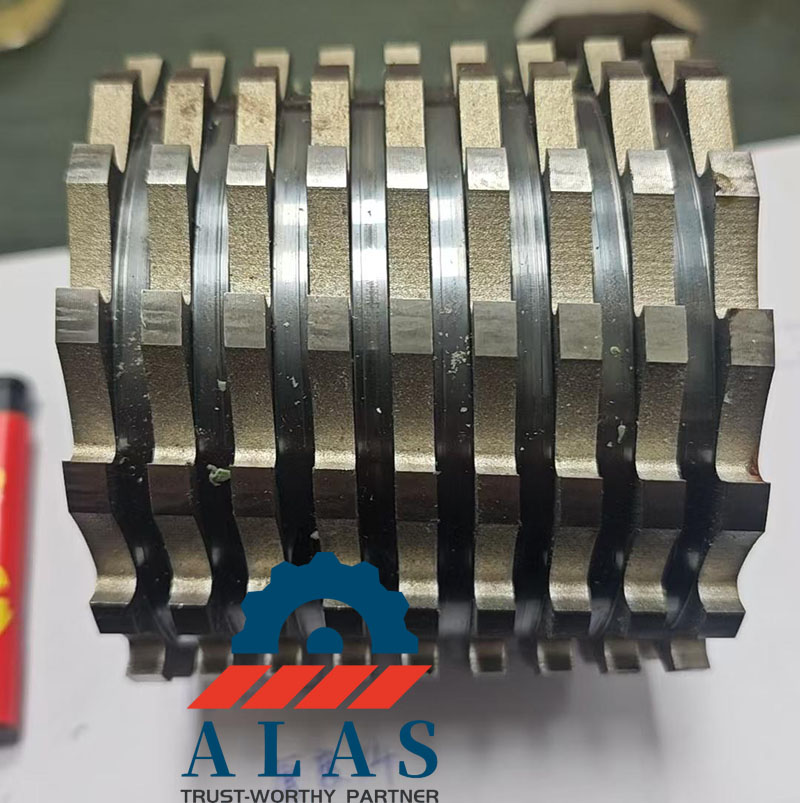

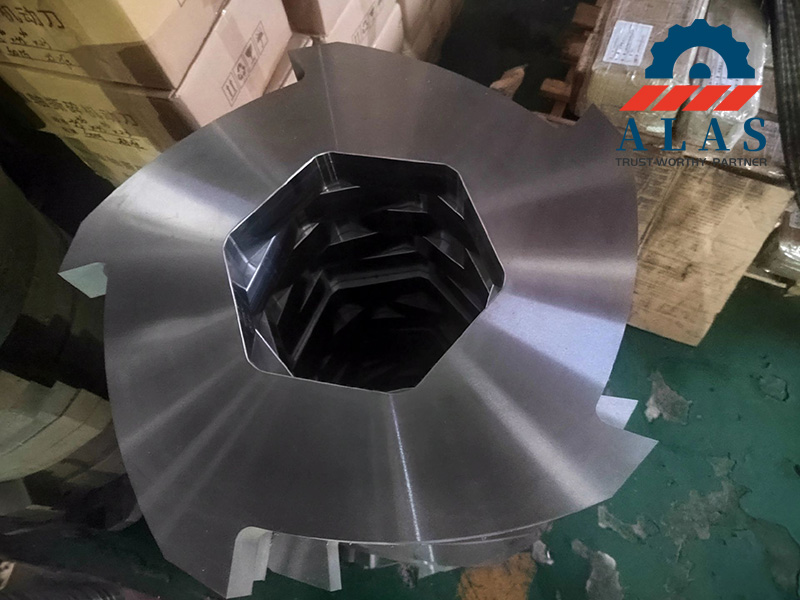

Double-shaft cutters consist of interlocking, multi-hook discs keyed onto two parallel, counter-rotating shafts. Operating at low speeds with high torque, these hooks shred via continuous tearing and compressive shear rather than clean slicing. This setup is engineered for high-volume, irregular feedstock—such as MSW bales, whole tires, and mixed scrap metal—that can stall or severely overload a single-shaft rotor.

The hook (or tooth) count is one of the main variables, along with rotor diameter, screen size, and drive torque, used to balance throughput against output size. Lower hook counts (e.g., 3-tooth or 5-tooth configurations) allow deeper material penetration and higher volumetric throughput but yield a coarser fraction. Higher hook counts (8-tooth to 12-tooth) reduce particle size but typically decrease total hourly tonnage. Adjusting the hook profile and count is an effective way to optimize a dual-shaft machine for a specific material stream, often without changing the drive system, although total torque demand should be verified.

Four-Shaft Shredder Knives

Four-shaft cutters utilize a stacked, multi-stage matrix within a single shredding chamber. The upper two shafts act as a pre-shredding mechanism, pulling bulky material down into the chamber, while the lower two shafts handle the primary reduction against a sizing screen. This configuration is widely deployed in e-waste (WEEE) processing and alternative fuel production (RDF/SRF), where tight output tolerances are often required for downstream optical separation and certain RDF/SRF quality specifications.

While a four-shaft arrangement delivers two-stage reduction within a compact machine footprint, it introduces higher mechanical complexity and a larger number of cutting edges to inventory. Operations must manage complex inter-shaft clearances to prevent severe cutter-on-cutter interference.

Granulator Knives

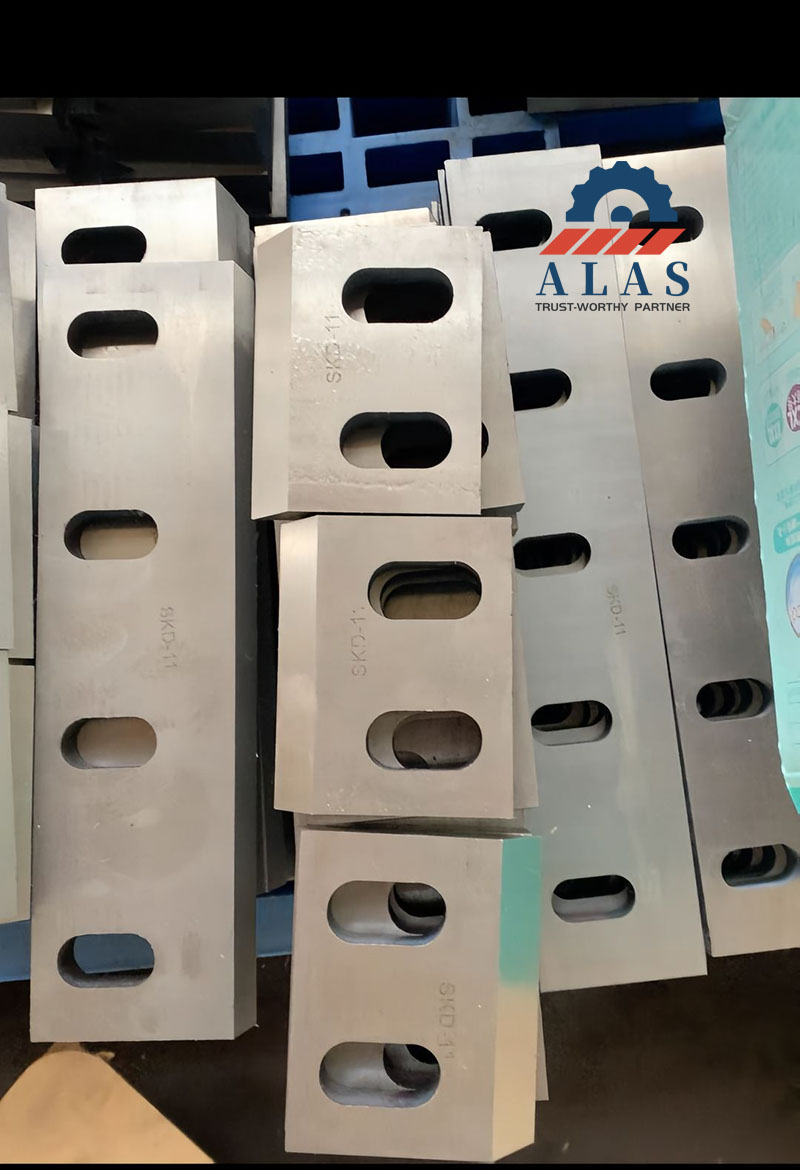

Unlike single-shaft shredders, granulators are high-RPM size-reduction machines intended for regrind and fine granulation rather than primary volume reduction. Granulator knives include high-speed rotating fly knives and adjustable bed knives engineered to reduce pre-shredded flakes into uniform granules. Because these machines operate under tight tolerances, the cutters are subjected to intense frictional stress. Substandard tool steel selection or improper vacuum heat treatment can contribute to rapid micro-chipping, along with incorrect clearance, misalignment, and feed contamination.

To ensure optimal granulator performance, the cutting clearance must be calibrated across the entire length of the rotor. Furthermore, screen condition should be monitored together with knife wear; a warped or eroded screen allows oversized flakes to bypass the system, compromising product quality.

How to Choose the Right Blade Material for Your Application?

How to Choose the Right Blade Material for Your Application?

Selecting the optimum cutting material requires a balanced trade-off between abrasive wear resistance (determined by hardness and carbide volume) and structural chipping resistance (determined by impact toughness). When running clean, predictable polymers like post-consumer PET or virgin rubber, a high-hardness AISI D2-type steel generally improves edge retention. Introduce mixed, contaminated feed, and a high-toughness cold-work steel such as DC53 is often preferred. For heavy-impact scrap metal reduction, shock-resisting alloy steels or work-hardening manganese steels are common selections. No universal "best" alloy exists; selection must be driven by your specific feedstock degradation mechanics.

Before comparing the selection matrix, it is worth clarifying how the common D2/SKD11/Cr12MoV-family designations relate to one another. AISI D2 is the American designation, JIS SKD11 is the Japanese standard, and the Chinese GB standard includes Cr12MoV and the more D2-like Cr12Mo1V1 as separate grades. While these alloys are commonly grouped as approximate equivalents, they are not strictly identical. D2 and Cr12Mo1V1 generally specify higher molybdenum and vanadium fractions than standard Cr12MoV, promoting a more favorable carbide distribution and secondary-hardening response, although actual field performance remains heavily dependent on primary smelting quality and final vacuum heat treatment.

Blade Material Selection Matrix

The matrix above assumes a well-characterized feedstock; the following failure mode is common when feed contamination is not controlled. From an application-engineering perspective, optimizing solely for Rockwell hardness (HRC) without accounting for feedstock contamination is one of the most common causes of premature tool failure. Higher hardness generally correlates with reduced fracture toughness. When an unseparated rigid fastener or a stray high-tensile fragment enters the cutting chamber, an overly brittle edge can suffer severe chipping or fracture. If your incoming material stream contains unseparated rigid contaminants, mitigating downtime requires shifting the material specification toward toughness-oriented alloys or running a lower, targeted HRC tempering profile.

IV. Optimal Hardness Ranges for Shredder Tooling

Operating hardness optimization requires a balanced calculation based on specific feedstock degradation mechanisms. Setting Rockwell hardness (HRC) too high increases the risk of severe brittle fracture under impact, while setting it too low accelerates edge rounding and progressive wear.

• Clean Polymers & Homogeneous Rubber (58–60 HRC): When processing contaminant-free post-consumer PET flake or clean industrial scrap, tool steels within the D2/SKD11 class are typically tempered to 58–60 HRC. Under these conditions, abrasive wear is the primary failure mode; this hardness window generally improves edge retention and extends production intervals between regrinds.

• Contaminated Feedstocks & Mixed Streams (58–62 HRC):

  For streams containing potential rigid or non-ferrous metal contamination, high-toughness cold-work tool steels such as DC53 are often preferred. Tempered to 58–62 HRC, their higher tempering stability and finer carbide distribution help resist micro-chipping while maintaining the surface hardness required to resist abrasion from dirt and glass fragments.

• Heavy-Impact Scrap Metal Operations (50–54 HRC): Processing light-gauge scrap, auto-shredder residue (ASR), or metal stampings demands high fracture toughness. Shock-resisting alloys (such as S7 or modified H13) tempered to 50–54 HRC—toward the toughness end of their working range—are common selections. In these high-energy setups, a lower hardness profile allows the tool edge to absorb transient impact spikes by yielding locally rather than cracking.

• Work-Hardening Manganese Alloys (18–22 HRC Initial / 45–50+ HRC Work-Hardened): High-manganese Hadfield-type steels (e.g., Mn13) rely on a deformation-induced hardening mechanism (twinning and dislocation multiplication, with potential local martensite formation under high impact). They are initially ductile, measuring in the HRC 20s. Under continuous high-energy impact and heavy compressive loading, the working surface hardens dynamically to approximately 45–50+ HRC while maintaining a highly resilient, shock-absorbing internal core.

V. Precision Machining and Manufacturing Tolerance Control

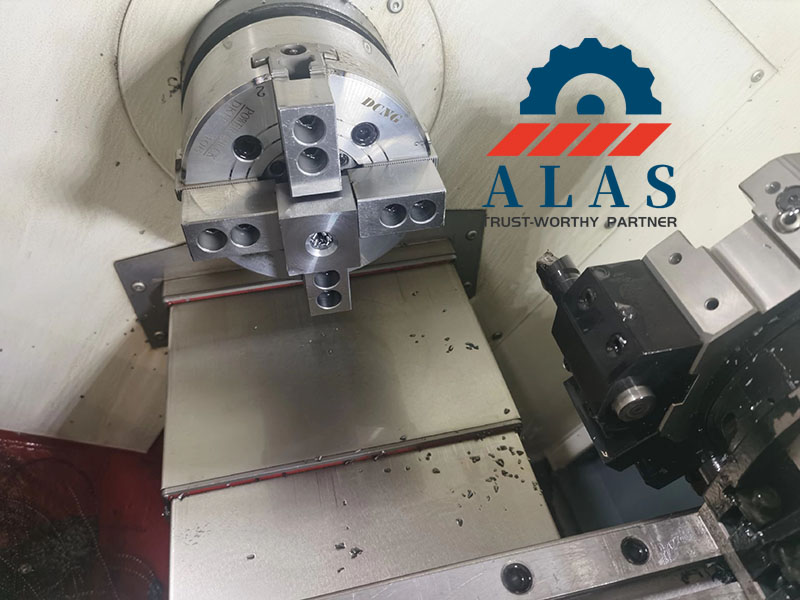

While chemical composition and vacuum heat treatment specify the base properties of a blade, final machining accuracy determines its field performance and component life cycle. Minor structural deviations can cause severe vibration, accelerated toolroom intervention, and mechanical fatigue across the drive train.

1. Twin-Shaft Interlocking Disc Engineering

In twin-shaft tearing systems, the multi-hook profiles are arranged in a specific spiral or timed sequence. This geometry pulls material into the center of the cutting chamber while distributing mechanical loads across the drive shaft. Substandard manufacturing often overlooks the precision machining of the internal spline or keyway tolerances. Minor clearance play within the keyway can allow microscopic shifting under high-torque loading, accelerating keyway wallowing, causing shaft misalignment, and leading to high vibration amplitudes.

2. Single-Shaft Indexable Insert Tolerances

Symmetrical square inserts are engineered for multi-edge rotation (indexing) to extend tool life before regrinding. However, this cost advantage depends on strict dimensional consistency across all functional cutting facets. If indexable inserts feature inconsistent clearance or rake angles due to low-precision grinding, indexing the blade changes the critical rotor-to-counter-knife clearance. This variation can increase frictional heat, accelerate edge rounding, and increase the risk of localized melting of the polymer feedstock. Premium manufacturers utilize multi-axis CNC grinding centers to maintain dimensional uniformity across all cutting edges.

3. Mechanical Interface & Mounting Precision

Mounting hole and side-face precision are critical for preventing structural failure. Under severe loading, minimal play within the fastener clearance allows micro-movement of the knife inside its pocket. This movement induces fretting wear and high localized shear stress on the mounting hardware, which can cause grade 12.9 fasteners to fracture or lead to cracked bolt holes. Precision-engineered blades are manufactured to strict H7-grade bore tolerances (or an H7 tolerance band) and feature precision-ground parallel side faces. This ensures stable mechanical seating and prevents torque relaxation during continuous operation.

VI. Industrial Applications and Material Matrix by Sector

1. Plastic Reclamation and Regrind

Plastic recycling represents a high-volume market with significant feedstock variation. For clean post-consumer PET wash lines or uniform industrial extrusion scrap, AISI D2-type alloys tempered to 58–60 HRC are standard selections, providing extended service life under purely abrasive wear. When processing commingled post-consumer plastics containing residual metal or rigid contaminants, upgrading to high-toughness DC53 improves resistance to chipping or fracture.

A common operational error in polymer plants is running blunt knives past their effective wear limits because the machine continues to feed material. Dull cutting edges shift the process from clean shearing to continuous tearing and compression. This increases the generation of fine dust (fines), drives up the specific energy consumption (kW/ton), and accelerates wear on the surrounding screen matrix.

2. Scrap Metal Recycling

Metal reduction involves extreme structural impact and high frictional temperatures. Shock-resisting alloys like S7 or modified H13 tempered to 50–54 HRC are widely used to process light-gauge scrap, galvanized sheet metal, rebar cutoffs, and auto-shredder residue. For primary crushing or heavy-impact metal reduction where compression and impact dominate over clean shearing, high-manganese steels are preferred due to their dynamic work-hardening properties.

3. Tire Recycling and Crumb Rubber Production

Tire shredding involves a combination of intense abrasive rubber wear and continuous impact from high-tensile steel cord wires. Tooling selection must be decoupled by processing stage:

• Primary Shredding (Whole Tires): The main objective is volume reduction. Toughness-oriented alloys like S7 or modified H13 are common selections to withstand heavy steel-belt impact without cracking.

• Secondary Shredding & Granulation: As the rubber chip size is reduced and steel wire is partially liberated, abrasive wear increases. High-toughness DC53 steel tempered to 58–62 HRC has largely replaced traditional D2 in this stage. It provides the hardness required to resist rubber abrasion while offering the toughness needed to handle wire fragments without suffering micro-chipping.

4. Wood Processing and Biomass Production

Wood feedstocks vary significantly, ranging from clean post-industrial lumber offcuts to construction demolition waste containing nails, concrete residue, and dirt. Clean wood streams are efficiently processed using standard D2 or Cr12MoV-type steels. For demolition waste or contaminated municipal wood streams, upgrading to toughness-oriented alloys or selecting a lower HRC tempering profile is necessary to mitigate premature chipping. In high-volume biomass plants feeding boilers or pellet mills, dual-shaft machines configured with low hook counts (3-tooth or 5-tooth) are typically used to maximize volumetric throughput.

VII. Operational Protocols for Maximizing Knife Service Life

In high-volume recycling plants, routine maintenance checks extend blade life by 20% to 40%. Extending the duty cycle of your tool-steel knives requires strict feedstock control, precise clearance adjustment, and proactive regrinding rather than running tools to catastrophic failure.

1. Upstream Feedstock Contamination Control

Mechanical abrasion and edge chipping are accelerated by unseparated rigid contaminants. Installing high-intensity cross-belt magnets or inline metal detectors on the infeed conveyor is the most effective way to prevent premature edge failure. Even minor non-ferrous particles create localized stress concentrations. These initial micro-chips act as wear accelerators, triggering progressive cracking along the primary cutting edge.

2. Cutting Clearance and Gap Calibration

As cutting edges experience normal abrasive wear, the clearance gap between the rotating inserts and stationary bed knives opens. When this gap exceeds OEM design tolerances, the mechanism shifts from clean shearing to high-friction tearing and material compression. This degradation drops hourly throughput, increases energy bills, and accelerates frictional heating. Establish weekly gap verification protocols using precision feeler gauges, and install adjustment shims to reset clearances before volumetric throughput falls.

3. Proactive Regrinding Intervals

Running blunt knives to maximize immediate production hours carries a heavy long-term financial penalty. The duller a cutting edge becomes, the deeper micro-structural fatigue propagates into the tool-steel matrix. During the subsequent sharpening cycle, the toolroom must grind away a significantly larger volume of material to reach a structurally sound edge.

For granulator knives and straight shear blades, schedule regrinding when hourly throughput falls by 15% to 20%. Under this proactive framework, a premium tool-steel knife can undergo multiple controlled resharpening cycles because subsurface micro-fractures are not allowed to accumulate.

(Note: Symmetrical single-shaft indexable inserts are engineered for multi-edge rotation rather than face regrinding. Adhere to a strict four-edge indexing schedule before the block reaches its wear limit.)

4. Rotational Tooling Inventory Management

Continuous 24/7 recycling lines should maintain at least two complete tooling sets per machine: one active set on the rotor and one fully calibrated backup set staged in the toolroom. This rotation model eliminates unscheduled machine downtime during maintenance intervals. It allows the toolroom to execute precision grinding, balance checks, and bore inspections to the specified H7 tolerance band without unnecessary haste, ensuring backup knives meet strict mechanical specifications before installation.

VIII. Analytical Criteria: Resharpening vs. Component Replacement

Establishing clear quantitative thresholds between standard tool refurbishment and mandatory blade replacement is critical to avoid severe structural damage within the cutting chamber.

Blade Lifecycle Decision Flow:

• Normal Operation: Throughput Drops 20% → Check Amperage Creep → Index or Regrind Knife

• Extended Wear Cycle: Finished Size Fluctuates → Visual Edge Rounding → Refurbish Tooling

• End-of-Life Boundary: Profile Thickness <70% → Inspect Bores and Micro-Fractures → Mandatory Scrap

1. Indicators for Resharpening or Indexing Interventions

Trigger toolroom intervention or blade indexing immediately upon identifying any of the following parameters:

• Throughput Drop: A 15% to 25% drop in volumetric throughput under identical feed conditions.

• Power Creep: A documented elevation in average motor amperage draw caused by blunted edges requiring higher torque.

• Fraction Inconsistency: Visual rounding of the primary cutting edge, leading to an increased generation of fines, dust, or out-of-spec oversized elements bypassing the blade gap.

2. Criteria for Mandatory Blade Retirement and Replacement

Permanently retire blades from service and scrap them if they exhibit any of the following dimensional or metallurgical defects:

• Dimensional Minimums: The overall profile thickness or width falls below 70% of the original dimension. High-torque lines should adopt a conservative 80% to 85% retirement threshold where peak transient loads are severe.

• Structural Fractures: Visually detectable macroscopic cracking, deep structural chipping, or thermal checking propagating into the main tool body.

• Interface Deformation: Elongation or fretting wear inside the bolt mounting holes, distorted keyways, or damage to the precision-ground seating faces that prevents rigid mechanical locking.

Operating blades past these dimensional thresholds introduces severe operational risk. When a structurally compromised or overly thinned blade fractures under peak torque, the liberated steel fragments cause extensive secondary damage inside the cutting chamber. The resulting kinetic shock destroys adjacent knife pockets, scores the rotor body, and snaps the grade 12.9 tension fasteners.

While bolt failures can result from direct impact overload, 12.9-grade fasteners are highly sensitive to hydrogen embrittlement and stress-corrosion cracking. In our field experience, the capital expense of rebuilding a warped rotor assembly is 10 to 20 times the procurement cost of a replacement wear-part set.

Technical FAQ: Materials, Tolerances, and Field Failures

1. How long do industrial shredder blades actually last?

There is no universal baseline. Lifespan depends entirely on material cleanliness and maintenance discipline:

• Clean PET Wash Lines: Expect 300 to 800 operating hours from premium D2/SKD11 before indexing or regrinding. Do not base your budget on textbook promises of 1,500+ hours; residual silica and fines in real-world wash lines will always cut that down.

• Contaminated Metal Scrap: Running shock-resisting alloys like S7 or modified H13 typically yields 200 to 400 operating hours before the edges need toolroom intervention.

• Steel-Belted Tires: Processing via high-toughness DC53 falls into an intermediate wear cycle, balancing constant wire impact with rubber abrasion.

2. Can AISI D2-class steel be utilized for primary metal shredding?

Don't do it. As a high-carbon, high-chromium tool steel, D2 develops large, continuous eutectic carbide networks during solidification. These rigid carbide clusters act as severe stress-concentration points and crack initiation sites under high-torque impact. Hit a piece of rebar or a stray structural fastener, and a crack forms at the carbide boundary and propagates immediately, causing macro-chipping. For scrap metal reduction, you need alloys with a refined carbide distribution and higher fracture toughness, such as S7 or modified H13.

3. What are the metallurgical differences between AISI D2, JIS SKD11, and GB Cr12Mo1V1?

These are cross-reference grades from different international standards, but they are not strictly identical. AISI D2 is the American designation, JIS SKD11 is Japanese, and the Chinese GB standard splits them into standard Cr12MoV and the high-spec, more D2-like Cr12Mo1V1. Premium D2 and Cr12Mo1V1 carry higher molybdenum and vanadium fractions than standard Cr12MoV, promoting a more favorable carbide distribution and secondary-hardening response. Actual field longevity depends on the primary vacuum melting quality and heat-treatment execution, not the nominal grade stamped on the invoice.

4. How should the total cost of ownership (TCO) for a shredder blade set be evaluated?

Evaluate your tooling expenditure strictly by cost-per-processed-ton or cost-per-operating-hour, never by the upfront purchase price. Buying cheap, unalloyed, or poorly heat-treated blades triggers an immediate financial penalty. The cutting edges round off rapidly, forcing the main drive motor to run at elevated amperage—increasing specific energy consumption (kW/ton)—while the resulting unscheduled downtime for toolroom swaps quickly wipes out any initial procurement discount.

5. When are tungsten carbide-tipped blades economically viable?

Only run carbide inserts if your feedstock is highly abrasive but guaranteed to be free of rigid contaminants (e.g., pure fiberglass regrind or clean rubber powder). Tungsten carbide features exceptional micro-hardness (~1500+ HV) but very low impact toughness. If a stray bolt or stone enters the cutting chamber, the transient shock will shatter the brittle carbide tips instantly. For unseparated mixed streams, high-toughness tool steels like DC53 provide a far safer mechanical balance.

6. Why does a new high-manganese steel blade register a low initial HRC reading?

This is normal for Hadfield-type austenitic manganese steels (such as Mn13) and is not a manufacturing defect. Out of the box, the alloy is soft and ductile, testing at 18 to 22 HRC. It relies on a deformation-induced hardening mechanism (twinning and dislocation multiplication under load). Once the machine starts running, continuous heavy impact and compressive loading dynamically harden the working surface to 45 to 50+ HRC, creating a highly wear-resistant outer skin backed by a resilient, shock-absorbing internal core.

7. What is the optimal clearance setting between rotating cutters and counter-knives?

Calibration depends entirely on equipment configuration and target output sizing:

• Single-Shaft Shredders (Plastics & Light Waste): Maintain a strict baseline of 0.15 mm to 0.30 mm (0.006 to 0.012 inches). Running too tight causes tool-on-tool rubbing, driving up thermal expansion and localized edge wear. Running too loose shifts the mechanism from shearing to tearing, spikes energy consumption, and generates excessive fine dust.

• Double-Shaft Systems (MSW & Bulky Scrap): Interlocking clearances must be set significantly wider—often several millimeters—to accommodate structural shaft deflection and prevent mechanical jamming from un-shredded tramp material. Always verify the machine’s original technical blueprints before adjusting.

8. How do single-shaft and twin-shaft shredder cutting mechanisms compare?

The choice comes down to your required output tolerance and input material shape:

• Single-Shaft Systems: Run at medium-to-high RPMs cutting against static counter-knives, regulated by a downstream sizing screen. This setup is mandatory if you need a uniform particle size distribution from relatively uniform feeds like plastics or wood.

• Double-Shaft Systems: Run at low speed with high torque, using counter-rotating hooks to tear and compress material. This configuration handles bulky, un-sorted, and irregular waste (e.g., car bodies, whole tires) but outputs a coarser fraction with less dimensional consistency.

9. Can shredder blades be flipped or indexed to optimize component lifecycles?

Symmetrical single-shaft square inserts are engineered for multi-edge rotation (indexing), allowing maintenance teams to utilize all four cutting facets before full toolroom refurbishment. However, you must maintain strict dimensional uniformity across all edges and re-calibrate the rotor-to-counter-knife clearance using precision feeler gauges after every rotation. Indexing an insert without verifying gap tolerances causes uneven tool loading and rapid edge breakdown.

10. How is heat-treatment quality verified on replacement tooling?

Never rely on a basic surface hardness check alone. Improper quenching leaves a soft, untempered core beneath a hardened surface skin. Use a portable Rockwell tester to verify consistent HRC readings across multiple coordinates on the blade body. For severe-service lines, require your supplier to provide documentation of the certified vacuum heat treatment profiles and non-destructive testing (NDT), such as magnetic particle inspection, to confirm the absence of subsurface micro-cracks before final installation.

Factory-Direct Custom industrial shredder blades from ALAS

At ALAS, we don't believe in one-size-fits-all tooling. We analyze your unique material stream, your machinery tolerances, and your operational bottlenecks to engineer high-performance industrial shredder blades that stay sharper, longer.We custom-manufacture replacement parts to fit all major global machinery brands with short lead times and strict quality control. Simply provide us with your machine model, raw drawing, or target feedstock, and our engineering team will deliver a custom-tailored solution built to lower your long-term OpEx.
