Premium Plastic Crusher & Granulator Blades | Material & Application Guide
Our heavy-duty plastic crusher and granulator blades are built for industrial plastic size reduction and recycling tasks. Crafted with precision cutting geometry and high-grade steel, these blades deliver stable, long-lasting performance. They easily process rigid plastic scraps, recycled regrind, thick-walled plastic pipes and various engineering plastics, minimizing downtime and improving overall production efficiency.
Precision Design & Core Performance Advantages
Each blade is machined with elongated precision bolt slots, allowing fast, accurate rotor and stator gap adjustments. Precision-ground beveled edges create clean, aggressive scissor shear cuts during operation. This optimized design lowers material friction and machine power consumption, while significantly reducing fine particles and dust for cleaner processing results.
Key Technical Specifications
Material Grades: D2, SKD11, DC53, 9CrSi and high-speed steel (HSS) options, catering to different wear resistance and structural strength requirements
Hardness Rating: Vacuum heat-treated to HRC 58–62. This balanced hardness and impact toughness prevents edge chipping and blade breakage under continuous heavy loads
Compatible Equipment: Central granulators, beside-the-press grinders and heavy-duty plastic shredder systems
Key Application Scenarios
Our versatile recycling blades support full-cycle waste plastic processing for industrial and commercial recycling operations:
Industrial & Post-Consumer Plastic Recycling: Shreds industrial and household waste plastics into uniform flakes and regrind, ready for washing, sorting and re-pelletizing.
Pelletizing Preprocessing: Reduces bulky plastic stock into consistent small pieces to stabilize pelletizer feeding and boost overall processing speed.
Volume Reduction Handling: Compacts loose waste plastic to cut storage space and lower logistics and transportation costs.
Defective Product Disposal: Fully shreds rejected and obsolete plastic goods to prevent unqualified products from re-entering the market.
Composite Material Recovery: Breaks down composite plastic parts to simplify subsequent sorting and separate different base materials for recycling.
Common Blade Types & Functional Features

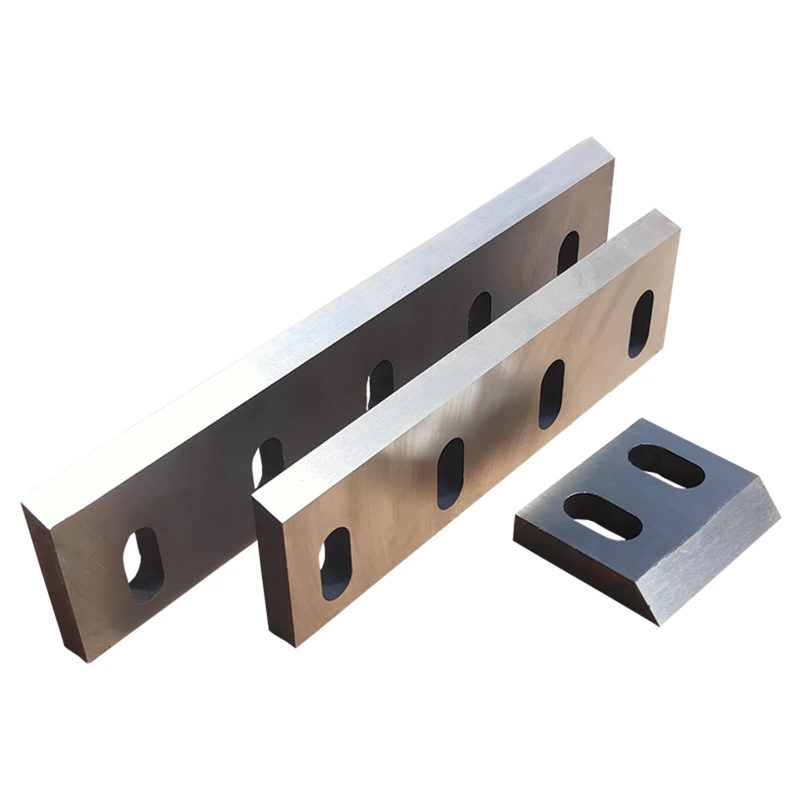

Rotor Blades (Moving Blades): Mounted on crusher rotating rotors. Available in straight, staggered, V-shaped and hook-shaped multi-edge designs to enhance material intake and cutting efficiency.
Stator Blades (Fixed Blades): Fixed to the machine housing and paired with rotor blades for synchronized shearing. Mostly straight-edged; precise blade gaps directly determine crushing effect and finished particle quality.
Tubular Blades: Special cylindrical rotary blades for dedicated crushing machines, working with screen meshes to control final particle size.
Claw Blades: Featuring sharp claw teeth to grip and tear large-size, high-toughness plastic materials efficiently.
Multi-edge Indexable Blades: Designed with multiple usable cutting edges. They can be rotated and reground repeatedly to extend service life and reduce replacement costs.
Working Principle
During operation, rotating rotor blades work against fixed stator blades to crush plastics through combined shearing, impact and tearing forces. Machine throughput and finished particle size are controlled by blade gap, rotor speed and feeding rate. Blade selection should be matched to material type (hard plastic, soft plastic, film), target particle size and actual production capacity.
Professional Blade Material Selection Guide
Three Core Blade Materials for Plastic Recycling
1. SKD11 High-Carbon High-Chromium Steel – Ideal for Hard Plastics
Well-suited for hard, rigid plastics including ABS, PET and rigid PVC, and widely used for PET bottle granulator blades. SKD11 delivers exceptional hardness, reliable wear resistance and balanced toughness. It retains sharp edges longer to reduce replacement frequency and resists chipping or cracking during continuous heavy-duty recycling. Professional vacuum heat treatment ensures stable performance for long-term industrial operation.
2. 9CrSi Alloy Steel – Ideal for Soft Plastics & Films
A cost-effective, general-purpose material for standard plastic recycling. It performs best with thin, flexible materials such as PE and PP films. This grade effectively prevents sticky soft plastics from adhering to blade edges. With low material cost and strong adaptability, it meets most conventional waste plastic processing demands.
3. DC53 Alloy Steel – Ideal for Fiber-Reinforced & Thick Plastics
DC53 is an upgraded alternative to SKD11 with higher toughness and superior abrasion resistance. It is the optimal choice for processing fiber-reinforced plastics, thick plastic stock and mixed waste plastics. It minimizes sharpening and replacement intervals and stands up to long-running, high-intensity heavy-duty recycling work.
Blade Shape Matching Guide
Claw Blades: Best for plastic sheets, pipes and plastic barrels
Flat Blades: Perfect for films and woven bags, delivering clean, burr-free cuts
Matched Rotary & Fixed Blade Sets: Allow precise gap control for uniform, high-quality particle crushing
Quick Selection Reference
General & Budget-Friendly Operations: Choose 9CrSi. It covers most common plastic recycling scenarios at a lower cost.
Standard High-Efficiency Production: Choose SKD11. As the mainstream material for mid-to-high-end shredders and granulators, it offers excellent overall cost performance.
Heavy-Duty & High-Wear Conditions: Choose DC53. It provides extended service life and works perfectly for fiber-rich and thick plastic materials for budget-sufficient projects.
Core Selection Summary
Use SKD11 for hard plastic crushing, 9CrSi for soft plastic and film processing, and DC53 for thick fiber-reinforced plastics. 9CrSi suits basic universal recycling tasks, SKD11 is the top choice for standard high-efficiency industrial recycling, and DC53 is engineered for harsh, heavy-duty recycling applications.
