Q35Y Series Hydraulic Ironworker Tooling & Die Compatibility Guide

Key Takeaways

• Model naming logic: Q35Y suffix numbers = max shear plate thickness in mm. Tonnage ranges from ~60 tons (Q35Y-16) to 140 tons (Q35Y-30), with Q35Y-25 as the standard mid-range model at ~115 tons.

• Punch & die = Limited cross-compatible: Shank diameter, thread size, and die OD scale with machine specification. Tooling supports limited cross-compatibility within light-duty models (16/20 series) but will not fit heavy-duty 25/30 series machines — always verify shank dimensions before reordering.

• Shear blades = model-specific: Every blade size, length, and bolt pattern is tied to frame size — no drop-in swaps across tonnage classes.

• Channel / I-beam shearing: Uses the same combined profile shear station as angle and solid bar — you swap blades, not stations. Standard V-angle blades will not cut structural sections.

• Attachments are frame-specific: No universal "fits-all" accessories. Bending dies, punching fixtures, and louvers all require matching base plates and throat depth.

• Before you order: Confirm machine model, punch shank specs, die OD/height, and blade mounting hole pattern.

1. Q35Y Series Overview

The Q35Y is a multi-station hydraulic ironworker built for structural steel and sheet metal fabrication. It handles punching, shearing, and notching on flat bar, square bar, round bar, angle iron, channel, and I-beam from a single hydraulic drive. The model suffix number represents the maximum shear plate thickness (mm), while punching force is rated in tons (T) and kilonewtons (kN); lowercase "t" strictly denotes material thickness per ISO industrial standards to avoid unit confusion.

Widely used in steel construction, transmission tower manufacturing, bridge building, and power utility work, understanding tooling compatibility across the lineup is essential for correct purchasing, smart spare-parts stocking, and minimum downtime.

1.1 Model Range & Specifications

1.2 Standard Stations

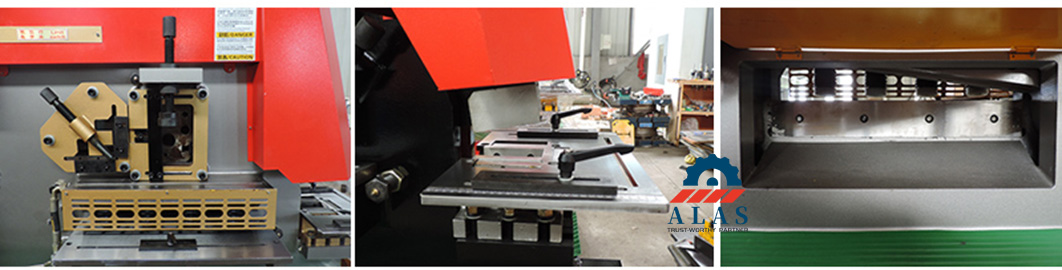

Every Q35Y has four physical working stations:

2. Punch & Die Compatibility

2.1 Can I Swap Punches Across Models?

Limited cross-compatibility across models (not fully universal).

Punch shank diameter, thread profile, and overall length all scale up with machine tonnage. A small-frame punch will not seat in a large-frame ram, and a large-frame punch will not fit into a 16-ton die holder.

Compatibility rules:

• Class-based compatibility: Most manufacturers support shared punch and die tooling between Q35Y-16 and Q35Y-20 models due to identical shank and mounting dimensions. Q35Y-25 and Q35Y-30 adopt heavier, larger mounting structures, with completely independent tooling specifications that cannot be interchanged with smaller models.

• Verify the shank, not the tip: The critical dimension is the shank diameter (tail mount) and thread spec — the punch tip diameter can vary widely within the same machine.

• Shape options: Round, oblong, square, hex, and custom profiles all work on the same station.

• Custom punches: Available to print for non-standard profiles.

2.2 How Do Dies Match Punches?

Dies must pair exactly with their punches, and die OD and height also change with model size — you cannot drop a 16-ton die into a 30-ton die holder.

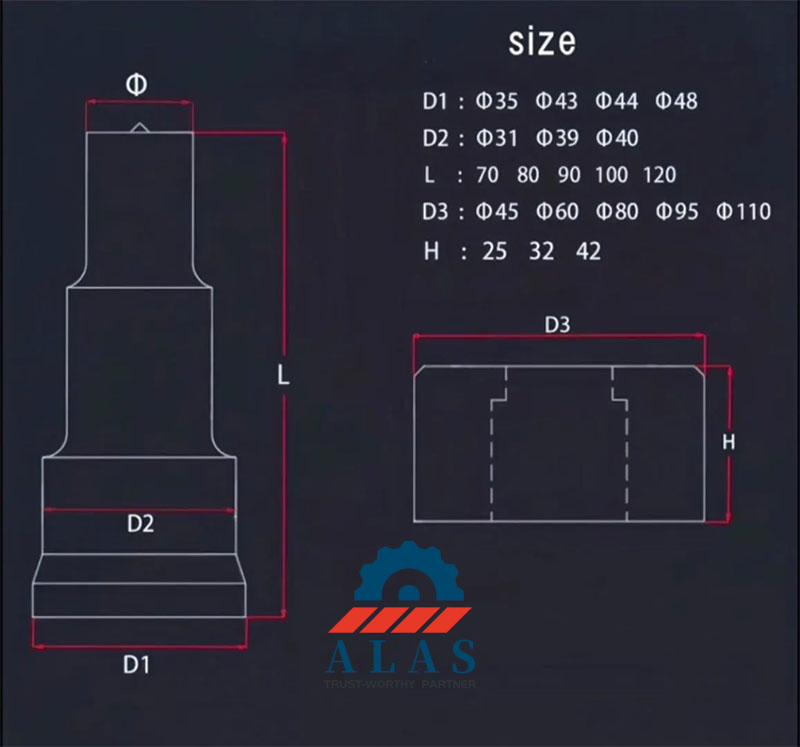

Before reordering, confirm all three:

1. Die outer diameter

2. Overall die height

3. Inner bore diameter (clearance matched to punch and material thickness)

Die styles available: Flat plate dies, angle iron dies, channel dies, and more.

Core Die Clearance Rule of Thumb: Die inner bore clearance is strictly matched to punch diameter and workpiece thickness, which directly affects cutting quality and tool service life. The standard clearance range is 10%–15% of the plate thickness. Calculation example: For 10mm thick steel plate, the die inner diameter shall be 1.0mm–1.5mm larger than the punch outer diameter to ensure burr-free cutting and avoid tool abrasion or damage.

2.3 Quick-Change System

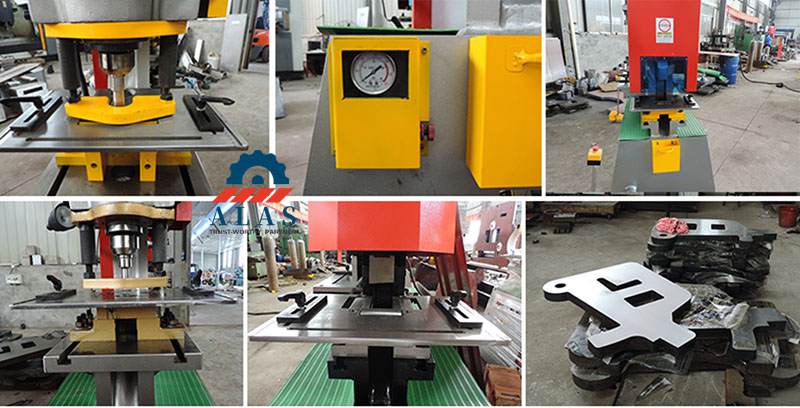

Q35Y machines come with quick-change coupling nuts and sleeves at the punch station. Swapping punches and dies within the same model is fast, and the station design accommodates large angle-iron and channel punching setups without modification.

3. Shear Blade Compatibility

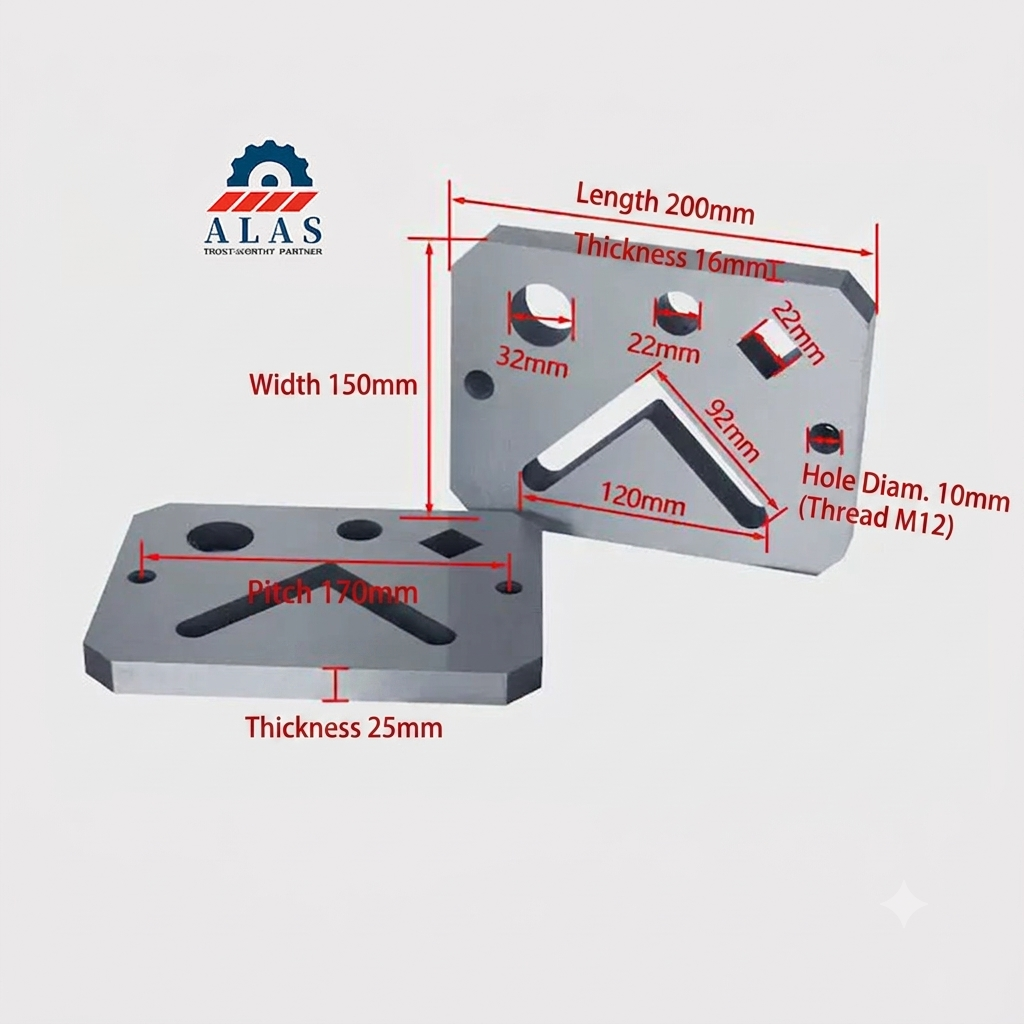

3.1 Angle Iron Shear Blades

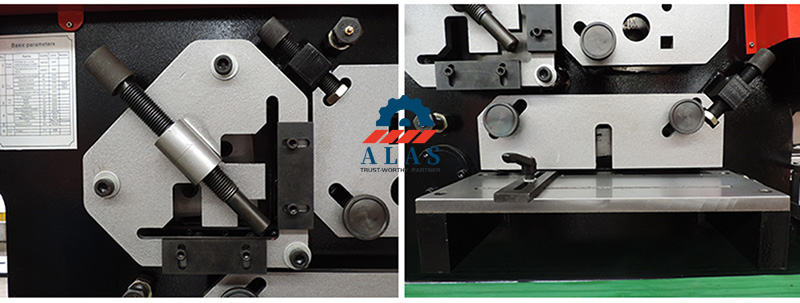

The combined profile shear station uses a V-angle blade for angle iron. Blade dimensions are model-specific — they do not cross over.

• Cuts both 45° miter and 90° straight

• Bottom blade has four usable cutting edges — rotate when one face wears out

• Blade length, thickness, and bolt hole pattern are tied to frame size

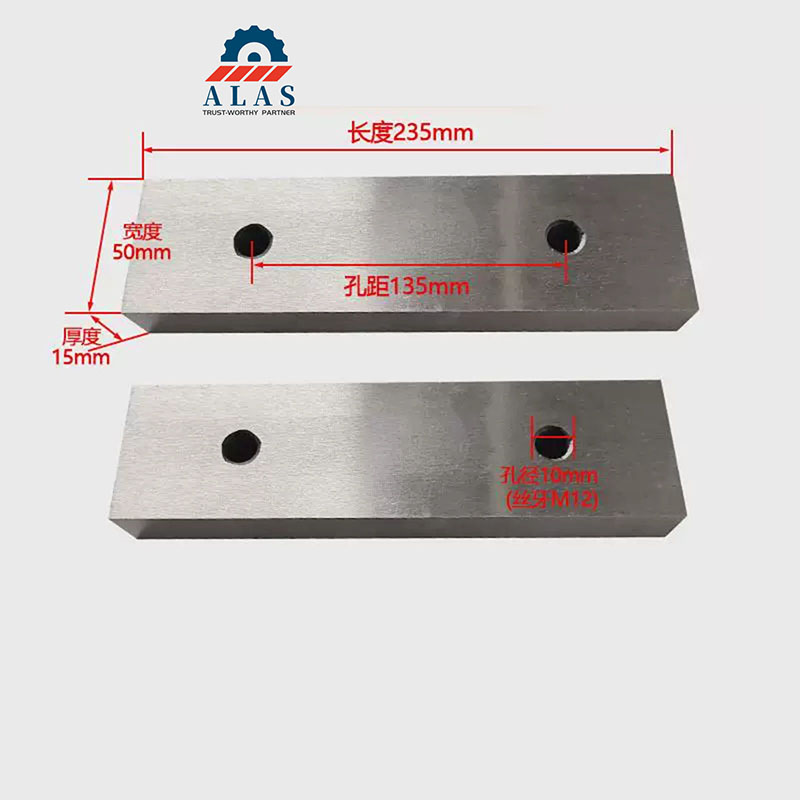

3.2 Flat Bar Shear Blades

The flat shear station uses a long rectangular shear blade, and it must match the machine's rated shear capacity.

• Q35Y-20 = up to 20 mm plate; Q35Y-30 = up to 30 mm

• Material options: 9CrSi, 6CrW2Si, Cr12MoV,H13, DC53, and other tool steel grades

• Length and hole pattern differ by model — not interchangeable

3.3 Channel & Structural Sections (I-Beam / IPE / H-Beam) Shearing

Channel and I-beam shearing happens on the same combined profile shear station as angle, round bar, and square bar. You remove the standard round/square bar blade and swap in a dedicated channel/I-beam blade — you do not move to a separate station.

Standard V-angle blades will not cut structural channel or beam.

4. Optional Attachments

There is no universal "fits-all" Q35Y attachment. Every bolt-on accessory mounts to either the punch station or a shear station, so its base plate, shut height, and force rating must match that specific model's station geometry.

5. Purchasing & Compatibility Checklist

5.1 What to Confirm Before Ordering

1. Exact machine model — Q35Y-16 / 20 / 25 / 30 (baseline for every dimension)

2. Punch & die critical dimensions — Shank diameter + thread for punches; OD + height for dies

3. Blade mounting specs — Length, thickness, hole spacing, cutting angle

4. Tool steel grade — 9CrSi, 6CrW2Si, Cr12MoV,H13, DC53 (match to your workload)

5. Custom requirements — Drawing required for non-standard shapes

5.2 Compatibility Quick Reference

5.3 Supplier Selection Criteria

• Proven Q35Y track record — Suppliers with full-lineup experience get dimensional accuracy right

• Drawing confirmation service — Catch mismatches before production, especially on custom parts

• Material & hardness certification — Insist on material test reports and hardness data — blade and die life depend on it
