Heavy-Duty H13 Steel Channel & I-Beam Cutting Blades

ALAS manufactures heavy-duty H13 replacement channel and I-beam section cutting blades to replace worn factory components for high-tonnage structural steel cropping. Available in certified AISI H13 hot-work tool steel, they provide an immediate drop-in fitment with Geka, Sunrise, Piranha, and Edwards housings.
• Service Life (Q235/A36 Carbon Steel): 3,000 to 6,000 cuts before a routine regrinding cycle under standard structural fabrication runs.
• 360° Profile CNC Milling: We deploy vertical machining centers to mill 1:1 mirror-image cavity geometries before hardening, providing full-perimeter support to eliminate flange and web distortion.
• Heavy Impact Hardness Matching: We balance matrix toughness via vacuum hardening, locking H13 tool steel at 50–55 HRC to absorb irregular lateral hydraulic shock.
• Calibrated Seating Tolerances: We grind primary mounting datum lines and parallel assembly seating faces within a strict ±0.1 mm installation tolerance to protect machine cylinders from jitter wear.
  • ALAS

  • Nanjing, China

  • T/T, Money Gram

  • Wooden Crate Packaging

Availability:
Quantity:

1. Product Overview & Section Shearing Engineering

An operator validating a clean perpendicular sheared surface on an I-beam section next to an ironworker machine blade station

We manufacture heavy-duty H13 replacement channel and I-beam section cutting blades to replace worn factory components for high-tonnage structural steel cropping. Available exclusively in certified AISI H13 hot-work tool steel, they provide an immediate drop-in fitment with Geka, Sunrise, Piranha, and Edwards machine housings from 60 to 200 tons.

360° Profile Cavity Milling: We deploy vertical machining centers to mill 1:1 mirror-image cavity geometries before hardening, providing full-perimeter profile support to eliminate flange and web distortion.

Heavy Impact Hardness Matching: We balance matrix toughness via vacuum hardening, locking H13 tool steel at 50–55 HRC to absorb irregular lateral hydraulic shock without sudden brittle cracking.

Calibrated Seating Tolerances: We grind primary mounting datum lines and parallel assembly seating faces within a strict ±0.1 mm installation tolerance to protect machine hydraulic cylinders from jitter wear.

2. Core Technical Specifications Matrix

Parameter

Precise Engineering Specification

Sourcing Options

Material Grade Available

Certified AISI H13 Tool Steel (ASTM A681)

Customizable alloy proportion per special drawings

Finished Hardness Standard

H13: 50–55 HRC (Vacuum Quenched & Hardened)

Graded tempering tailored to payload intensity

Dimensional Fitment Tolerance

Rigid parallel assembly and mounting limits held within ±0.1 mm

Tighter installation tolerances upon blueprint review

Surface Finish Standard

Ra 1.6 μm precision-ground mounting datum and seating faces

Optional multi-layer anti-wear coatings

Standard Compatible Profiles

ASTM A36 U-Channels, S235JR / S355JR I-Beams, and H-Sections

Non-standard composite shapes via 3D STEP blueprints

Valid Lifespan (Per Cycle)

3,000 to 6,000 cuts before a routine regrinding cycle

Numbers represent standard structural steel intervals

Machining Process Flow

Forging + CNC Precise Profile Milling (Pre-Hardening) + Parallel Seating Grinding

Dual-edge reversible multi-cavity channel integration

3. Advanced Engineering & Workshop Execution

Mirror Cavity Cutting Eliminates Web Distortion

Generic flat blades crush structural steel flanges and warp beam webs under lateral hydraulic pressure, resulting in inclined cut surfaces that require secondary manual grinding. We execute 1:1 mirror cavity milling that matches your specific beam radius, taper, and web thickness exactly before heat treatment. This total-perimeter contact design stops material twisting, ensuring perpendicular sheared faces ready for immediate welding assembly.

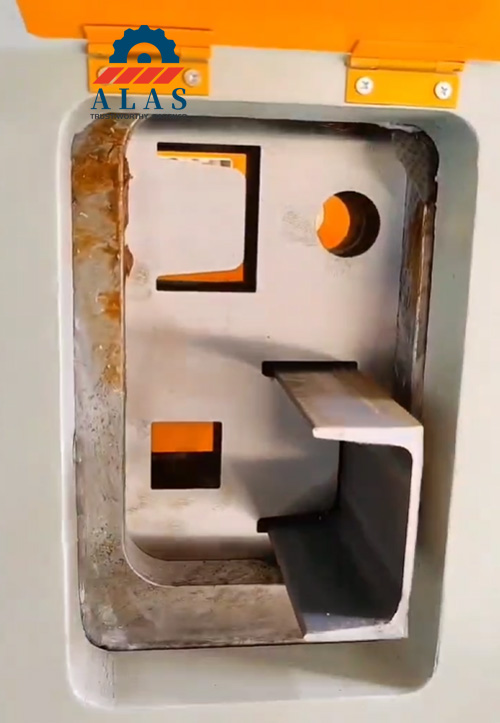

Close-up view of a hydraulic ironworker machine executing section cutting with a profile-matched channel steel shear blade

High-Impact H13 Matrix Stops Blade Fracture

Tapered flange channels generate highly irregular lateral force components, causing conventional brittle cold-work steels to develop micro-cracks and early edge collapse under repeated mechanical impact. We deploy H13 Hot Work Steel (50–55 HRC) exclusively for heavy-tonnage cropping. This alloy formulation delivers outstanding impact fatigue resistance and thermal stability, acting as the ideal shield to absorb continuous heavy shock loads on high-tensile steel lines (such as S355JR).

Reversible Multi-Cavity Sections Lower Tooling TCO

To minimize frequent disassembly and production downtime inside mid-size fabrication shops, we engineer integrated multi-cavity structures. We combine channel steel and I-beam cutting contours into single, heavy-duty reversible dual-edge segments, allowing operators to reverse the blade block for a fresh cutting lifespan before executing an external machine regrinding cycle.

4. Documented 5-Step Manufacturing Process

Raw Material Forging & Stress Relief: We execute cross-directional hammer forging on all H13 tool steel blanks followed by controlled thermal aging to break up alloy carbide segregation and completely rule out internal material porosity.

CNC Precise Cavity Milling: We run vertical machining centers to turn precise mounting coordinates and mill direct 1:1 geometric profile cavities onto the soft blanks, achieving finished blade edge dimensions before hardening.

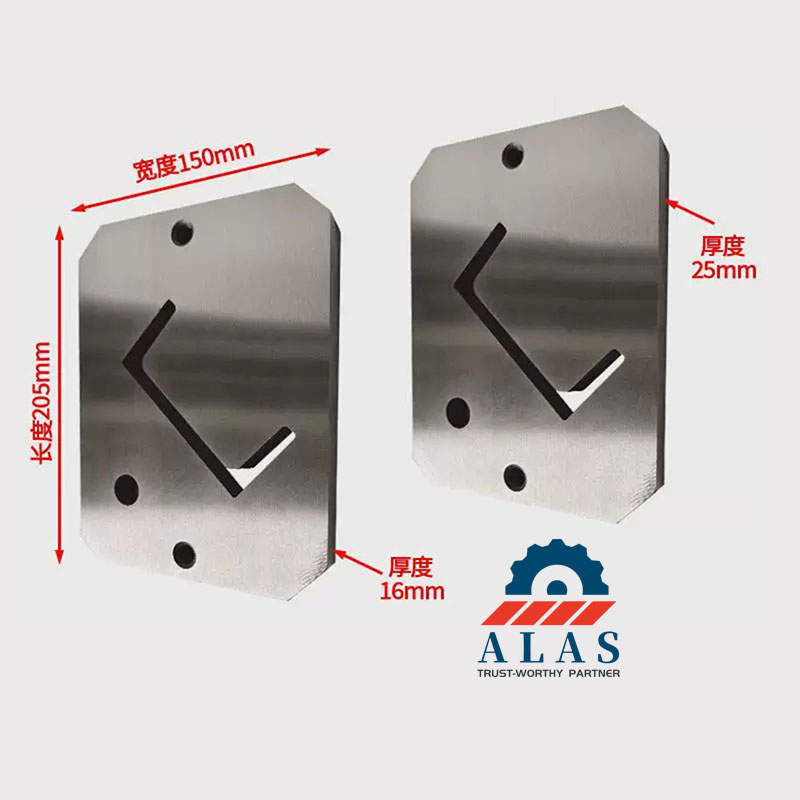

Technical dimensional specifications of a custom H13 hot work tool steel shear blade with a length of 205mm and a width of 150mm

Atmosphere-Controlled Vacuum Hardening: Our technicians balance structural core toughness and surface hardness through multi-stage preheating and automated vacuum gas quenching to lock exact 50–55 HRC targets.

Post-Hardening Parallel Seating Grinding: We deploy heavy-duty surface grinders to execute parallel face dressing across the hardened mounting datum lines, correcting heat-treatment deformation within a strict ±0.1 mm tolerance.

Surface Cleaning & Sealed VCI Packing: Following careful cavity deburring, we execute high-pressure industrial oil spraying to deliver an airtight anti-rust layer for long-distance maritime transit.

5. Application Scenarios

  • Heavy Steel Frame Fabrication: Multi-cavity H13 blades mounted on Geka or Piranha ironworkers for deformation-free cropping of load-bearing building pillars and industrial frameworks.

  • Infrastructure & Bridge Engineering: High-impact H13 profile knives deployed on Edwards or Sunrise stations for continuous, high-speed cropping of heavy structural channel sections.

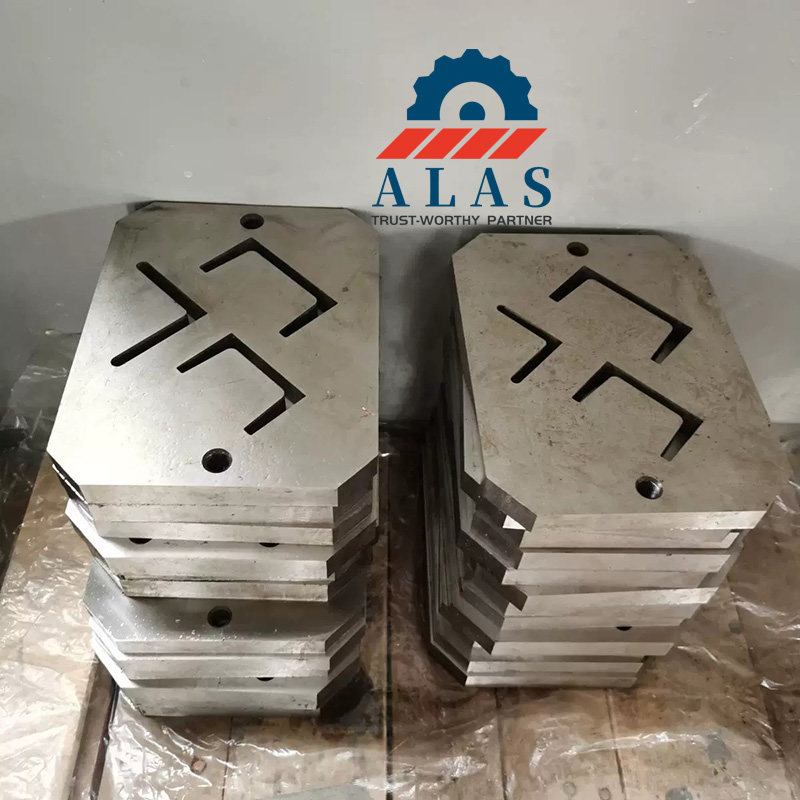

Batch production raw stock of heavy-duty hydraulic ironworker channel cutting blades stacked inside the ALAS factory warehouse

6. Sourcing Terms & Commercial Conditions

We structure our factory production lines to accommodate urgent fleet replacement demands alongside custom, drawing-based OEM/ODM engineering projects.

  • Minimum Order Quantity (MOQ): We support a 1-piece MOQ for all standard brand catalog replacement blades to minimize client equipment downtime. We enforce a 5-piece MOQ for fully customized, non-standard structural configurations. Tiered factory-direct wholesale pricing automatically activates on volume orders of 10 pieces or more.

  • Production & Shipping Lead Times: Qualified standard in-stock H13 configurations pass dimensional quality checks and ship within 3 working days directly from our Nanjing facility. Bespoke non-standard profiles or reverse-engineered obsolete segments require a 10 to 15 working days manufacturing and vacuum hardening cycle from final CAD or 3D STEP drawing verification.

7. Frequently Asked Questions

Q1: Why do channel shear blades suffer rapid edge rounding when cutting S355 high-tensile structural steel?

A: Cutting S355 high-tensile structural steel produces intense instantaneous friction heat above 180°C. Conventional low-grade blades contain insufficient chromium and vanadium alloying elements, leading to rapid thermal softening and premature edge blunting under high structural loads. Our vacuum-hardened H13 hot-work steel blades (50–55 HRC) retain stable matrix hardness even under continuous thermal surges, slowing down abrasive wear and extending cutting run spans without edge softening.

Q2: Can one single multi-cavity blade cut both American standard C-Channels and European standard UPN channels?

A: No, they are strictly non-interchangeable. American and European standard channels differ significantly in their inner flange taper, corner radius, and web thickness parameters. Mixing them triggers unbalanced lateral hydraulic pressure during the stroke, leading to heavy exit burrs, severe web distortion, and irreversible blade cracking. We always machine profile-matched cavities calibrated exactly to your specific regional profile standard.

Q3: Can heavy-duty profiled section shear blades be reground on standard workshop surface grinders after edge wear?

A: Standard flat bar and plate shear blades can be easily reground on a generic workshop surface grinder. However, profiled section blades (angles, channels, I-beams) featuring V-notches or radiused cavities require multi-axis profile grinding to preserve original cutting clearances. Profile blades must be returned to our factory or sent to a specialized profile grinding station for professional re-sharpening to maintain the calibrated ±0.1 mm installation tolerance.

Q4: What limits your factory warranty terms for heavy-duty profile section cutting blades?

A: We provide a strict 3-month factory warranty covering structural splitting, breaking, or cracking caused directly by verified metallurgical raw material defects or heat-treatment stress. We completely exclude normal boundary frictional wear, incorrect cutting clearance setups, or hydraulic machine tonnage overloading from coverage.

Q5: Can you reverse engineer and manufacture replacement profile knives for discontinued or legacy ironworker models?

A: Yes. For obsolete or out-of-production equipment where original OEM replacement parts are no longer available, our Nanjing technical team provides complete drawing-free reverse engineering. Procurement managers can submit physically worn blades, hand-sketches, or accurate caliper dimension data, and we will replicate the original mounting datum to ensure a direct drop-in fit.

Q6: What surface treatments are provided on ALAS profile knives to protect against rust during maritime transit?

A: Every replacement section blade receives a precision-ground finish on functional mounting faces (Ra 1.6 μm) and a heavy industrial Vapor Corrosion Inhibitor (VCI) anti-rust oil treatment. This non-coating protocol preserves absolute cutting-edge sharpness while guaranteeing zero oxidation during long-distance maritime shipping transit and prolonged warehouse storage.

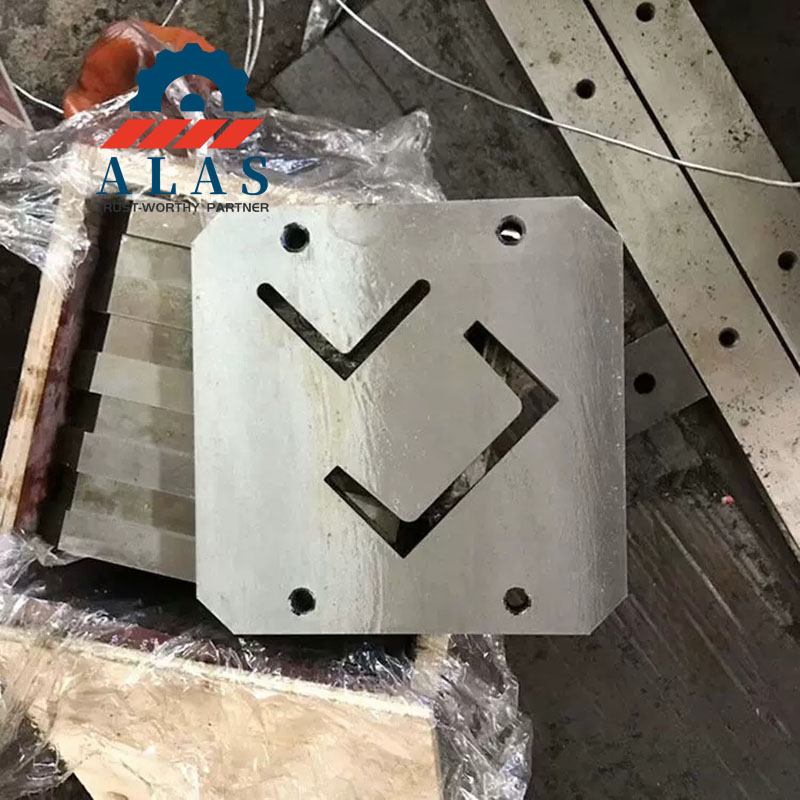

A single finished H13 structural steel section shear blade organized inside a heavy-duty export wooden crate packaging

Eliminate Flange & Web Distortion Now!

Contact the ALAS engineering team today for a custom mirror-cavity alignment audit or a factory-direct wholesale quote on premium, shock-resistant H13 (50–55 HRC) channel and I-beam cutting blades!
