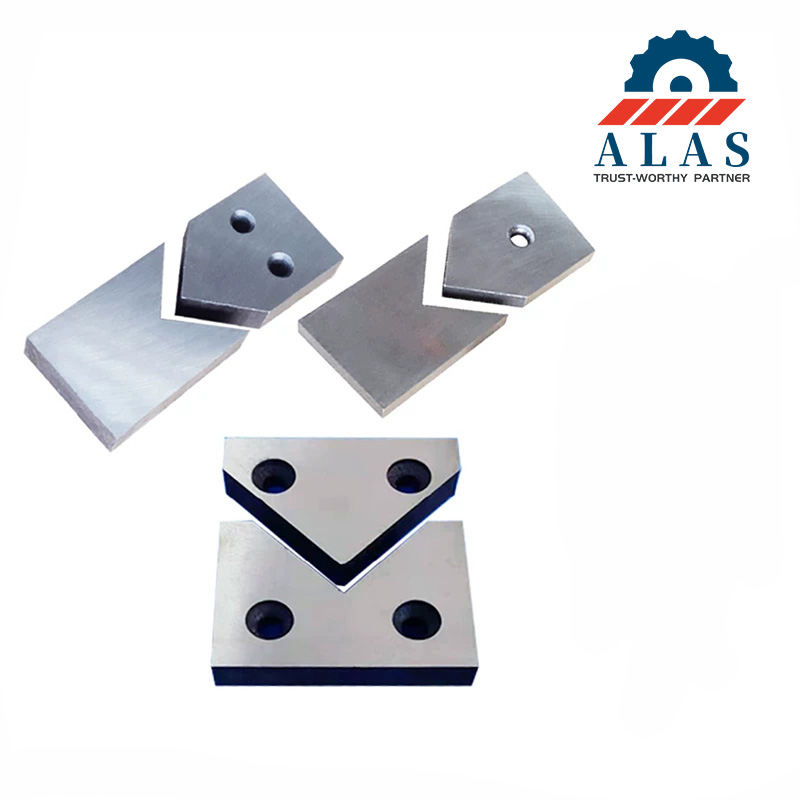

Heavy-Duty 90-Degree V-Shape Notcher Blades

Product Overview

ALAS heavy-duty V-shape notcher blades are replacement cutting parts built exclusively for 90-degree metal corner notching. Installed on standard hydraulic ironworkers, they trim square edges of angle steel, flat steel and channel steel with burr-free finishes. As an experienced blade maker, ALAS designs every unit to stand up to non-stop heavy industrial operation. We solve frequent on-site issues including blade chipping, angle deviation, fast wear and unstable machining precision. We work with metal fabricators, steel processors and machinery distributors worldwide, and customize dimensions and surface finishes to fit most ironworker models. All products adopt ISO 2768-fine dimensional tolerance standards with OEM-level fitting accuracy, achieving perfect compatibility with mainstream global ironworker equipment.

Core Selling Points

• Integrated 90° V-cut groove removes repeated equipment calibration, keeping corner flatness compliant with ISO 2768-fine standard, with overall error under 0.05mm

• Vacuum heat-treated steel base resists thermal softening during long-hour continuous notching jobs

• Rigorous pre-delivery full inspection, fully interchangeable with globally popular ironworker brands including Peddinghaus, Geka, Kingsland, Sunrise, Piranha, Edwards

Core Technical Specifications Table

What Makes Our ALAS V-Shape Notcher Blades Stand Out?

Precision Edge Polishing Cuts Post-Processing Work

Most budget aftermarket blades come with rough cutting edges, leaving visible burrs on steel corners. Extra polishing procedures raise overall fabrication costs. ALAS adopts segmented CNC edge grinding to deliver an ultra-sharp, burr-free cutting edge while eliminating micro-cracks that cause premature chipping. It stabilizes daily cutting performance and significantly reduces post-processing labor workload.

Heat-Resistant Build Prevents Cutting Drift

Continuous running of hydraulic ironworkers builds massive cutting heat, which softens generic blades and shifts the 90-degree cutting angle, resulting in defective finished goods. We add chromium and molybdenum alloy elements to raw tool steel, paired with dual vacuum quenching and tempering treatments. Our blades keep steady hardness under 180℃ long-duration heat, locking cutting angle deviation within ±0.05°.

Universal Mount Design Slashes Machine Downtime

Non-standard replacement blades require repeated positioning and calibration during installation, wasting 1 to 2 hours of machine downtime every time. ALAS adopts standardized mounting dimensions matching global ironworker specs, and adds dedicated locating surfaces for quick installation. On-site technicians can replace and debug blades within 12 minutes, which reduces operational downtime by up to 50% based on our field test comparisons.

Stress-Relief Treatment Resists Fracture

Instant hydraulic impact easily triggers tiny cracks at the V-groove root, and such cracks expand rapidly to break the whole blade. ALAS revises groove radian to remove internal stress dead zones, and adds cryogenic stress relief after heat treatment. Under repeated impact loads, our blades achieve notably extended service life than common industrial alternatives.

Traceable Raw Materials Stabilize Batch Quality

Many blade manufacturers mix recycled scrap steel to cut material costs, causing unstable hardness and unexpected blade fracture. ALAS only sources virgin steel ingots with traceable smelting records, and keeps all raw material inspection files on archive. Complete batch traceability cuts cross-batch quality fluctuation risk down to below 1.2%.

What Materials & Processes Ensure ALAS Notcher Blades Quality?

Raw Material Selection & Authority Standard Basis

ALAS adopts qualified AISI D2 tool steel complying with ASTM A681 and DIN EN ISO 4957 international tool steel standards as base material. This alloy balances cutting sharpness, wear resistance and impact toughness perfectly: high carbon ensures clean cuts, while chromium and vanadium boost thermal stability and rust resistance. It fits humid fabrication workshop environments and handles frequent hydraulic impact workloads steadily. We only cooperate with certified smelters and never use recycled mixed steel.

End-to-End Manufacturing Process & Embedded QC Points

We follow five standardized manufacturing steps, with quality checks embedded in every procedure to avoid defective output. We first forge steel ingots under constant temperature to remove internal pores, and run ultrasonic testing to rule out hidden cracks. Next, gantry CNC rough machining reserves proper machining allowance to release internal stress. Segmented vacuum heat treatment stabilizes overall hardness, with real-time furnace temperature monitoring all through the process. We then mill standard 90° V-grooves via five-axis grinders and verify angles with optical testers, before final edge treatment and anti-rust packaging. Our in-house low-stress grinding technique eliminates post-production deformation, acting as our core manufacturing advantage.

Where Are Our V-Shape Notcher Blades Used?

Structural Steel Fabrication Industry

Mounted on combined hydraulic ironworkers for 90° corner trimming of equal and unequal angle steel. Finished parts apply to factory steel frames and building load-bearing beams. This scenario requires fixed cutting angles and crack-free notched sections to ensure structural safety.

Automotive Structural Component Manufacturing

Installed on dedicated punching notching machines to process chassis reinforcement angles and suspension brackets. Smooth cutting surface is mandatory to guarantee stable welding results.

Warehouse Rack & Logistics Equipment Production

Installed on medium-duty ironworkers to notch connecting corners of storage rack steel profiles. Unified dimensional tolerance is critical to realize mass standardized assembly of rack products.

Elevator Metal Component Processing

Used for notching elevator guide rail accessories and thin-wall channel steel. Low-vibration cutting prevents thin metal deformation during machining.

Engineering Machinery Parts Fabrication

Direct replacement parts for original heavy-duty ironworker blades, applied to engineering machinery connecting steel plate processing. Products need strong impact resistance to adapt intermittent high-load production cycles.

How Do We Ensure ALAS Notcher Blades Quality Consistency?

Incoming Raw Material Inspection

Our in-house QC team checks steel smelting certificates and alloy reports before receiving raw materials. Every incoming steel batch goes through spectrometer composition testing. We reject and send back unqualified materials directly to eliminate upstream quality hazards.

In-Process Real-Time Sampling Inspection

We run random sampling checks after heat treatment and V-groove grinding. Technicians test hardness with Rockwell testers and verify cutting angles via optical comparators. We halt production immediately once detecting abnormal data to adjust manufacturing parameters.

Finished Product Full-Item Inspection

All finished blades undergo 100% comprehensive dimension scanning, roughness inspection and hydraulic impact fatigue testing. We archive every inspection record permanently for full quality traceability.

Pre-Shipping Packaging Inspection

Before shipment, our team double-checks anti-rust coating, installation parts and surface condition to prevent shipping damage. We adopt strict factory self-inspection standards, and accepts third-party manufacturing audits. We issue full inspection documents for customs clearance upon client request.

Can You Customize V-Shape Notcher Blades to Our Specifications?

ALAS provides full customization services for ironworker V-shape notcher blades. We adjust production parameters fully to match your on-site machining requirements.

Customizable Parameters: overall dimension, non-standard V-groove angles, exclusive mounting hole layout, wear-resistant coating types, mirror polishing finish, laser marking for part numbers or brand logos

OEM/ODM Scope: OEM replacement blades per client engineering drawings; ODM structural optimization for low-efficiency original blades; neutral export packaging and exclusive batch packaging services

Procurement Rule: Bulk order MOQ: 2 pieces for standard sizes, 5 pieces for custom drawings; Standard order lead time 7–10 working days; Custom drawing order lead time 15–22 working days. We support separate small-batch sample procurement for quality evaluation.

Engineering Support: Free equipment matching evaluation, installation simulation and on-demand post-delivery technical guidance

Trust & ALAS Supplier Credibility Section

Headquartered in Nanjing, Jiangsu, ALAS operates its own fully-owned 6,200 square-meter advanced production facility, ensuring total quality control from raw steel to finished blades. We can produce 1,200 sets of notcher blades monthly, supporting bulk export and long-term OEM cooperation. Up to now, our cutting tools have exported to 28+ countries across Southeast Asia, Europe, Oceania and Latin America, mainly serving steel fabricators, machinery distributors and manufacturing end-users. With over 15 years of tool manufacturing experience, we build stable material supply chains and complete-cycle QC workflows, avoiding unstable quality commonly seen in small workshops.

Frequently Asked Questions

Q1: Can ALAS V-shape notcher blades fit different brands of hydraulic ironworkers?

Yes. We adopt standardized mounting dimensions aligned with global ironworker OEM specifications, achieving perfect compatibility with mainstream models including Geka, Peddinghaus, Kingsland, Sunrise, Piranha and Edwards. We collect installation dimensions of mainstream equipment brands to guarantee full interchangeability. You only need to share your machine model or mounting drawings for perfect matching.

Q2: What causes V-shape notcher blade edge chipping during cutting operation?

Blade edge chipping mostly happens due to poor raw material toughness, insufficient heat treatment hardness and stress buildup at V-groove roots. ALAS optimizes material selection and groove radian to fix such defects, and shares practical operation tips for daily use.

Q3: Does blade surface coating affect metal corner cutting precision?

Standard TiN coating stays thinner than 3μm and brings no impact on cutting precision. We strictly control coating uniformity to avoid dimension errors. We also supply uncoated blades for ultra-precision machining scenarios.

Q4: What is the MOQ for wholesale ALAS ironworker notcher blades?

We support flexible procurement plans: bulk wholesale follows unified MOQ rules, and we accept independent small-batch sample orders for pre-production quality verification.

Q5: Can you provide official material and inspection reports for customs clearance?

Sure. We provide officially stamped factory inspection certificates and batch inspection records for every export shipment. All documents are globally accepted for customs clearance.

Q6: What packaging and anti-rust measures do you adopt for export shipment?

We use vacuum anti-rust packaging paired with shockproof wooden cases and internal desiccants. This packaging fits long-sea transportation and humid overseas storage to prevent rust and physical damage.

Q7: What is the after-sales warranty policy for ALAS industrial notcher blades?

We guarantee all finished blades strictly comply with certified material composition and thermal hardness standards before shipment. For quality defects caused by manufacturing flaws during initial installation and commissioning, we provide free replacement and technical support. Please note that this warranty excludes damage caused by improper machine alignment, overloaded cutting of unapproved materials, foreign object impact, or unauthorized re-grinding/modification.

Q8: What advantages does ALAS have compared with other China notcher blade manufacturers?

We integrate forging, heat treatment and precision grinding in-house to cut intermediate costs. We deliver verifiable testing reports, full material traceability and dedicated engineer support, balancing reliable industrial quality and stable wholesale price.
