Heavy-Duty Ironworker Flat Bar Shear Blades
High-wear-resistant, impact-resistant, fully compatible — precision shearing consumables engineered for industrial hydraulic ironworkers, delivering burr-free cold cutting performance as direct replacement parts for all major machine brands.
✅ Fits 36+ Models Vacuum Quenching Nanjing Jiangning Factory Direct OEM/ODM Customization
Material H13 / DC53
Hardness H13: 50–55 / DC53: 58–62
Precision ±0.02–0.05 mm
Service Life 40% longer
Factory Area 6,200 ㎡
Shipping Port Shanghai / Ningbo, China
⚙️
Universal Compatibility
Fits 36 mainstream hydraulic ironworker models with no mechanical modification, direct replacement for OEM flat bar cutting dies.
Vacuum Stress Relief
Eliminates residual stress, reducing fracture failure rate by 32%.
5-Axis CNC Grinding
Straightness tolerance ≤ ±0.002 mm, delivering burr-free cutting.
✅
Full-Link Quality Control
Ultrasonic testing + hardness/roughness inspection + traceable QR code.
Key Benefits
️
Anti-Fracture Stability
Vacuum stress-relief tempering reduces fracture failure rate by 32%, ensuring uninterrupted production.
⚡
Ultra-High Precision
5-axis CNC grinding maintains straightness within ±0.002 mm, eliminating burrs and saving ~18% secondary labor.
⏳
Extended Wear Life
High-grade Cr-V alloyed DC53 steel delivers 40% longer lifespan than ordinary flat bar cutter blades, reducing downtime and replacement costs.
Universal Fit
Unified mounting datum fits 36 mainstream ironworker models, slashing spare parts inventory complexity.
Corrosion Resistance
Optional DLC or hard chrome coating boosts oxidation resistance by 55%, ideal for humid or outdoor environments.
Product Overview
ALAS heavy-duty ironworker flat bar shear blades are high-wear-resistant cutting parts exclusively designed for industrial hydraulic ironworkers. As essential replacement parts and flat bar cutting dies for metal fabrication workshops, the blades cut carbon steel, alloy steel and stainless steel flat bars under cold working conditions. They output stable hydraulic shearing force, while eliminating cutting-edge burrs and workpiece deformation. Manufactured from premium DC53 cold-work steel and H13 hot-work steel, these industrial-grade flat bar cutter consumables deliver consistent performance across all major ironworker brands. With more than 15 years of industrial tooling manufacturing experience, ALAS delivers fully compatible and customizable shear blades, supported by strict in-house quality inspection and traceable production records. We complete all manufacturing procedures inside our Nanjing Jiangning factory, supplying impact-resistant, crack-proof blades at pure factory price, with no intermediate markup.
✅ No intermediate markup ✅ Traceable production records ✅ Strict in-house quality inspection

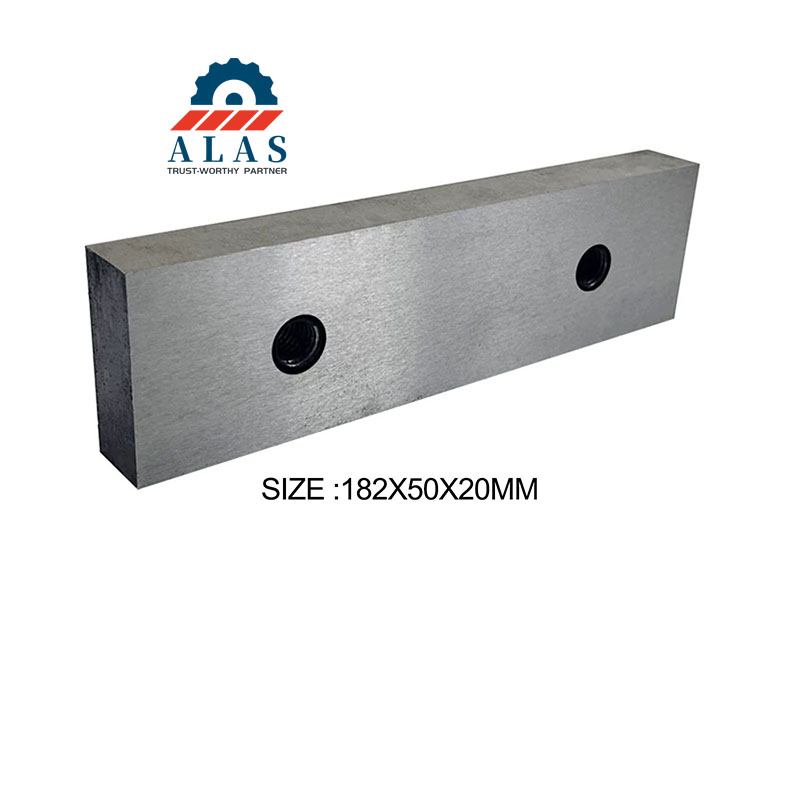

Standard 182×50×20 mm flat bar shear blade – H13 / DC53 tool steel
Core Technical Specifications
| Parameter | Standard Value | Customizable Option |
| Material Grade | H13, DC53, ASTM A681 | ✅ Custom high-alloy steel |
| Hardness | DC53: HRC 58–62; H13: HRC 50–55 | ✅ Adjustable ±2 HRC |
| Dimensional Tolerance | ±0.02 mm to 0.05 mm | ✅ Tighten to ±0.01 mm |
| Surface Finish | Ra 0.4 μm | ✅ Mirror polish to Ra 0.15 μm |
| Standard Size Range | Length 180–650 mm, Thickness 12–40 mm | ✅ Non-standard via 3D STEP |
| Blade Heat Resistance | Up to 550°C (1022°F) for H13 tool steel | ✅ High-temp tempering for hot-shearing |
| Ambient Operating Temp. | −10°C to 45°C (Ensures machine hydraulic stability) | ✅ Low-temp / tropical packages available |
| Mounting Hole Spec | Standard Counterbore for ISO 4762 Bolts | ✅ Slotted / asymmetric holes |
| Max Shearing Thickness | 20 mm (Q235 structural flat bar) | ✅ Strengthened for 25 mm |
Compatibility Matrix — Direct Replacement for 36+ Models
| Brand / Origin | Compatible Models & Series |
| Geka | Hydracrop 55/110 (S/SD), Hydracrop 80/150 (S/SD), Hydracrop 110/180 (S/SD), Hydracrop 165/300, Hydracrop 220/300 |
| Piranha | P-50, P-65, P-70, P-90, P-110, P-120, P-140, PII-110, PII-140, PIII-65/88 |
| Edwards | 40-Ton, 50-Ton, 55-Ton, 60-Ton, 65-Ton, 75-Ton, 100-Ton, 120-Ton Elite |
| Scotchman | Porta-Fab 45, 5014-TM, 5014-ET, 50514-CM, 6509-24M, DO150-24M Series |
| Chinese Standard Series | Q35Y Series (Q35Y-16, Q35Y-20, Q35Y-25, Q35Y-30); QA32 Series (QA32-8, QA32-12, QA32-12A Mechanical Ironworkers); QY / Q34Y Series (Single-Cylinder Hydraulic Ironworkers) |
| Other Brands | JFY, Harsle, ACL, and other domestic Chinese ironworker models — contact us with your machine specs for verified fitment. |
* Additional models (including JFY, Harsle, ACL, and other domestic Chinese makes) available upon request. Send us your machine model or drawing for verified fitment.
* All standard values comply with ASTM industrial specifications. Custom parameters require engineering drawings or 3D STEP files.
Materials & Processes That Ensure Quality
Raw Material Selection: We use certified H13 and DC53 tool steel complying with ASTM A681. H13 excels in high impact toughness and shock resistance, preventing edge chipping, while DC53 offers superior hardness and wear resistance for lasting cold shearing performance. Every batch comes with official mill test certificates and full traceability. Our premium H13 tool steel features exceptional red-hardness and thermal fatigue resistance, maintaining its structural integrity even during high-friction, continuous shearing operations.
Full-Link Manufacturing Process: Five closed-loop procedures with embedded QC checkpoints — Constant-temperature die forging (1120 °C) → Gantry rough milling → Customized vacuum heat treatment (segmented quenching + gradient tempering) → 5-axis precision grinding → Finished-product deburring and anti-rust oil spraying.
① Die Forging 1120 °C constant-temperature, eliminates internal cavity defects
② Rough Milling Removes oxide layers, controls blank tolerance within ±0.02 mm
③ Vacuum Heat Treatment Segmented quenching + gradient tempering to avoid cracking
④ Precision Grinding 5-axis grinding for cutting edges and mounting surfaces, real-time sampling
⑤ Anti-Rust Packaging Sprayed with anti-rust oil, adapted for long-distance sea shipping
Hardness control: H13 blades are finalized at HRC 50–55 to balance toughness and rigidity, preventing hydraulic impact cracking; DC53 blades are optimized at HRC 58–62 to maintain long-term cutting sharpness for continuous production runs.
Where Are Our Blades Used
️ Structural Steel
Frame Fabrication
Cut standard flat bars for workshop steel frames; requires impact resistance and dimensional accuracy.
Construction Machinery
OEM Manufacturing
Mass blanking of support flat bars for automated assembly lines; long service life and consistent tolerance.
♻️ Metal Recycling
Scrap Steel Disposal
Cut recycled mixed-spec flat bar waste; anti-impurity abrasion resistance for impure raw materials.
Automotive Chassis
Component Blanking
Precision shearing of thin flat bar suspension parts; burr-free with low metal fatigue.
Prefab Steel Buildings
On-Site Installation
Onboard mobile ironworker for cutting embedded components; temperature adaptation and portable stability.

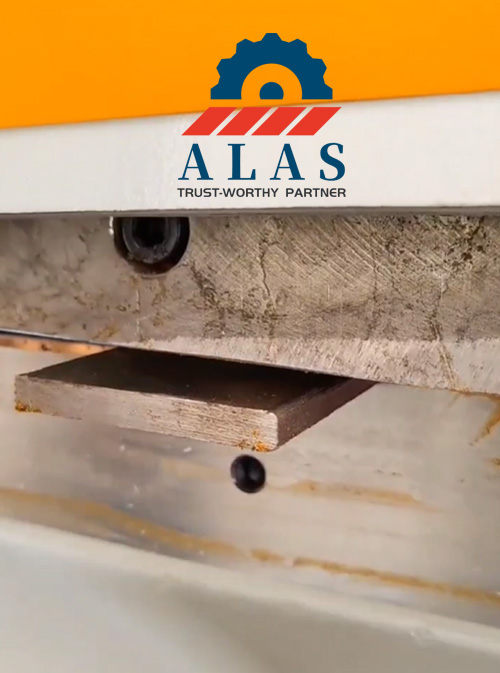

Hydraulic ironworker flat bar shear station in action – cutting thick steel plate
How We Ensure Quality Consistency
Four-Stage Full-Cycle Quality Checkpoints — Incoming Material Inspection (spectrum testing + mill certs) → In-Process Inspection (ultrasonic flaw detection + real-time heat treatment monitoring) → Finished Product Inspection (hardness/precision/simulated load test) → Packaging Pre-Shipment Inspection (anti-rust layer + mounting hole verification + traceability QR code).
Incoming
Spectrum test, reject off-alloy materials
In-Process
Ultrasonic flaw detection + real-time furnace data
✅ Finished
Hardness/roughness/simulated load testing
Pre-Shipment
Anti-rust layer + hole positioning + QR code
We cooperate with authorized testing institutions for regular batch sampling reports. All test reports and inspection files are available for B2B buyer supplier qualification review.
Customization Capabilities
ALAS supports full-dimension and full-performance customization for non-standard parameters, as well as full-process OEM/ODM services for global industrial clients.
Dimensions: Length/Thickness/Edge radius/Mounting holes Material: Alloy ratio/Hardness/Impact toughness
