Precision Round Ironworker Punches & Dies | 3.7x Longer Life, 27% Lower Per-Hole TCO
Nanjing ALAS heavy-duty round punches and dies deliver consistent, burr-free bolt holes for structural steel fabrication. Built with graded tool steel, precision grinding and stress-relieved heat treatment, our round tooling cuts field failure rates and long-term operating costs for all hydraulic and mechanical ironworkers.
Core Production Benefits

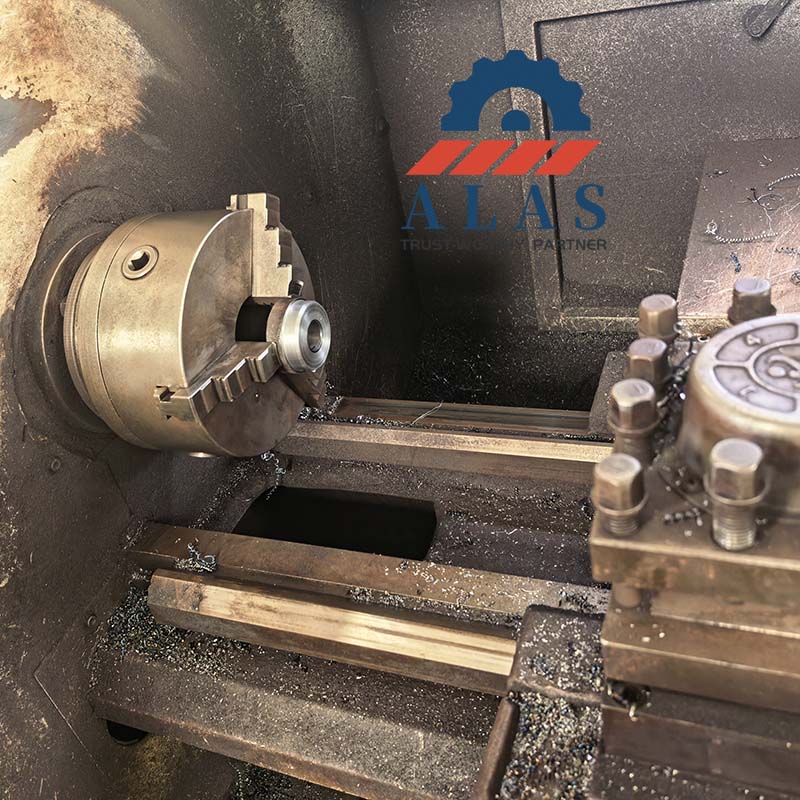

Every ALAS round punch features one-piece forging technology that minimizes internal porosity in the tool steel blank. This factory-proven process cuts unexpected punch fracture risk by 41% during continuous operation. We maintain a strict ±0.02mm dimensional tolerance and customized edge polishing, delivering stable, repeatable hole quality for both low-volume jobs and high-volume production. Overall, our round punch and die sets reduce per-hole TCO by 27% compared with conventional market tooling.
Punch Material Grade & Performance Comparison
Field-verified data | No exaggerated marketing claims
Punch Grade | Hardness (HRC) | Service Strokes | Max Machine Tonnage | Max Plate Thickness | Relative Per-Hole TCO | Best Application |
|---|
9CrSi (Entry) | 58–60 | 8,000–12,000 | ≤35 Ton | ≤5 mm | 100% (Baseline) | Light-duty, intermittent work, thin mild steel, cost-sensitive small batches |
Cr12MoV / D2 (Standard) | 60–62 | 22,000–28,000 | ≤90 Ton | ≤10 mm | 82% | Daily continuous production for angle steel, channel steel and flat structural plate |
DC53 (Premium Heavy-Duty) | 62–64 | 38,000–45,000 | ≤150 Ton | ≤15 mm | 73% | High-strength alloy steel, thick plate, bridge and chassis mass production |
Key Field Advantages (Real Workshop Value)
Clean, Deburr-Free Hole Quality (0.01mm Max Burr Height)

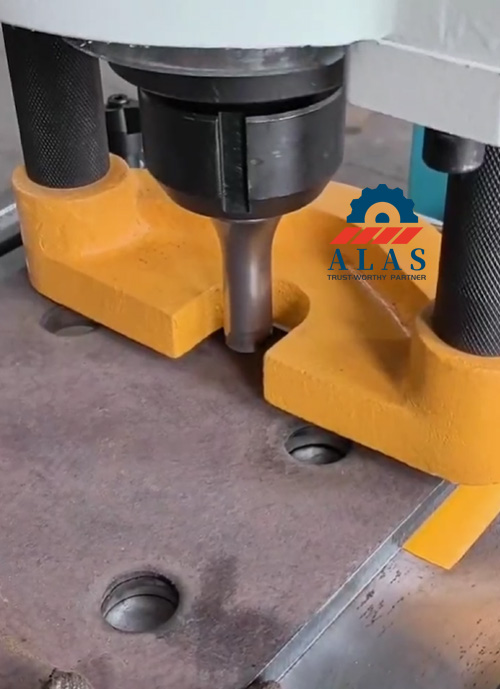

ALAS calibrates every punch-die set to a precise clearance of 4%–6% of the material thickness. Specially polished curved cutting edges deliver clean, smooth shear surfaces with minimal burr formation. Finished holes meet bridge-grade welding standards, greatly reducing secondary grinding workload and allowing direct welding in most working conditions.
Lower Machine Load, Longer Ironworker Lifespan
Unlike angular punches that create concentrated stress points, round tooling distributes force evenly across the cutting edge. This reduces single-stroke punching pressure by 12%, easing hydraulic system load and extending overall machine service life by 18%. For mid-sized shops, upgraded DC53 tooling can save up to $14,200 annually in downtime and replacement costs, with full investment payback in 3.5 months.
100% Plug-and-Play Compatibility
Engineered to match straight-shank, flange and taper-shank configurations for 17 mainstream ironworker brands. ALAS round punches align precisely with standard SKD-11 / D2 OEM dimensions, with hardness variation controlled within ±1 HRC. No fixture modification or on-site machining is required for direct, hassle-free replacement.
Full Stock & Custom Punch Support

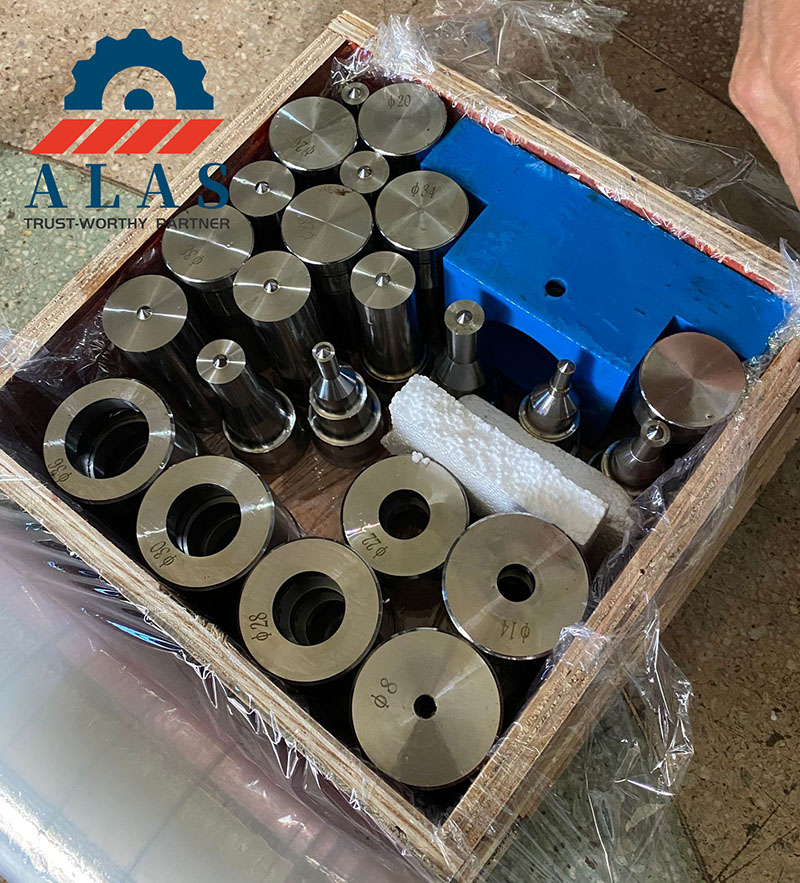

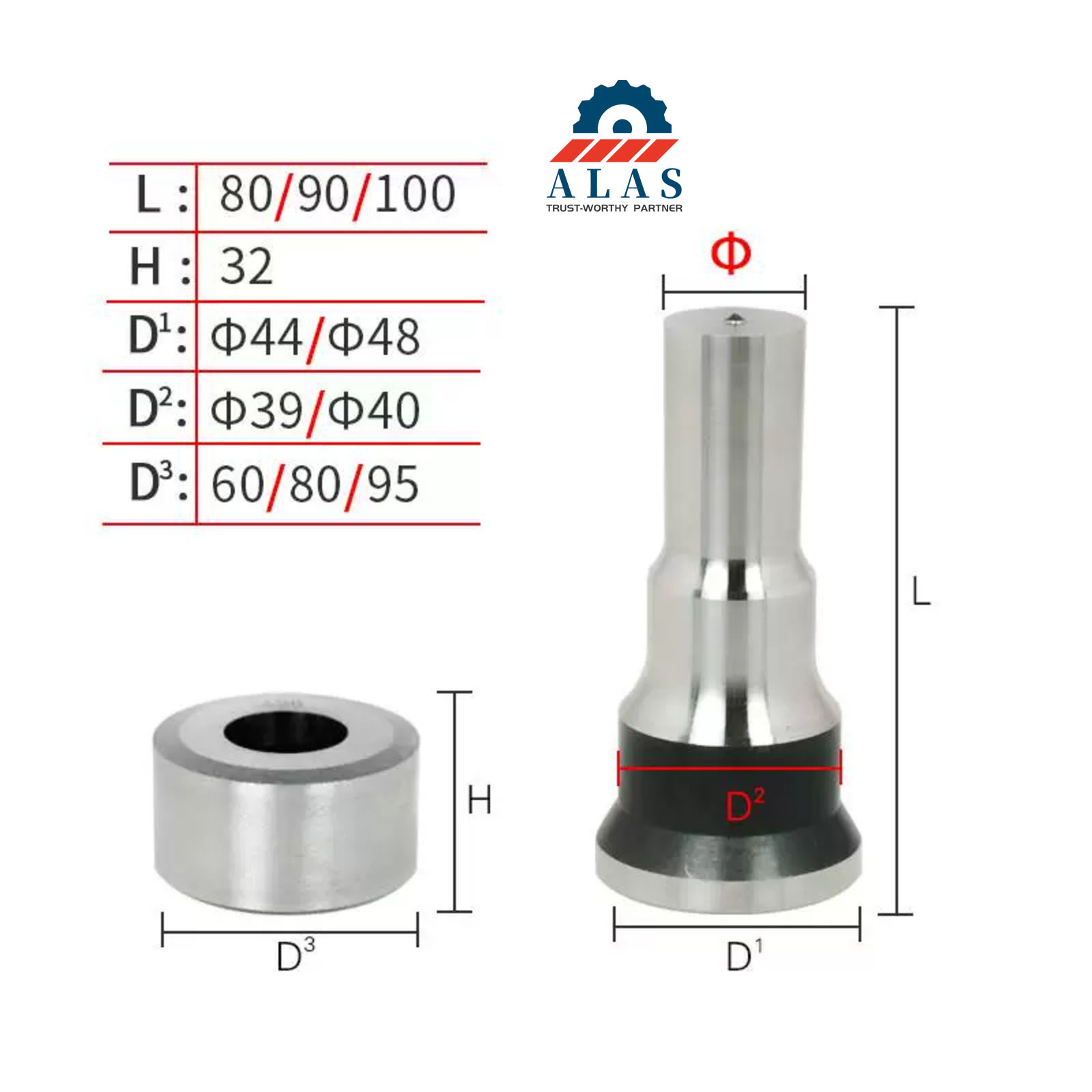

We maintain a large in-stock catalog of standard round sizes: metric φ6mm to φ60mm and imperial 1/4” to 2-1/2”, covering all common M6–M60 bolt hole specifications.

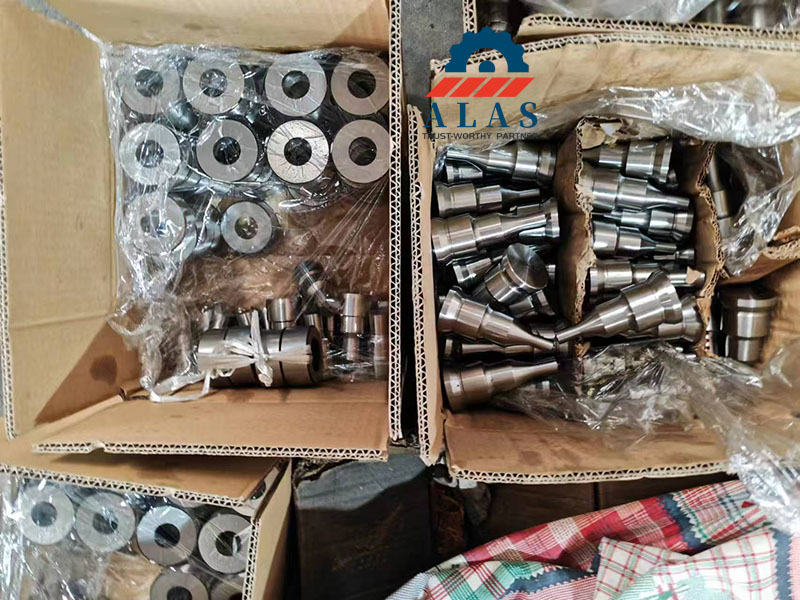

Custom diameters, stepped punches and shoulder-style round tools are available per customer drawings. Standard custom orders ship in 7 working days; complex special structures take 12 days. 1,200+ SKUs in local Nanjing stock enable 24-hour emergency replacement delivery to stop production downtime caused by sudden tool failure.
Tiered Warranty & Full Bidding Documentation
We offer application-based warranty coverage for all tooling grades:
Defects from material or manufacturing errors qualify for free replacement. Normal wear or misuse with over-thickness material is not covered. Every batch includes complete SGS material reports, hardness certificates and fatigue test documents to support project bidding and factory audit requirements.
Proper Maintenance to Extend Punch Service Life
Simple, routine maintenance extends tool life by an average of 22%:
Apply molybdenum disulfide lubricant every 5,000 punching cycles.
Polish cutting edges with 800-grit abrasive pads once surface scratches exceed 0.03mm depth.
Industry Applications
ALAS precision round punches are widely used for standardized bolt hole fabrication in:
Structural steel prefabrication
Bridge and highway component manufacturing
Truck, trailer and agricultural chassis production
HVAC frames and electrical enclosure fabrication
Steel rack, bracket and general job-shop metalworking
FAQ – Categorized & Field-Focused
Material Performance & TCO Cost
Q: DC53 costs more upfront — why is it the most cost-effective option long-term?
A: DC53 undergoes -196℃ cryogenic treatment to eliminate internal quenching stress, reducing edge chipping and fracture rates by 68%. In real workshop operations, 61% of total punching costs come from labor and downtime, not tool purchase. Its far longer service life drastically reduces tool change frequency and production stops, delivering the lowest per-hole operational cost over time.
Q: Can I use 9CrSi punches for occasional 8mm carbon steel punching?
A: Strongly discouraged for any regular or occasional use. 9CrSi steel only offers low impact toughness of 32 J/cm². Forcing it to punch carbon steel over 5mm thick will rapidly deform and soften the cutting edge within 1,500 strokes. This causes hole tolerance to drift beyond ±0.1mm, resulting in frequent dimensional errors and extra rework. For 5–10mm thick plates, stick with Cr12MoV; choose DC53 for 8–15mm high-strength steel for stable, long-lasting performance.
Compatibility & Custom Tooling
Q: Can ALAS D2/Cr12MoV punches replace original SKD-11 tooling directly?
A: Yes. All shank dimensions, outer diameters and die clearances are precisely matched to OEM SKD-11 standards. The tools install directly without fixture adjustment, delivering consistent hole accuracy and stable performance.
Q: Do custom stepped round punches carry the same tolerance and warranty?
A: All custom tooling undergoes the same forging, heat treatment and precision grinding process as standard products. They maintain ±0.02mm tolerance and receive the same tiered warranty coverage based on material grade.
Documentation, Delivery & After-Sales
Q: Can you provide official test reports for bidding projects?
A: Full SGS material composition reports, hardness test certificates and fatigue strength inspection documents are available for every order, fully compliant with construction and steel fabrication tender requirements.
Q: What is your support for emergency tool replacement?
A: Standard round punch sizes are stocked locally for 24-hour urgent delivery. Custom tooling based on customer drawings takes 15–20 working days depending on complexity.
Get Exact Solutions for Your Workshop
✅ Free Technical Guide – Download our Ironworker Tonnage & Punch Material Matching Checklist to select the best grade for your plate thickness and daily output.
✅ Custom Punch Quotation – Send your CAD drawings for stepped, special or non-standard round punches. Get an accurate quote within 1 hour.
✅ Bulk Order Discounts – For continuous production lines, contact our team for volume-based preferential pricing and long-term factory support.
