What Is 9CrSi Material? Properties, Hardness & Guide for Industrial Blades
Views: 14 Author: ALAS-MT Publish Time: 2026-06-25 Origin: Site
What Is 9CrSi Steel? Properties, Hardness & Applications for Industrial Blades
9CrSi is a low-alloy tool steel you'll see everywhere on light-to-medium duty industrial shear blades and cutting tools. Decent wear resistance, enough toughness to get the job done, and a price tag that doesn't hurt the budget — that's why it's such a staple for general-purpose metal cutting.
If you're running a cost-conscious operation and mostly cutting thin mild steel, 9CrSi gives you reliable performance at the lowest upfront cost. It's not going to handle heavy-duty or high-impact work, but as far as entry-level industrial blades go, it's the workhorse that just keeps going.
What Is 9CrSi Steel?
9CrSi (pronounced "nine chromium silicon," or 9 铬硅 if you're talking to a Chinese supplier) is a chromium-silicon alloy tool steel that falls into the low-alloy cold work tool steel category.
Chemical Composition
Here's the full chemistry breakdown per Chinese standard GB/T 1299:
Element
Content (wt%)
What it does
Carbon (C)
0.85 – 0.95
The backbone — gives you hardness and wear resistance after quenching
Silicon (Si)
1.20 – 1.60
Boosts tempering stability and hardenability; also helps with wear resistance
Manganese (Mn)
0.30 – 0.60
Improves hardenability and strength; standard addition in most tool steels
Chromium (Cr)
0.95 – 1.25
Adds corrosion resistance (mildly) and further improves hardenability
Phosphorus (P)
≤ 0.030
Impurity — kept low to avoid brittleness
Sulfur (S)
≤ 0.030
Impurity — kept low to avoid brittleness and poor toughness
Not a ton of alloying elements overall, but the combination of chromium and high silicon is what makes it noticeably better than plain carbon steels like T10A. The silicon in particular is what gives 9CrSi its good tempering stability — it can take more heat during grinding and service without softening as quickly as a simple carbon steel.
If you're looking for international equivalents, Russia's 9XC is its direct twin. 9CrSi has no direct, identical match in the AISI (US) system, though it operates in a similar performance tier as lower-end A-series or O-series cold-work steels. Fair warning: 9CrSi is primarily a Chinese standard grade, so you'll see it most often in Asian manufacturing supply chains.
"We call 9CrSi the 'workhorse' steel for entry-level industrial blades. It's never going to wow anyone with extreme performance numbers, but put it in the right application and it just delivers — solid, predictable, and at a price that's hard to argue with."
— ALAS Senior Materials Engineer
What's the Actual Hardness on 9CrSi Blades?
For industrial shear blades specifically, 9CrSi typically comes in at HRC 56–58 after heat treatment.
A quick note on context: yes, 9CrSi can be hardened higher — for small hand tools like taps and reamers, it's often quenched to HRC 60–64. But as a shear blade material, we deliberately temper it back down to 56–58. That range is the sweet spot — hard enough to hold an edge, tough enough not to chip the second you hit something. Push past that and the toughness drops off a cliff. Edge chipping and fracture go from "occasional problem" to "constant headache" real fast.
Application
Recommended Hardness
What's happening here
Thin mild steel shearing (<6mm)
HRC 57–58
Max out the wear resistance
Medium plate shearing (6–12mm)
HRC 56–57
Trade a little wear for better toughness
Light slitting applications
HRC 57–58
Good edge retention for steady cuts
Quick reality check: Don't even bother with T10A or other simple carbon steels for industrial shearing blades. Yeah, they can hit similar — or even higher — hardness numbers on paper (T10A easily reaches HRC 62 as a tool steel). But the toughness is garbage for shearing applications. They chip constantly, fail early, and you end up spending more on replacements and downtime than you saved on the blade itself. Penny wise and dollar foolish.
What Makes 9CrSi Tick?
It wears well for the money
At HRC 56–58, 9CrSi wears a lot better than plain carbon steels. The chromium and high silicon content work together — silicon significantly boosts tempering stability and hardenability, helping the blade stay sharp longer than T10 or similar grades. Not world-class, but definitely a step up from basic carbon steel.
Tough enough for light duty work
Let's be honest — 9CrSi isn't going to win any toughness awards. It's not 6CrW2Si and it's definitely not H13. But for moderate impact forces and steady, light-to-medium duty cutting? It holds up fine. Just don't ask it to do things it wasn't designed for.
Stays flat through heat treatment
One underrated thing about 9CrSi: it distorts very little during heat treatment. That means your blades come out flatter and more parallel — which matters a lot more than people think when you're trying to get clean, consistent shears every single time.
Machines like butter
In the annealed state, 9CrSi is easy to work with. It machines cleanly, doesn't eat up tooling, and keeps manufacturing costs down. This is a big reason you see it on so many standard-size shear blades — it's cheap to produce.
It's cheap. Like, really cheap.
Stack it up against Cr12MoV or H13 and the price difference is night and day. For applications where 9CrSi actually works, it's the lowest cost per cut you're going to find in its performance class.
Where Do You Actually Use 9CrSi?

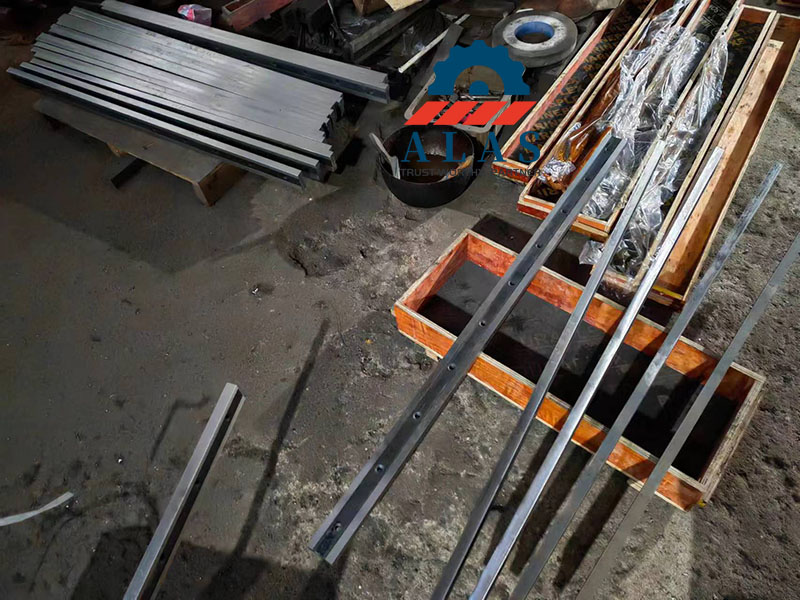

Light-duty shear blades
This is 9CrSi's bread and butter. It's the standard material for entry-level guillotine shear blades cutting thin mild steel — we're talking generally under 10mm. Walk into any small fabrication shop or job shop with lower production volumes, and chances are they're running 9CrSi blades.

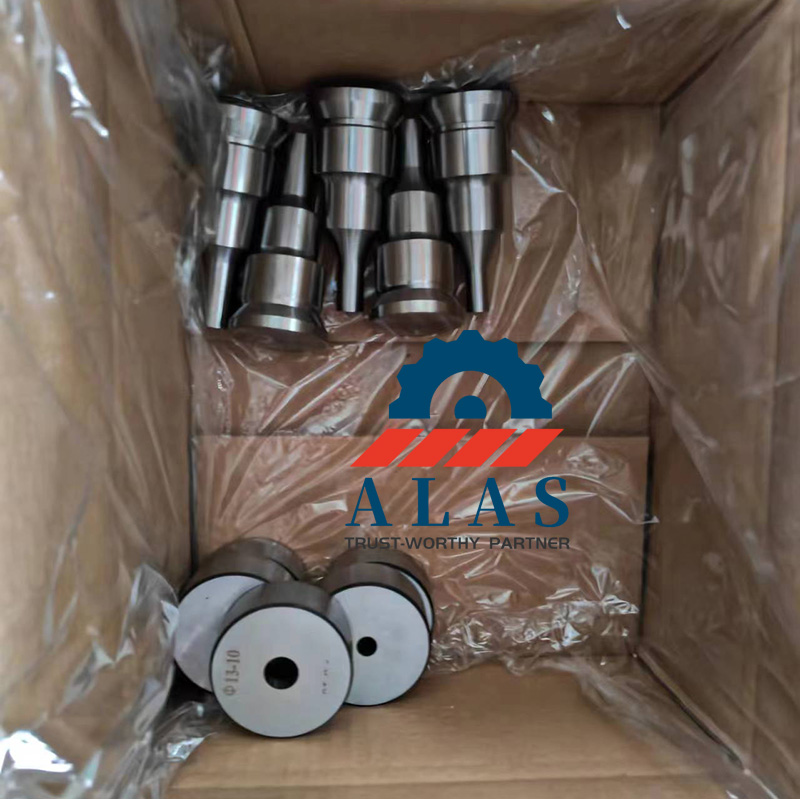

On small ironworkers punching thin mild steel plate, 9CrSi punch dies are a common budget option. They work fine for low-volume job shop work where you're punching holes in 6mm or thinner mild steel and don't need production-level tool life. Just don't expect them to hold up on thick plate, stainless, or high-volume production runs — the edges will chip and mushroom faster than you'd think. For that kind of work, you want Cr12MoV or better.

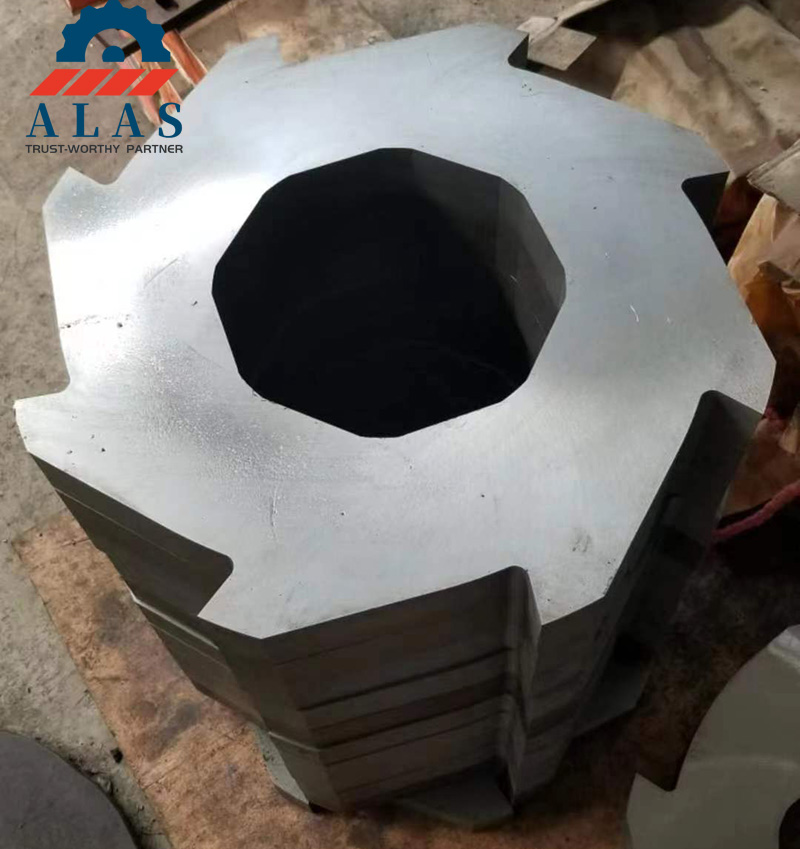

Multi-claw shredder blades (light duty)
For small shredders processing soft materials like waste paper, cardboard, thin plastic film, or light wood scrap, 9CrSi multi-claw blades are an economical choice. They're cheap to replace and do the job fine on low-volume, light-duty shredding where the feed material is clean and free of metal contaminants. But throw anything hard or abrasive at them — metal bits, stone, thick hardwood — and those claws will chip, dull, or even break. For heavy shredding, go with H13 or D2.

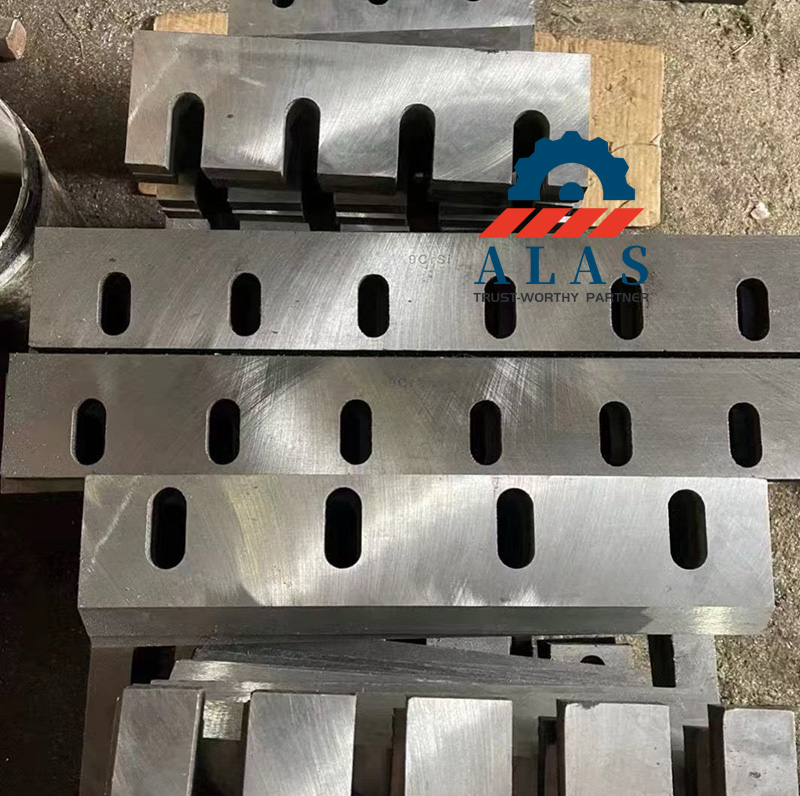

For general-purpose plastic granulators processing PP, PE, PS, and other non-abrasive commodity plastics, 9CrSi blades are a common budget choice. They hold up fine on low-to-medium volume recycling lines where the plastic is clean and unfilled. If you're running glass-filled nylon or other abrasive engineering plastics though, step up to something better — 9CrSi will dull fast.
On small, portable rebar cutters handling smaller diameter bars (typically up to 16mm), 9CrSi is often the stock blade material. It's cheap, it cuts plain mild steel rebar cleanly, and for occasional or job-site use, it gets the job done. Just know that on heavier production rebar shops or larger bar sizes, you'll want 6CrW2Si or H13 instead — 9CrSi chips too easily under repeated high-impact cuts.
Slitter knives for mild steel
On slitting lines processing mild steel and low-carbon steel coils, 9CrSi slitter knives do the job just fine. Good edge retention, economical price point — what's not to like if you're running mild steel?
Light gauge metal cutting, generally
Pretty much anything involving thin, soft metals works — thin-wall tubing, light sheet metal, low-carbon steel profiles. If the material is on the soft side and the gauge is light, 9CrSi is probably up to the task.
General-purpose industrial knives
There's a whole category of general-purpose cutting tools where extreme performance isn't the goal, but reliability and cost-effectiveness are. That's 9CrSi's wheelhouse.
Where it doesn't belong: Stainless steel, high-tensile steel, thick plate, high-impact scrap shearing, hot shearing of any kind, glass-filled or abrasive plastics, heavy-duty rebar production, or high-volume production where blade changes eat into your profits. For any of that, step up to 6CrW2Si, Cr12MoV, or H13.
9CrSi vs 6CrW2Si vs H13: What Should You Actually Buy?
Stainless steel, heavy plate, hot shearing, impact loads
$$$$
Quick decision guide
Go with 9CrSi if you're only cutting thin mild steel at room temperature, volume is low, and upfront cost is basically your whole decision
Step up to 6CrW2Si if you're cutting medium-thickness steel and need better toughness and wear across the board
Pick Cr12MoV if you're running high-volume thin-gauge production and wear resistance is everything
Go straight to H13 if you're cutting stainless, high-tensile, or thick plate — or if chipping and heat are the things costing you money
"The biggest mistake we see all the time? Customers buying 9CrSi blades for stainless steel or thick plate because they're cheaper. Yeah, you save 30% on the blade. Then you go through three times as many blades and deal with constant downtime from chipping. The wrong material always costs more in the end. Always."
— ALAS Application Engineer
Why People Like 9CrSi Blades
The upfront cost is low
Like, really low. 9CrSi blades are the cheapest option for light-duty shearing. If you're a small shop or only use the shear occasionally, the lower buy-in makes total sense.
It holds an edge — on mild steel anyway
Stay within its design limits — thin mild steel, low to medium volume — and 9CrSi stays sharp and cuts consistently. The problems start when people push it beyond what it's meant for.
Sharpening is easy
Compared to higher-alloy steels, 9CrSi is a dream to resharpen. Faster turnaround, lower sharpening costs. It adds up over time.
You can get them anywhere
9CrSi is one of the most common industrial blade materials out there. Standard sizes are in stock at pretty much every manufacturer. Short lead times, easy to plan replacements.
You know what you're getting
This stuff has been around forever. Decades of use in industrial cutting tools. Everybody knows how it behaves. Match it to the right application and it just does its thing — no surprises.
When to Walk Away From 9CrSi
9CrSi is great — in the right context. Here's when you should pick something else:
You're cutting stainless steel. The high tensile strength and work-hardening will eat 9CrSi for lunch. Rapid wear, edge chipping, constant frustration.
You're cutting thick plate (over 12mm). Thicker material means higher impact forces, and 9CrSi's toughness just can't keep up.
Your production volume is high. The blade savings vanish when you're swapping blades every single week.
Downtime from chipping costs you real money. If a broken blade means hours of lost production, spend the extra on something tougher like H13. It pays for itself.
You're cutting abrasive stuff. Rust, scale, sand — any abrasive contaminants will wear through 9CrSi edges in a hurry.
You're doing any kind of hot shearing. 9CrSi starts softening above 200–250°C. It's a cold-work steel, full stop.
FAQ
How long do 9CrSi shear blades actually last?
For 6mm mild steel, you're looking at roughly 30,000–50,000 cuts per edge. Real-world numbers vary a lot based on material thickness, how much you're running, and whether anybody's actually doing maintenance on them.
Is 9CrSi the same as D2?
No. Not even close. D2 (that's Cr12MoV) has way more chromium — 12% vs around 1% — which gives it dramatically better wear resistance, though it can still be prone to chipping under high impact, much like 9CrSi. However, D2 costs significantly more.
Can 9CrSi cut stainless steel?
Technically? Sure, it'll cut it. Should you? Probably not. It wears fast and chips easily on stainless because of the high tensile strength and work-hardening. If you're shearing stainless, use H13. Trust us.
How many times can you resharpen 9CrSi blades?
Usually 5–8 times, depending on how much steel you're taking off each time and how thick the blade started. Take care of them and you might squeeze out a few more.
Is 9CrSi better than T10A?
For industrial shearing? Way better. T10A is plain carbon steel — garbage toughness for shear blade applications. Yeah, the hardness numbers look similar or even higher on paper (T10A can hit HRC 62+ as a tool steel), but T10A chips constantly and dies early under impact loads. The chromium and silicon in 9CrSi make it far more suitable for actual industrial shearing.
Get the Right Tooling for Your Operation
Still not sure if 9CrSi is the right call for your setup? Send the ALAS engineering team the details — what you're cutting, what machine you're running, what your volume looks like. We'll tell you which blade material actually gives you the lowest total cost of ownership. No sales pitch, just straight answers.
