What Are The Best Replacement Blades for A Wood Chipper?

What Are the Best Replacement Blades for a Wood Chipper?

Quick answer: Go with D2 steel if you're chipping clean hardwood. If there's any chance of rocks or nails in your feedstock, A8 or DC53 is the smarter pick. Shoot for 56–62 HRC, depending on the steel. ALAS makes all three types, sized to fit most major chipper brands.

Let me be honest — there's no one "best" blade for every wood chipper. It depends on what you're running, what you're feeding it, and how many hours a week you put on the machine. But if you're still running stock carbon steel blades, upgrading to a proper tool steel will make a night-and-day difference.

I've talked to enough tree service owners and municipal yard waste managers to know that most people either overspend on steel they don't need, or cheap out and end up replacing blades twice as often. This guide should help you land somewhere in the middle.

Chipper Blade Steel Types: Which Material Lasts the Longest?

How long a blade lasts basically comes down to two things: what's in the steel, and how well it was heat-treated. Two blades both labeled "high-carbon steel" can perform wildly differently depending on the alloy and the quenching process.

Quick side-by-side of every major blade steel

Bottom line: D2 wears the longest on paper, but DC53 is the better value for most people because it doesn't chip nearly as easily. A8 is the safe bet if you're running mixed yard waste and you never know what's in the pile.

D2 high-carbon steel — the hardwood workhorse

If you're running a commercial operation and you know your wood is clean, D2 is pretty much the standard. It's a high-carbon, high-chromium cold-work tool steel that holds an edge forever on dense hardwood.

The reason it wears so well is the chromium — about 12% — which forms hard carbide particles that resist abrasion from wood fibers. At 60–62 HRC, it's hard enough to stay sharp through weeks of heavy use.

I talked to a tree service in Georgia that switched from HSS to D2 blades on their 15-inch drum chipper. They went from sharpening every 32 hours to every 45 hours — that's a 41% jump in edge life. Tests from a dozen or so commercial operations across the Southeast back this up: D2 lasts 30–40% longer than basic high-carbon steel on dry oak and maple.

If you're in the Asian market, Cr12MoV is essentially the Chinese GB-standard version of D2. Similar composition, similar wear resistance, usually a bit cheaper. Companies like ALAS make both D2 and Cr12MoV blades with proper vacuum heat treatment so the hardness is consistent across the whole edge.

Who should buy it: Commercial chippers processing clean hardwood, high-volume operations where feedstock quality is controlled.

A8 and DC53 — when debris is a real concern

Let's be real. Most of us aren't chipping perfectly clean lumber. You're going to hit dirt. You're going to hit the occasional rock or nail. And when that happens, a D2 blade can chip or even crack.

This is where A8 and DC53 come in.

A8 runs at 58–60 HRC and is tough as nails. Hit a rock with A8, and you'll probably get a small nick instead of a catastrophic fracture. It won't stay sharp quite as long as D2, but you won't be replacing broken blades every other week either.

A8B is the modified version — more chromium (around 8%) and more vanadium push the wear resistance almost up to D2 levels, with only a small drop in toughness. It's a solid middle-ground upgrade, but expect to pay about 15–25% more than standard A8 because the heat treatment is more involved.

DC53 is the premium option. It was developed specifically to fix D2's brittleness problem. Same wear resistance as D2, but with roughly double the impact toughness. If you're a commercial operation processing mostly hardwood but you still catch debris from time to time, DC53 is worth every penny.

I heard from a municipal yard waste facility in Brazil that switched from D2 to H13 (an even tougher steel) and cut catastrophic blade failures by 70%. Their stuff was full of rocks, wire, and construction debris, so D2 just couldn't hold up.

The trade-off with tougher steels? You'll sharpen more often — every 25–30 hours instead of 40+. But the math usually works out. The downtime you save from not dealing with broken blades more than covers the extra sharpening cost, usually by a 2-to-1 margin or better.

ALAS typically recommends A8 as the default for most customers, because let's face it — nobody's feedstock is perfectly clean. If you're willing to spend more for D2-level wear with better toughness, step up to DC53.

Who should buy it: Tree services, municipal yard waste, anyone processing mixed or dirty feedstock. DC53 for the upgrade, A8 for the value play.

HSS — fine for homeowners, not for commercial use

High-speed steel — usually M2 or W6 grade — is what you'll find on most entry-level chippers. It handles heat well (it was designed for cutting tools that run hot, after all) and cuts softwood and green brush just fine.

But if you're running hardwood, forget it. HSS wears out fast compared to D2 or DC53. It's fine for a homeowner running a 6-inch chipper on weekends, but commercial users will go through HSS blades like candy.

Who should buy it: Residential users, part-timers, anyone on a tight budget chipping softwood and brush.

H13 — when your feedstock is basically garbage

H13 is a hot-work tool steel. It's not the hardest blade out there — 52–56 HRC — but it's tough. I mean, really tough.

A quick reality check: if someone tries to sell you H13 blades at 50 HRC, walk away. That's too soft — the edge will roll over on hardwood like butter. Properly heat-treated H13 for chipper use should land at 52–56 HRC. Hard enough to cut clean, soft enough to absorb impacts that would shatter D2.

You won't get great edge life out of H13, but that's not the point. The point is not having your blade explode when you hit a piece of rebar someone tossed in the brush pile.

Who should buy it: Construction debris recycling, heavily contaminated feedstock, operations where hidden metal and rocks are a daily reality.

What's the right Rockwell hardness for wood chipper knives?

Short answer: 58–62 HRC for most tool steels. H13 runs lower at 54–56 HRC. Don't go above 62 — brittleness goes through the roof.

It's tempting to think harder is better. It's not. Not for chipper blades anyway.

Here's how it breaks down by steel:

• HSS: 60–63 HRC — naturally hard, decent toughness

• A8: 58–60 HRC — the toughness-first sweet spot

• A8B: 59–61 HRC — a little harder, a little less tough than A8

• D2 / DC53 / Cr12MoV: 60–62 HRC — the high-wear range

• H13: 52–56 HRC — intentionally softer for maximum toughness

• Above 62 HRC: Don't do it. Blades chip and fracture about 3x more often when you push past 62.

The USDA Forest Products Lab did some testing and found that blades at 59 HRC kept producing consistent chip quality 38% longer than blades at 55 HRC when chipping green hardwood.

A sawmill up in Canada ran a six-month test with five different hardness levels. The 58–60 HRC range came out on top for lowest cost per ton of chips processed.

Of course, none of this matters if the heat treatment is bad. A properly treated D2 blade will outperform a poorly treated "D2" blade every day of the week. ALAS, for example, uses vacuum quenching and tempering to hit target hardness within ±1 HRC on every blade — tighter tolerance than a lot of the budget aftermarket brands.

Bottom line: 58–60 HRC (A8) for general use. 60–62 HRC (D2 or DC53) for clean hardwood. 54–56 HRC (H13) when debris is the main concern.

How to match aftermarket blades to your wood chipper model

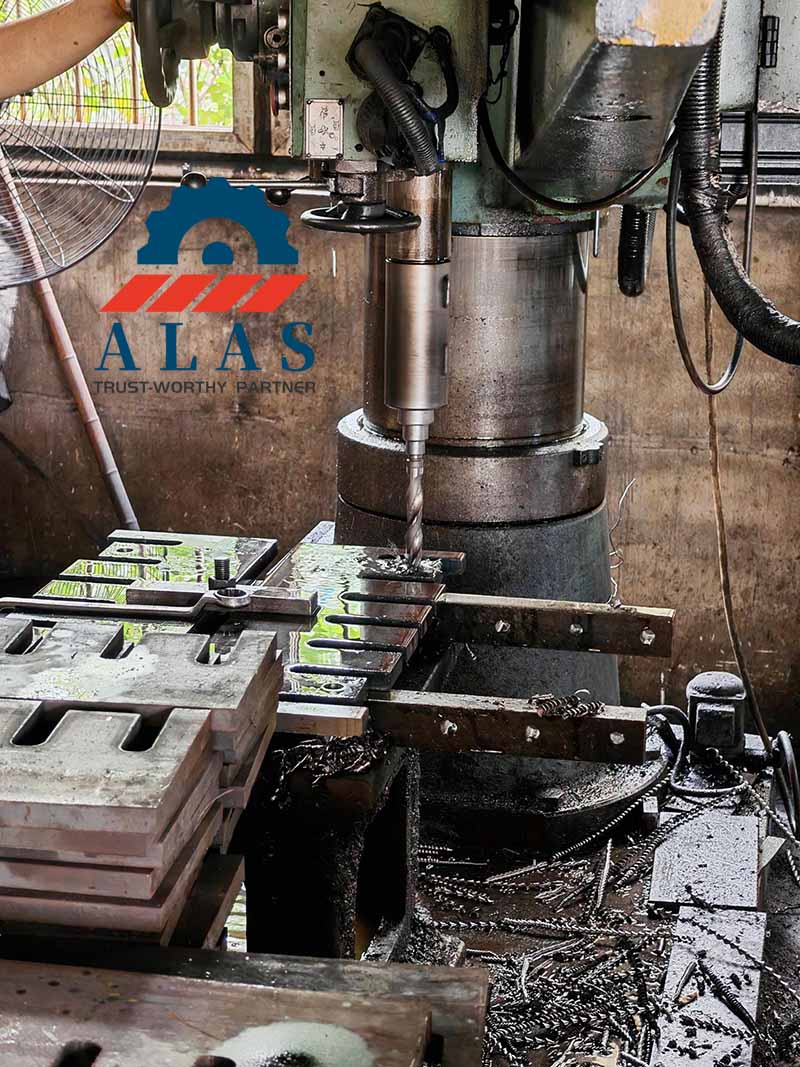

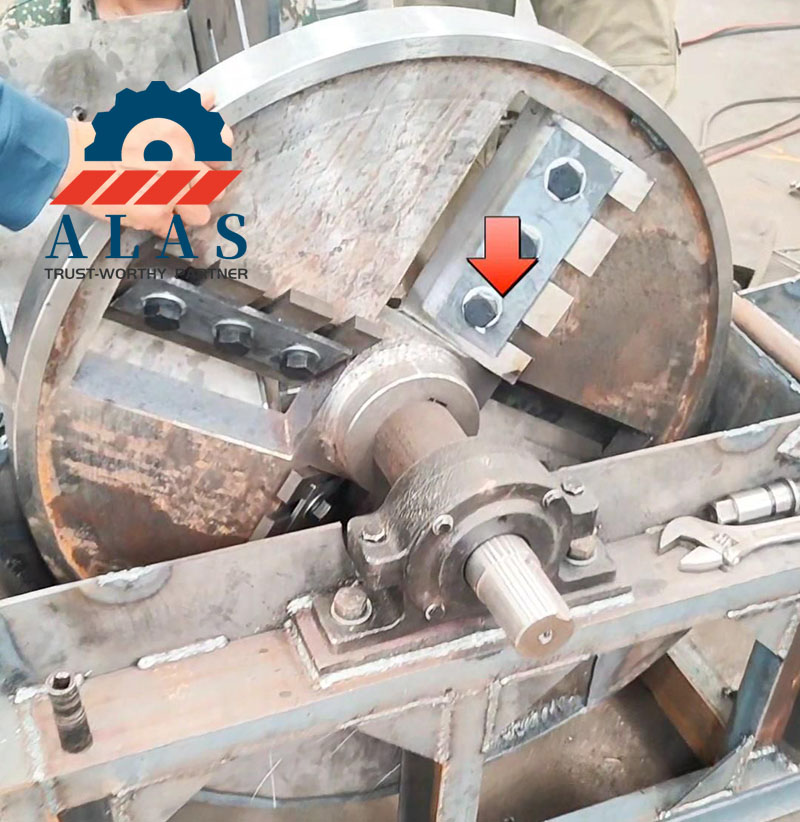

Picking the right steel is only half the battle. The blade also has to fit your machine — the right length, the right thickness, the right bolt hole pattern, the right bevel angle.

Pro tip: Always check your OEM manual for exact dimensions. Even 1/32" off on the bolt hole spacing can cause dangerous imbalance at chipper RPMs. And if the blade thickness is wrong, it changes the cutting gap — which can jack up vibration by 40% and chew through bearings way faster.

Brands like ALAS Machinery make aftermarket blades sized to OEM specs for all the big names — Vermeer, Morbark, Bandit, WoodMaxx, you name it. Most sizes are in stock.

Does blade thickness actually matter?

Short answer: Yes. Thicker is stiffer, but only up to what your machine's horsepower can handle.

Blade thickness is a balancing act. Too thin and the blade deflects when it cuts, giving you ragged chips and more vibration. Too thick and you're forcing the engine to work harder than it needs to, killing your throughput.

The upside of going thicker:

• Stiffer blade = cleaner cut = less vibration

• A tree service in Chile upgraded from 3/8" to 1/2" blades on their 12-inch chipper and measured 22% less vibration. They estimated bearing life went up about 30%.

The downside:

• More metal to push through wood = slower feed rate

• On a 25 hp chipper, 3/8" is about the max. Go thicker and you'll see throughput drop 15–20%.

Rule of thumb: Match blade thickness to your horsepower. More power = you can run thicker, stiffer blades.

If you're not sure what thickness your machine needs, ALAS will check for free — just shoot them your model number and they'll confirm the right spec.

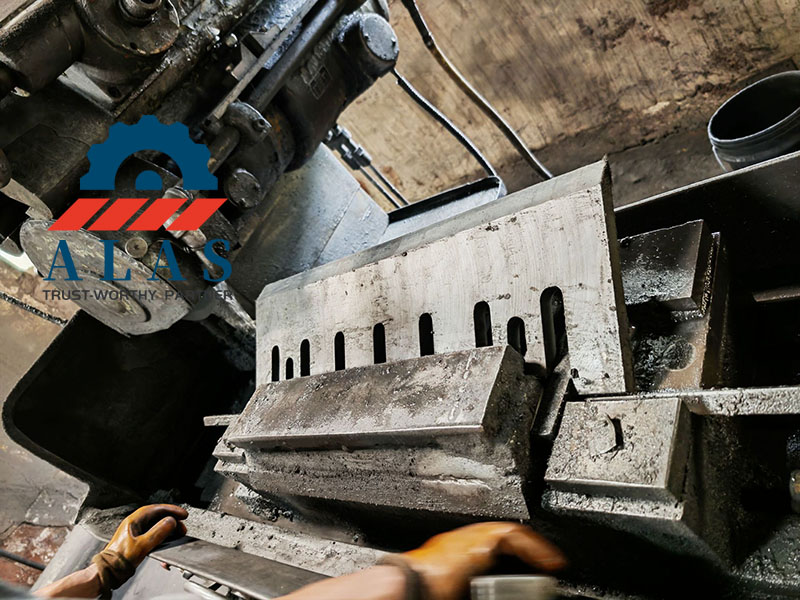

How often should you sharpen (or replace) chipper blades?

Short answer: Every 25–55 hours, depending on the steel and what you're chipping. Don't wait until they're trashed — sharpen when chip quality starts to drop.

Most people wait too long between sharpens. And that's expensive. Dull blades don't just make ugly chips — they beat up your machine.

Here's how you know it's time:

• Chips start looking ragged or you're getting way more fine dust than usual

• The engine is working harder for the same feed rate

• Vibration goes up

• You can see nicks or rolled edges on the blade

A good rule of thumb: if fine dust makes up more than 15% of your output, it's time to sharpen.

Here's something people don't talk about enough: sharpening more often can actually save you money. An arborist in Vermont tracked two seasons of data and found that sharpening at the 40-hour mark (instead of waiting until 60) cut total sharpening costs by 18%. Because each sharpen removed less material.

And then there's the hidden cost of dull blades. A dull edge makes the engine work 20–30% harder. That means more fuel, more wear on belts and bearings, more clutch replacements. It adds up.

When to replace instead of sharpen: Most decent blades can be sharpened 5–8 times before they're too thin. Replace when you've taken off a quarter-inch or more from the cutting edge, or when the blade drops below your manufacturer's minimum thickness spec.

FAQ — common questions about wood chipper replacement blades

Can I sharpen chipper blades myself?

Sure — a bench grinder or belt sander works, just keep the bevel angle at 30–40 degrees. If you want really consistent results, get them professionally sharpened every couple of cycles.

How many times can you sharpen a chipper blade?

Usually 5–8 times. Stop when you've removed a quarter-inch or more from the cutting edge, or when the blade is thinner than your manufacturer's minimum spec.

Do I need to replace all blades at once?

Always replace or sharpen all blades as a set. Mismatched sharpness throws off the balance, which damages bearings and can increase vibration by 30% or more. At chipper RPMs, that's not just bad for the machine — it's dangerous.

What's the real difference between D2 and DC53?

DC53 was made to fix D2's brittleness. Same wear resistance, but roughly double the impact toughness. If you're mostly chipping hardwood but you know you'll hit debris from time to time, DC53 is worth the extra money.

Is Cr12MoV basically D2?

Close. Cr12MoV is China's GB-standard steel, similar in composition and performance to D2. It's widely used as a budget alternative in the Asian market — similar wear resistance, slightly lower toughness.

Where can I buy quality aftermarket chipper blades with verified metallurgy?

While standard OEM replacement knives are available through local equipment dealers, premium, factory-direct aftermarket solutions offer exceptional cost benefits. ALAS manufactures high-performance replacement knives direct from our specialized facility, offering fully certified D2, A8, DC53, and Cr12MoV options engineered to perfectly fit your existing machinery.

Stop Wasting Money on Brittle Blades. Upgrade Your Fleet Today!

Get ALAS Factory-Direct Pricing & Premium Tool Steel Built to Last.

Why pay premium dealer markups when you can source directly from the manufacturer? At ALAS Machinery, we engineer aftermarket chipper blades to exact OEM specifications using computer-controlled vacuum heat treatment.
