Industry-Standard 40×40 mm Single-Shaft Shredder Blades
Watch this 30-second live demo. Our 40×40 mm single-shaft shredder blades cut through high-density plastic bundles and hard wood waste. No jamming, no slipping. The result: uniform fragments and smooth, high-throughput recycling.

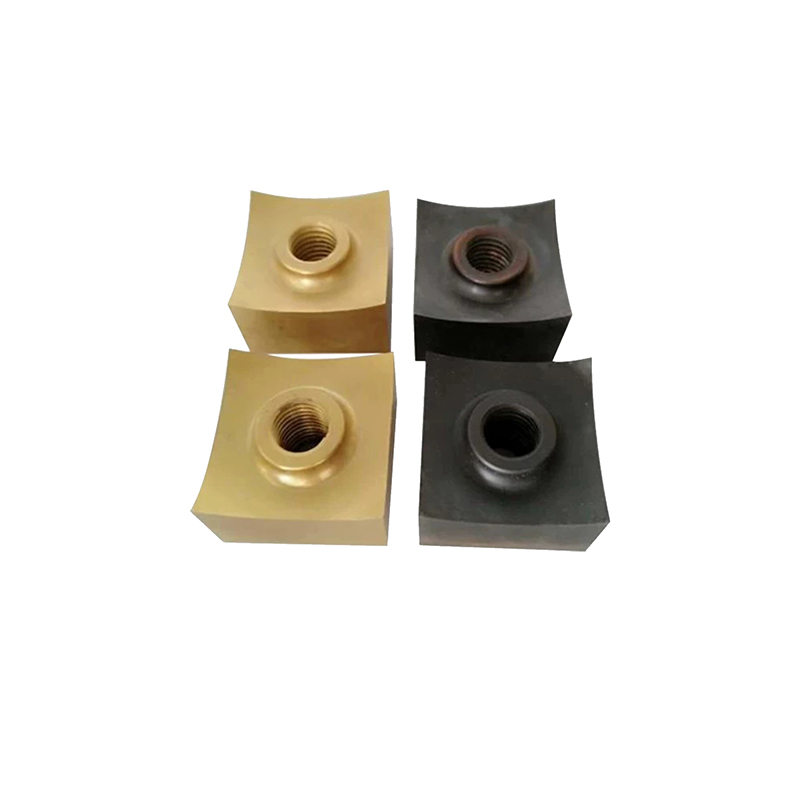

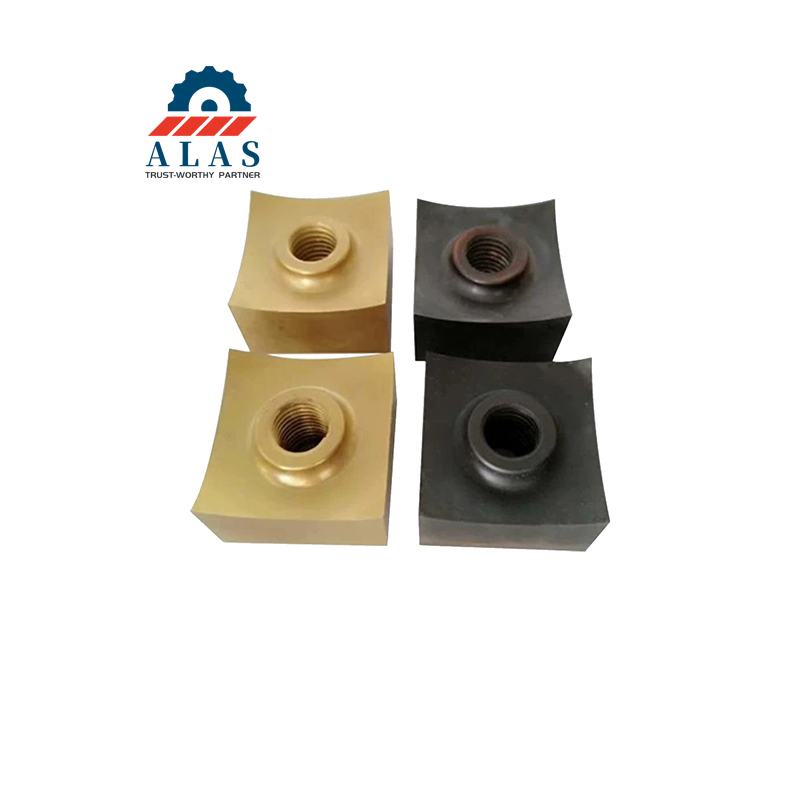

NANJING ALAS INTERNATIONAL CO., LTD. supplies premium 40×40 mm single-shaft shredder blades, the most widely adopted cutting size for global waste recycling and material processing applications. Featuring a precision concave face and four reversible cutting edges, our square 40×40 mm cutters deliver aggressive shear action, extended service life and minimum fine particle generation. They work reliably on tough plastics, solid blocks, rubber, timber and e-waste.
Strict Industrial Standard Specifications
Our 40×40 mm shredder blades are manufactured to strict industrial standards. Standard thickness options are 20 mm and 25 mm, fitted with precision countersunk M10 or M12 mounting holes for a tight, secure fit in standard rotor pockets.
We use high-grade D2 (Cr12Mo1V1) and DC53 alloy steel as standard materials. Every blade undergoes computer-controlled vacuum heat treatment, achieving a consistent hardness of 58–63 HRC. This balanced hardness and toughness delivers strong impact resistance and lowers your long-term operational and replacement costs (TCO).
With precise CNC grinding finished in-house, our 40×40 mm shredder blades are direct replacement parts compatible with major shredder brands, including WEIMA, Vecoplan, Lindner, UNTHA and Genox.
Why 40×40 mm Is the Industry Standard
The 40×40 mm blade size has become a universal industry standard for single-shaft shredders. Its versatile cutting performance suits a wide range of materials, making it the go-to option for processing tough plastics, rubber, wood and general industrial waste.
1. Precision Engineering & Universal Compatibility
Tight tolerance manufacturing ensures direct compatibility with most mainstream single-shaft shredder models
In-house CNC machining delivers accurate concave or flat blade profiles for cleaner cuts and lower power consumption

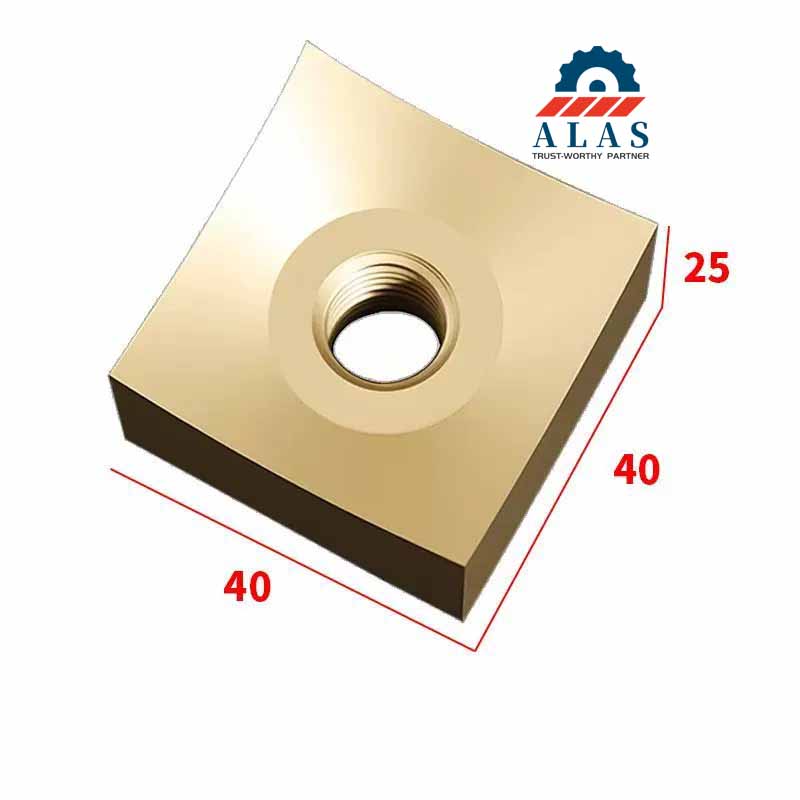

Standard dimensions: 40×40 mm footprint, with 20 mm and 25 mm thickness options
Standard M10 / M12 countersunk mounting holes guarantee stable, rattle-free installation
2. High Cost Performance & Lower TCO
Constructed from premium D2 and DC53 alloy steel for balanced toughness and wear resistance
Longer blade service life reduces frequent replacement cycles
Less downtime from blade failure improves overall machine uptime
Lower maintenance and part replacement costs reduce total equipment operating expenses
Working Principle of Single-Shaft Shredder Blades
Single-shaft shredder blades are the core cutting components of shredding machines. Mounted on the rotating main shaft, they work against fixed counter blades to shear and tear bulk materials into smaller pieces.
These blades handle plastics, wood, rubber, cables, light metals and paper fibers efficiently. Blade quality directly affects machine throughput, output particle consistency and overall operational stability. Our wear-resistant alloy steel blades maintain steady cutting performance over long-term use.
Material Selection Guide: D2 vs. DC53 Steel
D2 and DC53 are both high-performance tool steels built for heavy shredding workloads. Each material offers distinct advantages for different processing conditions:
| Performance Parameter | D2 (Cr12Mo1V1) | DC53 |
| Hardness (HRC) | 55–60 | 58–62 |
| Wear Resistance | Excellent | High |
| Toughness | Moderate, slightly brittle, prone to chipping | 2 times tougher than D2, anti-chipping and anti-cracking |
| Applicable Scenarios | Hard and single plastic materials (allowing slight blade chipping) | Mixed waste, PVC, rubber, tires, thick plastics, light metals |
Recommendation: DC53 is the preferred choice for most operational scenarios, especially mixed and contaminated waste streams. It provides better toughness, consistent hardness and reliable wear resistance, minimizing unplanned downtime from chipping or blade damage and extending service life significantly.
Blade Design Features & Specifications
1. Structural Working Principle
Blades are secured to the main shaft tool holder via the central mounting hole
Cooperates with fixed counter blades to form a precision shear cutting system
Main shaft rotation provides continuous, powerful shredding force
Key benefits: strong material grip, fast processing speed and straightforward maintenance
2. Common Size & Application Scenarios
| Blade Size (mm) | Applicable Materials | Output Particle Size | Applicable Equipment & Scenarios |
| 35×35×25 | Soft materials | 20–25 mm | Plastic film, woven bags, small and medium precision shredders |
| 40×40×25 / 60×60 | Solid blocks, cartons, plastic bottles, rubber | 25–40 mm | General-purpose, most standard single-shaft shredders (mainstream industry size) |
| 80×80×30 | Large and hard materials | 50+ mm | Wood, waste tires, thick plastics, metal cans (high-power equipment required) |
3. Installation Stability Design
Flat and convex center hole designs available to fit various tool holder specifications
Precision-fit structure prevents loosening during high-speed operation
Recessed cutting edge options deliver higher cutting accuracy for fine shredding tasks
Professional Manufacturing Process
We follow a strict standardized production workflow to guarantee every blade delivers high precision, reliable toughness and long service life:
Blanking & Forging: Premium alloy steel blanks are cut and forged to refine internal metal structure, improving overall strength and preventing blade fracture
-
Precision Heat Treatment
DC53 blades: Fully quenched to 58–62 HRC for maximum toughness and wear resistance
D2 blades: Multi-step heat treatment stabilizes hardness at 55–60 HRC for balanced performance
Stress relief treatment eliminates internal tension, balancing hardness and toughness to resist chipping and cracking

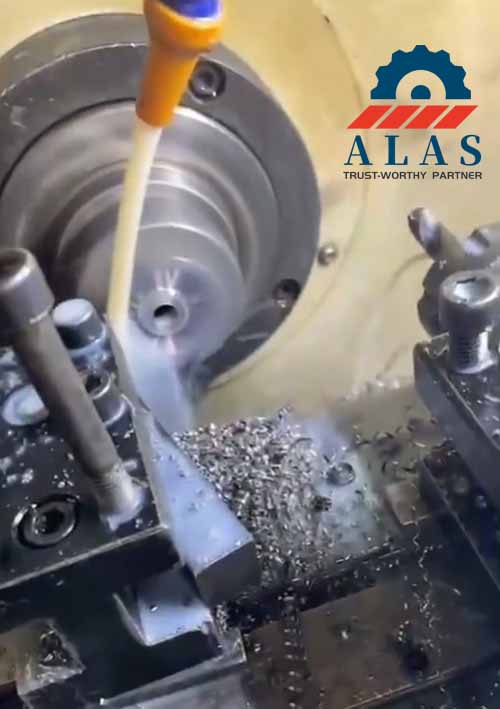

Precision Machining: CNC finishing, wire cutting and high-precision grinding ensure accurate dimensions, flat blade surfaces and sharp, uniform cutting edges

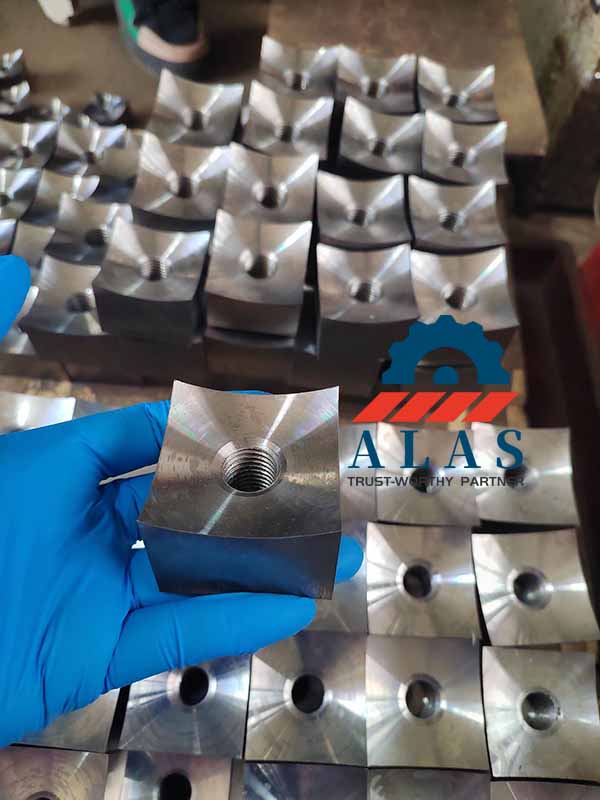

Quality Inspection: Every production batch is fully tested for hardness, dimensional accuracy and surface defects to ensure consistent quality
Daily Maintenance Guidelines
Clean residual materials from blade surfaces regularly to avoid buildup that reduces cutting efficiency
Inspect blade wear during routine cleaning cycles
Resharpen or replace worn blades promptly to maintain stable shredding output
Frequently Asked Questions (FAQ)
Q1: Can 40×40 mm blades fit non-listed brand shredders?
A1: Yes, in most cases. The 40×40 mm size is a universal industry standard compatible with most Chinese, European and American single-shaft shredders. Send us your blade drawings or existing samples for free compatibility verification.
Q2: What is the difference between 20 mm and 25 mm thickness?
A2: 25 mm thick blades offer higher structural strength and better durability for heavy-duty materials like solid wood and thick plastics. 20 mm thick blades are lighter and more cost-effective for soft materials such as plastic film and rubber. Choose thickness based on your processing materials and rotor pocket depth.
Q3: Can DC53 blades replace the original D2 blades of old equipment?
A3: Absolutely. DC53 blades match D2 blade installation dimensions while providing superior toughness. They will not damage your machine and require no equipment modification, provided hardness and mounting hole specifications match. Many customers upgrade from D2 to DC53 for better performance.
Q4: What is the resharpening cycle of 40×40 mm blades?
A4: The resharpening interval depends on material type and daily operating hours. For standard materials including plastics, wood and rubber, resharpen every 200–400 working hours. For abrasive materials like glass-filled plastics, shorten the cycle. Visibly larger output particles or increased machine current indicate dull blades needing resharpening.
Q5: Do you provide single blades or complete rotor assemblies?
A5: We supply individual shredder blades. We do not offer complete rotor assemblies, but we can refer reliable local suppliers upon request. For most maintenance cases, replacing only the blades is sufficient.
Q6: How to judge whether to resharpen or replace the blade?
A6: Normal blade dullness can be fixed by resharpening. If blades have obvious cracks, deep chipping, or edge wear exceeding 3–4 mm of the original size, direct replacement is recommended to avoid efficiency loss and equipment strain.
Q7: Is sample order supported before bulk purchase?
A7: Yes, sample trial orders are welcome. You can purchase small batches of 10–20 pieces for testing. We produce strictly according to your OEM specifications. We will resolve any fit or performance issues if they occur.
Q8: What is the production and delivery cycle of 40×40 mm blades?
A8: Standard stock D2 blades (20 mm / 25 mm) ship within 3–5 working days. DC53 blades and custom hole-spec blades require 10–15 working days for production.
Consultation & Custom Service
If you have further questions or custom blade requirements, send us your machine model or blade drawings. We will reply within 24 hours with professional matching solutions.
