Special Tooling Design and Springback Control for Acute Angle Bending (<90°)

Abstract: Bending sensitive alloys or high-tensile sheet metal below 90 degrees triggers massive material springback and rapid punch tip wear. Standard 88° air bending tools cannot achieve proper over-bending on acute profiles. This technical guide outlines how specialized acute tool profiles, 30° tool steels (like H13 or SKD11), and precision over-bending calculations eliminate angle variations without cracking the material skin.

1. Process Challenges in Acute Angle Bending

Standard 88° or 86° punches rely on conventional air bending to compensate for minor springback in standard 90° structural parts. However, when the target bend angle drops below 90°—specifically within the critical acute zone of <85°—the material's elastic recovery ratio increases drastically due to extreme tensile strain on the outer fibers. Standard tooling setups fail under these conditions.

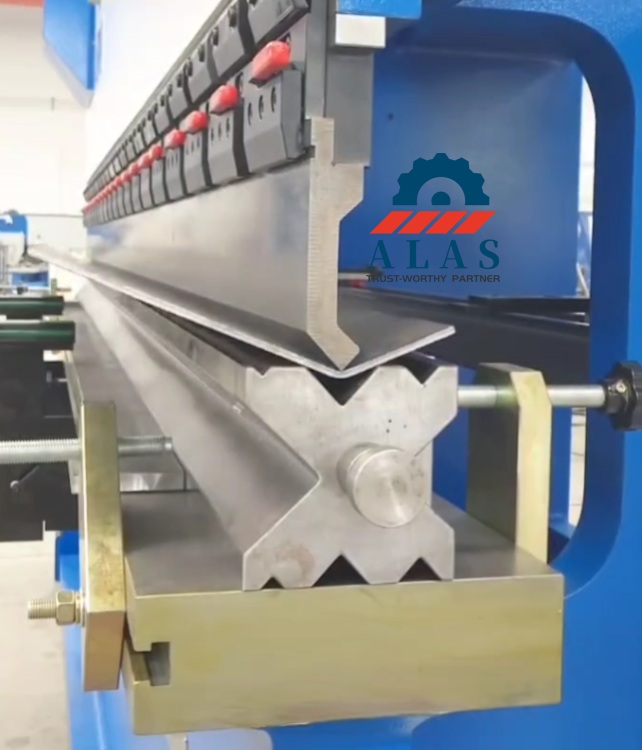

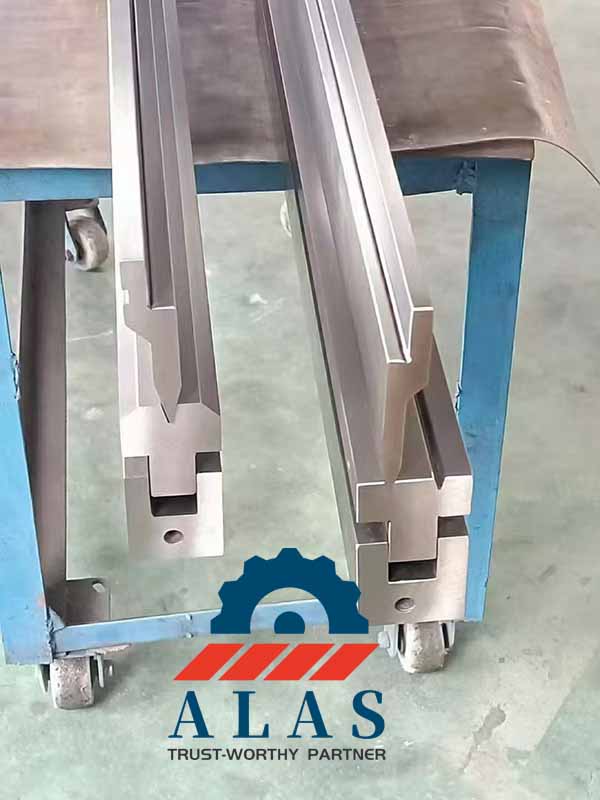

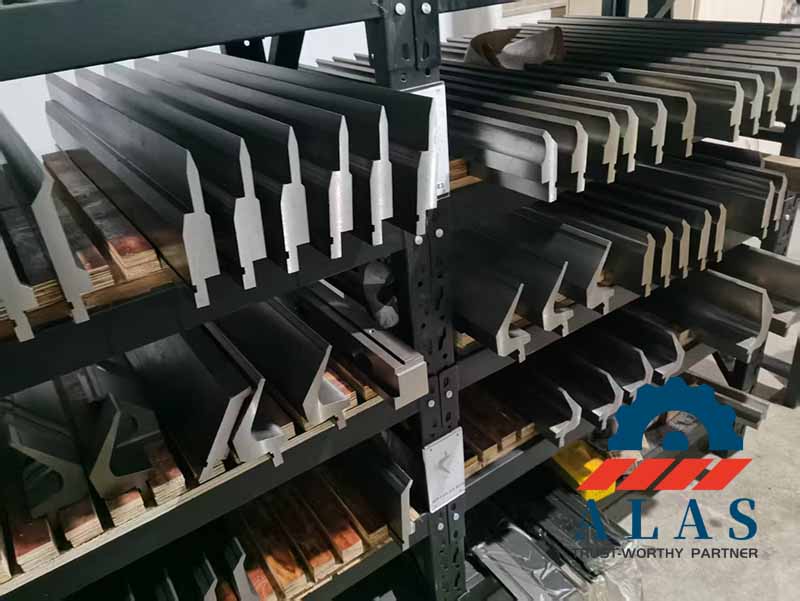

Using conventional 88° punches for acute angles causes severe mechanical interference and tool-to-sheet collision. This halts the press brake stroke, leading to critical dimensional errors and erratic batch variations. Achieving stable tolerances below 90° requires specialized Custom Press Brake Punch and Die Sets featuring 30°–60° relief angles paired with matching acute V-dies to clear the material profile during over-bending.

2. Tooling Design Parameters (Production Standards)

Forming accuracy relies on three core parameters: punch tip angle, punch tip radius, and die V-groove width. The following parameters are production-verified for cold-rolled steel (SPCC), 304 stainless steel, and 5052 aluminum alloy.

2.1 Punch Tip Angle Calculation

To prevent under-bending deviations, determine the punch angle using the following formula:

Punch Tip Angle = Target Bending Angle - Measured Springback Angle - 2° (Safety Margin)

Note: The 2° empirical safety margin accounts for raw material batch variations, machine positioning tolerances, and manual setup deviations.

Case Study: For 1.5 mm SPCC with a 75° target angle and a 2.5° measured springback, the optimal tooling setup requires a 70° punch paired with a 60° acute V-die to maintain a stable production tolerance of 75° ±0.3°.

2.2 Punch Tip Radius

To ensure crisp, distinct bend lines without introducing mechanical defects:

• Standard: Maintain the punch tip radius at ≤0.2 mm.

• Trade-off: A radius below 0.2 mm concentrates stress and induces root cracking in hard materials. A radius above 0.2 mm blunts the corner and increases springback unpredictability.

2.3 Die V-Groove Selection

Unlike conventional bending which favors wide V-grooves to lower tonnage, acute angle forming requires a narrower opening to restrict the deformation zone.

• Standard: Set Die Width V = 6t (where t = sheet thickness).

• Forming Mechanism: Narrower V-grooves increase material flow resistance, forcing a higher ratio of permanent plastic deformation over elastic strain. This localizes the deformation zone and minimizes springback fluctuations. To prevent mechanical interference during aggressive over-bending, workshops must deploy specialized Precision Sheet Metal Brake Dies featuring matching 30°, 45°, or 60° acute openings.

3. Springback Prediction & Material Data

3.2 Production Reference Data (1.5 mm Sheet, 75° Target Angle)

4. Root Cause Analysis & Troubleshooting

4.1 Workpiece Root Cracking

Root Causes:

• Die V-groove is too narrow (<5), causing outer tensile stress to exceed the material's ultimate tensile strength.

• Punch tip radius is too sharp, creating a scoring effect that initiates micro-tears.

• Risk spikes when bending parallel to the rolling grain (with-grain) on work-hardened materials like 304 SST.

Solutions:

• Open the die V-groove width to 7t to relax outer tensile stress.

• Increase the punch tip radius to 0.3 mm to distribute stress at the root.

• Re-orient the blank nesting layout so that the bend line runs perpendicular to the rolling grain (cross-grain).

4.2 Unstable Springback (Angular Variance)

Root Causes:

• Yield strength (σs) and thickness fluctuations across raw material batches.

• Thermal shift in hydraulic oil during continuous high-speed runs, combined with insufficient bottom dead center (BDC) dwell times.

• Mill scale, burrs, or debris accumulation at the bottom of narrow V-grooves, which shifts the physical stroke depth.

Solutions:

• Program a 0.5 to 1.0-second dwell time at BDC to force elastic stress conversion into permanent plastic deformation.

• Tighten material specs for precision structural parts, limiting thickness tolerances to ±0.05 mm.

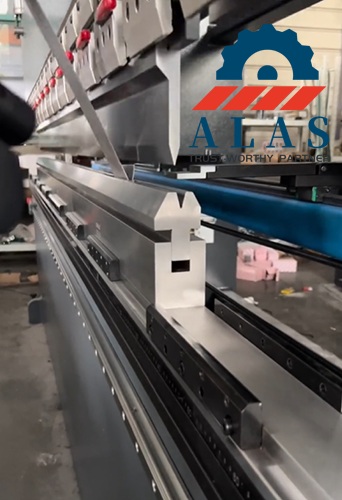

• Deploy high-accuracy Precision Segmented Press Brake Tooling Sets with tight ±0.02 mm height tolerances to guarantee flawless tool alignment, eliminate centerline deflection, and stabilize angular variations. Alternatively, utilize active laser angle-measuring systems and enforce scheduled die cleaning intervals to remove trapped debris.

5. Frequently Asked Questions (Acute Angle Bending)

Q: Why can't I use a standard 88° or 86° V-die with an acute 30° punch for sharp bending?

A: Using an acute punch with a standard 88° V-die will cause severe tooling collision. As the punch drives the metal sheet below 85°, the shoulders of the 88° die will mechanically interfere with the punch flank or the closing workpiece, halting the press brake stroke and risking tool damage. Acute angle forming strictly requires an acute V-die (e.g., 30°, 45°, or 60° opening) to clear the material profile during over-bending.

Q: How does a narrow V-groove (V = 6t) help reduce springback in acute bending?

A: A narrower V-groove restricts the material’s deformation zone and drastically increases material flow resistance. This forces a significantly higher ratio of permanent plastic deformation over elastic strain within the bend radius. By locking the material tightly under higher concentrated tonnage, the residual elastic recovery is suppressed, resulting in highly stable springback control.

Q: What is the rule of thumb for adjusting bending tonnage when switching to a narrower V-die (V = 6t)?

A: Decreasing the V-groove width sharply increases the required forming force. Bending tonnage is inversely proportional to the V-die opening ( ∝1/). Shifting from a standard V = 8t to an acute V = 6t setup causes an approximate 33% increase in required tonnage. Always cross-check your press brake's linear load limit (tons/meter) to prevent centerline tool deflection or die cracking.

Q: How can I eliminate cosmetic die marks and scratching on 304 SST during acute bending?

A: Acute bending over narrow V-grooves exerts extreme contact pressure, leading to surface scoring. To prevent cosmetic marks, apply heavy-duty polyurethane bending tape (protective cloth) across the die shoulders, or implement nylon insert V-dies. Polishing the die shoulder radii and using high-lubricity drawing oils will also minimize galling on sensitive stainless steel and aluminum parts.

Q: What should I do if my acute angles still vary between different material batches?

A: Material batch variance stems from fluctuations in raw thickness and yield strength (σs). The most effective shop-floor solution is programming a 0.5 to 1.0-second dwell time at Bottom Dead Center (BDC) to allow the stress to stabilize. For high-volume precision runs, utilize press brakes equipped with real-time, in-line laser angle-measuring systems that dynamically adjust the stroke depth per bend.
