Custom Press Brake Punch and Die Sets | Bespoke Non-Standard Bending Tooling Design & OEM Services
Dedicated to solving complex, non-standard bending challenges that standard stock tooling cannot support, ALAS provides full-service engineering design and high-volume OEM/ODM manufacturing for custom press brake punch and die sets. Forged from premium vacuum-hardened 42CrMo or Cr12MoV alloys and precision-ground within ±0.02mm tolerances per meter, our custom-shaping tools are tailored to your exact CAD blueprints, sheet material properties, and tonnage configurations.
The ALAS Engineering Division specializes in the design, stress-simulation, and precision volume manufacturing of custom press brake punch and die sets. Engineered to capture high-tier bespoke fabrication traffic without competing with standard stock items, this webpage acts as our global technical hub for non-standard geometric shapes, custom machine adaptation shanks, and tailored angle-compensation dies. Backed by synchronized CNC grinding controlling tolerances tightly within ±0.02mm, we transform your complex 2D/3D component drawings into industrial-hardened 42CrMo tooling realities, optimizing production yields for global Tier-1 sheet metal fabricators and tooling distributors.
Core Performance & Technical Features
Full Blueprint CAD/CAM Design & FEM Simulation
You don't need to worry about tool collisions or premature fracturing. Our engineering team utilizes advanced Finite Element Method (FEM) software to simulate stress distribution and metal material flow during the stroke before steel cutting begins. This guarantees that your custom gooseneck, deep-channel, or window-frame profile operates safely within your machine's exact tonnage parameters.
Extreme Geometric Customization Capabilities
We break standard market limitations. ALAS regularly designs and produces custom over-bend geometries (78° to 85°) to defeat heavy material springback in high-strength steels, ultra-polished mirror-finish scratch-free dies, multi-stage compound flattening tools, and non-standard segmented combinations down to microscopic or multi-meter lengths.
±0.02mm Batch-Ground Interface Parallelism
Even for the most complex special-shaped structural punches and multi-groove lower blocks, our integrated CNC machining line ensures a straightness and parallelism tolerance within ±0.02mm per meter. This eliminates uneven gaps and angular deviations across joined sections, delivering stable, precision-aligned bending for high-end CNC machine beds.
Through-Hardened Premium Tool Steel Matrix
Depending on your workload and material abrasive properties, we source genuine, fully traced 42CrMo (SCM440), Cr12MoV, or 55SiCr alloy steels. Processed through integrated full-body vacuum quenching and multi-stage tempering to a stable core hardness of 47–52 HRC, our custom tooling delivers up to 5 times the service life of ordinary surface-hardened carbon steels.
Global OEM/ODM Volume Supply Chain Support
As a certified direct-to-market manufacturer, ALAS offers scalable industrial capacity for international machinery dealers and heavy equipment factories. We provide custom shank width/thickness adaptations, branded engraving services, and tailored surface treatments (black oxide, plasma nitriding up to HRC 56) to fit specialized local machinery environments.
Technical Customization Scope & Material Standards
To provide precise guidance for global machinery distribution networks and large-scale industrial procurement, ALAS classifies our bespoke tooling engineering matrix across three rigorous manufacturing standards and technical customization tiers:
ALAS TECHNICAL CUSTOMIZATION & MATERIAL MATRIX
TIER 1: LIGHT PROFILE MODIFICATION STANDARD
TIER 2: COMPLEX SPECIAL-SHAPED SETS STANDARD
TIER 3: HIGH-TONNAGE HEAVY ENGINEERING STANDARD
Engineering Scope
Customized shank slot adjustments, specialized keyways, or precise modifications of lower V-die opening dimensions based on standard stock geometries.
Deep U-channels, complex offset bending geometries, heavy architectural window frame dies, custom radius setups, and high-precision springback angle alterations.
Shipyard construction dies, massive bridge structure profiles, heavy infrastructure paneling, and thick high-strength steel plate fabrication.
Interface Options
Direct-fit modifications for Amada/Promecam, Trumpf/Wila, and Accurpress hydraulic clamping systems.
Multi-brand hybrid adapters, specialized custom grooved slots, and keyed cross-anchoring.
Heavy-duty monoblock alignment pins and customized extra-wide base table anchoring systems.
Precision Height & Axis Tolerances
Strict ±0.02 mm Parallelism Match across continuous multi-section lengths.
Strict ±0.02 mm Synchronized Centerline Axis alignment for multi-stage bending.
Strict ±0.02 mm Heavy-Duty Synchronized Batch-Grinding limits for high-tonnage multi-piece setups.
Hardness Specification
Core hardness controlled at 47–50 HRC via standard precise vacuum heat treatment.
Core hardness engineered at 48–52 HRC through uniform deep through-hardening thermal alloy cycling.
Core toughness optimized at 48–50 HRC paired with an advanced 60–65 HRC Plasma Ion Nitrided surface wear layer.
Material Recommendation
Premium 42CrMo
Premium Cr12MoV(Premium High-Carbon High-Chromium Cold-Work Die Tool Alloys)

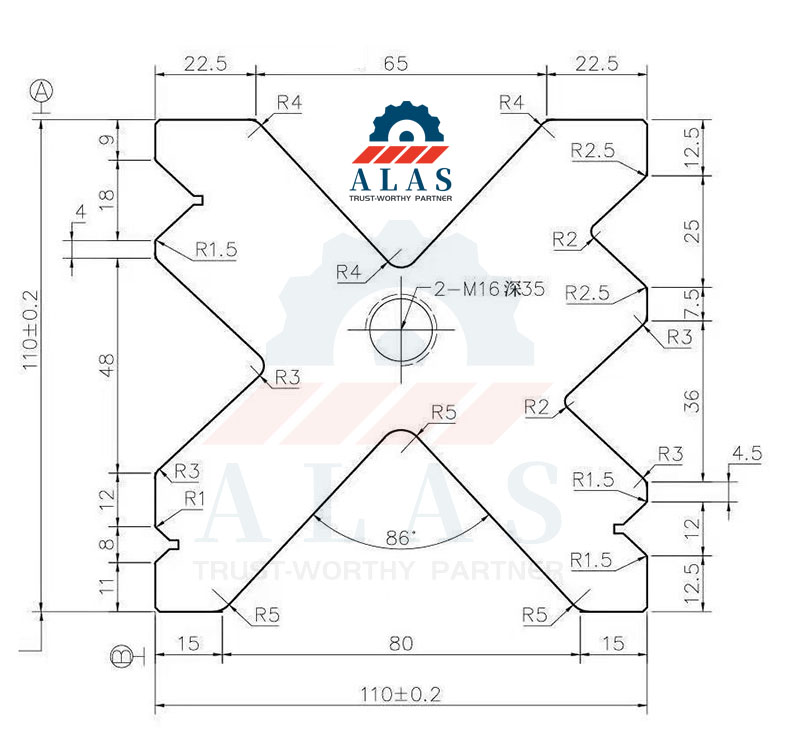

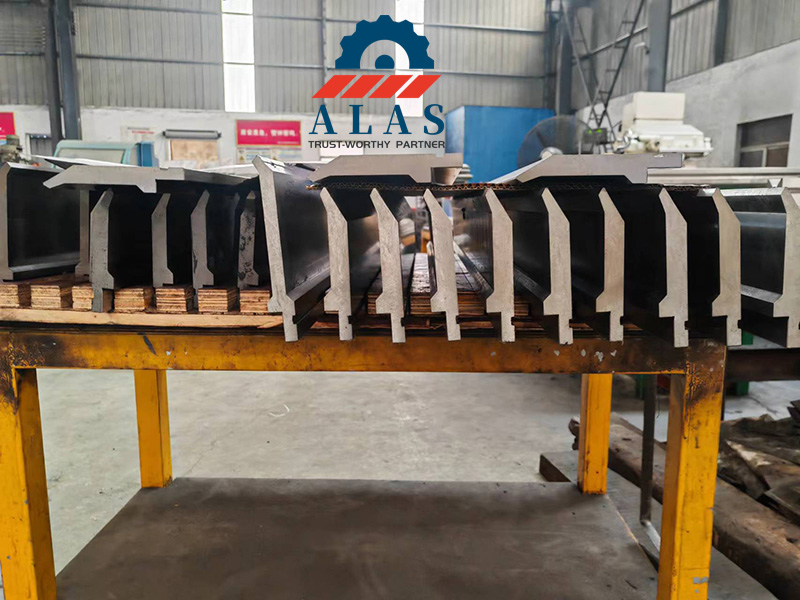

Global Machinery Compatibility & Mainstream Interface Standards
ALAS custom engineered press brake punch and die sets comply strictly with global mainstream machine mounting standards. Our tool heights, clamping shoulders, and tang dimensions are precision-machined to ensure direct installation without any local manual modification.

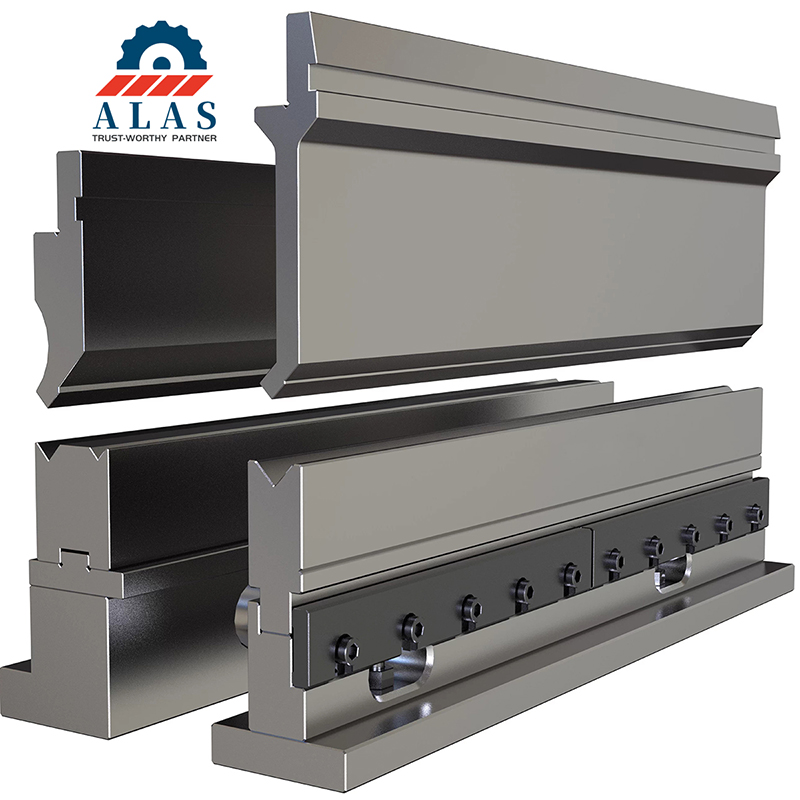

Supported Clamping & Shank Standards:
Amada / Promecam Style: Precision grooved shanks with high versatility, tailored for Japanese and European standard universal quick-change mechanical rams.
Trumpf / Wila Style: Advanced New Standard positioning with 20mm dual-groove hydraulic or mechanical quick-change locking keys.
American Standard: Heavy-duty structural shanks with standard 1/2" slots, optimized for high-load, high-tonnage American press brake environments (e.g., Accurpress style).
Domestic Universal / Custom Systems: Tailored shank profiles with high-load bearing shoulders to optimize cost-performance ratios for specialized regional machinery beds.
3-Point Compatibility Validation Matrix:
1. Stroke Height Synchronization: Universal tool heights are calibrated to match your machine's exact ram stroke and maximum shut height limitations.

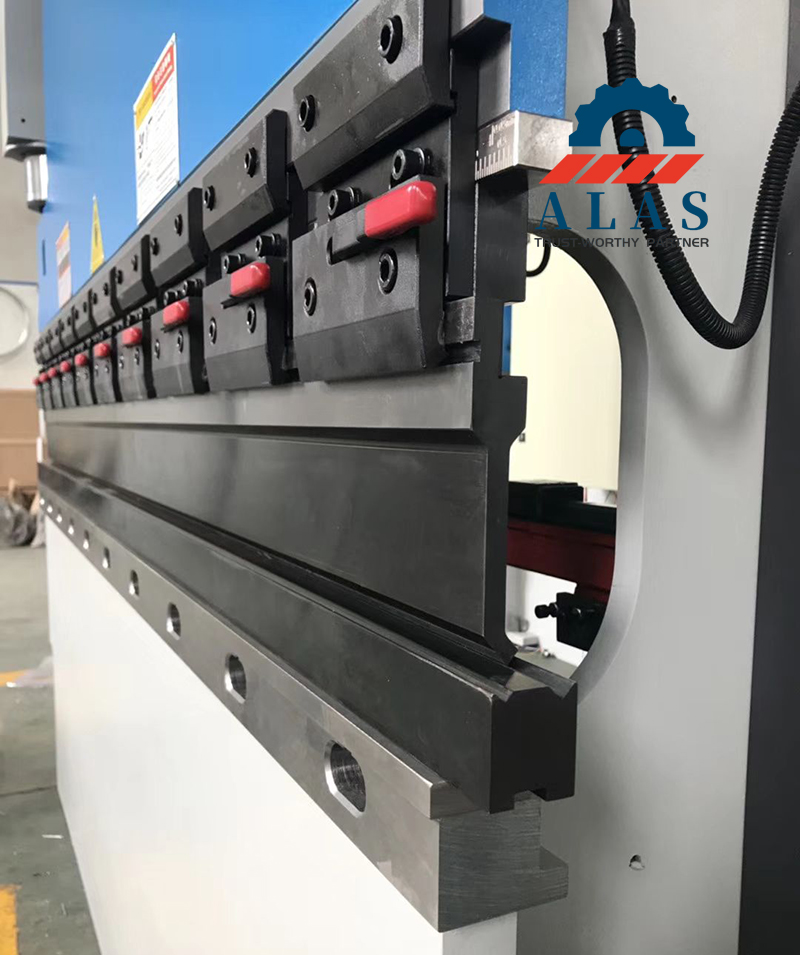

2. Clamping Style Conformance: Mechanical, hydraulic, or pneumatic quick-clamping slot locking mechanisms are checked against structural deformation limits.
3. Shank and Slot Fitting: Shank widths, slot placement depths, and alignment pins are machined to fully seat into your equipment's upper rams and lower tables.
Optimal Tool Hardness Range & Advanced Metallurgy Control
In heavy-duty industrial fabrication, tooling performance does not improve linearly with higher hardness. Excessively brittle tools easily sustain chipping, edge fracturing, and catastrophic micro-cracking under intense bending stresses. ALAS utilizes strict vacuum thermal cycling to lock our premium 42CrMo and 55SiCr matrices within the optimal hardness envelope of 47–52 HRC. This precise configuration achieves the ultimate industrial balance between wear resistance and structural fatigue toughness.
Hardness Grade & Structural Performance Metrics:
< 45 HRC: Soft baseline structure. Exhibits low abrasion resistance, susceptible to scoring, and only suitable for low-tonnage, temporary production runs.
45–50 HRC: Ideal balanced metallurgical structure. Highly recommended for standard daily multi-batch sheet metal bending, providing excellent cost-performance.
50–52 HRC: Hardened wear-resistant layer. Tailored for automated high-volume CNC runs and heavy structural steel folding with minimum abrasive tool wear.
> 52 HRC (Not Recommended): Brittle matrix state. Extremely prone to sudden impact fracturing, tip chipping, and fatigue failures under high peak tonnages.
Critical Structural Lifespan Enhancements:
Full-body uniform vacuum hardening combined with multi-stage tempering to eliminate internal residual stresses. CNC synchronized dual-face surface polishing to reduce contact friction and friction heat. * Advanced plasma ion nitriding options to generate an ultra-hard superficial case (up to HRC 56) without embrittling the inner tough core.

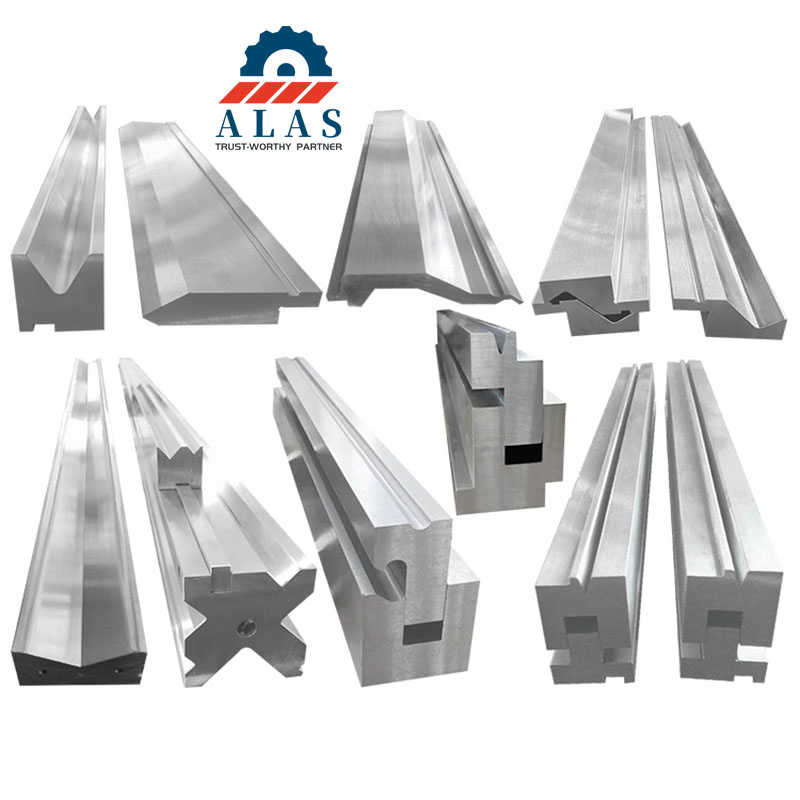

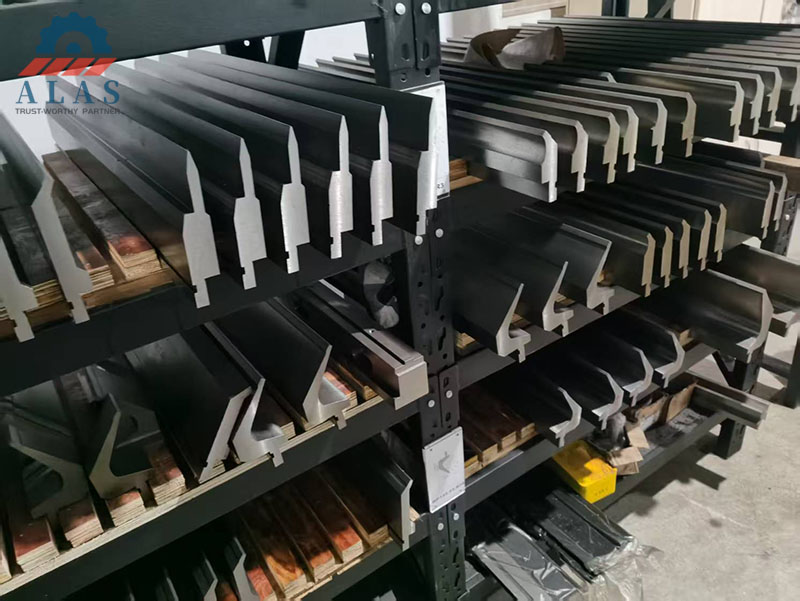

As a full-service OEM/ODM customization factory, ALAS processes raw forging blocks into diverse bespoke geometric shapes to accommodate independent metal forming processes:
Straight Punches: The primary universal choice for executing basic straight folds on electronic cabinets, server chassis, and standard linear sheet metal components.

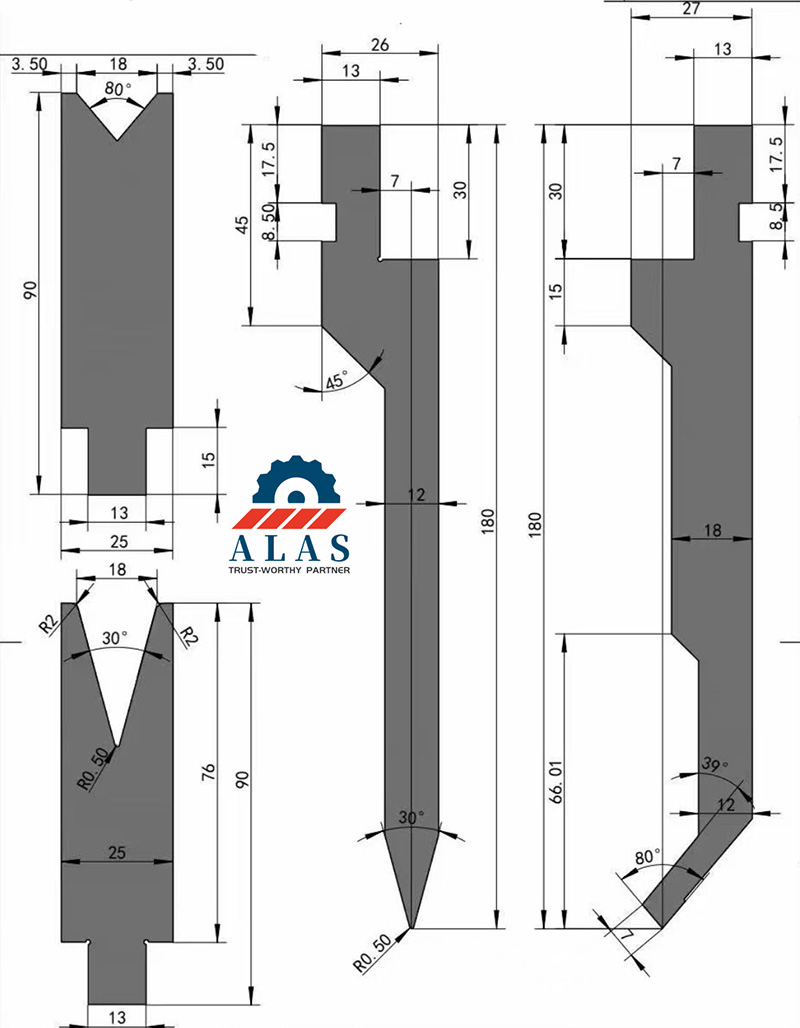

Sharp-Angle Punches (Acute Tools): pre-engineered in 30° and 45° profiles to handle tight internal folds and provide deep over-bend margin for springback compensation.

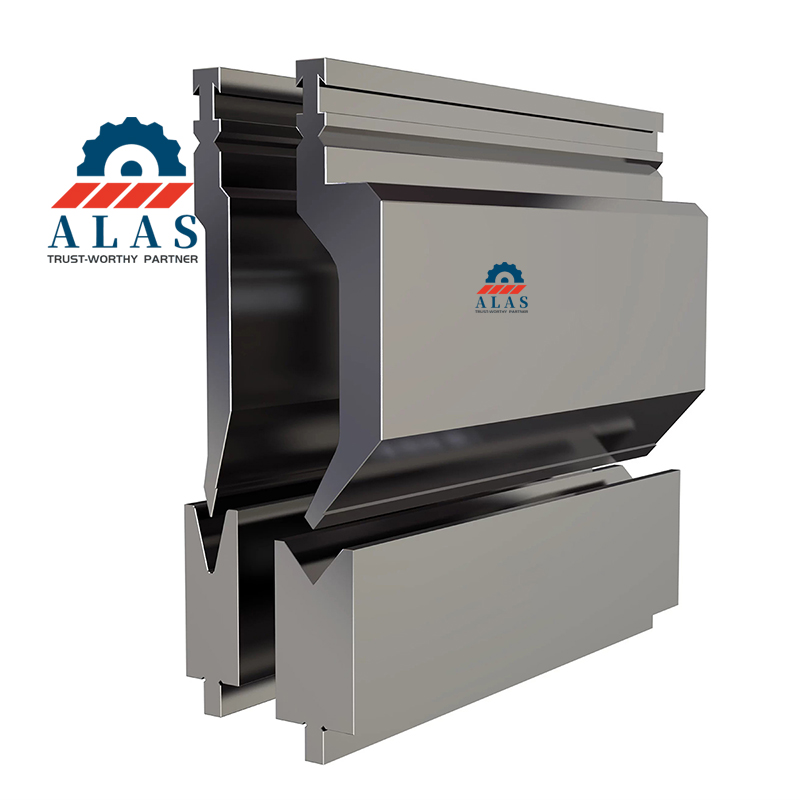

Gooseneck Punches: Features deep back-throat clearance geometry, specifically designed to bypass tool collision when folding complex deep U-channels and 4-sided box sections.
Radius Punches (Circular Tools): Crafted with smooth, synchronized cylindrical surfaces to form large curved profiles and rounded fillet corners without scoring.
Bespoke Custom Punches: Engineered purely from client-supplied CAD drawings to satisfy highly complex, non-standard structural sheet metal profiles.
Through our engineering consultation services, ALAS helps Tier-1 fabricators optimize their shop floor efficiency by troubleshooting common bending failures directly through advanced tool geometry:
Bending Defect Observed
Primary Technical Root Cause
ALAS Engineered Factory Solution
Flips & Unstable Bending Angles
Uneven batch wear, centerline deviation, or zero springback allowance.
CNC regrinding to ±0.02mm, recalibrate hydraulic compensation parameters.
Workpiece Flange Cracking
Using an undersized lower die V-opening on hard, low-ductility alloy steel.
Expand lower V-die opening width; transition to high-strength 42CrMo tooling.
Surface Scratches on Metal
Rough micro-finishes on the tool radius causing high abrasive friction.
Implement ultra-precision polishing or apply non-scratch polymer insert coatings.
Accelerated Edge Deformation
Low-grade carbon steel choice or non-uniform induction heat treatment.
Upgrade to fully vacuum-quenched 42CrMo tooling with localized plasma nitriding.
Oversized Fillet Radius
Selecting an oversized lower V-die groove following wrong thickness rules.
Replace with a proper smaller V-die following the standard V = 8 × sheet thickness rule.
Tool Chipping & Fracturing
Extreme tool brittleness due to improper quenching or excessive hardness.
Calibrate baseline structure to our safe and optimized 47–52 HRC toughness window.
Left-to-Right Angular Variance
Severe tool non-parallelism or uneven load distribution across the ram bed.
Re-grind base alignment seats to maintain absolute straightness within ±0.02mm/meter.

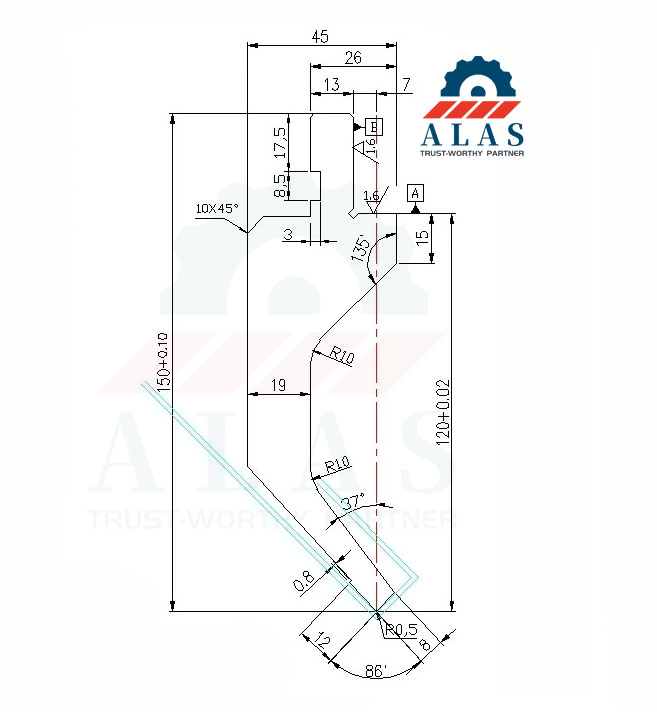

To ensure absolute fidelity from initial concept to the final strike on your shop floor, the ALAS engineering division operates on top-tier CAD/CAM clusters compatible with all global metalwork drawing standards. We officially accept and process the following file formats for direct factory evaluation:
3D Solid & Surface Models: .STEP, .STP, .IGS, .IGES, .PARASOLID
Technical PDF Blueprints: Complete with linear tolerance specs, bending sequence descriptions, and targeted sheet tensile strength (MPa) annotations.
Proprietary Protection Commitment: Every custom profile, proprietary punch geometry, and confidential corporate blueprint submitted to ALAS is legally covered under a strict B2B Non-Disclosure Agreement (NDA). Your engineering files will never be shared with third parties or repurposed into public stock items.
ALAS eliminates market limitations by providing heavy-duty CNC milling, synchronized grinding, and multi-stage heat treatments executed within the following rigorous engineering boundaries:
Maximum Single-Piece Continuous Length: Up to 3,050 mm monoblock or 4,000 mm via perfectly matched modular segmented locking arrays.
Bending Thickness Customization Scope: Designed to easily handle sheet metal from 0.5 mm ultra-thin stainless steel up to 25 mm+ extra-thick structural steel plates.
Custom Sharp & Radius Geometric Capabilities: Tailored over-bend geometries from 28°, 30°, 45°, 60° to 88°, and variable circular radii covering R0.5 mm up to R100 mm+ with specialized springback compensation calculations.
Shank & Tang Interface Adaptations: Engineered to fit Amada/Promecam (13mm slots), Wila/Trumpf New Standard (20mm dual-groove keys), American Standard (1/2" slots), and custom multi-pin high-tonnage heavy clamping rams.
Global B2B Volume Wholesale & Heavy OEM/ODM Services
For machinery dealers, press brake manufacturers (OEMs), and regional tooling distributors worldwide, ALAS provides an industrial-scale manufacturing supply chain partnership program:
Bespoke Laser Engraving: Free marking of your custom part numbers, serial tracking codes, and brand logos directly onto the unhardened tool shoulders.
Neutral & Protective Packing Layouts: Provision of heavy anti-rust oil preservation combined with neutral crate labeling for direct drop-shipping to your end-users.
Volume Pricing Models: Layered contract pricing to ensure robust profitability margins for international warehouse bidding and long-term supply tenders.
Customization Level
Light Profile Modification
Complex Special-Shaped Sets
High-Tonnage Heavy Engineering
Engineering Scope
Custom shank slots or specific V-openings
Deep U-channels, offset geometry, custom R
shipyard, infrastructure, large box-car dies
Interface Options
Amada/Promecam, Trumpf/Wila, Accurpress
Multi-brand hybrid adapters, custom slots
Heavy monoblock pins, wide-base anchoring
Precision Tolerances
±0.02mm (Parallelism Match)
±0.02mm (Synchronized Axis)
±0.02mm (Heavy-Duty Grinding)
Hardness Specification
47–50 HRC (Standard Vacuum)
48–52 HRC (Through-Hardened Alloy)
54–56 HRC (Surface Nitrided Options)
Material Recommendations
42CrMo (4140 Equivalent Steel)
Cr12MoV / High-Carbon Die Alloys
55SiCr / Heavy Fatigue Resistant Steel
Fast Engineering Consultation Checklist
Before contacting our technical desk, please verify three core parameters: Material Grade & Tensile Strength (MPa), Machine Maximum Tonnage & Stroke Limitations, and Target Workpiece 2D/3D CAD Drawing (.dxf / .step format).
Engineering Data Synchronization & Comprehensive Cross-Reference Index
The table above outlines the three tiers of ALAS custom tool manufacturing (Light Profile, Complex Special-Shaped, and High-Tonnage Heavy). Key engineering values like our ±0.02mm tolerance, 47–52 HRC core hardness, and 42CrMo structural steel are fully cross-referenced and detailed across the specialized technical chapters lower on this page.
For full technical deep-dives regarding these parameters, please scroll down to review the following sections:
* For Global Machinery Compatibility: See the "Global Machinery Compatibility & Mainstream Interface Standards" section for detailed shank clearances, tang geometries, and groove depths across Amada, Wila, and Trumpf clamping systems.
* For Metallurgy & Fatigue Verification: See the "Optimal Tool Hardness Range & Advanced Metallurgy Control" section for the 47–52 HRC toughness matrix, full-body vacuum hardening, and plasma ion nitriding service life details.
* For Geometric Profile Matching: See the "Comprehensive Punch Geometry Selection & Application Matrix" section for deep-throat clearances, gooseneck profiles, sharp-angle choices, and springback overbend calculations.
* For Defect Prevention & Solutions: See the "Industrial Bending Defects: Root Causes & Engineered Solutions" section for step-by-step troubleshooting regarding unstable angles, sheet flange cracking, and surface scratches.
Frequently Asked Questions
Q1: What makes the ALAS custom press brake tooling design process safer than buying standard off-the-shelf tools?
A1: Standard tools assume your part profile has no interference constraints. When folding deep 4-sided boxes or complex architectural window frames, tool collision is a huge risk. Our custom service includes comprehensive CAD analysis and stress simulation. We design custom clearances, gooseneck throat extensions, and precise angle adjustments based on your specific plate springback, ensuring the tool works flawlessly on the first stroke without fracturing.
Q2: Can ALAS manufacture a custom tool set to match an obsolete or highly specialized local machine shank interface?
A2: Yes, absolutely. We can match any machine interface worldwide. By sharing your exact machine ram slot dimensions, back-gauge range, and maximum shut height, our CNC machining center can cut custom shanks (including specialized grooved, keyed, or heavy American/European hybrid tang sizes) for direct installation without any modifications.
Q3: Why is a ±0.02mm straightness control mandatory for custom special-shaped dies?
A3: Non-standard profiles often redirect bending pressures sideways or exert heavy off-center torque forces. If the tool straightness or centerline alignment deviates beyond ±0.02mm, these lateral forces escalate rapidly, causing severe localized wear, angle twisting along the bend line, and potential damage to your machine's hydraulic clamping system.
Q4: What is the minimum order quantity (MOQ) for custom-engineered bending dies, and what is the typical lead time?
A4: Our engineering prototyping MOQ is 1 piece/set. For non-standard tool manufacturing, the turnaround typically ranges from 15 to 25 days depending on profile complexity, steel specification, and heat-treatment cycles. This allows ample time for rigorous vacuum quenching, precision CNC batch grinding, and final dimensional QC validation.

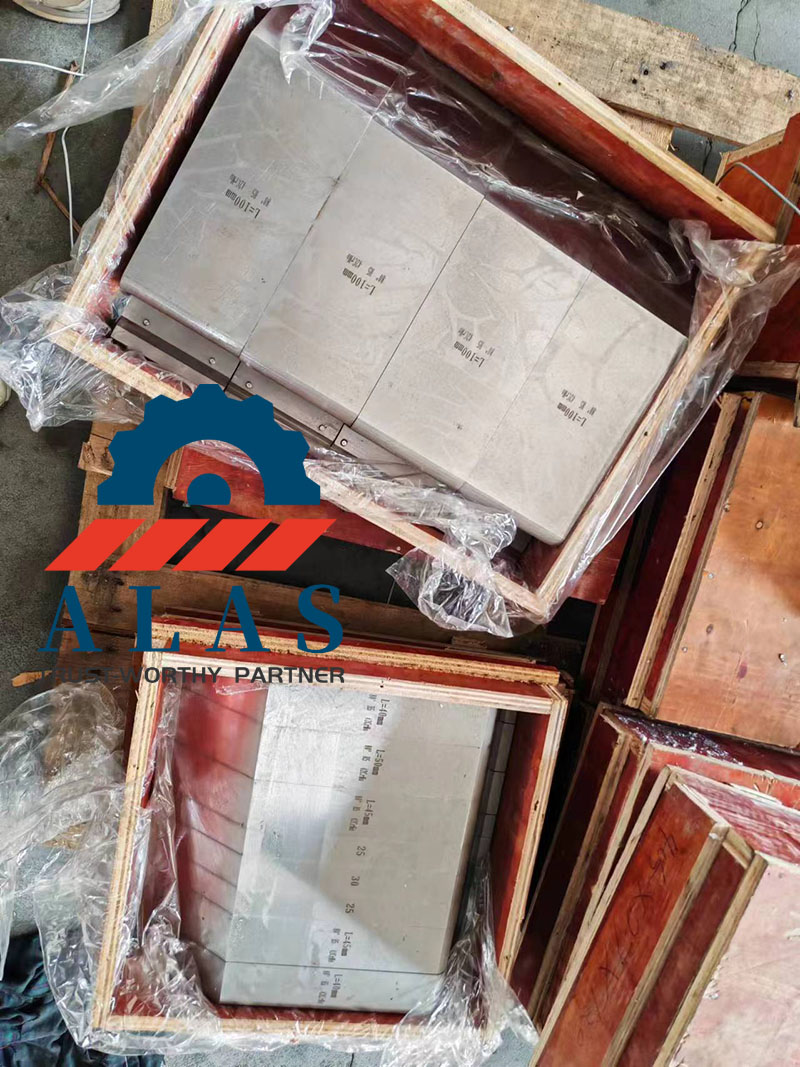

Q5: How does ALAS protect massive, non-standard custom tool segments during international sea freight?
A5: Custom tools feature unique edges and precise geometric radii that are highly vulnerable to impact scratching or moisture oxidation. We coat every custom tool with long-lasting heavy industrial anti-rust oil, heat-seal the component in dense moisture-proof film, and bolt the tools down securely inside custom-braced, export-grade heavy-duty wooden boxes to prevent any shifting during long-distance transport.
