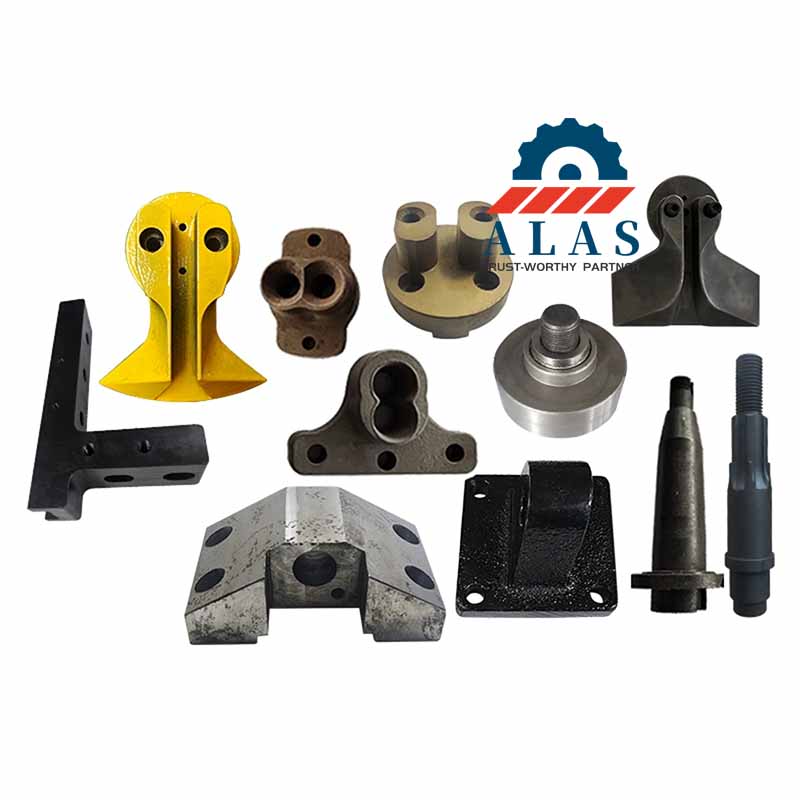

Automatic Rebar Bender Dies & Industrial Steel Bar Bending Molds
Factory-direct automatic rebar bender dies and structural steel bending molds. Forged from high-density SKD11/Cr12MoV die steel with vacuum hardening (HRC 53–56). Engineered for continuous, high-tonnage heavy bar forming lines with zero soft zones.
In heavy-duty infrastructure fabrication, structural components including columns, shear walls, and large precast bridge beams require continuous forming of large-diameter reinforcing bars. Standard light-duty tooling yields under high structural tension, causing bending radius deviation and structural steel fatigue.
ALAS high-capacity automatic bender die assemblies and industrial steel molds serve as rigid forming platforms, engineered to deliver absolute bend angle repetition under continuous, high-tonnage manufacturing schedules.
PROCUREMENT DIRECTORY FOR STRUCTURAL ENGINEERS
This centralized webpage covers Wholesale Sourcing for Central Radius Blocks, Movable Pressure Molds, and Stepless Forming Dies. For alternative rolling and maintenance configurations engineered to separate mechanical dimensions, navigate directly to our specialized catalogs:
For independent core driving shafts, central pivot axes, and heavy work pins: Visit Rebar Bender Pins.
For independent forming outer rings, rotating sleeves, and bender bushings: Visit Rebar Bender Bushings.

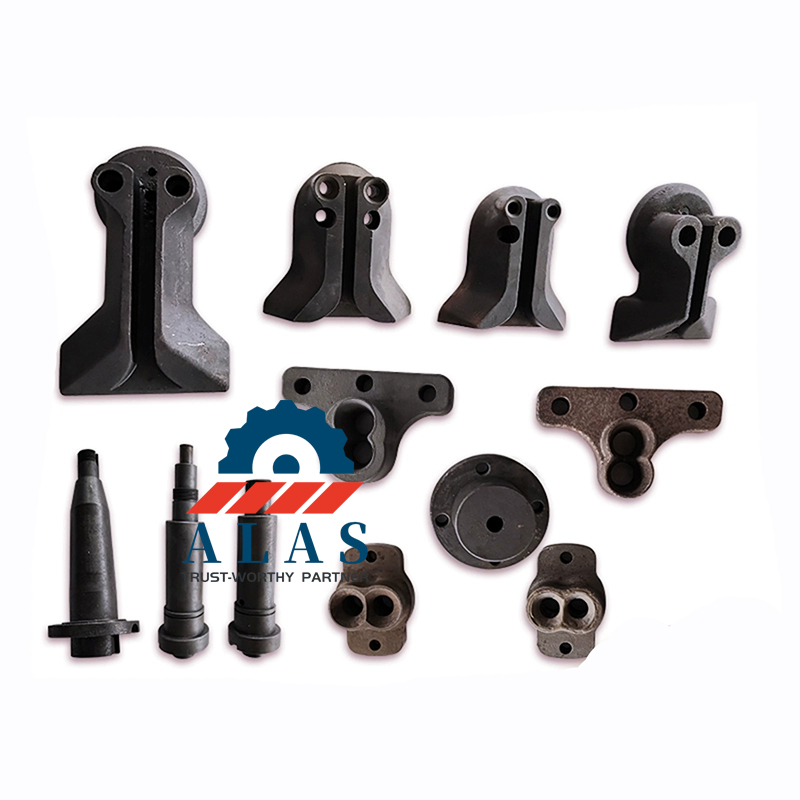

Premium Die Steel Selection: SKD11 & Cr12MoV Uniform Metallurgy
To counter the massive lateral extrusion forces generated when processing thick high-tensile deformed rebar, ALAS industrial bending dies replace soft carbon steel or induction-hardened medium structural steels. Every heavy mold block undergoes computer-controlled multi-stage vacuum hardening and tempering cycles to eliminate structural soft zones.
Hardness Matrix: Uniform HRC 53-56 throughout the forming block, preventing outer skin plastic deformation and flattening under severe structural pressure.
Tensile Strength (\(\sigma _{b}\)): ≥ 2000 MPa – Handles severe continuous lateral torque without mechanical cracking or fatigue failure.
Impact Toughness (\(\alpha _{k}\)): ≥ 25 J/cm² – Eliminates brittle fracture risks during severe cyclic load impacts.
Geometric Linear Stability: ≤ 0.005mm/m – Retains critical design spacing over extended high-volume Lifecycles.
Three-Point Bending System & Structural Classifications
ALAS heavy bender die molds are precision-ground based on the three-point bending principle, ensuring alignment on automated precast processing lines:
Central Radius Molds: Fixed structural blocks mounted at the work plate center. The outer profile diameter dictates the exact internal 4D/5D bending radius criteria to prevent steel bar fatigue cracks and micro-fractures.

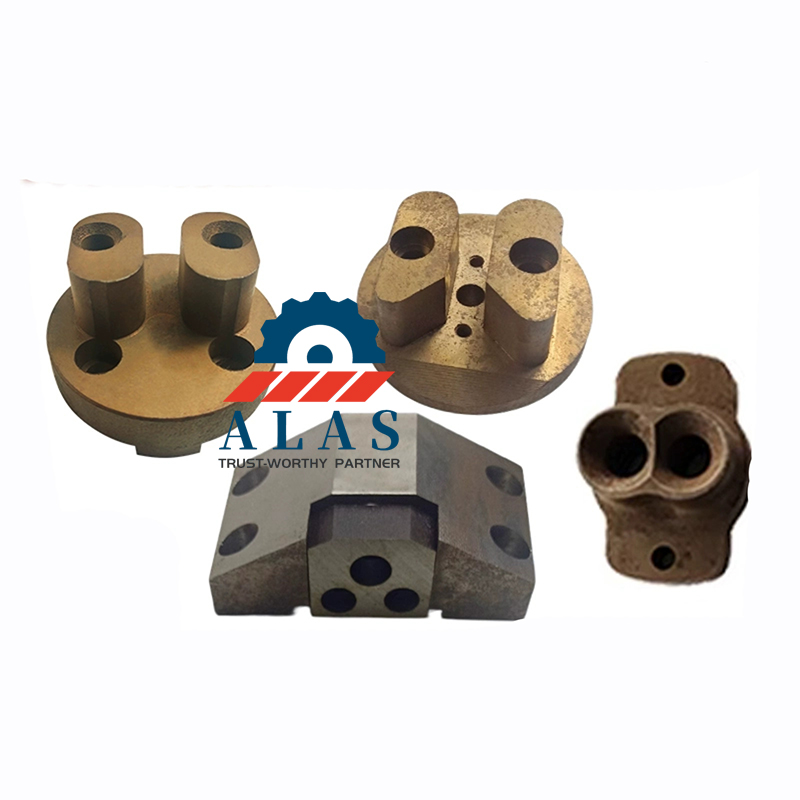

Heavy Movable Pressure Dies: Rotational contact blocks applying consistent load vectors. Position-adjustable to control final angle accuracy via 0–180° stepless forming cycles.
Heavy-Gauge Processing Range
Medium Series: Configured for 18–28mm rebar processing (main structural reinforcement in beams and slabs).
Large Series: Configured for 32–50mm thick-gauge rebar processing (columns, heavy shear walls, and marine precast components).
Precision Manufacturing & Structural Tolerances
ALAS industrial bender dies undergo advanced manufacturing protocols to maximize tooling life and prevent the rapid delamination and grooved tracks common in low-cost aftermarket alternatives:
Vacuum Hardening: Eliminates internal thermal stress, ensuring dimensional accuracy during severe high-speed operations.
Cylindrical Grinding: Controls outer roller working profile tolerances within a strict ±0.02mm boundary, ensuring conformity to structural blueprints.
Maintenance & Replacement Thresholds
Weekly Maintenance Schedules
For batch industrial processing, disassemble the die blocks weekly to clear trapped concrete grit and scale fragments. Inspect all mounting holes and seating faces for fatigue lines. Apply industrial anti-rust oiling prior to dry storage to eliminate corrosion from jobsite ambient moisture.
Structural Replacement Standards
Minor surface friction marks can be repaired via precision mechanical polishing. Tooling sets exhibiting deep grooved tracks, micro-cracks, out-of-round deformation, or severe mounting bore wear must be replaced immediately to protect the machine's primary shaft from destructive torque alignment errors.
FAQ – Automatic Rebar Bender Dies & Industrial Steel Molds
Q1: What makes these industrial bending dies suitable for heavy-tonnage automatic benders?
A: These dies are forged strictly from solid tool-grade SKD11/Cr12MoV die steel rather than medium-carbon alternatives. Undergoing computer-controlled full-body vacuum hardening and multi-stage tempering, the metallurgical matrix achieves a uniform tensile strength ≥ 2000 MPa. This heavy structural capacity allows the mold blocks to endure continuous lateral crushing and high-torque extrusion forces without permanent out-of-round warping or catastrophic splitting.
Q2: Do these structural bender dies support international 4D/5D concrete reinforcement rules?
A: Yes. Every central radius mold and pressure die block undergoes strict cylindrical grinding to control final working profile tolerances within a ±0.02mm boundary. This absolute geometric accuracy guarantees repeatable internal bend profiles for heavy-gauge bars (Φ32mm to Φ50mm), completely preventing structural steel fatigue and stress cracks during continuous precast fabrication cycles.
Q3: Why is full-body vacuum hardening required instead of superficial surface treatments?
A: Low-cost aftermarket tooling often relies on cheap case-hardening or surface nitriding over an untreated soft carbon steel core. Under continuous cyclic impact, this thin exterior shell rapidly delaminates, flakes off, or develops deep grooved tracks that ruin bend angle consistency. ALAS mold blocks feature a through-hardened HRC 53-56 matrix from the outermost forming skin to the core positioning interface, extending tool life by 3 to 5 times.
Q4: How do I identify and select the correct die assembly series for my automated shear line?
A: Selection is strictly dictated by your machine model and the processed rebar diameter range. The tooling catalog is grouped into Medium Series (optimized for 18–28mm structural reinforcement bars in beams and slabs) and Large Series (engineered for 32–50mm thick-gauge column and shear wall reinforcing profiles). Custom layouts for irregular or high-strength grade bars are supported upon request.
Q5: What technical blueprints are required to secure a rapid wholesale quotation for custom molds?
A: For legacy equipment where specifications are missing, please supply machine models, mounting hole dimensions, and keyway clearances from your CAD blueprints.
Get an Instant Factory Price Quote within 12 Hours
Submit your specific bender brands, required rebar processing diameters (18-28mm / 32-50mm), or mounting keyway dimensions for a professional mold quote.
