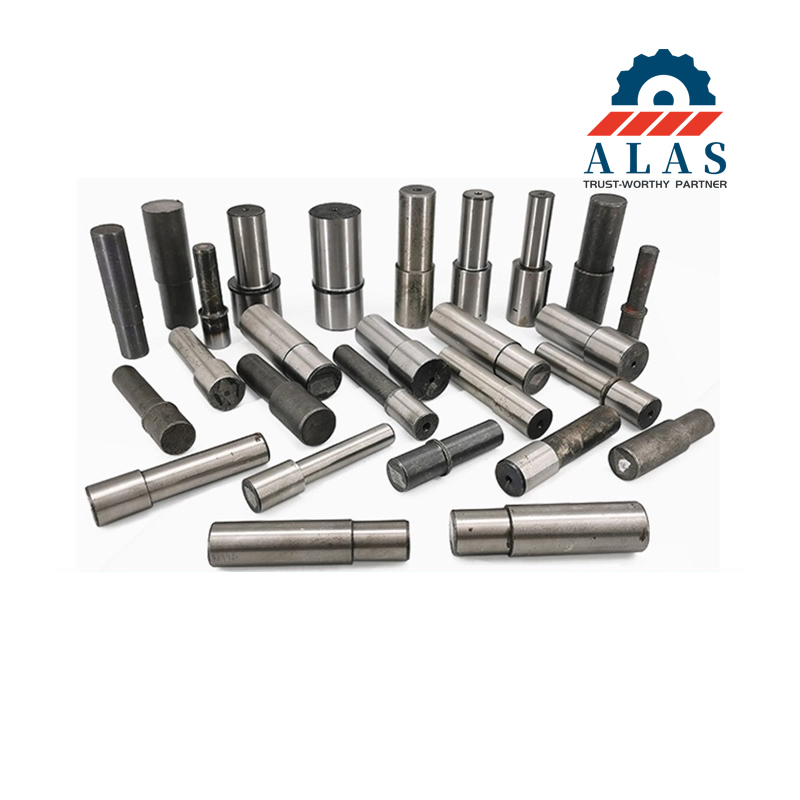

Precision 42CrMo Rebar Bender Center Mandrels & Bending Pins

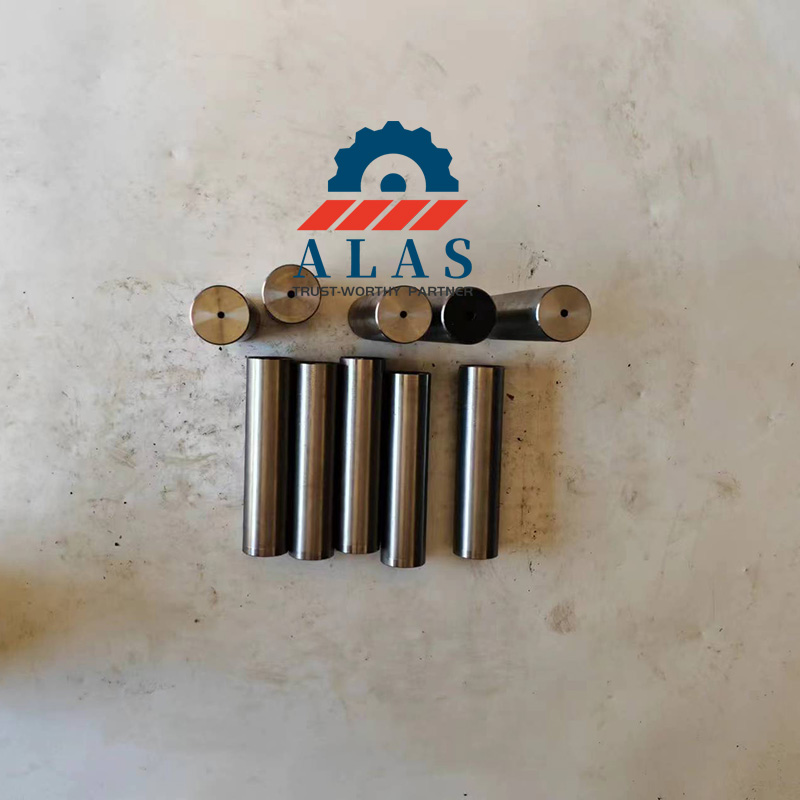

ALAS supplies rebar bender center mandrels, central shafts, and bending pins for automated CNC stirrup benders and heavy-duty GW series (GW40, GW42, GW50, GW60) machines. The alloy steel components consist of a quenched and tempered (Q&T) core paired with a surface induction hardened skin (HRC 45–55). The core tensile strength reaches ≥ 1080 MPa for premium 42CrMo grades and ≥ 980 MPa for standard 40Cr variants. Post-heat-treatment stress relief and precision cylindrical grinding isolate the parts from structural distortion under continuous torque. Machined tolerances include h6/h7 positioning fits for CNC drive discs, alongside f7/f8 engineering clearance fits to offset thermal expansion and concrete dust entry on low-speed site benders during 24/7 production.
Rebar Bender Center Mandrels & Bending Pins: Technical Sourcing Guide
In automated CNC rebar processing and heavy-duty precast production, the central mandrel acts as the primary load-bearing pivot axis during high-torque bending. Standard carbon steel components with loose dimensional controls undergo fatigue failure under cyclic lateral shear, causing structural necking, angular drift, and catastrophic breakage.
ALAS 42CrMo central shafts and bending pins maintain rigid geometric stability under continuous, high-frequency forming conditions.
PROCUREMENT DIRECTORY FOR INDUSTRIAL BUYERS

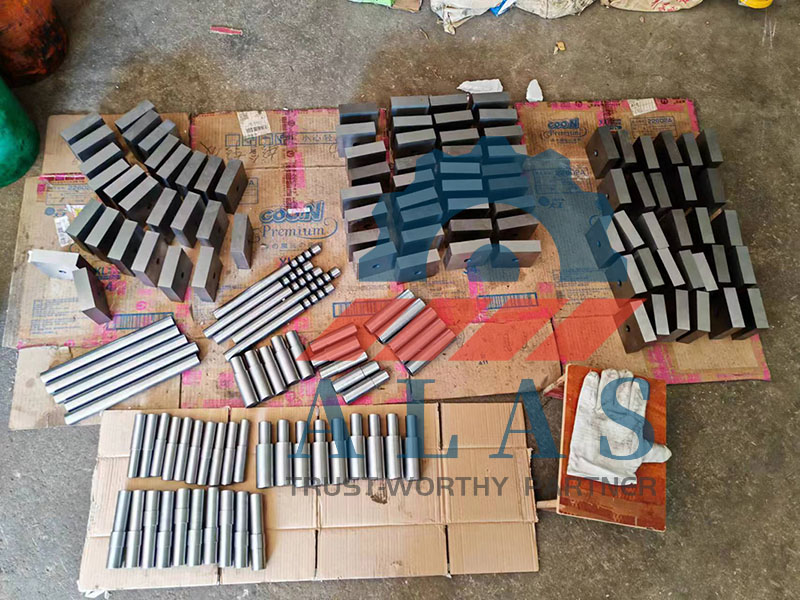

This catalog covers Standalone Sourcing for Center Mandrels, Central Shafts, Bending Pins, and Eccentric Work Pins for automated precision fits and mechanical site replacements. For alternative bending machinery consumables, navigate directly to our specialized catalogs:
For independent forming outer rings, rotating sleeves, and bender bushings: Visit Rebar Bender Bushings.
For fully packed machinery refurbishment sets and full-fleet renewal packages: Visit Rebar Bender Overhaul Kits.
Advanced Metallurgy: Technical Material Selection Matrix
To counter severe continuous torque from high-strength deformed rebar, ALAS replaces standard structural carbon steels with targeted alloy grading. Select the optimal configuration based on factory volume, equipment type, and budget thresholds:

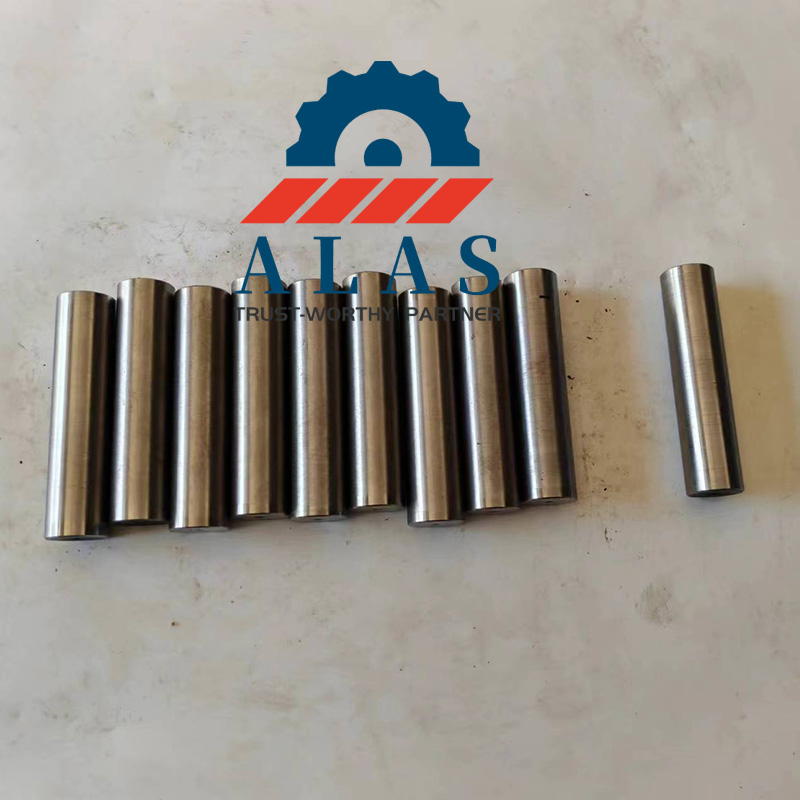

Key manufacturing limits and operational clearances for GW40 and GW50 rebar benders include:
Φ30 mm Assembly (H8/f7): Bore 30.000–30.033 mm (+33 μm), Pin 29.960–29.980 mm (-20 to -40 μm). Minimum clearance 0.020 mm, maximum 0.073 mm for a smooth slip fit.
Φ40 mm Assembly (H8/f7 — Common Standard): Bore 40.000–40.039 mm (+39 μm), Pin 39.950–39.975 mm (-25 to -50 μm). Minimum clearance 0.025 mm, maximum 0.089 mm (optimal standard for lubrication and grit purging).
Φ50 mm Heavy-Duty Assembly (H9/f8 — Expanded Fit): Bore 50.000–50.062 mm (+62 μm), Pin 49.936–49.975 mm (-25 to -64 μm). Minimum clearance 0.025 mm, maximum 0.126 mm (expanded to compensate for structural thermal expansion under high-tonnage loads).

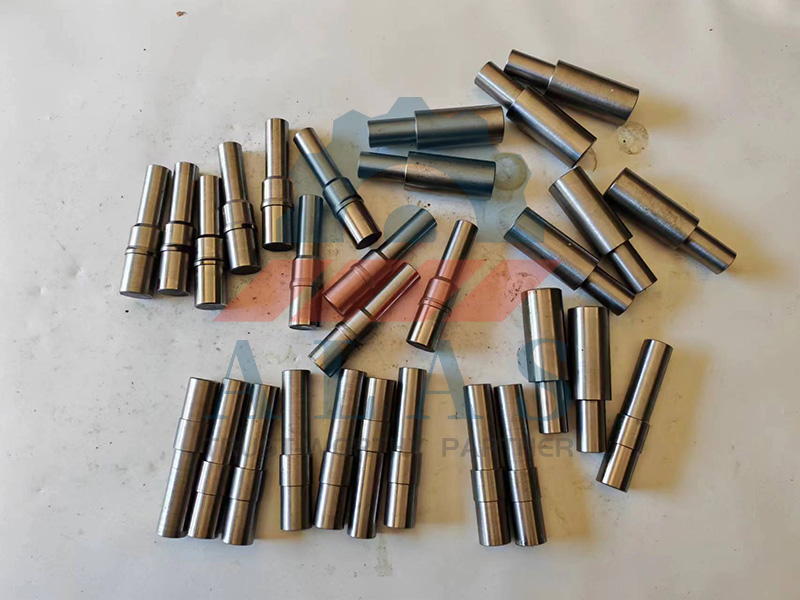

Automated CNC forming demands strict mechanical integration to prevent dimensional drift over million-cycle production runs. ALAS shafts and pins undergo precision cylindrical grinding and post-heat-treatment stress relief to secure exact structural alignment:
h6/h7 Positioning Fits: Machined for CNC automated benders. Grinds outer profiles to strict tolerances to guarantee zero-wobble concentric seating inside drive discs and primary bearings, eliminating rotational play.

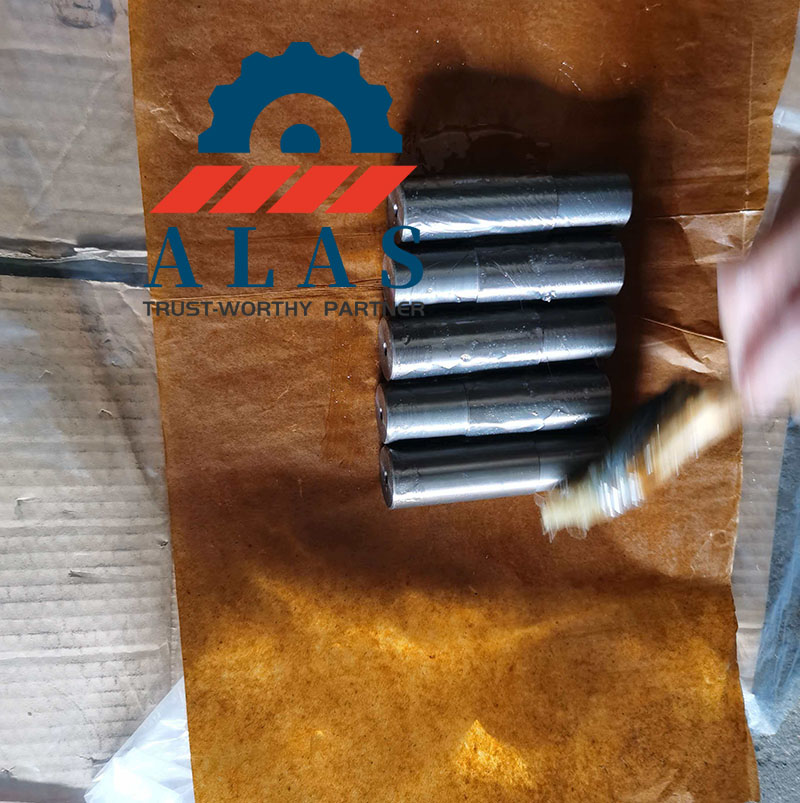

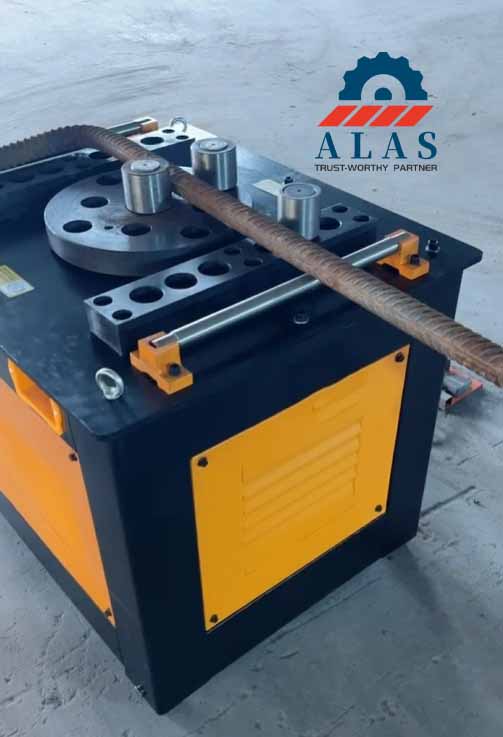

f7/f8 Engineering Clearance Fits: Machined for heavy jobsite environments. Engineered with specific clearances to accommodate structural thermal expansion and prevent airborne concrete grit or rebar scale from seizing low-speed, high-torque manual site benders (GW series) during continuous 24/7 schedules.

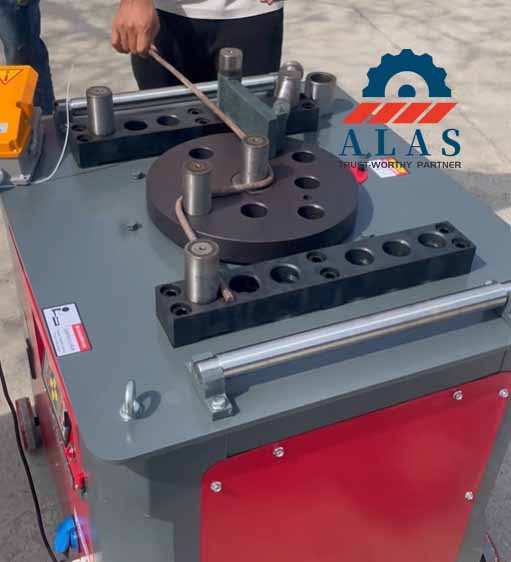

Equipment Compatibility: Direct drop-in match for automatic CNC stirrup benders and universal mechanical GW series (GW40, GW42, GW50, GW60).
FAQ – Precision Bender Central Shafts & Bending Pins
Q1: Why do ALAS CNC center mandrels utilize h6/h7 positioning fits instead of loose field fits?
A: High-speed automated CNC stirrup benders operate under rigid, continuous cycles where any structural play alters final angle repetition. Machining central shafts to h6/h7 locating clearance fits ensures perfect concentric seating within machine drive discs, eliminating high-frequency wobble and maintaining exact rebar geometry while providing the necessary clearance to prevent thermal binding.
Q2: What is the mechanical advantage of 42CrMo steel over standard carbon steel?
A: 42CrMo alloy steel provides deep hardenability, higher fatigue limits, and superior yield strength. The chromium and molybdenum addition prevents plastic deformation, surface grooving, and shaft necking under continuous cyclic torque, extending operational lifecycles on high-speed automated production lines.

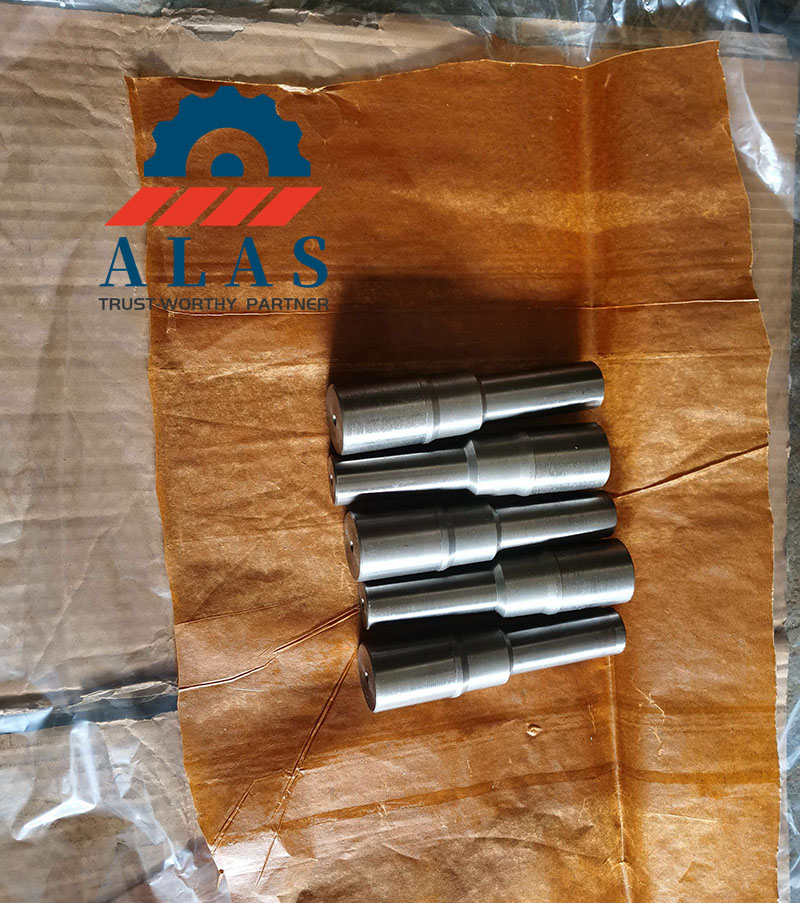

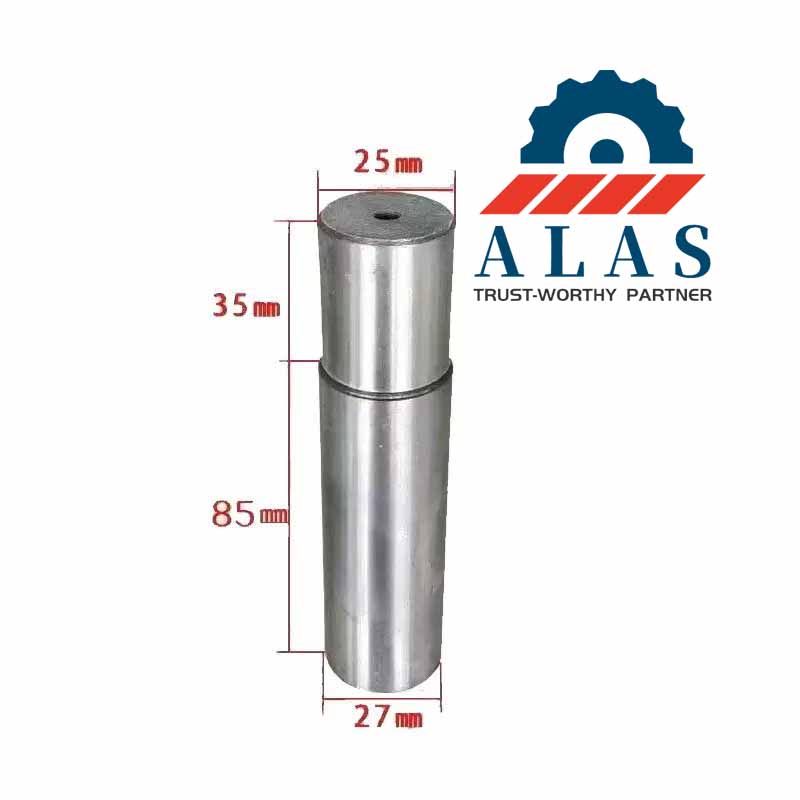

Q3: What parameters are required for custom or non-standard bender shafts and pins?

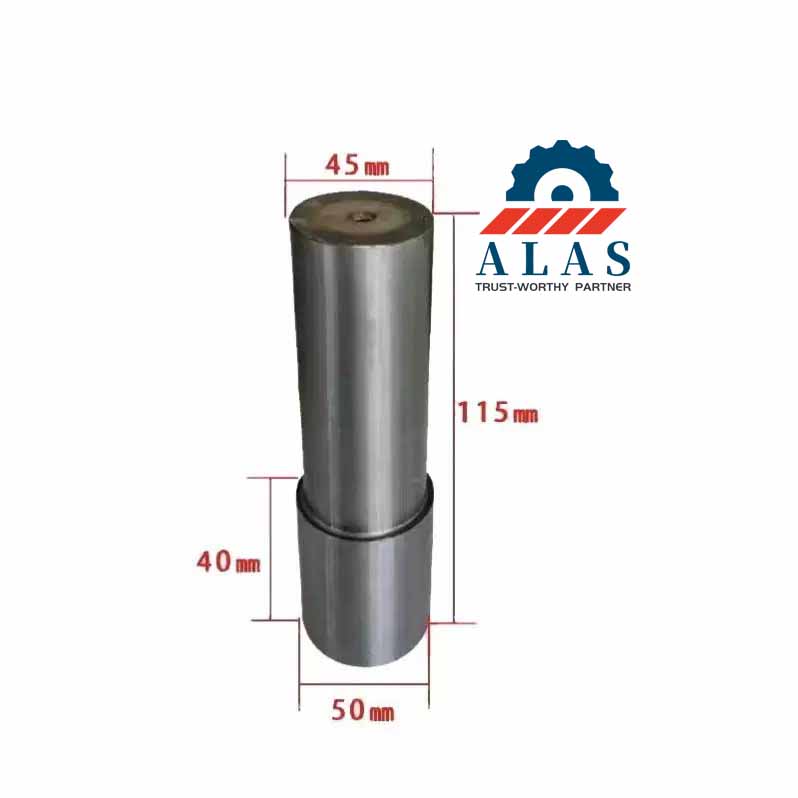

A: Provide our engineering team with technical drawings detailing the exact diameter tolerances for bearing seats, keyway width and depth dimensions, overall shaft length, work pin insertion shoulder dimensions, and your preferred core heat treatment boundaries.
