Precision Hardened Steel Rebar Bending Rollers, Mandrel Sleeves & Bushings: Technical Sourcing Guide

In heavy-duty steel reinforcement fabrication and automated precast concrete plants, bending rollers, mandrel sleeves, eccentric collars, and precision bushings are exposed to continuous high-frequency contact and intense sliding friction. Utilizing unhardened replacement components leads to instant track grooving, dimensional deviations in bending radii, and high steel scrap rates.

ALAS factory-direct forming components stabilize forming track alignment and maintain precise dimensional tolerances during long-term production runs.

PROCUREMENT DIRECTORY FOR INDUSTRIAL BUYERS

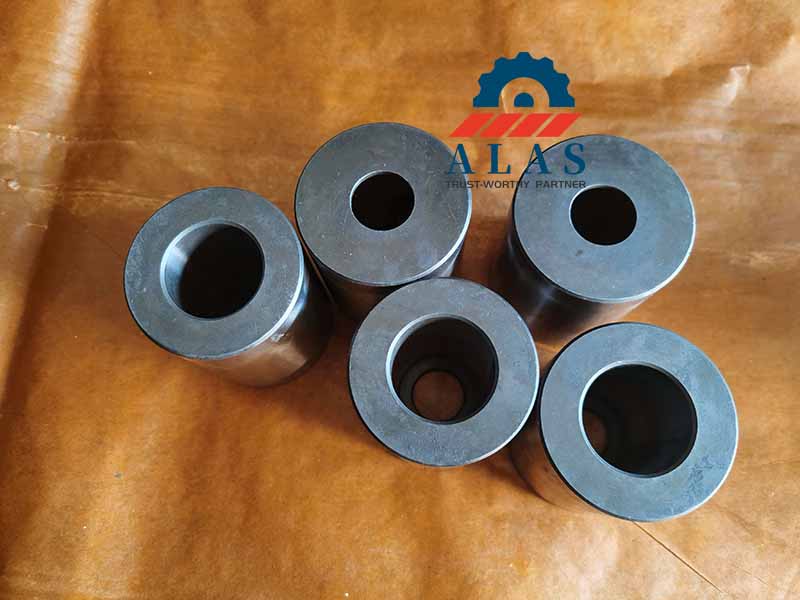

This catalog covers Wholesale Sourcing for All Rebar Bending Sleeves, Precision Bushings, Universal Rollers, and Eccentric Pin Collars. For alternative bending machinery consumables, navigate to the specialized catalogs below:

• For independent core driving shafts, central pivot axes, and heavy work pins: Visit Rebar Bender Center Mandrels.

• For fully packed machinery refurbishment sets and full-fleet renewal packages: Visit Rebar Bender Mechanical Replacement Parts.

Advanced Metallurgy: Bushing & Sleeve Material Selection Matrix

To resist severe sliding friction and abrasive rebar rib wear, ALAS matches specific alloy steel grading to factory volume and machinery type. Select the optimal configuration below:

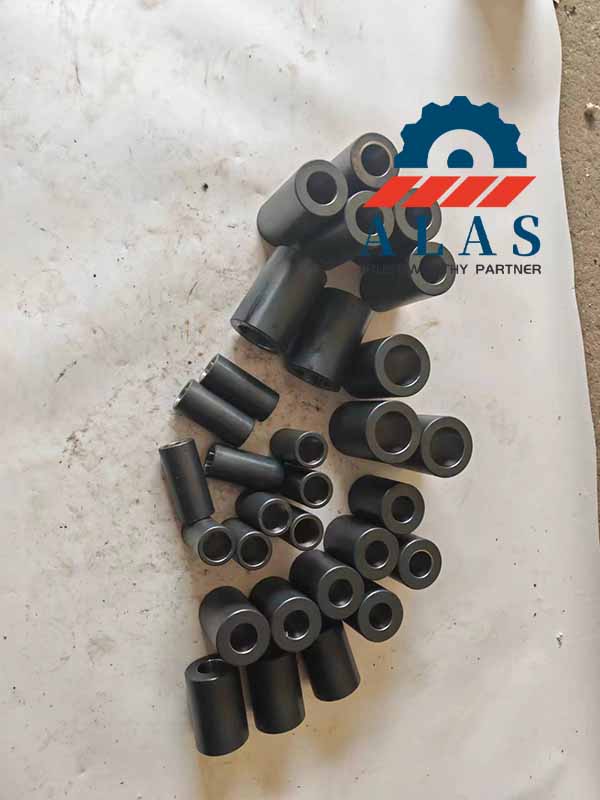

Engineering Station Mapping: Diameter Series & Production Alignment

ALAS maps metric dimensional outer diameters (OD) and inner diameters (ID) directly to specific workshop machinery stations to assist factory procurement engineers:

• Small Series (Φ6mm – Φ16mm ID): Tailored for High-Speed CNC Automated Stirrup Benders (Synchronous Feeding & Straightening-Forming Blocks) to handle micro-radius stirrup hook formation.

• Medium Series (Φ18mm – Φ28mm ID): Designed for Central Main Framing Stations on automatic cutting and forming lines, absorbing lateral shear stress for beam-column connections.

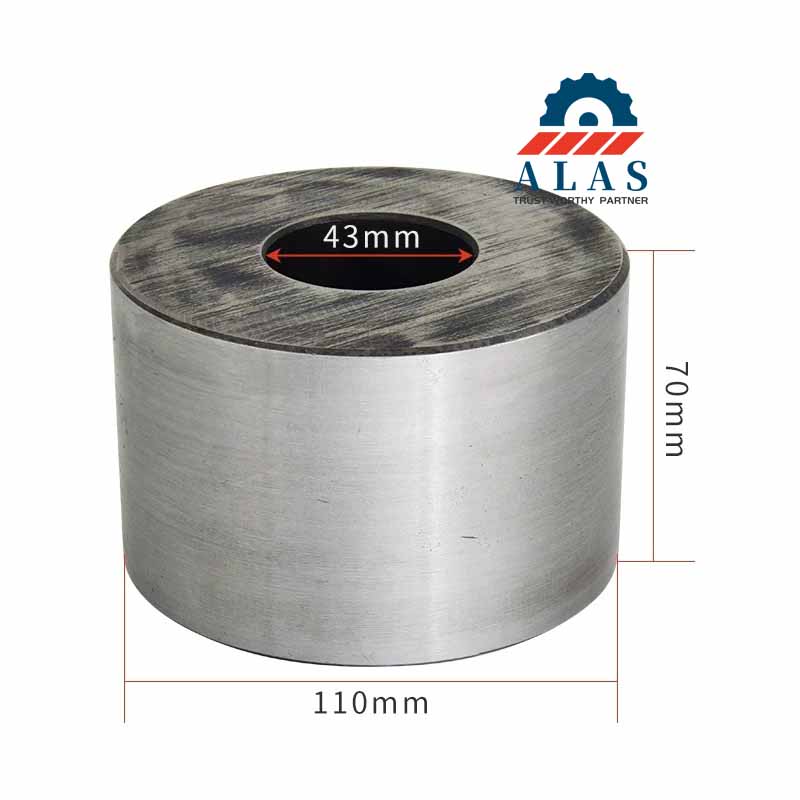

• Heavy-Gauge Series (Φ30mm – Φ100mm+ OD): Applied in Heavy-Duty Site Production Plants and precast yards as eccentric mandrel sleeves on low-speed, high-torque manual/semi-automatic bending machines.

Global Machinery Compatibility & Cross-Reference Directory

ALAS bushings and mandrel sleeves serve as direct drop-in replacements for major global machinery brands. Match your specific shop equipment using the engineering parameter cross-reference below:

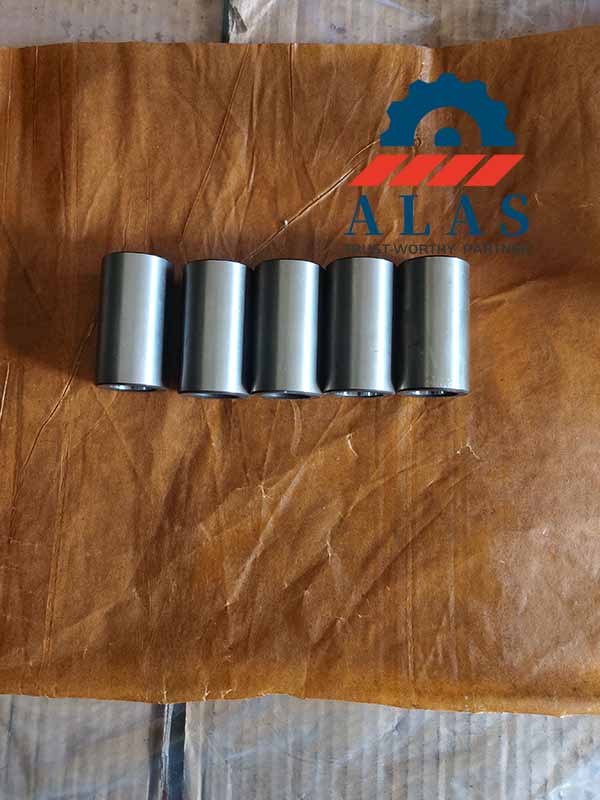

Cylindrical Precision & Bore Tolerance Standard (ISO 286)

To counter heavy-tonnage impact loads and optimize operational longevity, ALAS applies calibrated tolerance fields across separate machinery tiers rather than enforcing single high-precision limits:

CNC Automatic Series (H8/H9): Engineered for enclosed, high-frequency shop benders operating away from heavy site debris. These dimensions ensure tight concentric alignment to prevent high-frequency rotational vibration and angular deviation during multi-million forming runs.

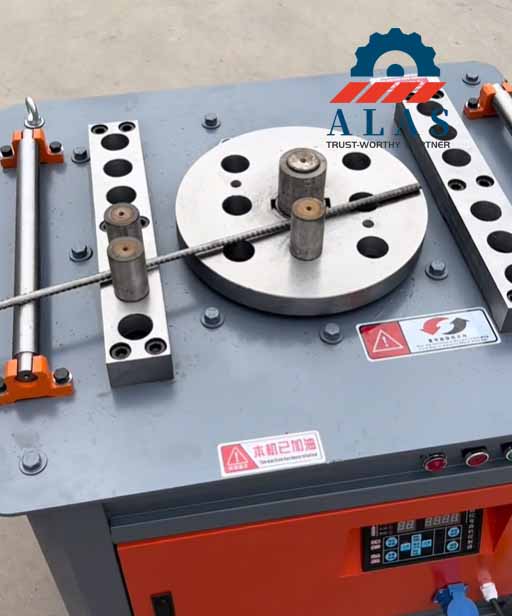

Jobsite & Field Series (H11/H12): Explicitly designed for heavy GW-series and portable mechanical benders operating in harsh environments thick with concrete grit, airborne scale, and abrasive iron dust. Enforcing a tight H7 fit on jobsites introduces a massive risk of structural binding, component seizing, and complex tool-free removal failure. ALAS broadens the inner bore to positive-only deviations under H11/H12 specifications (paired with d9, d11, or h11 shafts). This calculated clearance expands the internal space, providing ample dust-purging volume and allowing workers to insert or swap alternative bending sleeves by hand on short notices, even under typical field abrasion and superficial oxidation.

FAQ – Universal Rebar Bending Rollers, Bushings & Sleeves

Q1: What makes ALAS bending bushings compatible with high-speed automated CNC lines compared to common sleeves?

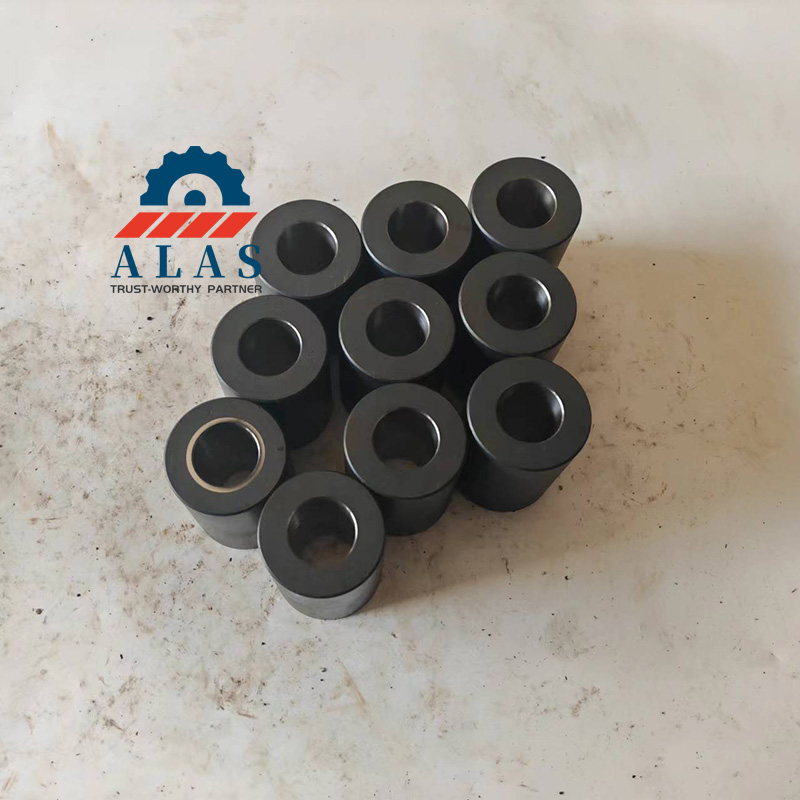

A: Our CNC-series forming bushings undergo full-body vacuum hardening and strict cylindrical grinding to eliminate high-frequency shaft vibration and mechanical play on automatic stirrup benders.

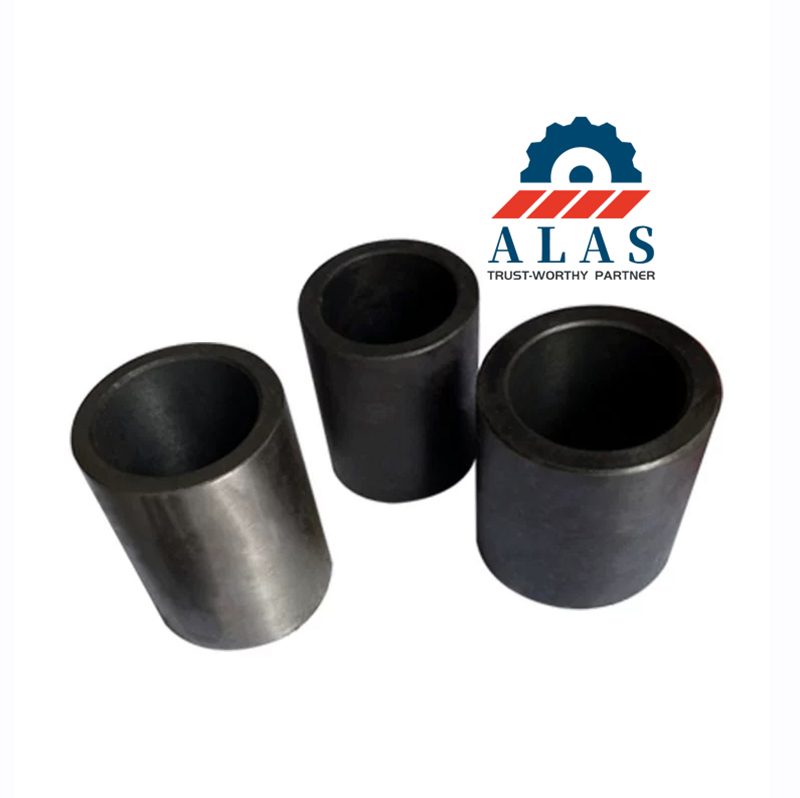

Q2: What is the mechanical and operational advantage of vacuum-hardened SKD11 steel over 40Cr?

A: Premium SKD11 features chromium and molybdenum additions providing resistance against continuous abrasive rib friction, delivering 3 to 5 times longer service cycles under severe 24/7 factory conditions compared to standard 40Cr.

Q3: What production parameters are required for ordering custom or special-shaped bender sleeves and eccentric collars?

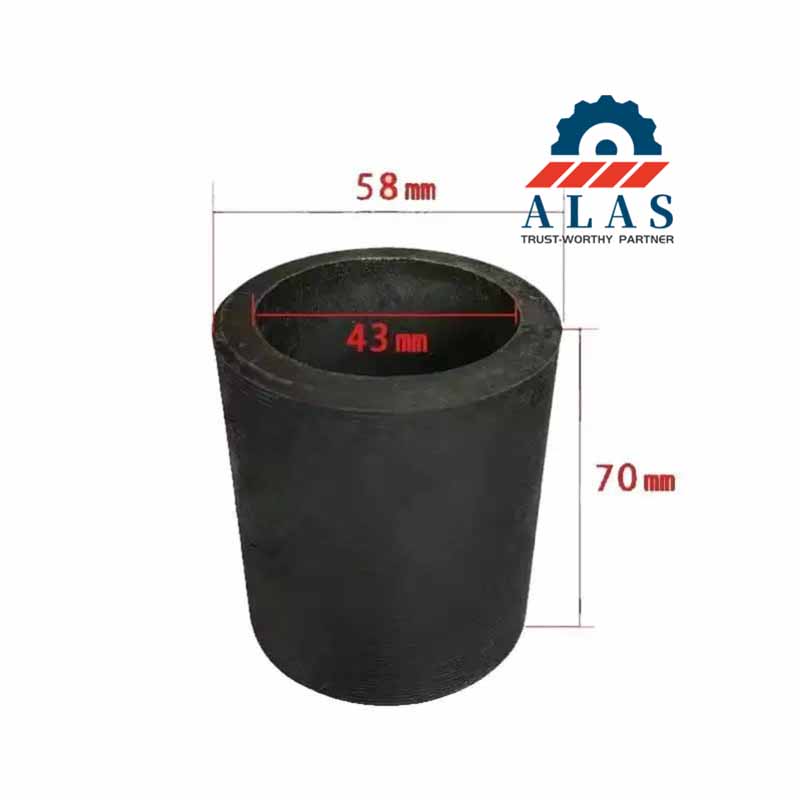

A: Please provide our application engineering team with technical layouts detailing your exact outer diameter (OD), required inner bore (ID) clearances, total component height, and preferred core heat treatment boundaries.
