(Size Reduction & Pellet Cutting Full Specification Manual)
This guide centers on plastic granulator blades, the core consumable for plastic recycling size reduction. It also covers matching cutter solutions for downstream pelletizer cutting systems to support full-process plastic recycling production. Specialty blade types including hook blades, arc blades, toothed blades, screen matching application scenarios and PE film winding problems belong to plastic granulators for shredding bulk plastic lumps, films and mixed scraps. Precision straight blades fitted on pelletizers cut extruded molten plastic into uniform pellets, and pelletizers operate without internal screen structures and rarely suffer from film winding on shafts.
The core principle of ALAS plastic granulator blades selection is to strike a balanced trade-off between hardness (wear resistance & edge retention) and toughness (impact & chipping resistance). No single blade grade works for all operating conditions; all selections must be customized to actual production requirements. This guide forms a logical, easy-to-follow selection system covering material analysis, material & geometric matching, machine parameter commissioning and full-lifecycle maintenance. With standardized operation steps and material-targeted schemes, it enables accurate, cost-efficient ordering of ALAS plastic granulator blades for plastic recycling lines.
Layer 1: Selection Foundation – Material Property Analysis
Most common production faults such as granulator blade wear, edge chipping, material wrapping, screen clogging and uneven granule size arise from mismatched granulator blades and feedstock. Confirm three decisive factors before selecting your plastic granulator blades:
1. Plastic Material Type (Defines Wear Level & Cutting Requirements)
Soft, sticky material that easily wraps around granulator rotors. Granulator blades require sharp cutting edges plus anti-winding structural design to lower shear resistance and eliminate unplanned downtime from wrapping blockages.
Heat & corrosion-sensitive plastics (rigid PVC)
Frictional heat triggers melting and screen clogging; PVC additives carry corrosive properties. Granulator blades need reliable high-temperature resistance, corrosion resistance and anti-annealing performance.
General rigid plastics (ABS, PC, PS, regular rigid PP)
Moderate, stable abrasion level. Granulator blades only require balanced wear resistance and toughness with cost-effectiveness as priority.
2. Material Contamination Level (Sets Required Toughness Grade for Granulator Blades)
Clean industrial plastic trim scraps
Free of sand, stone and metallic impurities with no impact shock risk. Higher-hardness granulator blades are recommended to extend service life.
Contaminated post-consumer recycled plastics
Mixed with sand, iron scraps and rigid debris creating frequent impact loads. Toughness takes priority over maximum hardness to prevent granulator blade edge chipping and complete fracture.
Material requires repeated shearing to pass fine screens, placing strict sharpness demands on granulator blades. Dull granulator blades generate excessive heat, causing screen blockage and higher power consumption; this setup exclusively applies to granulator size-reduction equipment.
Coarse granule output (large-size screen mesh)
Fewer cutting cycles with heavier single-cut loading. Sharpness requirement decreases, while granulator blade overall impact resistance becomes critical for thick and oversized bulky materials; this setup exclusively applies to granulator size-reduction equipment.
Layer 2: Selection Core – Hardness vs. Toughness Trade-off
This basic trade-off governs all material and structural choices for plastic granulator blades:
Hardness: The capacity to resist abrasion and hold sharp cutting edges. Higher hardness delivers longer service life for abrasive feedstock including glass-filled and mineral-modified plastics. However, excessive hardness increases brittleness and weakens impact resistance of granulator blades.
Toughness: The ability to absorb impact force and resist chipping or breakage. Higher toughness protects granulator blades against collision from foreign impurities, ideal for contaminated recycled materials. Overemphasis on toughness sacrifices hardness, leading to faster blade dulling and frequent replacement cycles.
Core Selection Rule: Specify high-hardness granulator blades for clean feedstock; prioritize high-toughness grades for contaminated materials; adopt balanced-performance granulator blades for continuous high-speed mass production.
Match granulator blade material and structural geometry simultaneously based on feedstock characteristics, avoiding one-sided performance defects to achieve optimal cutting efficiency.
1. Mainstream Granulator Blade Material Comparison & Application Reference Table
Superior chipping resistance compared with SKD11, equivalent abrasion resistance
Slightly contaminated scraps, filled modified plastics, continuous high-throughput production lines; top choice for feedstock containing tiny metal and hard impurities
H13 Hot Work Steel
HRC 55–58 (calibrated for cutting blades), heat & corrosion resistant
Resists thermal annealing, stable under high temperature, anti-corrosion property
Heat-sensitive PVC plastics, high-speed continuous granulator cutting. For heavily corrosive PVC working conditions, 9Cr18MoV stainless steel or hard chrome-plated SKD11 granulator blades work better.
HSS (High Speed Steel)
Stable hardness retention under high frictional temperature
Maintains sharpness under thermal buildup, service life 40%–60% longer than D2 steel
High-speed production lines, frequent cutting of thin films & sheets, recycled materials with minor metallic impurities
Tungsten Carbide (YG6/YG8/YG10/YG12)
HRA 89–92, extreme hardness & wear resistance
Service life 5–8 times longer than SKD11 granulator blades, exceptional abrasion resistance
YG6/YG8: High-abrasion clean rigid PET materials; YG10/YG12: Only for feedstock filled with non-metallic additives such as calcium carbonate powder and glass fiber. Strictly forbidden for materials containing metallic impurities, which triggers instant edge chipping. DC53 or HSS granulator blades serve as viable alternatives for metal-contaminated scraps.
Powder Metallurgy Steel (ASP/CPM)
Combined high hardness and high toughness, well-rounded performance
No obvious performance weaknesses, integrates wear resistance, impact resistance and thermal stability
High-precision granulation, complex mixed waste materials, 24-hour non-stop mass production granulator lines
65Mn/55SiCr
HRC 52–56, entry-level carbon structural steel
Low material cost, basic toughness for light-duty operation
Laboratory test granulators, ultra-low-volume clean fine trim scraps (not recommended for mass production granulator blades)
Select customized granulator blade geometry according to feedstock form to resolve wrapping, incomplete cutting, edge chipping and uneven discharge issues. Most shaped profiles are designed for granulator size reduction units, while plain precision straight blades mainly apply to pelletizer cutting assemblies:

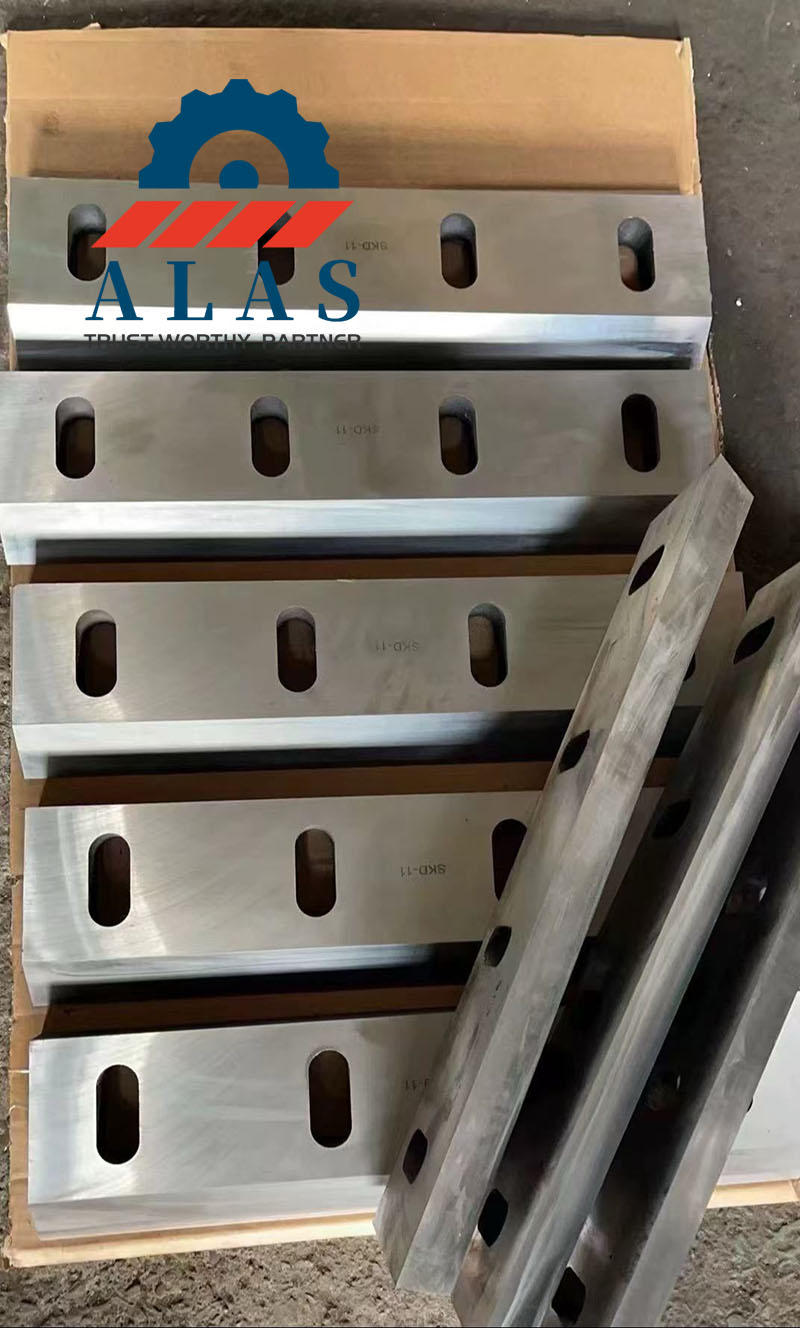

Straight / Scissor Edge Granulator Blades: Produce clean, burr-free precise cuts; fit rigid clean plastics including PET, ABS and PC, compatible with both granulators and pelletizers.
Hook / Arc Edge Granulator Blades: Optimized anti-winding design exclusively for granulators handling flexible films and fibers, preventing rotor wrapping and machine jamming.

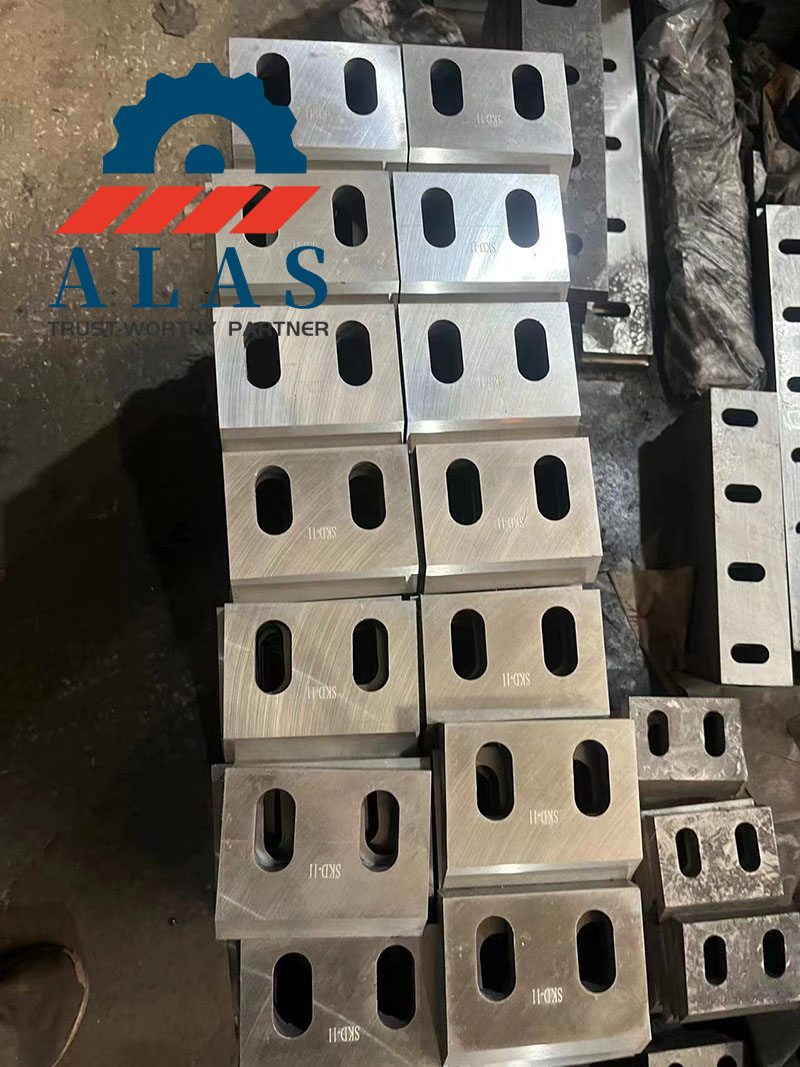

Staggered Step Granulator Blades: Low cutting resistance and strong impact tolerance, suited for thick-walled plastic, solid injection molded parts and large rigid blocks on granulator equipment.
Paddle Granulator Blades: Flexible scissor-style shearing action ideal for thin films and sheets, eliminating pulling and stringing defects.
Toothed Granulator Blades: Powerful tearing capacity for coarse granulation, processing oversized, bulky waste plastic lumps without granulator jamming.
Reinforced Staggered Granulator Blades: Sacrifices partial sharpness to maximize impact resistance, tailored for granulator processing scraps mixed with non-metallic mineral impurities.
Picking the correct grade of granulator blades only completes half the configuration work. Precise commissioning unlock full blade performance and prevent equipment damage and inefficient operation.
Standard clearance range: 0.1mm–0.3mm, adjustable per actual working conditions:
Fine granule / small mesh screen setup: Set clearance at 0.1mm–0.2mm to guarantee repeated precise cutting, eliminate stringing and screen clogging (granulator exclusive configuration).
Coarse granule / thick material setup: Set clearance at 0.2mm–0.3mm to reduce cutting load and avoid granulator blade overload collision damage.
Clearance Fault Hazards: Excessive clearance leads to incomplete cutting, stringy material tails and spiking power consumption; insufficient clearance causes direct friction and collision between rotor and stator granulator blades, resulting in edge breakage.
2. Standard Granulator Blade Installation Principles
Paired Replacement Rule: Rotor and stator granulator blades function as a matched shear set. Always replace and calibrate them as a complete group to ensure uniform wear, consistent stress distribution and stable long-term clearance.
Unified Material Grade Rule: Match identical material and hardness for paired rotor and stator granulator blades, preventing asymmetric wear and rapid clearance deviation.
Precise Dimension Matching Rule: Strictly verify granulator blade length, width, thickness and mounting hole pitch. Non-standard dimensions trigger equipment vibration, uneven cutting efficiency and material blockage inside the granulator chamber.
3. Screen Mesh & Granulator Blade Synergy Logic
Finer screen meshes demand more cutting cycles and higher sharpness standard for granulator blades. Dull granulator blades generate excessive frictional heat, directly causing material melting, screen clogging, reduced throughput and increased power draw. This synergy rule only applies to screen-equipped granulator size reduction equipment; pelletizers produce uniform pellets via precise cutter clearance without internal screen components.
Total operating cost of ALAS plastic granulator blades covers purchase expense, downtime loss, grinding cost and premature wear loss. Systematic maintenance effectively extends granulator blade service life and cuts long-term operational expenditure.
1. Preventive Grinding (Key Measure to Extend Granulator Blade Lifespan)
Do not wait for fully rounded edges or abnormal discharge issues to arrange grinding service. Schedule minor grinding immediately once cutting efficiency slightly declines or fine stringing appears on output granules.
Control grinding removal depth at 0.03mm–0.05mm per preventive dressing cycle. Regular micro-grinding, instead of heavy one-time grinding after complete dullness, can boost total service life of granulator blades by more than 30%. Minor repeated grinding preserves blade base thickness, increases total regrind cycles and avoids thermal damage from prolonged dull-blade operation.
Install magnetic separators, air classifiers and screening devices at granulator feeding inlet to remove metal scraps, stones and rigid foreign objects in advance. All high-performance granulator blades are vulnerable to impact damage; pre-filtering is the most economical solution to prevent edge chipping and blade fracture. Tungsten carbide granulator blades are extremely sensitive to metallic contaminants and must be equipped with rigorous impurity removal systems.
3. Standard Operation Management
Maintain consistent, steady feeding speed; avoid heavy direct impact from oversized rigid chunks striking granulator blade edges.
Inspect granulator blade condition regularly; perform grinding for mild wear, replace severely chipped or deformed blades promptly.
Stop production immediately when granulator blades turn dull to prevent permanent blade failure from high-temperature annealing.
4. Data-Driven Granulator Blade Optimization
Record actual runtime, grinding intervals and wear degree of different-grade granulator blades under your unique feedstock. Summarize field data to realize targeted, accurate granulator blade procurement for your dedicated production conditions.
Layer 6: Standard 5-Step Accurate Selection Process for ALAS Plastic Granulator Blades
This universal five-step workflow fits all plastic recycling granulation and pelletizing scenarios for precise granulator blade matching:
Evaluate working conditions: Confirm plastic type, material cleanliness grade, feedstock form (film / thick plate / solid molding part) and target finished granule size
Select granulator blade material grade: Choose optimal steel or carbide specification according to wear resistance, toughness and high-temperature resistance requirements
Confirm granulator blade geometric profile: Match straight, hook, staggered or toothed blade style based on feedstock characteristics
Verify machine compatibility: Check granulator blade overall dimensions, mounting specifications and fitment for rotor & stator installation
Calibrate operational parameters: Set standard 0.1–0.3mm blade clearance, match corresponding screen mesh for stable granulator production
PP (Polypropylene): Medium abrasion, high inherent toughness. Clean feedstock: SKD11 granulator blades; contaminated feedstock: YG10/YG12 high-toughness carbide granulator blades (non-metallic impurities only), paired with straight or staggered blade profile.
PE (Polyethylene Film / Rigid PE): High viscosity, prone to rotor wrapping. Film processing: 9CrSi granulator blades with hook anti-winding design (granulator dedicated); rigid PE processing: SKD11 or YG8 anti-stick carbide granulator blades.
PET: High-abrasion rigid plastic. Recommended YG6/YG6X high-hardness carbide granulator blades with straight precision-cut profile for maximum service longevity.
ABS / PC: Stable medium-abrasion feedstock. Standard specification: SKD11 granulator blades; upgrade to HSS high-speed steel granulator blades for high-throughput production lines.
PVC: Heat-sensitive, corrosive feedstock. Conventional solution: optimized H13 (HRC55-58) granulator blades; severe-corrosion working condition upgrade: 9Cr18MoV stainless steel or hard chrome-plated SKD11 granulator blades.
Glass / Mineral-Filled Modified Plastics: Extreme abrasion property. Specify tungsten carbide or powder metallurgy granulator blades, only applicable for clean feedstock or materials with non-metallic fillers exclusively.
Mixed Contaminated Scraps (Sand & Metal Included): Prioritize DC53 or HSS high-toughness steel granulator blades; tungsten carbide granulator blades are strictly prohibited to prevent instant chipping and catastrophic fracture.
Layer 8: Common Granulator Blade Selection & Operation Mistakes to Avoid
Never blindly pursue maximum hardness: High-hardness granulator blades suit clean feedstock only; contaminated materials require sufficient toughness to prevent edge chipping.
Do not overlook heat treatment quality: Premium vacuum quenching plus cryogenic treatment delivers better practical performance for ordinary steel than poorly processed high-grade granulator blade materials.
Avoid single-component optimization only: Granulator blades, screen mesh, blade clearance and feeding system must work synergistically to achieve optimal overall efficiency.
Do not select granulator blades purely based on low upfront purchase cost: Cheap low-grade granulator blades trigger frequent replacement and production downtime, leading to higher total long-term operational expenditure.
Never install tungsten carbide granulator blades for metal-contaminated feedstock: All carbide grades are highly brittle against hard metallic impact force, causing immediate irreversible blade damage.
Final Summary
Selection logic for ALAS plastic granulator blades is clear and systematic: feedstock-oriented, working-condition adaptive, geometry-matched, maintenance-backed. Reasonable balance between hardness and toughness, matched granulator blade profile plus calibrated operational parameters, together with standardized maintenance protocols, guarantee consistent granulation quality, low energy consumption and no thermal melting defects. This solution maximizes service life of ALAS plastic granulator blades and effectively cuts overall production cost for plastic recycling enterprises.
