Why Press Brake Dies Wear Out Fast: Failure Analysis & Steel Selection Guide

Abstract: In sheet metal bending, issues like V-die shoulder cave-ins, radius scratching/galling, and frequent downtime for tool grinding or replacement severely bottleneck shop capacity. Based on extensive on-site troubleshooting and metallurgical analysis, this guide breaks down the 4 real-world floor triggers of rapid die wear. It provides practical upgrade roadmaps across 5 steel grades (including H13 hot-work steel) and surface hardening parameters, complete with tool-life benchmarks and ROI cost breakdowns to help engineering personnel optimize tooling selection.

1. On-Site Inspection: 4 Real Causes of Premature Die Failure

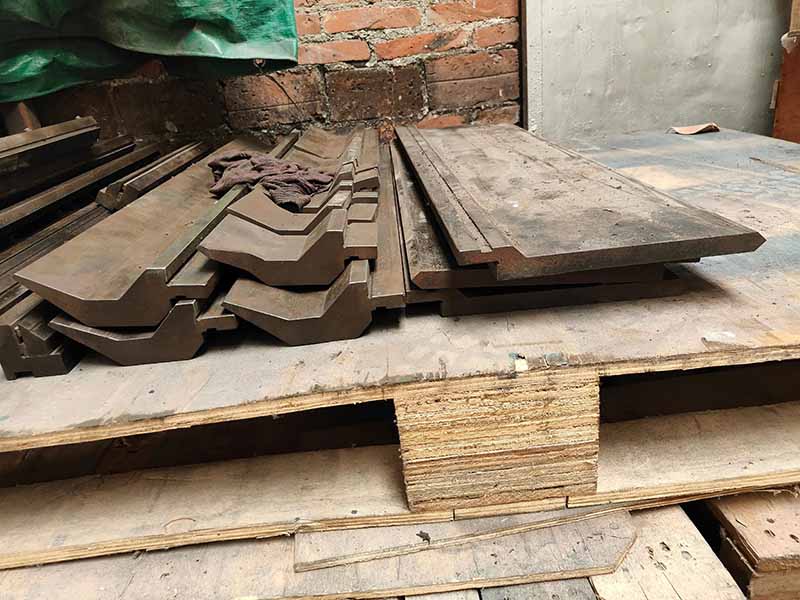

Shop foremen often blame rapid die wear on "hard plates" or dismiss it as "normal wear and tear." However, shop-floor inspections and microstructural testing reveal that over 90% of premature die failures stem from specific operational mismatches and heat-treatment oversights:

A. Forcing High-Strength Steel or Thick Plates (Overload Operation)

• Floor Reality: The existing dies were originally designed and rated only for standard cold-rolled mild steel or thin-gauge sheets.

• Wear Mechanism: When the shop takes on temporary jobs involving high-strength steel (e.g., automotive high-strength steel, wear-resistant plates) or heavy-gauge blanks, the shear and compressive stresses skyrocket. Standard carbon steels or tool steels that are only toughened (quenched and tempered) lack the yield strength and abrasive wear resistance required. This leads to rapid shoulder radius flattening, V-groove expansion, and even catastrophic punch tip chipping.

B. Long-Term Dry Bending (Lack of Lubrication Leading to Galling)

• Floor Reality: To bypass post-bending cleaning processes or simply save time, operators perform bending tasks completely dry without any lubrication medium.

• Wear Mechanism: Field data shows that die wear under dry friction conditions is 5 to 10 times higher than under standard lubricated conditions. With metal-on-metal sliding contact, adhesive wear occurs rapidly—especially when bending stainless steel or galvanized sheets. Material literally "welds" onto the die radius. This not only destroys the tooling prematurely but also leaves deep scratches and galling marks across the workpieces.

C. V-Die Width Selected Too Small (Instantaneous Localized Pressure Overload)

• Floor Reality: The V-die width does not match the plate thickness, often because operators force a tight V-opening to achieve an aggressively small inside bend radius.

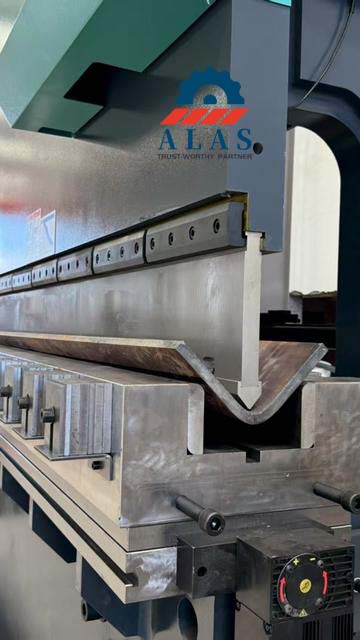

• Wear Mechanism: The contact area shrinks dramatically, causing localized compressive stress to exceed operational limits instantly. After a few hundred high-frequency strokes, localized shoulder cave-ins or severe radius wear appear. The immediate symptom on the floor is excessive angular springback and out-of-tolerance workpiece dimensions. This structural deformation cannot be salvaged by manual grinding or redressing. When processing thick plates or high-strength steel, upgrading to specialized Heavy-Duty High-Tonnage Press Brake Dies engineered with appropriate large V-openings is critical to prevent premature shoulder collapse

D. Blindly Chasing Hardness While Ignoring Heat Treatment Balance (Brittle Fracture)

• Floor Reality: Operating under the misconception that "harder is always better," procurement demands that suppliers maximize the through-hardening rating of 42CrMo dies.

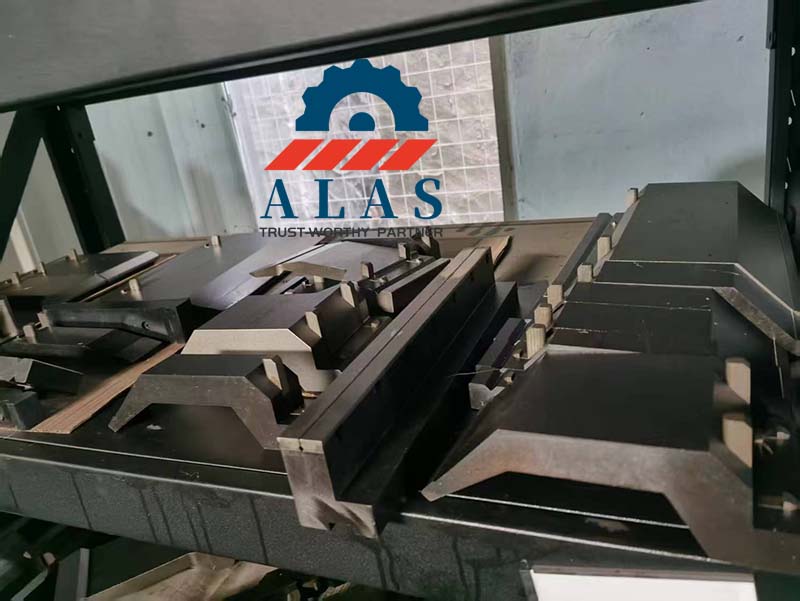

• Wear Mechanism: If 42CrMo is through-hardened past 50 HRC, massive residual stresses remain, causing fracture toughness to plummet. Under the high-tonnage impact of press brake operations, the die will not just wear out—it is highly prone to snapping or shattering under load, sending metal shards flying and creating severe floor safety hazards. The correct engineering methodology is "keep the core tough, make the surface hard." For standard everyday processing, utilizing professionally treated CNC Precision Single & Double V Dies that feature a dual-zone profile—a tough, impact-absorbing core paired with high-hardness induction-hardened working surfaces—is the best way to eliminate both deformation and brittle fracture risks.

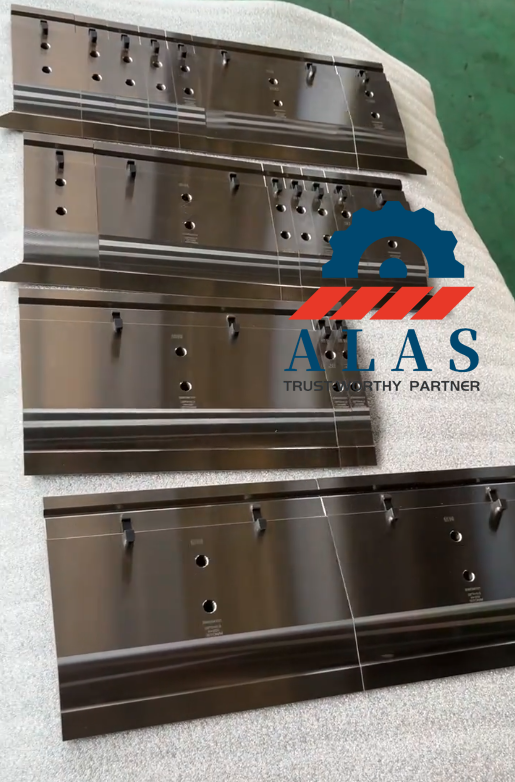

2. Mainstream Die Steel Heat-Treatment Roadmaps & Shop-Floor ROI Breakdown

In typical fabrication shop ecosystems, blindly purchasing premium steels violates lean production principles. The options below combine the industry-standard approach of "through-hardening + localized induction hardening" to give equipment supervisors a practical selection matrix:

3. Die Surface Hardening & Enhancement Alternatives (Low-Cost, High-Return Methods)

On the production floor, since press brake tooling usually exceeds one meter in length, applying long-bar PVD vacuum coatings (like TiAlN) is often unfeasible because the parts cannot fit inside typical vacuum chambers. Furthermore, the racking costs are high, and coatings tend to peel at sharp punch edges. The following methods offer far more practical, high-ROI alternatives:

A. Localized Induction Hardening on Working Faces (Highly Recommended Practical Solution)

Life Extension: 1.5x to 2.0x increase.

Cost Impact: Adds only about 15% to 20% to the baseline tooling fabrication fee.

Floor Experience: High-frequency induction heating coils selectively harden only the V-groove radius or the punch tip. The core of the die remains ductile (ensuring toughness so the tool never snaps under sudden overload), while the working face hardness shoots past 52 HRC. The boost in wear resistance is immediate and visible.

B. Liquid or Gas Ferritic Nitrocarburizing / Nitriding (HV 900 Case Hardening)

Life Extension: 1.5x to 1.8x increase.

Cost Impact: Charged by weight; equates to roughly a 20% price premium per tooling set.

Floor Experience: Nitriding temperatures are kept low (typically 500–540°C), meaning it will not trigger secondary thermal distortion or warping in long dies. It creates a nitride case layer a few dozen microns thick with extreme surface hardness (equivalent to 65+ HRC). This provides superb anti-galling performance, making it highly effective for dry or minimal-oil bending of stainless steel and galvanized sheets.

4. FAQ: Shop-Floor Troubleshoot Q&A

Q: Why do the exact same 42CrMo dies wear out much faster in our shop than at our competitor's?

A: Check two critical details on your shop floor immediately:

• Heat Treatment Specification: When ordering from your tooling supplier, did they provide "standard Q&T (quenched and tempered)" or "Q&T + working face induction hardening"? Without localized induction hardening, the V-groove will quickly show compression tracks, deformation, and indentations under continuous stress.

• Lubrication Discipline: Are your operators running the sheets completely dry? Interfacial friction accelerates abrasive wear. Even brushing a minimal layer of standard stamping lubricant or waste oil onto the bending zones will instantly cut down the wear rate and protect the radius.

Q: Stainless steel bending keeps tearing up our die radius and scratching the workpiece faces. What is the cheapest fix?

A: Upgrade your die material directly from 42CrMo to Cr12MoV, and make sure it undergoes full surface nitriding. The nitride case delivers extreme hardness and drastically lowers the friction coefficient between the sheet and the tool. If your current budget is completely frozen, an alternative is to place a polyurethane protective bending film (urethane die pad tape) over your existing die face during operation. This completely eliminates metal-on-metal contact and wipes out scratch defects.

Q: If 42CrMo deforms under heavy plate/high-strength steel runs, does switching to H13 actually help?

A: Yes, absolutely. H13 is an ideal upgrade material for heavy plate handling and high-frequency, continuous structural lines. While H13 is known as a hot-work steel, its standout advantage in cold press brake operations is its exceptional through-hardenability and structural impact toughness. Where standard 42CrMo fails by chipping or snapping under heavy plate impacts, H13 maintains a steady 50–53 HRC rating throughout its cross-section while retaining excellent core toughness. If your shop runs heavy plates or high-strength structural grades back-to-back, upgrading to H13 drastically cuts down the risk of catastrophic die explosion.
