Technical Manual for Roll Forming Machine Hydraulic Post-Shearing Blades

This technical manual provides a comprehensive operational guide for hydraulic post-shearing blades used in cold roll forming lines (covering standard 840/900 trapezoidal, 750 low-rib, 470/760 standing seam, and 828 glazed tile profiles). It outlines the mechanical integration and profile-matching principles required to execute cut-to-length shearing without panel deformation.

Key industrial takeaways from the guide include:

• Tooling Specifications: A compatibility breakdown of monoblock corrugated blades and segmented split-block assemblies based on rib depth and profile geometry.

• Clearance Standards & Calibrations: A step-by-step procedure for setting the optimal blade gap to 5%–10% of the sheet thickness using a feeler gauge, supplemented by a cutting-edge diagnostic matrix for burr and chipping prevention.

• Metallurgical Overview: Selection boundaries for standard cold work die steels (Cr12MoV and SKD11) and heat treatment standards required to secure a tool life of over 1 million cuts.

• System Troubleshooting: A sequential, floor-proven diagnostic checklist to isolate and resolve cutting stalls, covering low oil levels, 3-phase voltage drops, directional solenoid valve sticking, limit switch misalignments, and internal cylinder bypass leaking.

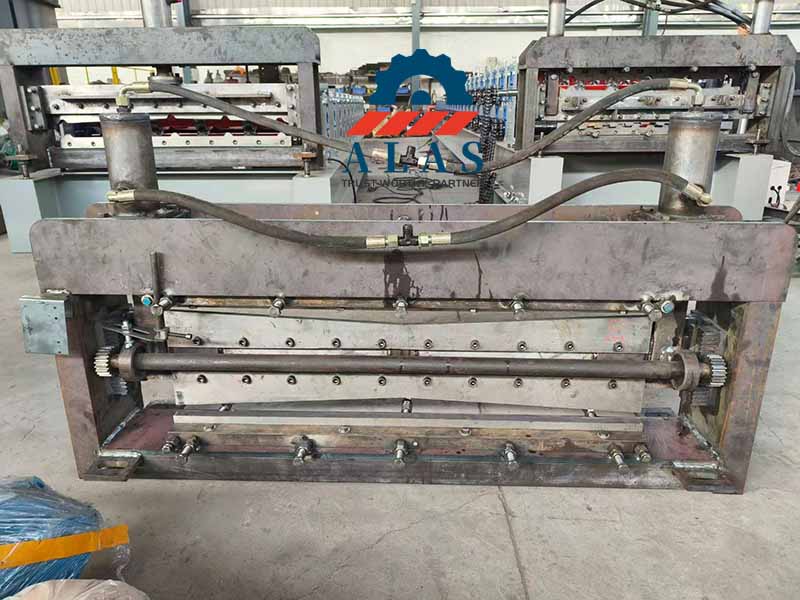

1. Description and Equipment Pairing

Hydraulic post-shearing blades are installed at the exit end of roll forming machines. Driven by a hydraulic station, they perform fixed-length cutting after the profile is fully formed. This manual applies to tools for standard trapezoidal sheets (840/900 models), low-rib wall panels (750 model), standing seam/Klip-Lok profiles (470/760 models), and curved glazed tile profiles (828 model).

These tools feature three core operating characteristics:

• Wave-Matched Profiling: The cutting edge profile must strictly match the physical wave shape of the finished steel panel. The upper and lower blades mesh simultaneously to perform a single clean cut, preventing profile deformation.

• Hydraulic Drive: Powered by a hydraulic pump station, a cylinder drives the upper blade slide vertically. Standard units use a 3 kW to 5.5 kW hydraulic station with a system relief valve pressure set between 10–14 MPa (100–140 Bar / 1450–2030 PSI).

• PLC Inline Synchronization: The shearing unit operates in sequence with the decoiler, roll forming stations, and PLC encoder system to achieve continuous forming and automatic cut-to-length operation.

2. Working Principle

Once the steel sheet passes through the roll forming stations, the PLC monitors the panel length via an encoder. Upon reaching the preset target, the PLC triggers the cutting command. The hydraulic cylinder drives the upper blade slide downward to mesh with the lower blade, shearing the panel.

During the downward stroke, the corrugated profile of the upper blade aligns with the cavities of the lower blade. The shearing force is distributed evenly across the wave profile to eliminate localized stress concentrations that cause panel warping or edge curling. A sheet support mechanism secures the panel right before the cut to prevent the steel from lifting due to the stroke impact.

The upper blade slide is constructed from rough-milled Q235 steel plates that undergo stress-relief annealing before final precision machining. The lower blade base is made of cast iron or thick steel plate to maximize shock absorption and impact resistance.

3. Blade Classifications and Geometry

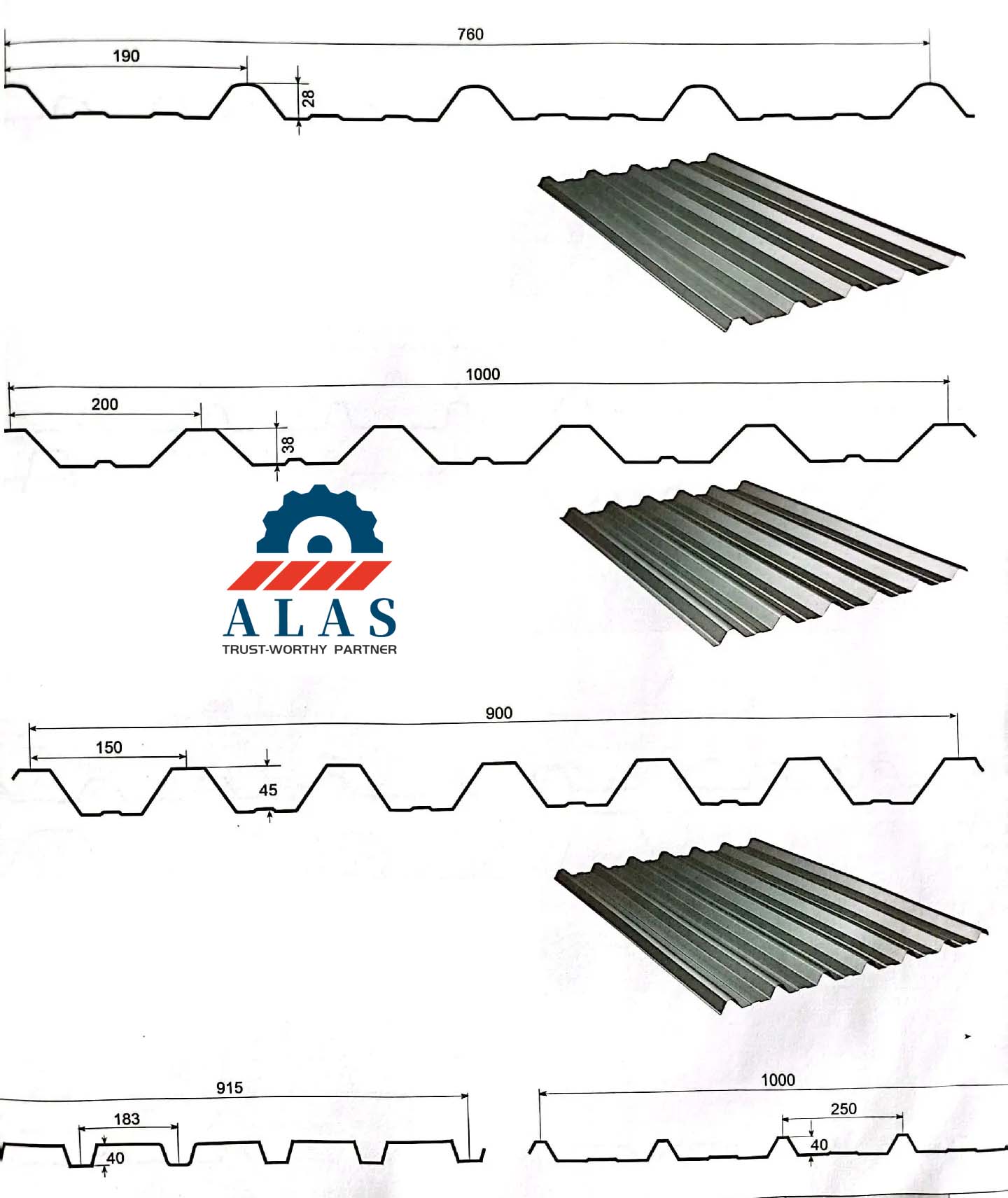

3.1 Profile and Model Compatibility Matrix

Post-shearing blades are heavily customized tooling components. Due to slight variances in roll forming mill designs among machinery builders, blade profiles are non-interchangeable. The following matrix outlines standard commercial specifications for sourcing roll forming profile shear blades：

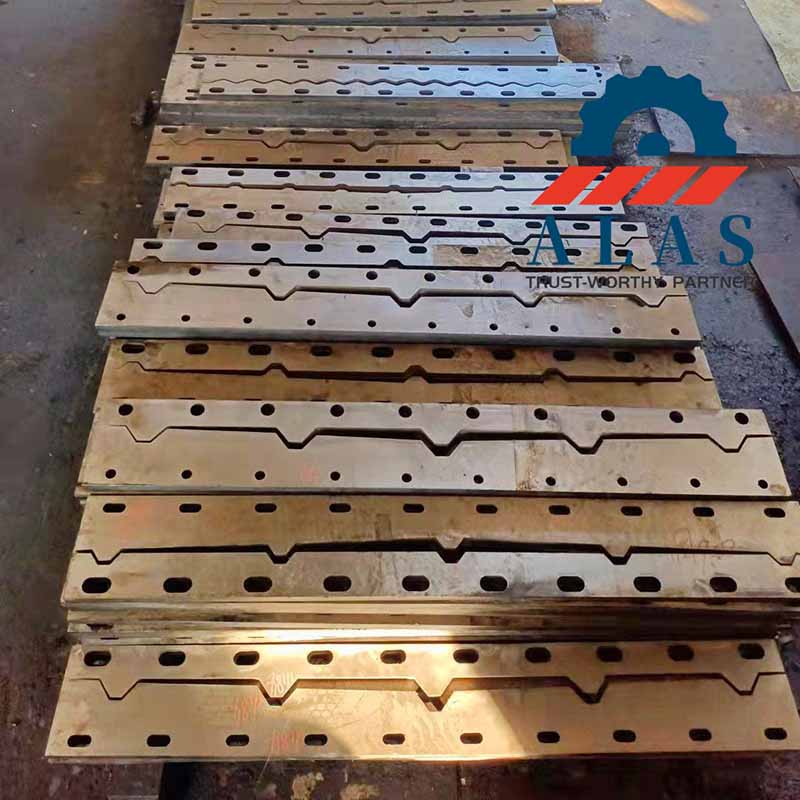

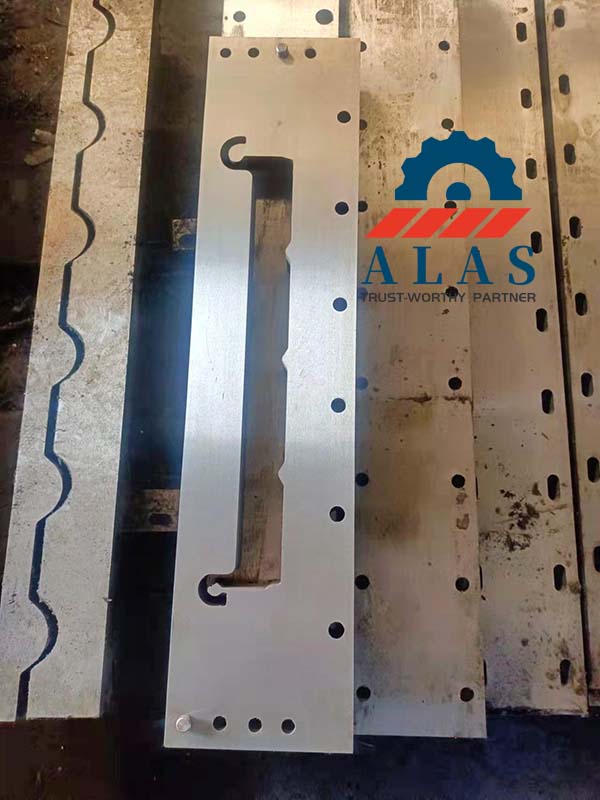

• Engineering Note: High-rib profiles (e.g., Standing Seam, Klip-Lok) feature deep, complex geometries. These models utilize a segmented, split-block knife assembly rather than a single monoblock blade to simplify inline gap adjustments and bench regrinding.

3.2 Cutting Edge Structure

The assembly consists of an upper blade and a lower blade. The upper blade is bolted to the moving cylinder-driven slide, while the lower blade is locked to the stationary base. The lower blade seat includes micro-adjustment screws or shims for precise clearance calibration. Because profile shearing involves sequential segment-by-segment meshing along the curves, the cutting edges are ground at an acute angle to compensate for angular deviations during the stroke.

Operator Warning: If a newly installed blade causes profile deformation, it is usually because the tool was ordered solely by a generic model name (e.g., "840") without accounting for the actual springback dimensions of the roll-formed panel. Custom blades must always be manufactured based on physical measurements of the formed panels or the original equipment manufacturer's blueprints.

4. Materials Selection and Heat Treatment

4.1 Tool Steel Classifications & Material Selection

Group A (Standard Grade): SKD11 & Cr12MoV (The Industry Standards)

• Metallurgical Pairing: Japanese standard SKD11 and Chinese standard Cr12MoV are peer-level alternatives. They represent the most reliable high-chromium cold work die steels for regular daily production.

• Performance: Hardness stabilizes at HRC 58–62 after vacuum quenching and tempering. They offer robust resistance to continuous abrasive friction and cyclic shearing impacts.

• Application Constraints: Best suited for standard 0.3 mm – 0.8 mm PPGI (pre-painted galvanized iron) and GI sheets. A properly heat-treated blade from this group delivers over 1 million clean cuts under optimal maintenance.

• Note: Beware of low-tier replacement blades using legacy Cr12 (without "MoV"), which has poor toughness and chips easily.

Group B (Premium Grade): D2 & Cr12MoV1 (The Refined Long-Life Upgrades)

• Metallurgical Pairing: American standard D2 and China's high-spec grade Cr12MoV1 are exact chemical equivalents. They feature doubled molybdenum (Mo) and vanadium (V) content compared to Group A.

• Performance: This specific alloy refinement refines the carbide structure and ensures excellent core hardenability for thick, custom wave profiles. They deliver exceptional resistance to edge chipping, micro-cracking, and material galling (built-up edge).

• The Workshop Reality: While laboratory metrics show D2/Cr12MoV1 has 2 to 3 times the wear resistance of Group A, the actual lifespan extension on an average shop floor is roughly 15% to 20% due to machine rigidity limits and mill vibration.

• Application Constraints: Highly recommended for demanding environments, including thin stainless steel sheets, nano-insulated panels, high-strength structural steels, or heavy-gauge (>0.8 mm) hard GI runs. For extreme durability, these steels can be combined with PVD surface coatings like TiN or CrN.

4.2 Heat Treatment Specifications

Blades made of identical materials can experience a 2x to 3x lifespan variance based on heat treatment quality. High-quality blades must undergo vacuum quenching followed by multiple tempering cycles. This ensures uniform hardness, refines the grain structure, and eliminates internal residual stresses, preventing premature chipping.

Hardness is not a "higher is better" metric. For roll forming shearing applications, hardness should be maintained strictly within HRC 58–62. Exceeding HRC 62 makes the steel overly brittle and prone to catastrophic chipping, while dropping below HRC 58 accelerates wear, dulling, and burr formation.

5. Shearing Quality Control: Burr and Chipping Prevention

5.1 Five Primary Causes of Edge Burrs

• Dull Cutting Edges: When a blade dulls, it tears the steel rather than shearing it cleanly, creating severe burrs. The blade must be removed for regrinding or replacement.

• Incorrect Blade Clearance (Gap): Excessive clearance causes the steel to bend and tear between the blades, leaving stringy burrs. Insufficient clearance leads to material pinching, plastic deformation, and accelerated tool wear.

• Substrate and Surface Impurities: Attempting to cut sheets that exceed hardness limits, or running sheets contaminated with scale, weld slag, or construction debris, will damage the cutting edge.

• Insufficient Hydraulic Pressure: Low pressure or a deceleration of the cylinder stroke at the moment of impact leads to incomplete shearing.

• Loose Slide Guide Gib Bolts: The most common workshop oversight, allowing the entire upper blade assembly to shift laterally during the cut. Whenever unexpected burrs occur in production, the slide guide gib bolts should be the very first component checked and tightened.

5.2 Primary Causes of Blade Chipping

• Clearance Misalignment and Tool Crashes: Shimming mistakes or over-adjustment of the positioning screws, causing the upper and lower blades to physically collide.

• Regrinding Defects: Using an overly coarse grinding wheel or heavy downfeeds causes localized overheating (over-tempering), creating micro-cracks that lead to edge chipping under normal loads.

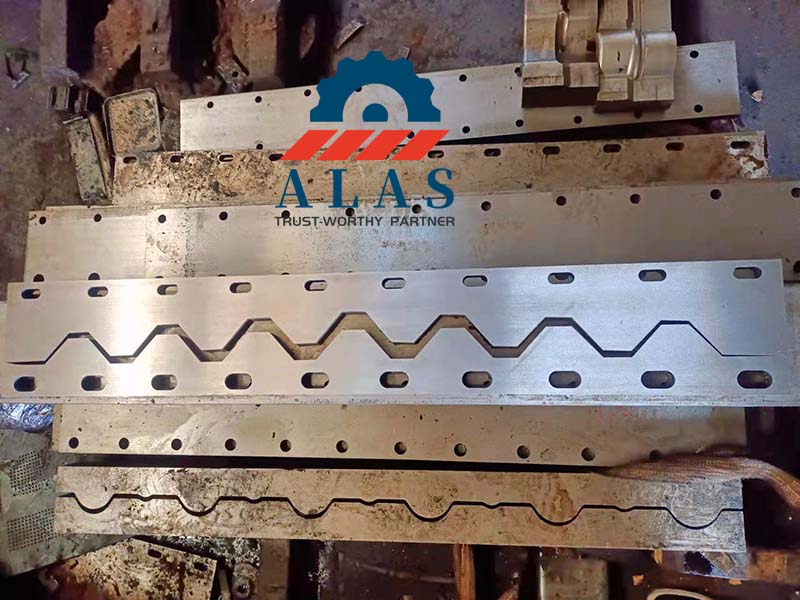

6. Blade Gap and Clearance Adjustment Guide

6.1 Clearance Standards

Set the blade clearance strictly to 5% – 10% of the sheet thickness.

• Example: For cutting a 0.6 mm PPGI sheet, calibrate the blade gap between 0.03 mm and 0.06 mm. Since post-shearing blades are long or split into multi-block segments, check the gap with a feeler gauge segment by segment.

6.2 Manual Alignment Procedure

1. Engage Jog Mode: Start the hydraulic pump, switch the control panel to Manual Jog Mode, and lower the upper blade slide slowly until the upper and lower blades begin to overlap.

2. Initial Positioning: Loosen the locking nuts on the back of the lower blade holder. Turn the positioning screws to adjust the lower blade forward or backward until the target gap is achieved.

3. Lock Blade Assembly: Jog the cylinder down until the upper and lower blades overlap by 2 mm – 3 mm (Note: Up to 5 mm max for specific high-rib profiles). If the slide stalls, slightly increase the relief valve pressure. Loosen the front adjustment screws of the lower blade, tighten the rear backing screws, and then lock the front screws down to secure the blade assembly.

4. Safety Check: Jog the cylinder upward to fully retract the blade. Listen carefully: If you hear heavy metallic friction or knocking, the blade gap is too tight or misaligned. Stop the pump immediately, back off the lower blade, and readjust.

5. Test Shearing: Take a scrap piece of sheet metal with identical thickness and material grade, execute a test cut, and inspect the fractured cross-section for burrs.

6.3 Clearance Diagnostics (Blade Gap Matrix)

7. Installation and Preventive Maintenance

• Absolute Cleanliness: Prior to installation, meticulously wipe down the mounting surfaces of both the blades and the blade seats to remove all metal chips, burrs, dust, and old grease. Any microscopic debris trapped behind the blade will cause it to bow, distorting the clearance gap and ruining the tool.

• Torque Sequence: Tighten all mounting bolts gradually using a star or crisscross pattern. Never torque one side down completely in a single step to prevent internal stress within the blade. Always wear cut-resistant gloves during handling.

• Lubrication: Apply a consistent mist of cutting fluid or light oil to the shearing zone or panel surface during production to mitigate friction-induced heat, which significantly extends blade life. Inspect the edges frequently; minor rounding can be dressed inline using a fine-grit oilstone.

• Operational Limits: Never attempt to cut steel sheets thicker than the machine's rated capacity (e.g., cutting a 1.2 mm sheet with a tool rated for 0.8 mm). Never run over sheets containing weld seams, rivets, or hardened structures. For temporary shutdowns or storage, coat the entire blade assembly with a premium rust-preventative oil.

8. Tool Life Management and Replacement Intervals

Lifespan is highly dependent on total stroke cycles, material properties, and clearance maintenance rather than calendar time:

• High-Volume Production (8–12 hours of continuous daily operation): With proper clearance maintenance and zero tool crashes, a standard Cr12MoV blade lasts 2 to 4 months. If consistently running heavy-gauge (0.7–0.8 mm) hard-grade galvanized sheets, lifespan drops to 2 to 3 months.

• Medium-Volume Production (4–6 hours of daily operation): Expected lifespan is 5 to 10 months.

• Intermittent / Small-Batch Production: Lifespan can extend to 1 year or longer.

Note: When transitioning from standard PPGI to stainless steel or nano-insulated high-strength panels, tool life drops by roughly 50%. A single severe tool crash or uncleaned weld seam can cause immediate, permanent destruction of the blade.

9. Hydraulic Shearing System Troubleshooting

If the shearing system fails to execute a stroke or stalls halfway through a cut, troubleshoot the hydraulic and electrical systems in the following sequential order:

1. Hydraulic Fluid Level Check

   • Symptom: Zero mechanical response from the cylinder.

   • Action: Inspect the sight glass on the oil reservoir. Low fluid levels cause the pump to draw air and fail to build pressure. Replenish with standard anti-wear hydraulic oil (e.g., ISO VG 46) immediately.

2. Voltage and System Pressure Verification

   • Symptom: Motor whines, stalls, or underperforms.

   • Action: Verify that the incoming 3-phase power supply is stable and matches the motor's nameplate rating (e.g., 3-Phase 380V/415V/440V). Connect a pressure gauge to the valve manifold and adjust the relief valve until the system pressure registers its rated output of 10 – 14 MPa (100 – 140 Bar / 1450 – 2030 PSI).

3. Solenoid Valve Inspection (Spool Sticking)

   • Symptom: The hydraulic pump runs normally, but the shear slide remains completely unresponsive.

   • Action: In dusty field environments, contaminated hydraulic oil will jam the directional solenoid valve spool. This is the most common cause of shear failure. Disassemble the valve, flush the housing and spool with solvent/diesel, blow out with compressed air, or replace the valve assembly.

4. Limit Switch & Proximity Sensor Calibration

   • Symptom: The blade executes one cut but fails to trigger subsequent automatic cycles.

   • Action: Check the physical alignment of the upper and lower limit switches or proximity sensors. If a sensor shifts out of position, loosens due to vibration, or fails internally, the PLC cannot receive the "stroke complete" signal, causing the automated routine to lock up. Realign, tighten, or replace the switch.

5. Cylinder Internal Bypass Diagnosis (Worn Piston Seals)

   • Symptom: The hydraulic gauge displays correct system pressure (10–14 MPa), but the blade lacks sufficient force to pierce the steel sheet upon contact.

   • Action: This indicates an internal hydraulic leak where oil bypasses the piston inside the cylinder due to worn-out or torn piston seals. Disassemble the hydraulic cylinder and replace the entire seal kit.

10. Post-Shearing Blade Operational Checklist

• Verify that the blade's profile matches the actual physical geometry of the formed panels rather than relying on the model name.

• Ensure the tool steel is authentic Cr12MoV or SKD11 hardened uniformly to HRC 58–62 with verifiable documentation.

• Verify the supplier’s heat treatment and hardness inspection documentation.

• Calibrate the blade clearance to 5%–10% of the target sheet thickness, check segmented blocks with a feeler gauge, and re-verify at the start of every shift.

• Thoroughly clean all mounting seats of metal scale and debris before bolting down blades, and use a diagonal torque sequence.

• When sudden burrs appear, inspect the slide guide gib tightness before altering the blade gap or removing the tools.

• Keep the shearing zone consistently lubricated to manage thermal expansion.

• Apply a heavy coat of anti-rust oil whenever the machine is scheduled for downtime.

• Troubleshoot mechanical stalls or weakness strictly in order: Fluid Level → Voltage/Pressure → Solenoid Valves → Limit Switches → Cylinder Internal Seals.
